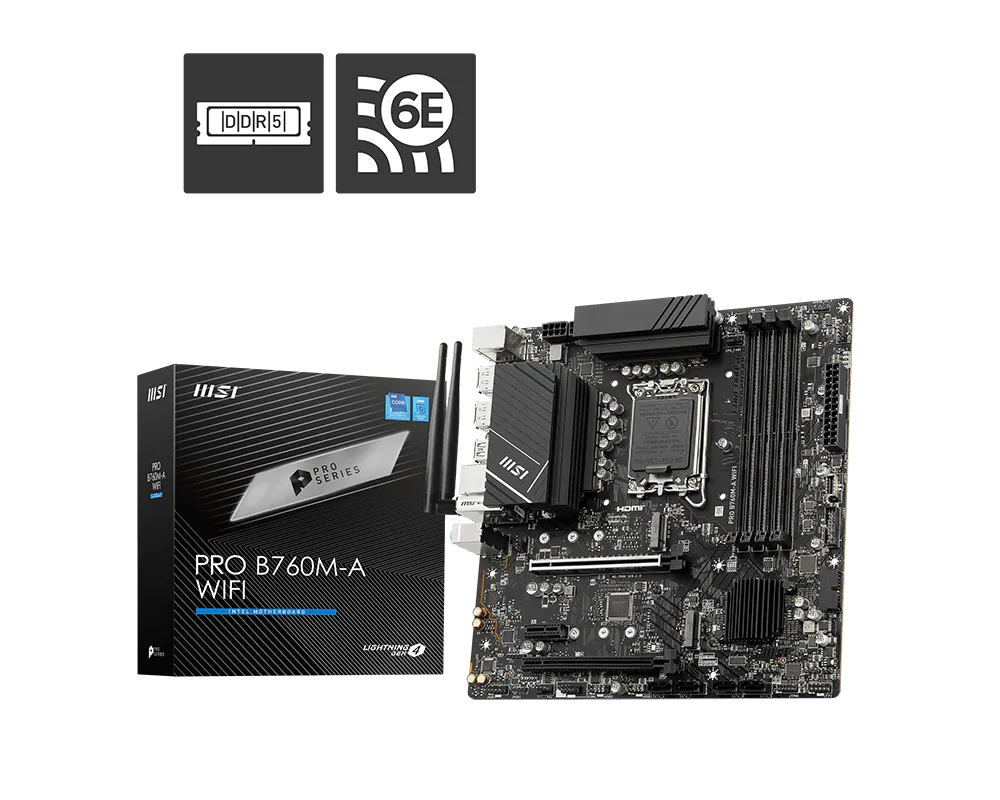

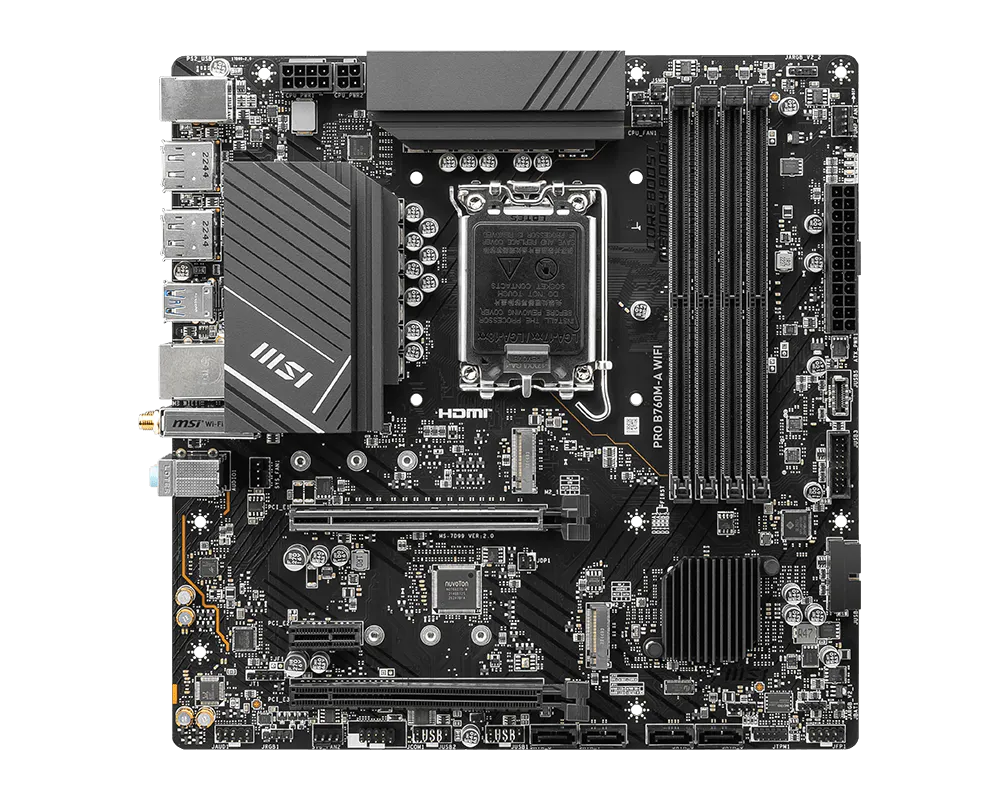

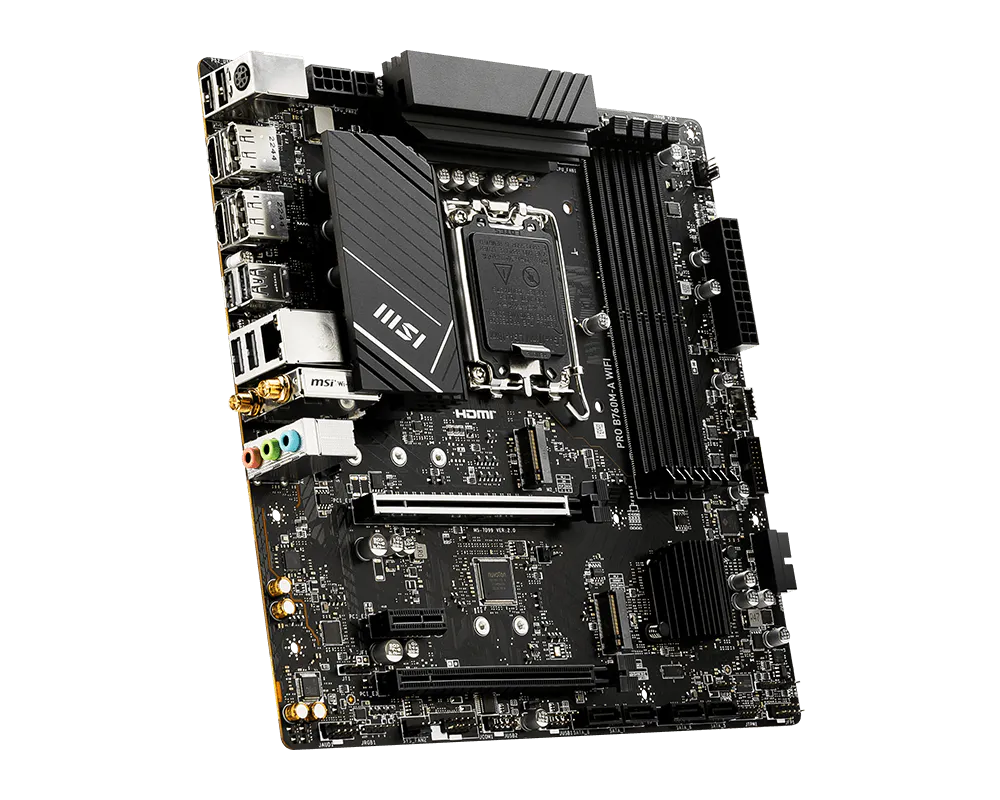

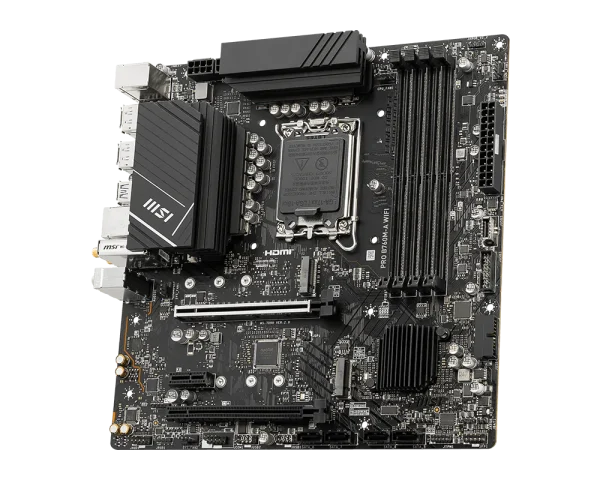

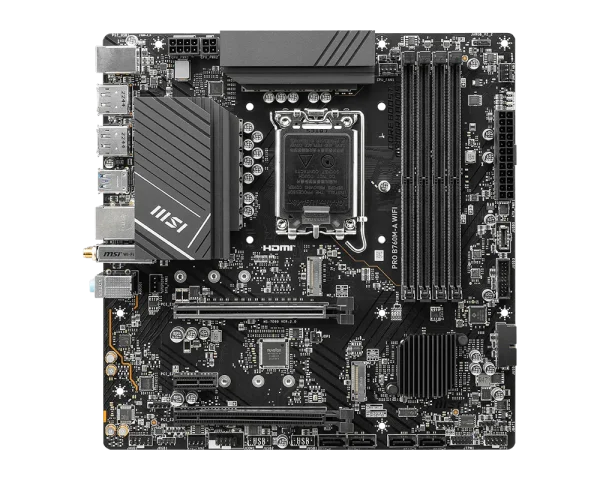

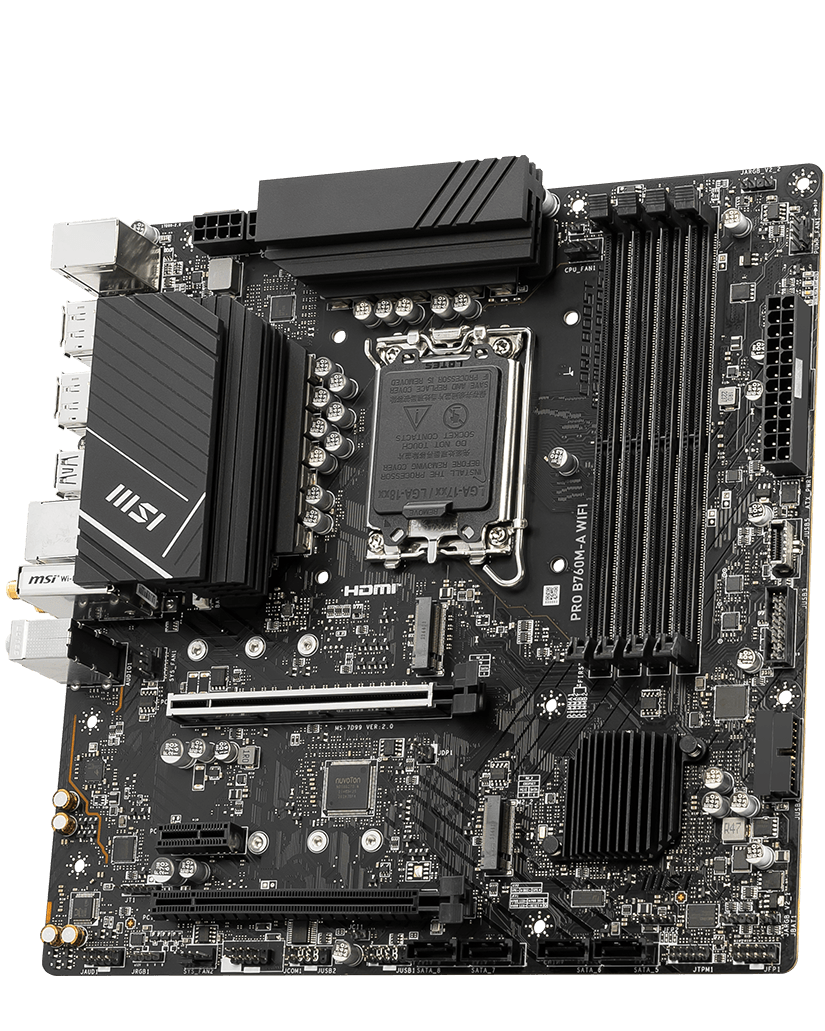

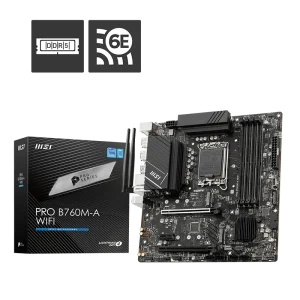

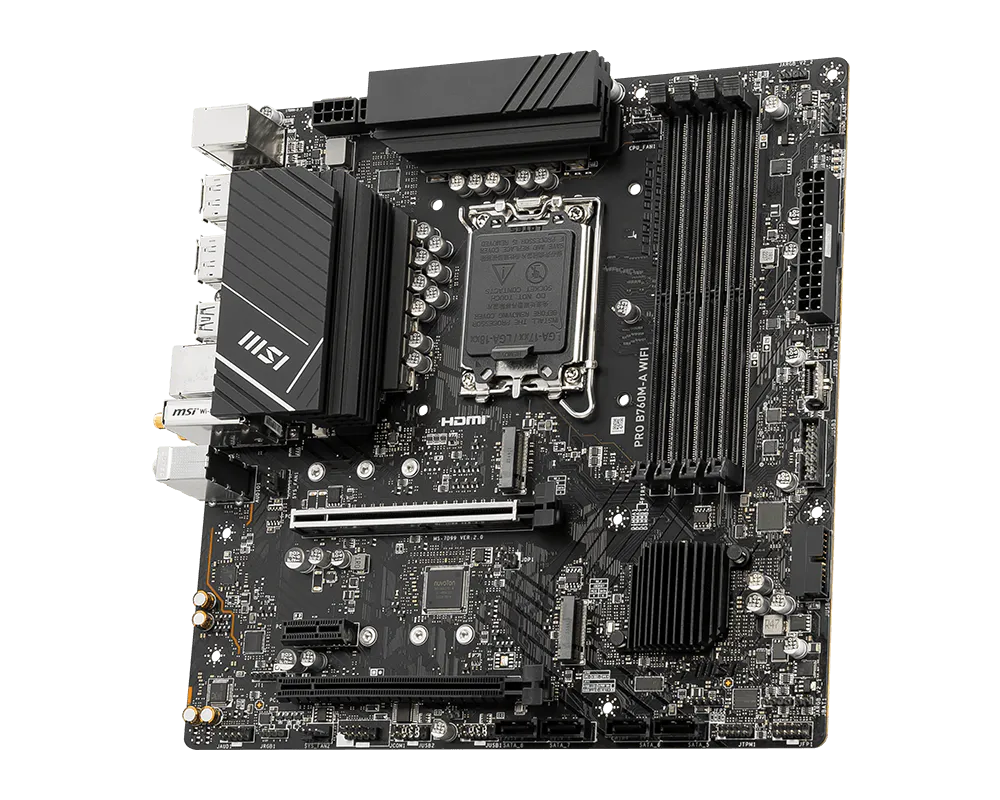

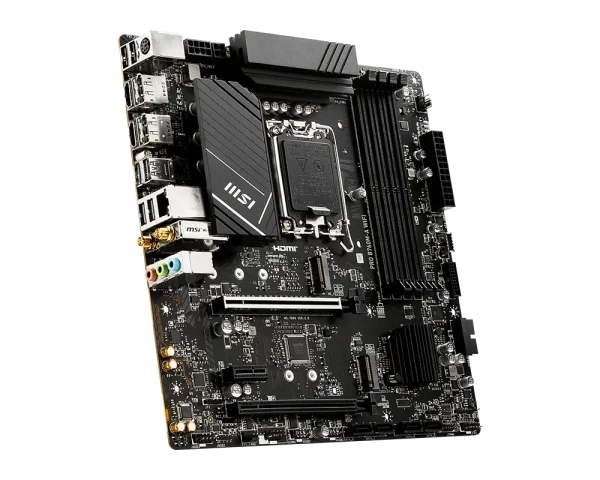

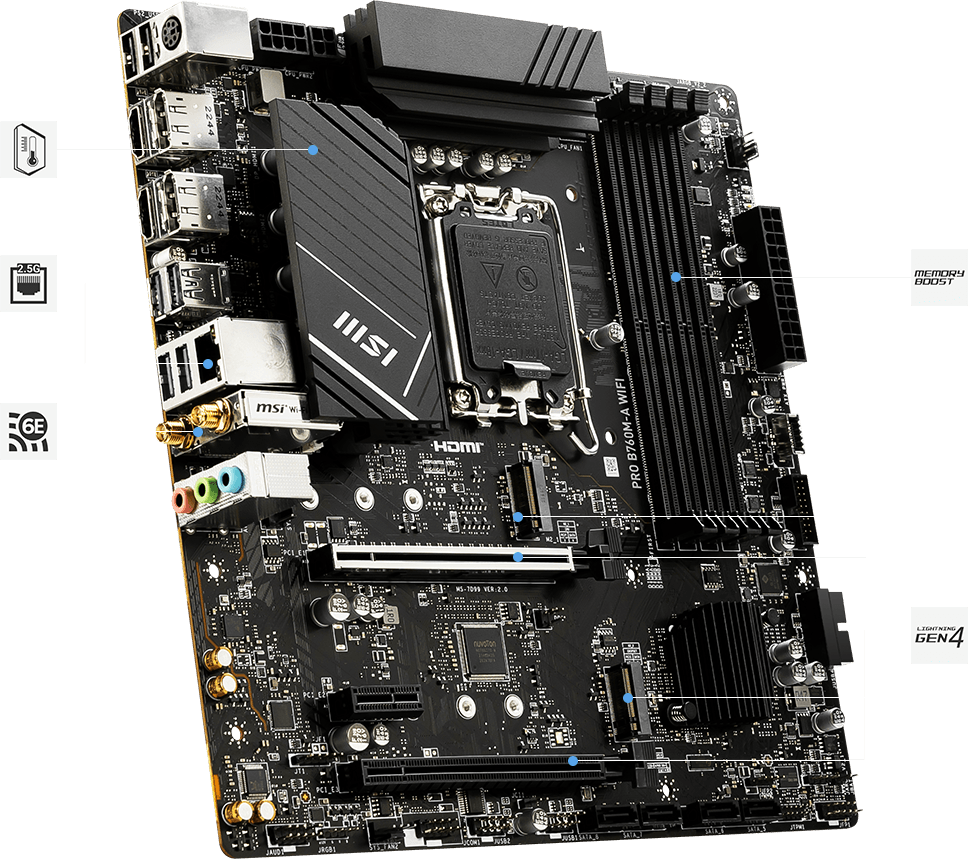

PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

EXCLUSIVE FEATURES

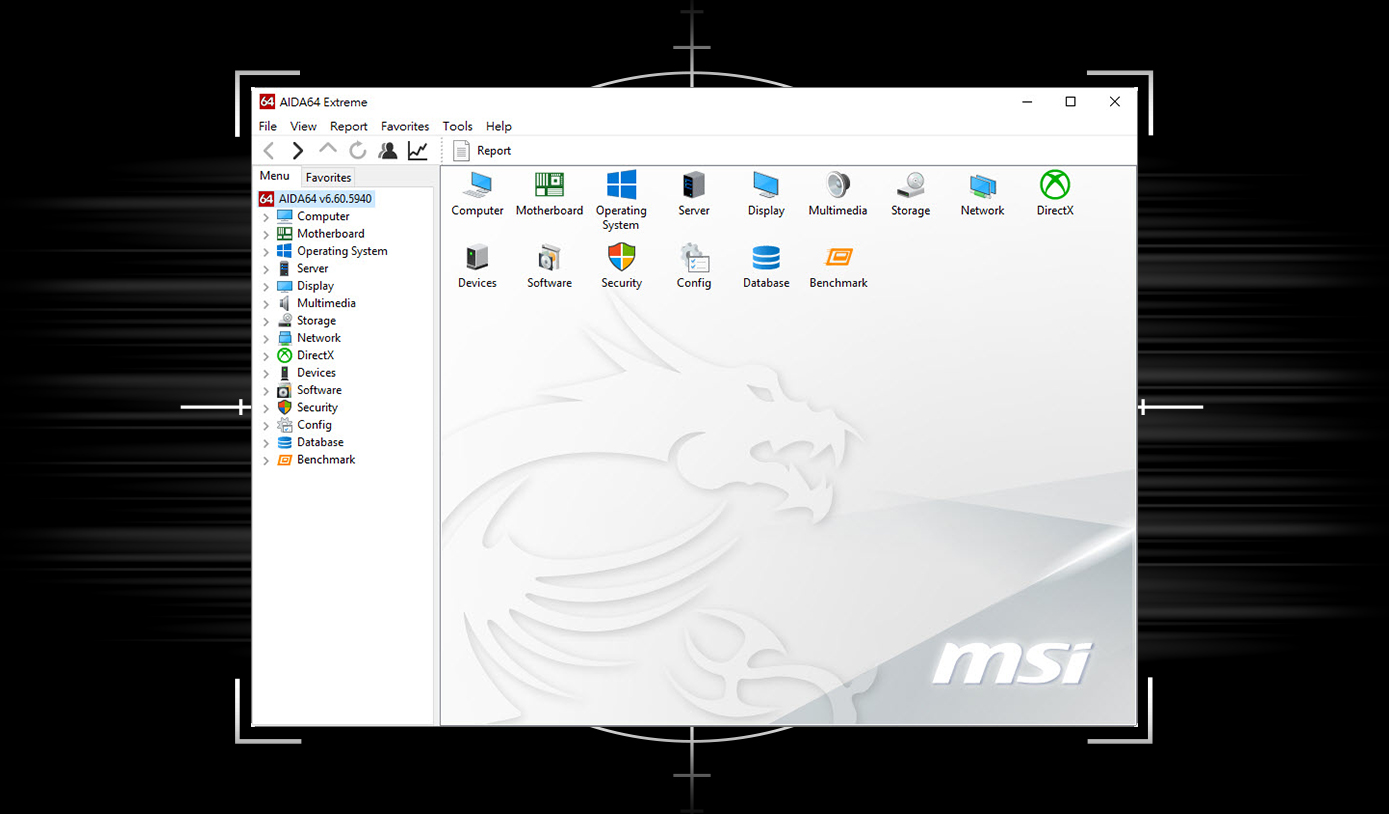

Exclusive UI of AIDA64 Extreme

MSI motherboards provide 60 days free trial of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

Specification

Chipset

• Intel® B760 Chipset

Processor (CPU)

• Supports:
  • Intel® Core™ 14th Gen
  • Intel® Core™ 13th Gen
  • Intel® Core™ 12th Gen
  • Intel® Pentium® Gold
  • Intel® Celeron®
• Socket: LGA 1700

Memory

• 4 x DDR5 DIMM slots
• Maximum capacity: 256GB
• Memory speeds:
  • 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC)
  • 5600 / 5400 / 5200 / 5000 / 4800 MHz (JEDEC)
• Overclocking support:
  • 1DPC 1R: up to 6800+ MHz
  • 1DPC 2R: up to 6400+ MHz
  • 2DPC 1R: up to 6000+ MHz
  • 2DPC 2R: up to 5600+ MHz
• Supports:
  • Intel® XMP 3.0
  • Dual-channel architecture
  • Non-ECC, unbuffered memory

Graphics (Onboard)

• 2 x HDMI™ (HDMI 2.1, up to 4K @ 60Hz)
• 2 x DisplayPort (DP 1.4, up to 4K @ 60Hz)
• Available only with CPUs featuring integrated graphics

Expansion Slots

• 1 x PCIe 4.0 x16 slot (CPU)
• 1 x PCIe 4.0 x4 slot (Chipset)
• 1 x PCIe 3.0 x1 slot (Chipset)

Storage

• 2 x M.2 slots:
  • M.2_1 (CPU): PCIe 4.0 x4 (2242/2260/2280)
  • M.2_2 (Chipset): PCIe 4.0 x4 / SATA (2242/2260/2280)
• 4 x SATA 6Gb/s ports
• Note:
  • SATA port disabled when using M.2 SATA SSD (shared bandwidth)

RAID Support

• RAID 0, RAID 1, RAID 5, RAID 10 (SATA)

USB Connectivity

Rear Ports

• 2 x USB 2.0
• 2 x USB 5Gbps (Type-A)
• 2 x USB 10Gbps (Type-A)

Front Ports

• 4 x USB 2.0
• 4 x USB 5Gbps (Type-A)
• 1 x USB 5Gbps (Type-C)

Networking

• Realtek® RTL8125BG 2.5G LAN

Wireless & Bluetooth

• Intel® Wi-Fi 6E (pre-installed)
  • Supports 2.4GHz / 5GHz / 6GHz (up to 2.4Gbps)
  • MU-MIMO support
• Bluetooth® 5.3

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Internal I/O Connectors

• Power:
  • 1 x 24-pin ATX
  • 2 x CPU power connectors
• Cooling:
  • 1 x CPU fan header
  • 1 x Pump fan header
  • 2 x system fan headers
• RGB & Lighting:
  • 2 x Addressable Gen2 RGB headers
  • 1 x RGB LED header
• Front Panel & Misc:
  • 2 x front panel headers
  • 1 x chassis intrusion header
  • 1 x front audio header
  • 1 x COM port header
  • 1 x TPM header (TPM 2.0)
• USB headers:
  • 4 x USB 2.0 ports
  • 4 x USB 5Gbps ports
  • 1 x USB Type-C header

LED Features

• 4 x EZ Debug LEDs

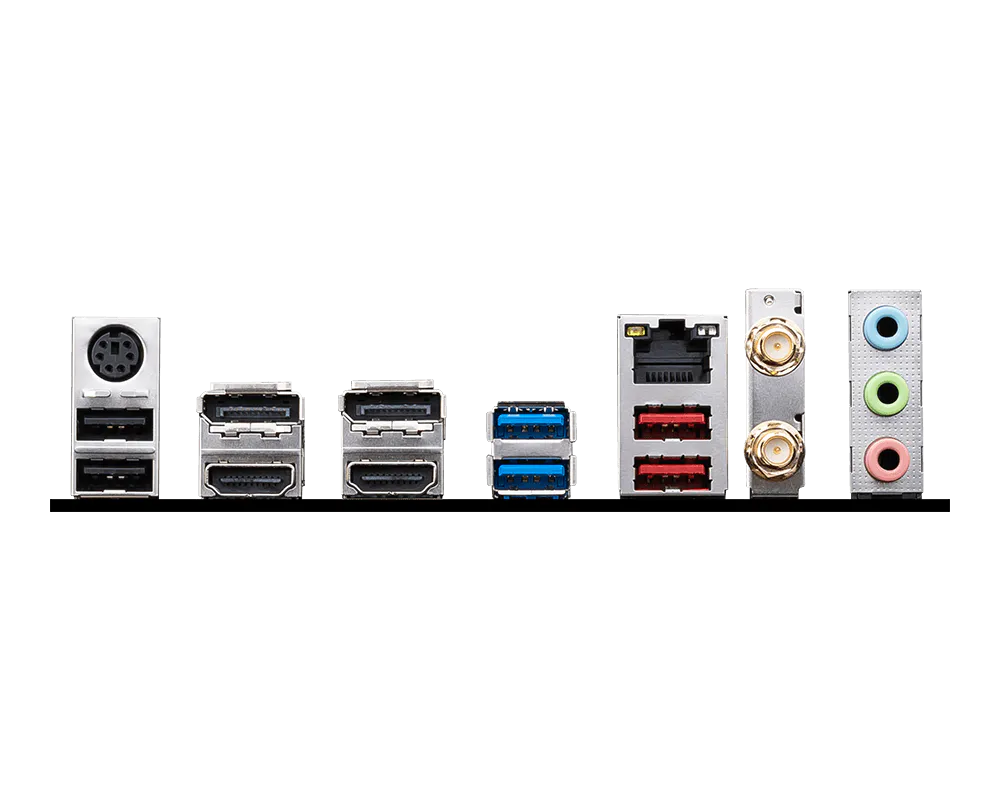

Back Panel I/O

• PS/2 Keyboard/Mouse combo
• DisplayPort
• HDMI™
• USB 3.2 Gen 1 (5Gbps Type-A)
• USB 3.2 Gen 2 (10Gbps Type-A)
• USB 2.0 ports
• 2.5G LAN (RJ-45)
• Wi-Fi / Bluetooth antenna connectors
• Audio jacks

Operating System Support

• Windows® 11 (64-bit)
• Windows® 10 (64-bit)

Form Factor

• micro-ATX (mATX)
• Dimensions: 243.84 mm x 243.84 mm
