Specification

Processor (CPU)

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA1851 Socket
• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0*

* Feature support depends on CPU model

Chipset

• Intel® Z890 Chipset

Memory

• 4 × DIMM Slots (Max 256GB)
• DDR5 Memory Support
• Up to 9066+ MT/s (Overclocked)
• Non-ECC, Unbuffered DIMM (CUDIMM)
• Dual Channel Architecture
• Intel® XMP Support
• ASUS AEMP III Support
• DIMM Fit & DIMM Flex Support

* Memory compatibility varies by CPU and configuration

Graphics & Display

• 1 × HDMI™ (Up to 4K @ 60Hz)
• 2 × Thunderbolt™ 5 (USB Type-C®)
  • Up to dual 8K @ 60Hz (DSC) or multi-display support
• 1 × Thunderbolt™ 4 (USB Type-C®)
  • Up to 8K @ 60Hz output

* Display output depends on CPU and configuration

Expansion Slots

• 2 × PCIe 5.0 x16 Slots (x16 or x8/x8 modes)
• 1 × PCIe 4.0 x16 Slot (x4 mode)

Storage

• 5 × M.2 Slots
  • M.2_1: PCIe 5.0 x4 (2242–22110)
  • M.2_2: PCIe 4.0 x4
  • M.2_3: PCIe 4.0 x4
  • M.2_4: PCIe 4.0 x4
  • M.2_5: PCIe 4.0 x4 & SATA (shared bandwidth)
• 4 × SATA 6Gb/s Ports
• RAID Support (PCIe & SATA RAID 0/1/5/10)

Networking

Ethernet

• 1 × Marvell® AQtion 10Gb Ethernet
• 1 × Intel® 2.5Gb Ethernet
• ASUS LANGuard Protection

Wireless & Bluetooth

• Wi-Fi 7 (802.11be, 2×2)
• 320MHz Bandwidth Support
• Up to 5.8Gbps Transfer Speed
• Bluetooth® 5.4

USB Connectivity

Rear I/O (10 Ports)

• 2 × Thunderbolt™ 5 (USB Type-C®)
• 1 × USB4 / Thunderbolt™ (USB Type-C®)
• 6 × USB 10Gbps (Type-A)
• 1 × USB 2.0

Front I/O (Up to 5 Ports)

• 1 × USB Type-C® (20Gbps)
• 2 × USB 5Gbps
• 2 × USB 2.0

Audio

• Realtek ALC1220P 7.1 HD Audio Codec
• 120 dB SNR Playback / 113 dB Recording
• Supports up to 32-bit / 192kHz*

Audio Features

• Gold-Plated Audio Jacks
• Premium Audio Capacitors
• Dedicated Audio PCB Layers

* Limitations apply for 7.1 surround

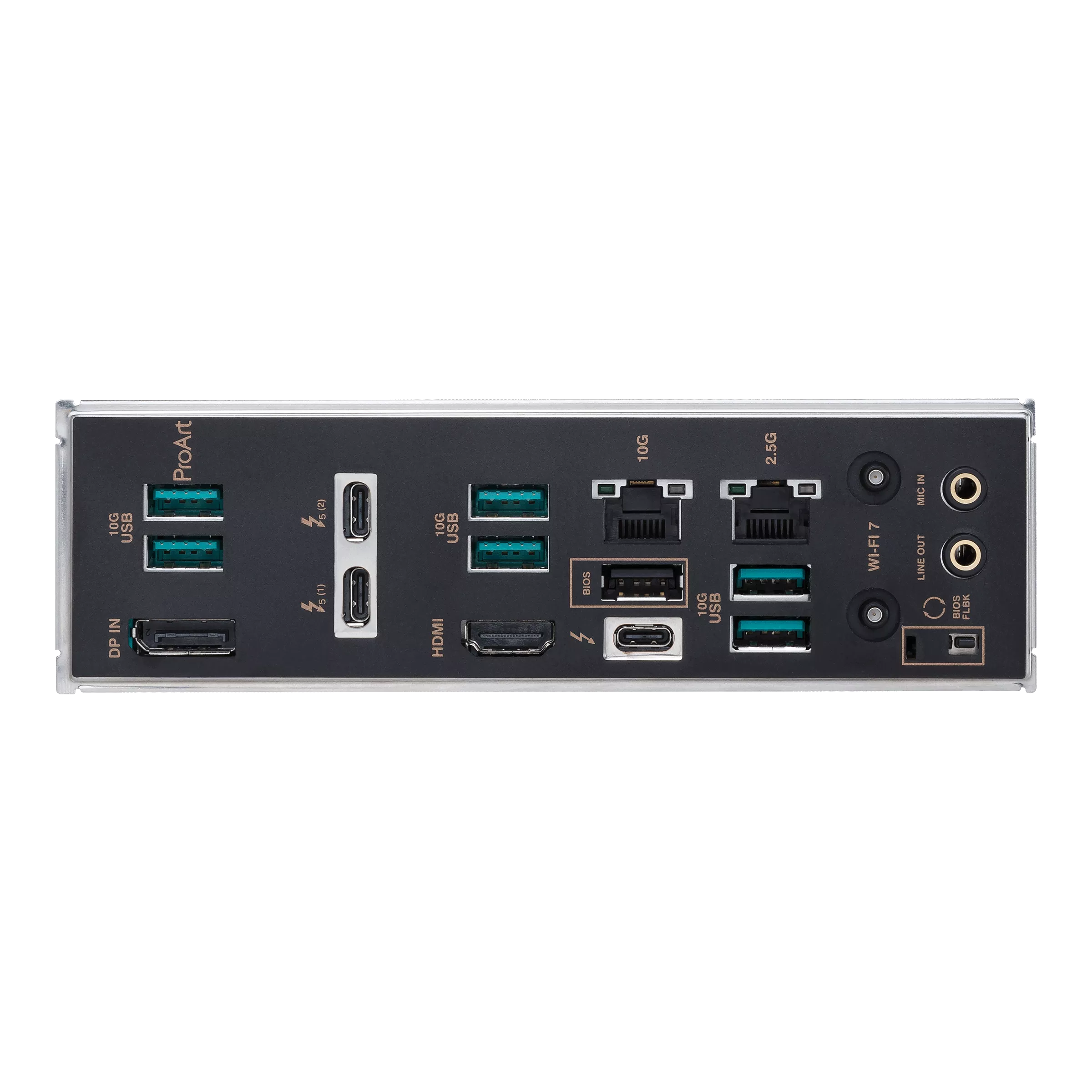

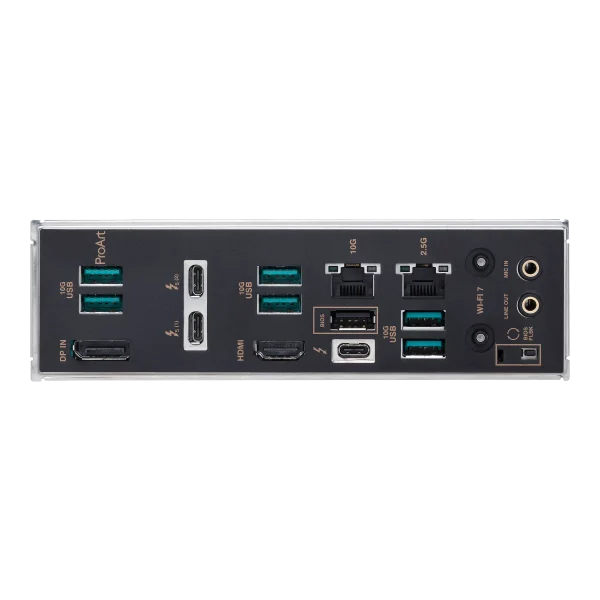

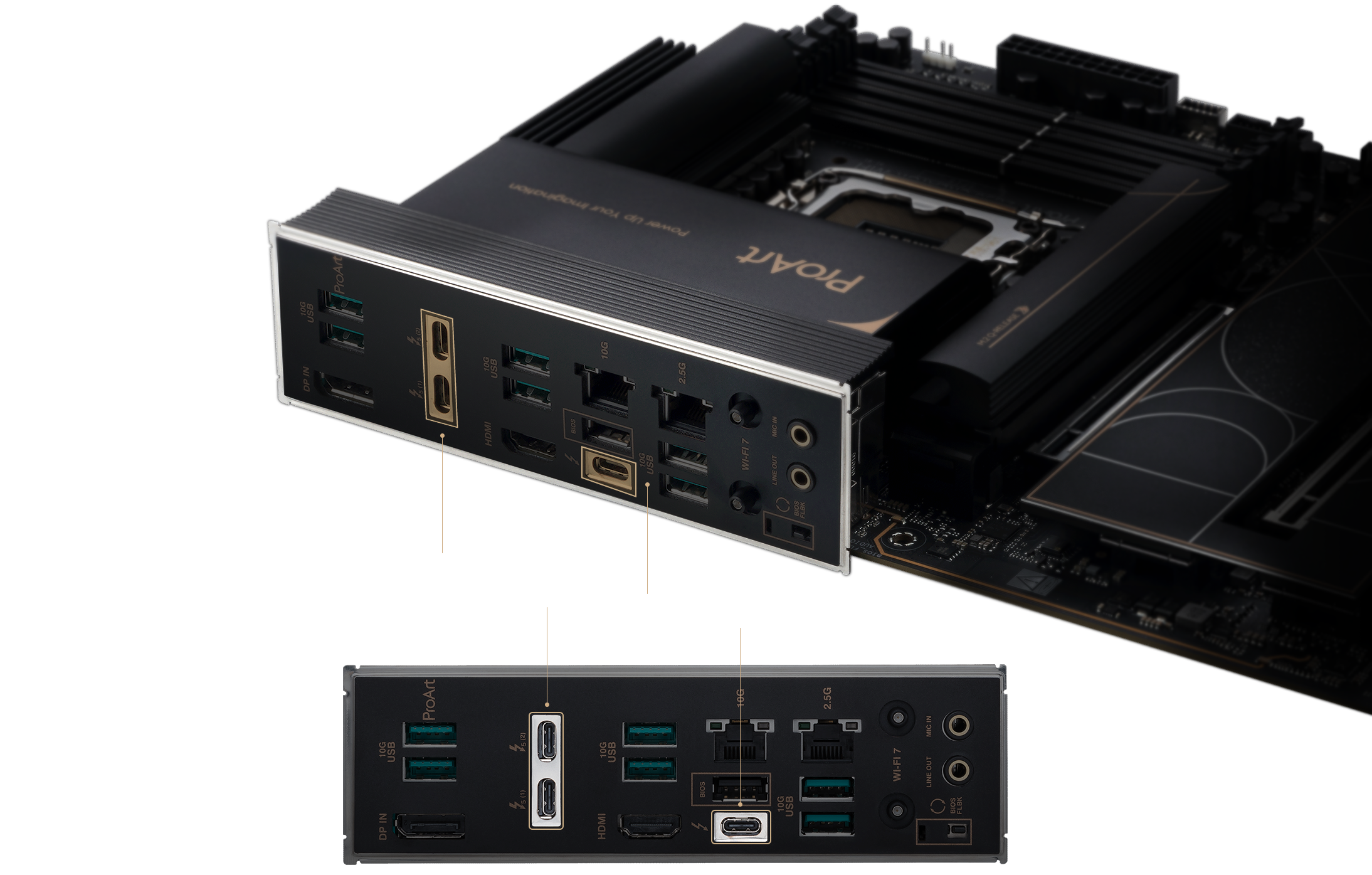

Back Panel I/O

• 2 × Thunderbolt™ 5 (USB Type-C®)
• 1 × USB4 / Thunderbolt™ (USB Type-C®)
• 6 × USB 10Gbps (Type-A)
• 1 × USB 2.0
• 1 × DisplayPort (Input Only)
• 1 × HDMI™
• Wi-Fi Module
• 10Gb + 2.5Gb Ethernet Ports
• 2 × Gold-Plated Audio Jacks
• BIOS FlashBack™ Button

Internal Connectors

Cooling

• CPU Fan Header
• CPU OPT Fan Header
• AIO Pump Header
• 5 × Chassis Fan Headers

Power

• 24-pin ATX Power Connector
• 2 × 8-pin CPU Power Connectors

Storage

• 5 × M.2 Slots
• 4 × SATA Ports

USB Headers

• USB Type-C® (20Gbps)
• USB 5Gbps Header
• USB 2.0 Header

Additional Connectors

• 3 × Addressable Gen2 RGB Headers
• Clear CMOS Button
• CPU Overvoltage Jumper
• Chassis Intrusion Header
• TPM Header
• Thermal Sensor Header

Special Features

ASUS 5X Protection III

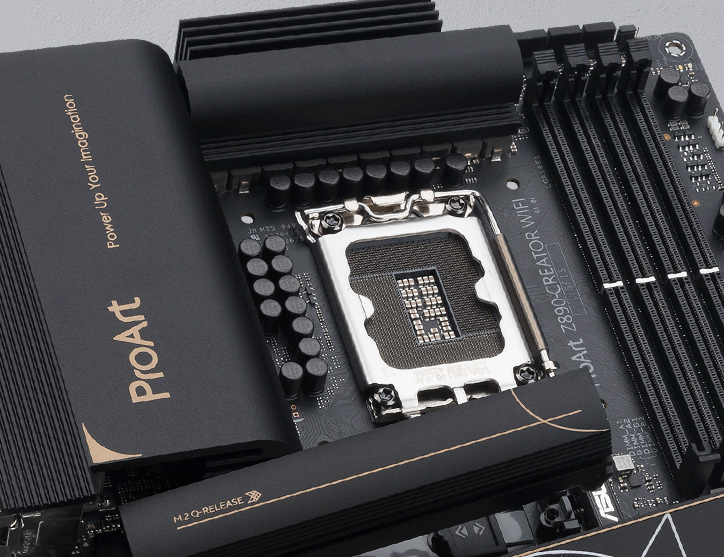

• DIGI+ VRM (DrMOS Power Design)
• ESD Guards
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O

ASUS Q-Design

• M.2 Q-Latch / Q-Release / Q-Slide
• PCIe Q-Release Slim
• Q-Antenna
• Q-Connector
• Q-DIMM
• Q-LED Indicators

Thermal Design

• VRM Heatsinks
• M.2 Heatsinks with Backplate

DIY Features

• BIOS FlashBack™ Button & LED
• Clear CMOS Button
• Pre-mounted I/O Shield
• ProCool II Power Connector
• SafeDIMM

Reliability & Business Features

• 24/7 Operation Reliability
• Overcurrent Protection

Software

• Armoury Crate
• Aura Sync & Aura Creator
• Fan Xpert 4
• ASUS DriverHub
• ASUS GlideX
• ASUS CPU-Z
• CreationFirst
• ProArt Creator Hub
• TurboV Core
• Thunderbolt™ Share

Included Software (Trial)

• Adobe Creative Cloud
• Norton 360 Deluxe
• WinRAR

BIOS

• 256 Mb Flash ROM
• UEFI AMI BIOS
• EZ Flash & CrashFree BIOS
• AI Overclocking Guide

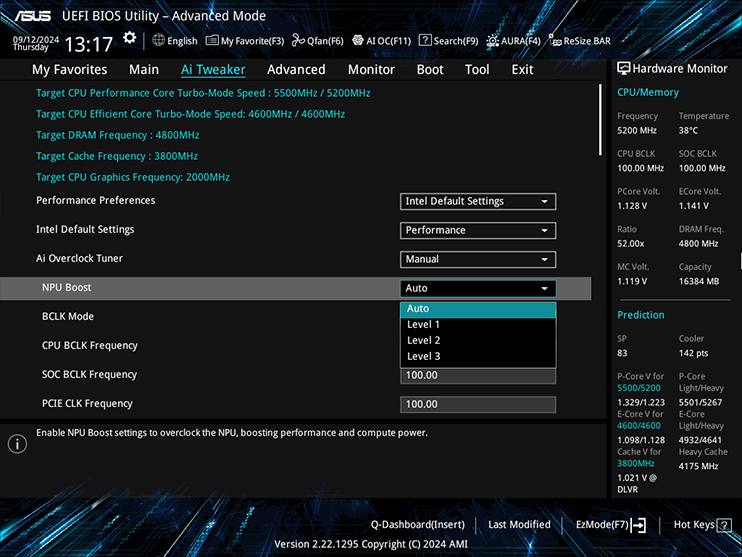

• NPU Boost

Remote Management

• ASUS Control Center Express (ACCE) Support

Manageability

• Wake-on-LAN (WOL)
• PXE Boot

Accessories

• 2 × SATA 6Gb/s Cables
• ASUS Wi-Fi Q-Antenna
• Q-Connector
• M.2 Q-Latch Kits
• M.2 Rubber Kits
• ProArt Accessory Bag
• ACC Express Activation Key Card
• Quick Start Guide

Operating System

• Windows 11 (22H2 & later)

Form Factor

• ATX
• 12″ × 9.6″ (30.5 × 24.4 cm)
