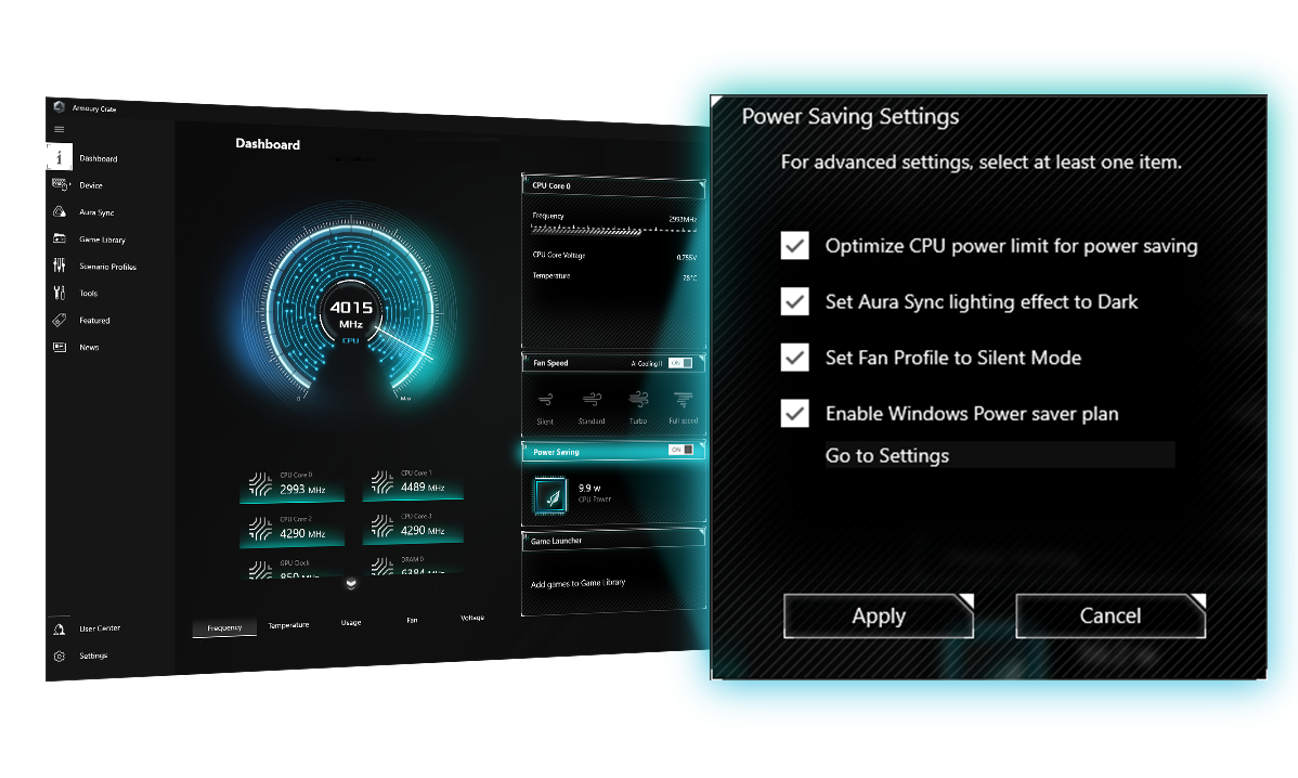

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING

PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

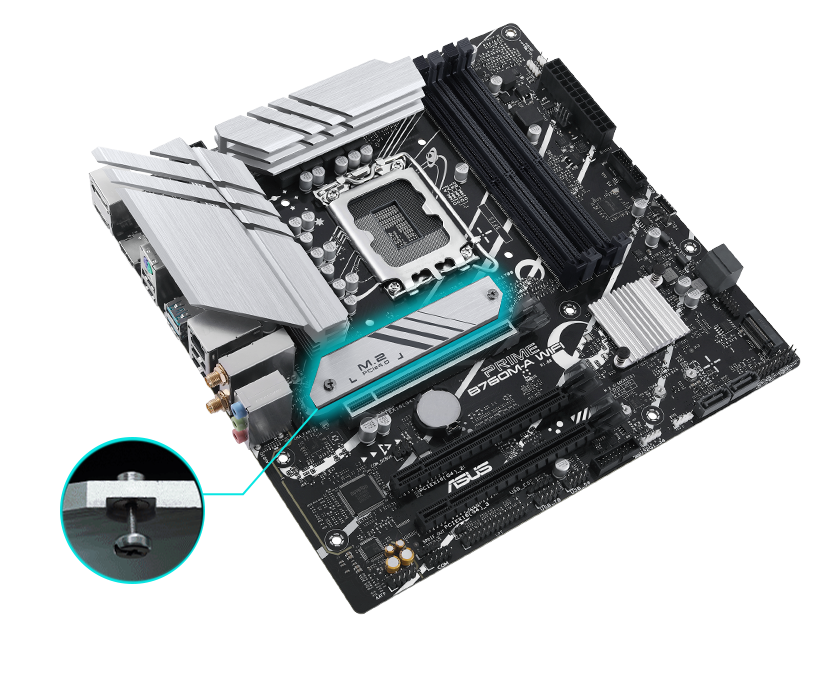

M.2 Heatsink

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

PERFORMANCE

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13^th Gen Intel^® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel^® processors. The PRIME B760M-A WIFI is geared to cater to the demands of these high-core-count CPUs.

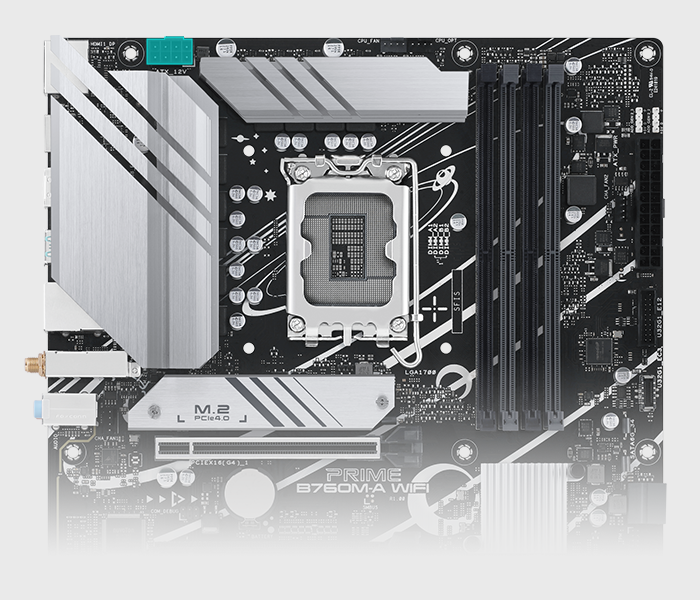

ProCool Connector

Proprietary connectors augment the motherboard’s link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

Specification

General

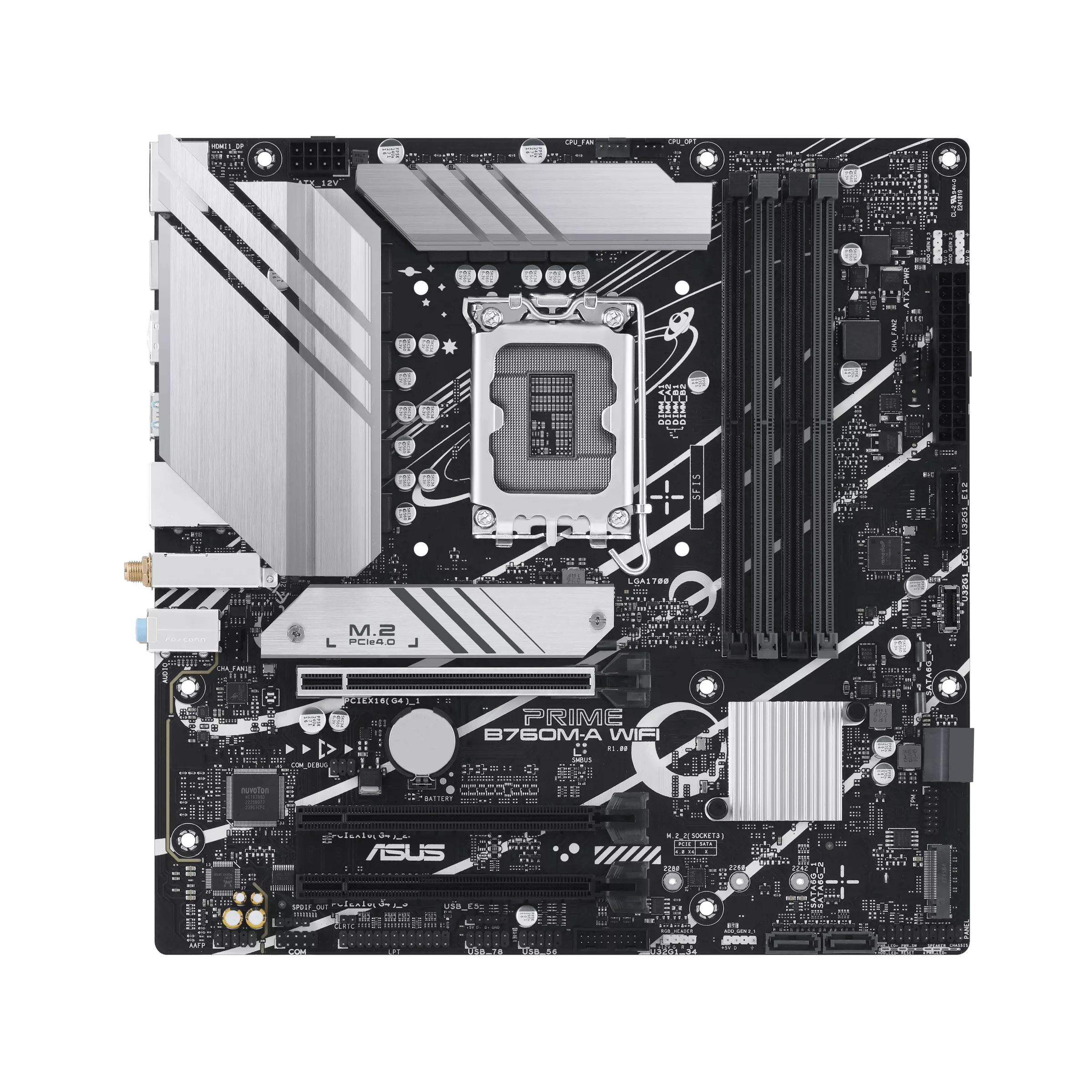

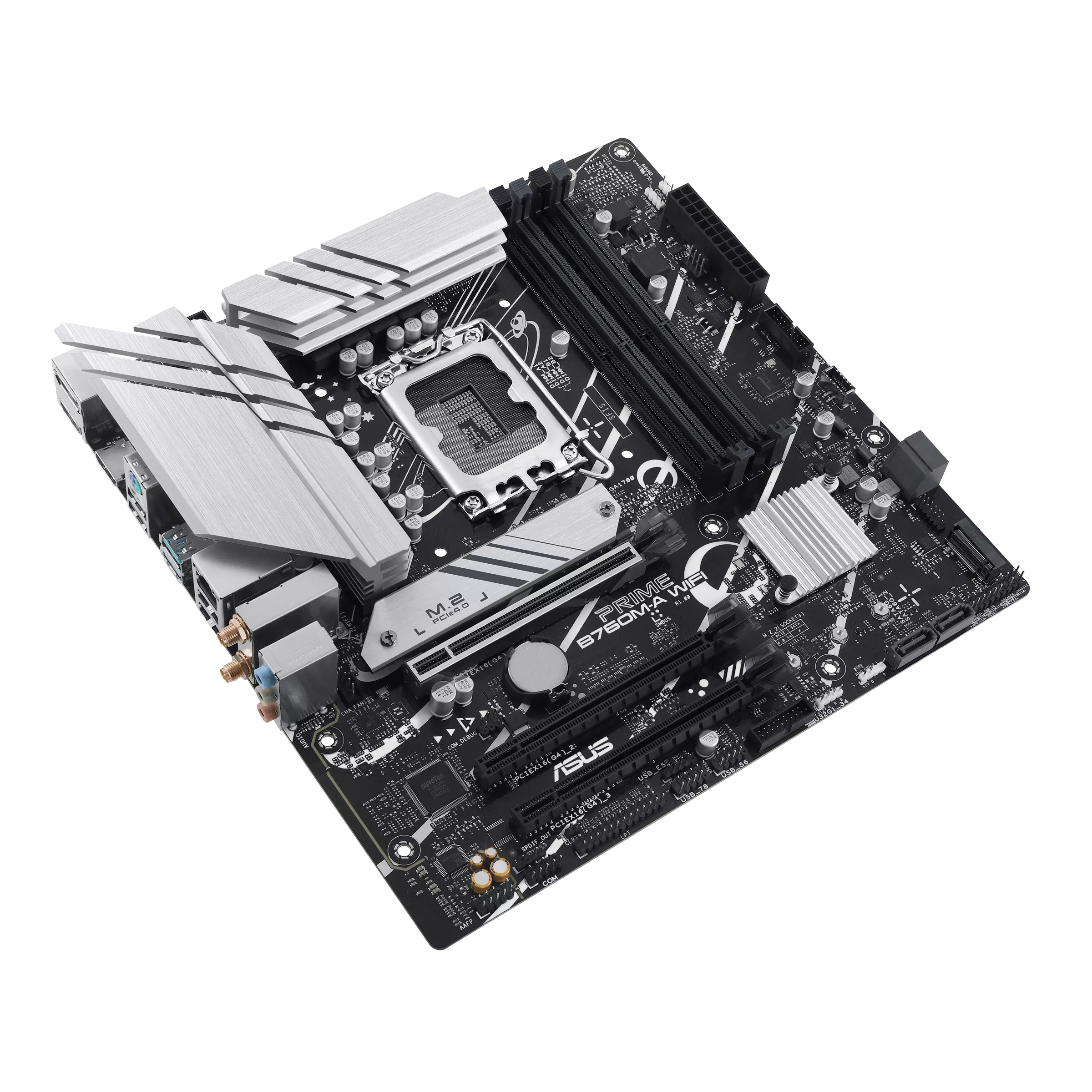

• Model: PRIME B760M-A WIFI D4
• Chipset: Intel® B760
• Form Factor: mATX (24.4 cm x 24.4 cm)
• Operating System: Windows® 11, Windows® 10 (64-bit)

CPU Support

• Intel® Socket LGA1700
• Supports:
  • Intel® Core™ 13th Gen
  • Intel® Core™ 12th Gen
  • Pentium® Gold & Celeron® processors
• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Memory

• Slots: 4 x DIMM
• Max Capacity: 128GB
• Type: DDR4 (Non-ECC, Unbuffered)
• Speed Support:
  • 5333(OC) to 2133 MHz
• Dual Channel Architecture
• Intel® XMP Support
• OptiMem II

Graphics

• 1 x DisplayPort (4K @ 60Hz)
• 2 x HDMI® ports (4K @ 60Hz)

Expansion Slots

• 1 x PCIe 4.0 x16
• 1 x PCIe 4.0 x16 (x4 mode)
• 1 x PCIe 4.0 x16 (x1 mode)

Storage

• M.2 Slots: 2 x (PCIe 4.0 x4)
• SATA: 4 x SATA 6Gb/s
• Supports SATA RAID 0 / 1 / 5 / 10

Networking

• Ethernet: Realtek 2.5Gb LAN
• Wi-Fi: Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Dual-band (2.4GHz / 5GHz)
• Bluetooth: v5.2

USB Connectivity

Rear I/O (6 Ports)

• 2 x USB 3.2 Gen 2 Type-A
• 4 x USB 2.0

Front Panel (Up to 10 Ports)

• 1 x USB Type-C (USB 3.2 Gen 1)
• 4 x USB 3.2 Gen 1
• 5 x USB 2.0

Audio

• Realtek 7.1 Surround Sound HD Audio
• Supports 24-bit / 192 kHz playback
• Audio shielding & premium capacitors

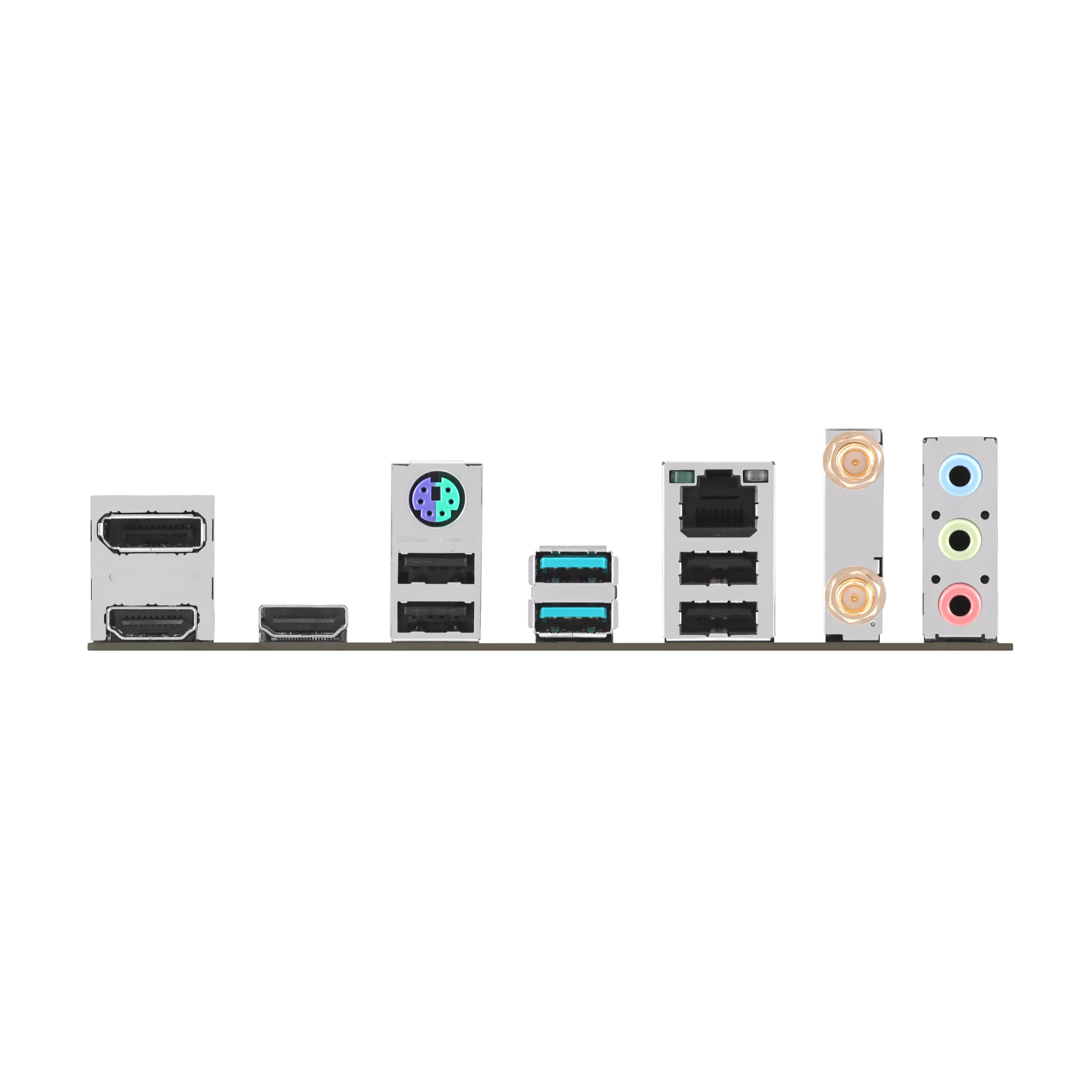

Back Panel I/O

• 2 x USB 3.2 Gen 2
• 4 x USB 2.0
• 1 x DisplayPort
• 2 x HDMI
• 1 x Wi-Fi module
• 1 x 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 combo port

Internal Connectors

• 1 x CPU fan + 1 x CPU OPT fan
• 2 x chassis fan headers
• 24-pin ATX + 8-pin CPU power
• 2 x M.2, 4 x SATA
• USB headers (Type-C, USB 3.2 Gen 1, USB 2.0)
• 3 x Addressable Gen 2 RGB + 1 x Aura RGB
• TPM, COM, LPT, S/PDIF, chassis intrusion header

Cooling & Build Features

• VRM heatsink design
• M.2 heatsink
• ASUS Q-DIMM, Q-Slot, Q-LED Core
• ProCool power connector

Special Features

• ASUS 5X Protection III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
• Stainless-Steel Back I/O
• Aura Sync RGB

Software

• Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+)
• AI Suite 3
• ASUS CPU-Z
• MyASUS
• Norton 360 Deluxe (Trial)
• WinRAR

BIOS & Management

• 128 Mb UEFI AMI BIOS
• ASUS EZ Flash 3 / CrashFree BIOS 3
• Wake-on-LAN (WOL), PXE

In the Box

• 2 x SATA cables
• Wi-Fi antenna
• I/O Shield
• M.2 rubber & screw package
• User guide
