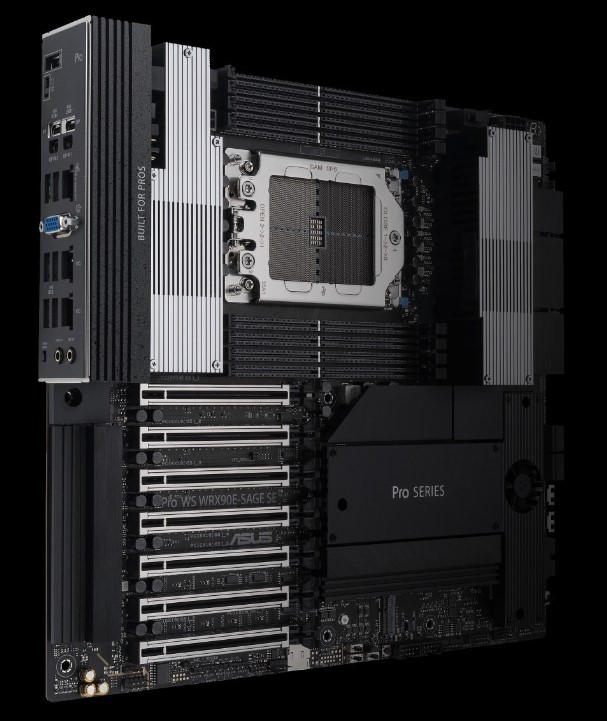

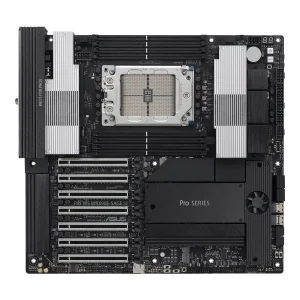

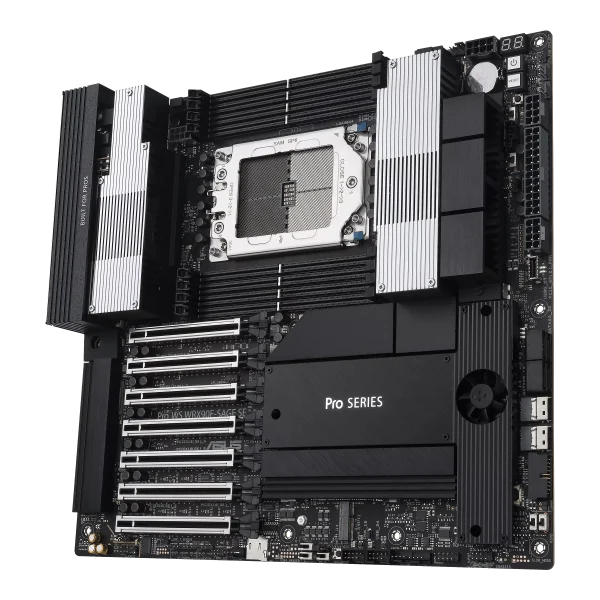

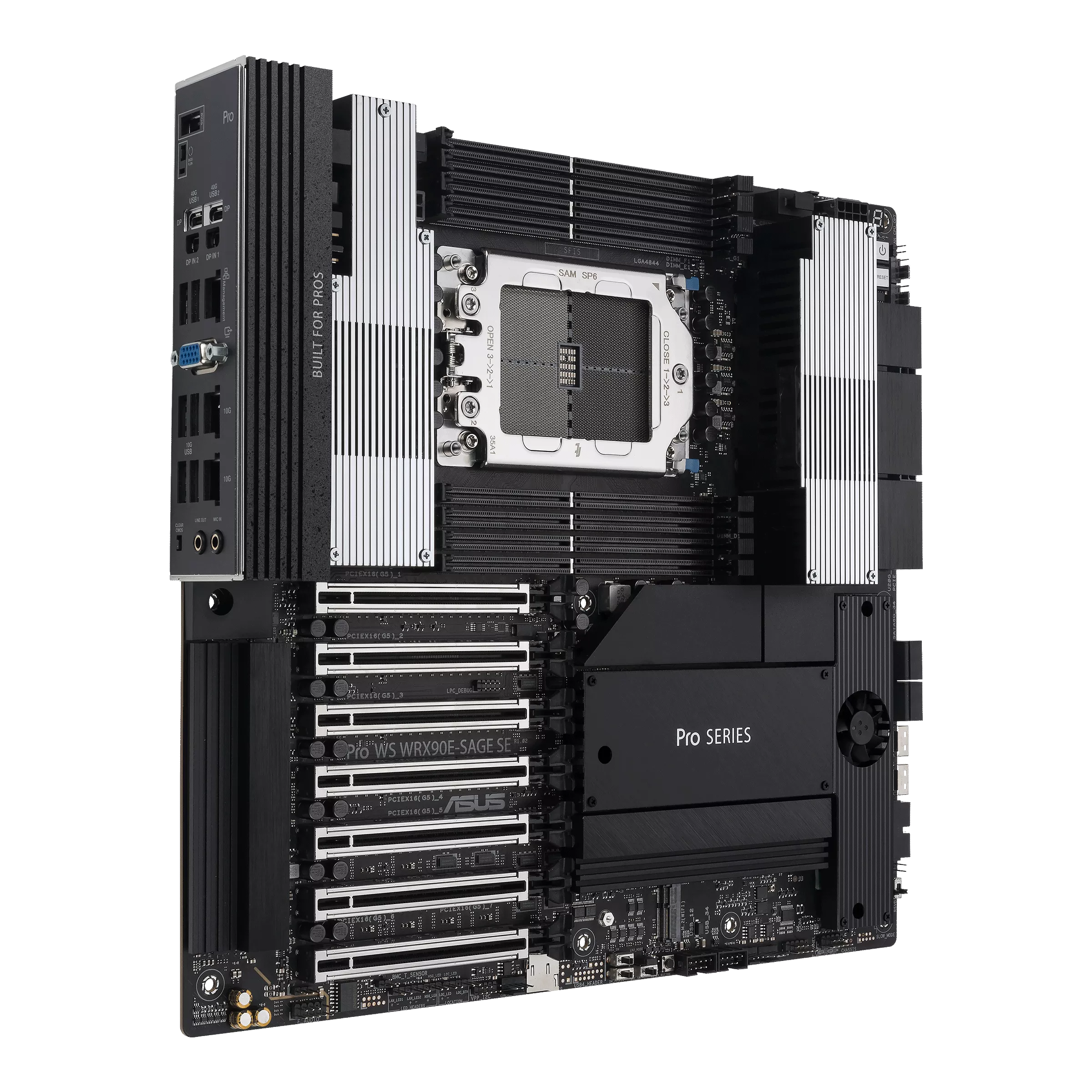

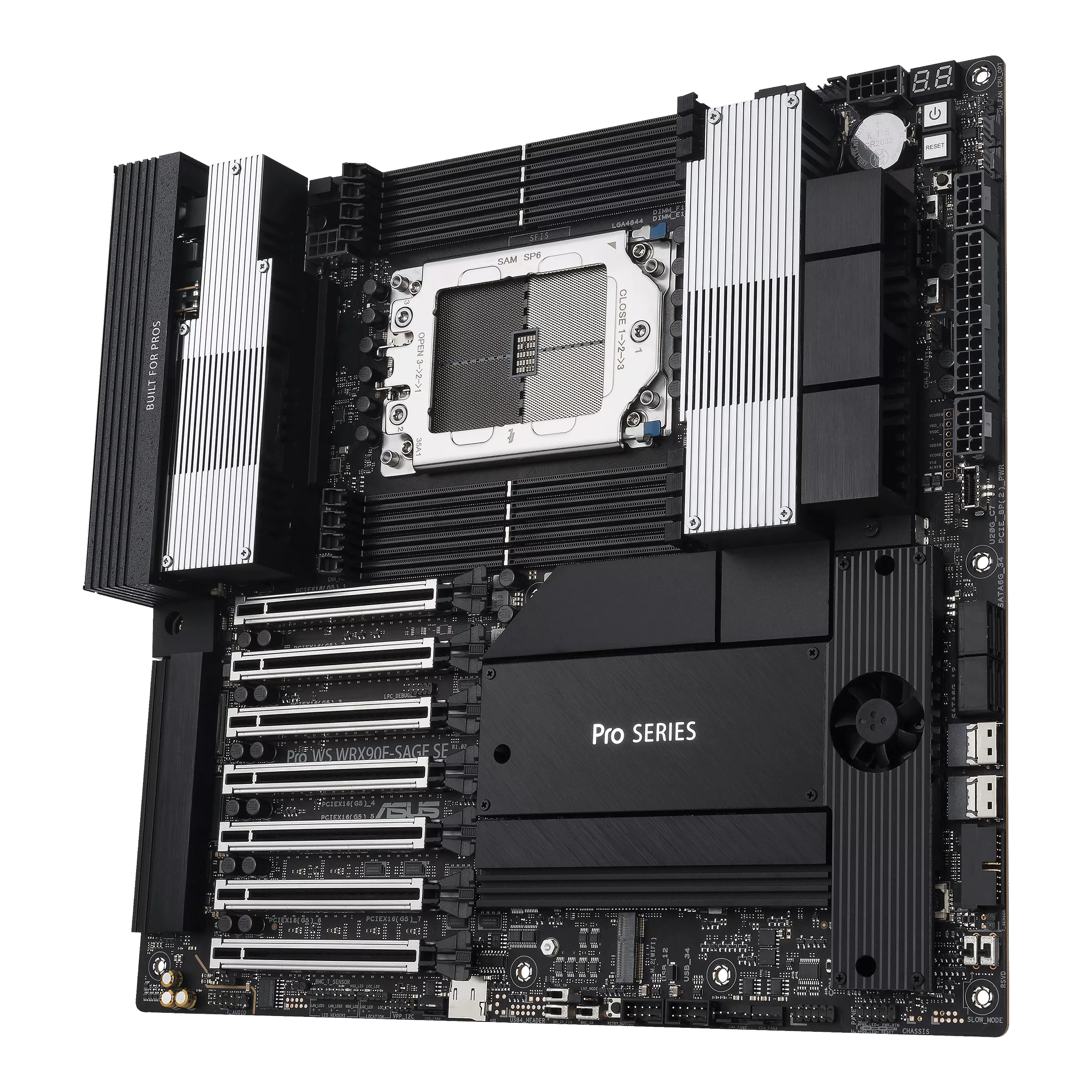

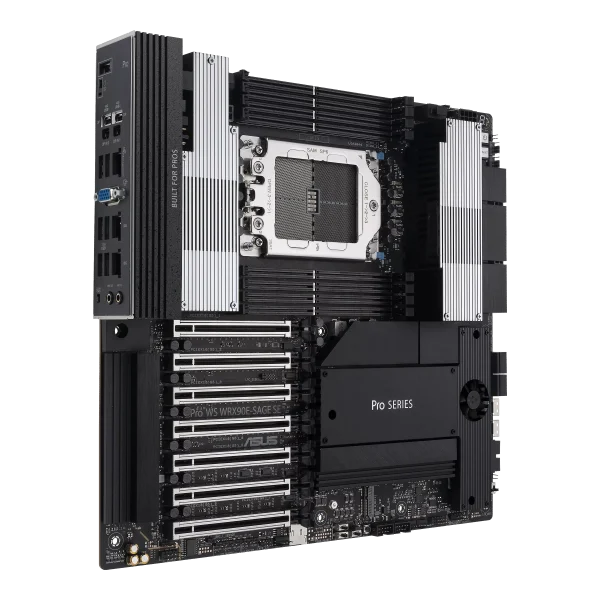

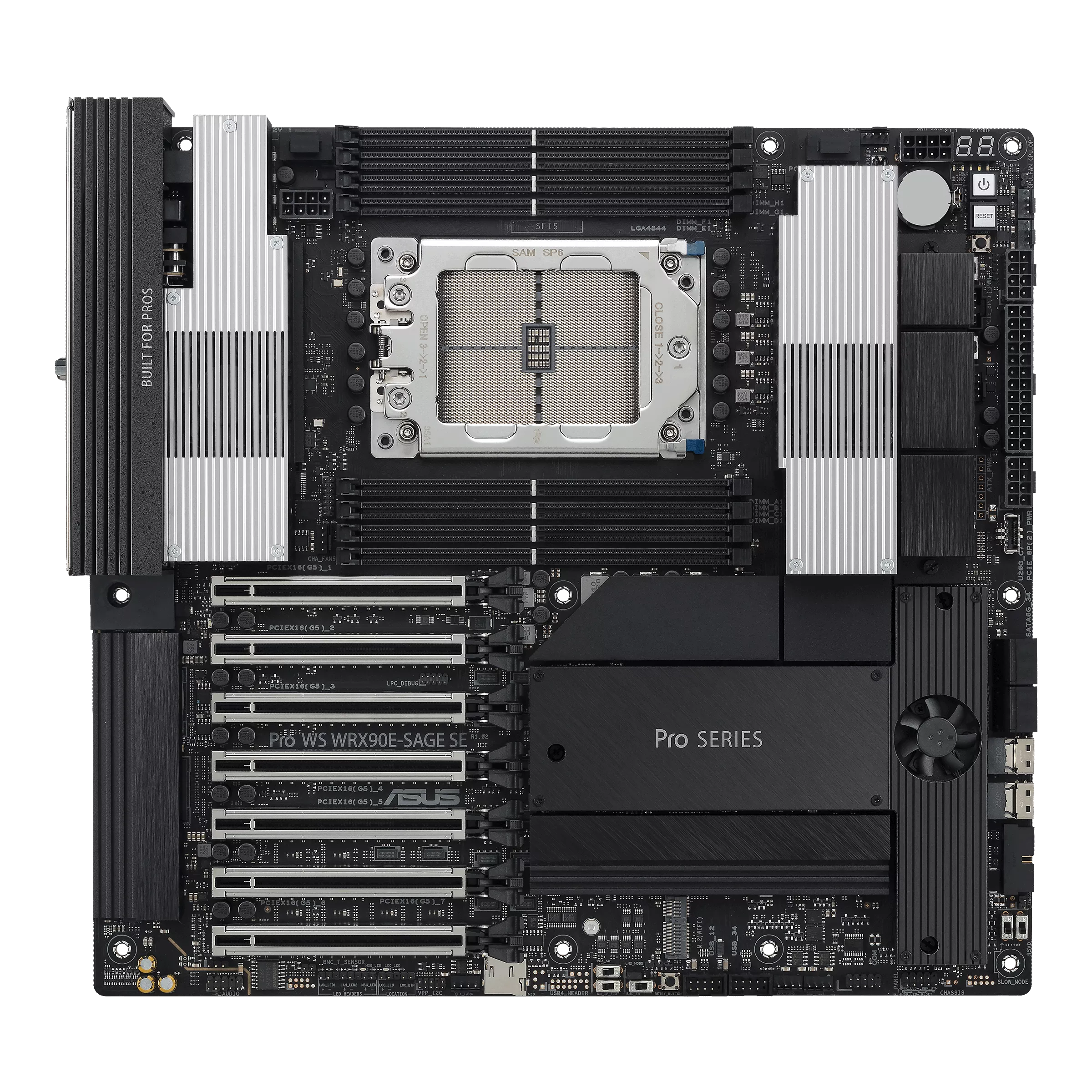

ASUS Pro WS WRX90E-SAGE SE AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

Quick Overview

AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
Ultrafast connectivity: Seven PCIe^® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4^® 40Gbps Type-C^® and SlimSAS NVMe support.
CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

SKU: 90MB1FW0-M0EAY0 Categories: Computer Components, Motherboards Tag: workstation motherboard

Original price was: AED 6,999.00.Current price is: AED 5,099.00.

Warranty

Included Warranty	1 Year Free Warranty

Delivery

Standard Delivery	One Day Delivery

4 Items sold in last 24 hours

16 People watching this product now!

Description
Additional information

A WORKSTATION WONDERLAND

The Pro WS WRX90E-SAGE SE motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-two power stages fuel AMD Ryzen^™ Threadripper^™ PRO 7000 WX-series processors with up to 96 cores, while supporting up to 2 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.

With onboard PCIe^® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, USB 40Gbps ports, SlimSAS and onboard BMC, the Pro WS WRX90E-SAGE SE comes prepared for a wide array of scenarios and industries.

ULTRAFAST CONNECTIVITY

Multi-GPU Support

The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.

ULTRAFAST CONNECTIVITY

Ultrafast Networking

Intel^® X710-AT2 dual 10 Gb Ethernet

Featuring dual onboard 10G LAN ports powered by the cutting-edge Intel^® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency.

High Capacity Storage

M.2 PCIe 5.0 slots

The Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers.

SlimSAS slot

The Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting industrial SSD drives, servers and networking equipment.

CPU AND MEMORY OVERCLOCKING READY

For AMD TR5 series workstations, we offer CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS WRX90E-SAGE SE motherboard. Along with robust power delivery and advanced cooling modules, this motherboard exhibits enhanced stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation computing.

INNOVATIVE COOLING AND ROBUST PERFORMANCE

Power Stages in VRM Area

The Pro WS WRX90E-SAGE SE voltage regulator module setup is comprised of (16*2)+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen^™ Threadripper^™ PRO 7000 WX-Series processors demand, with stability for extreme overclocking.

Active VRM Cooling Solutions

The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency.

ProCool II Connectors

ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.

ECC R-DIMM Memory Support

The Pro WS WRX90E-SAGE SE motherboard boasts a robust design featuring eight R-DIMM DDR5 memory module slots with ECC support, to improve the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.

REMOTE CONTROL SOLUTIONS

Host

Can be any Windows PC

Remote Console (ACCE Service)

Client with BMC (Onboard)

In-band and out-of-band

Client without BMC

In-band only

On Board BMC

Pro WS WRX90E-SAGE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries.

ASUS Control Center Express

The Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for business that improves productivity and enhances security and can help prevent unauthorized access and data leaks.

THOROUGH THERMAL DESIGN

Chipset Cooling

A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures, and it comes with an active fan to enhance thermal efficiency.

10 Gb LAN Cooling

An optimally located and extended heatsink on the 10 Gb Ethernet controller ensures stable high-speed networking performance.

Specification

Model
Pro WS WRX90E-SAGE SE

CPU
AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series

Chipset
AMD WRX90

Memory
8 x DIMM slots, DDR5 (ECC Registered Memory)
8 Channel Memory Architecture

Expansion Slots

6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)

Storage
Supports 4 x M.2 + 2 x SlimSAS + 4 x SATA

Threadripper PRO CPUs:

4 x M.2 (PCIe 5.0 x4)

Chipset:

2 x SlimSAS (PCIe 4.0 x4 NVMe)
4 x SATA 6Gb/s

RAID Support
AMD RAIDXpert2

PCIe RAID 0/1/5/10
SATA RAID 0/1/5/10

Ethernet
1 x Intel dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet (Management / AST2600)

Wireless & Bluetooth
Not available

USB
Rear (9 ports):

2 x USB4 (40Gbps, Type-C)
6 x USB 10Gbps (Type-A)
1 x USB 2.0

Front:

1 x USB 20Gbps Type-C
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (4 ports)

Audio
Realtek ALC1220P (up to 5.1 Surround)

32-bit / 192 kHz playback
Audio amplifier
Premium capacitors

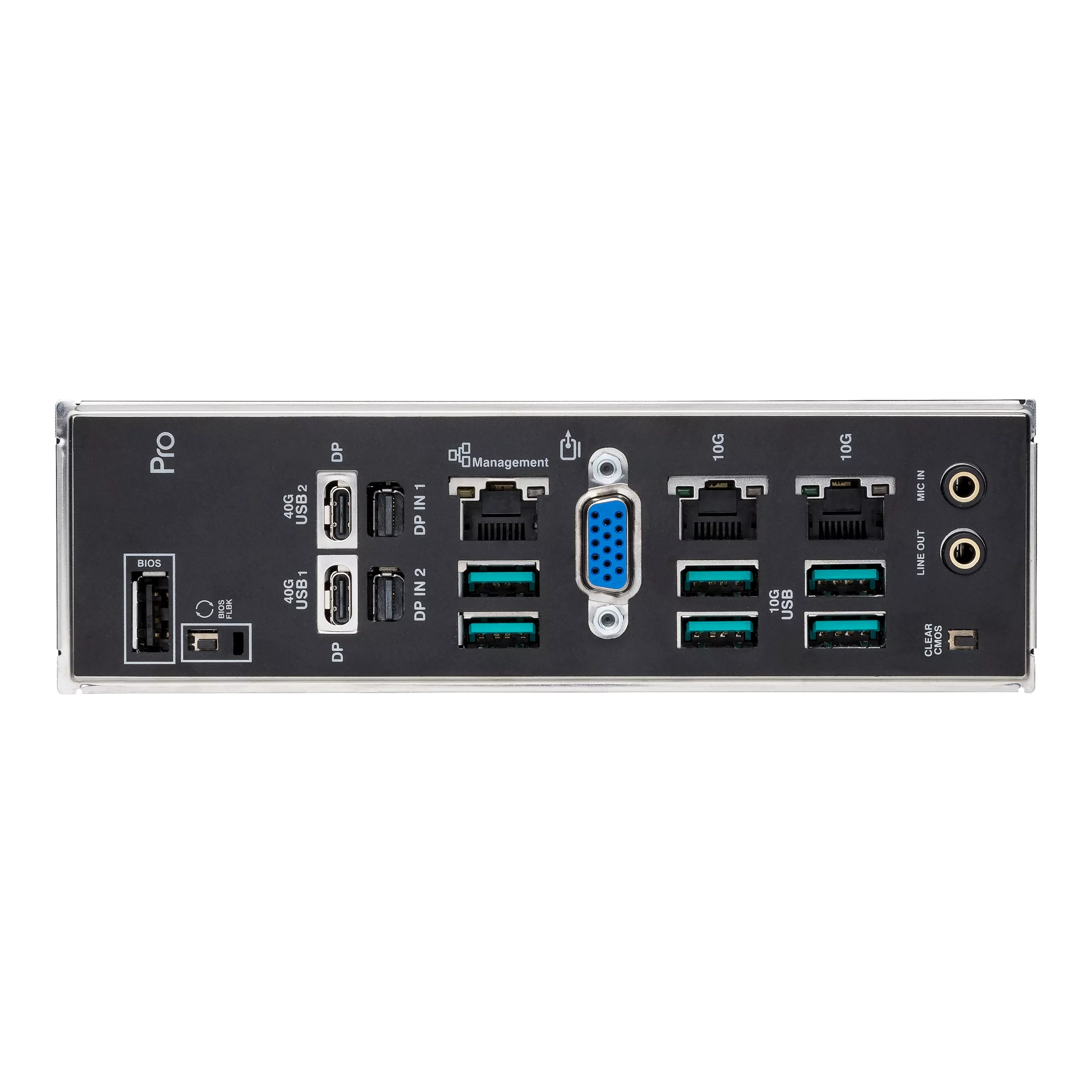

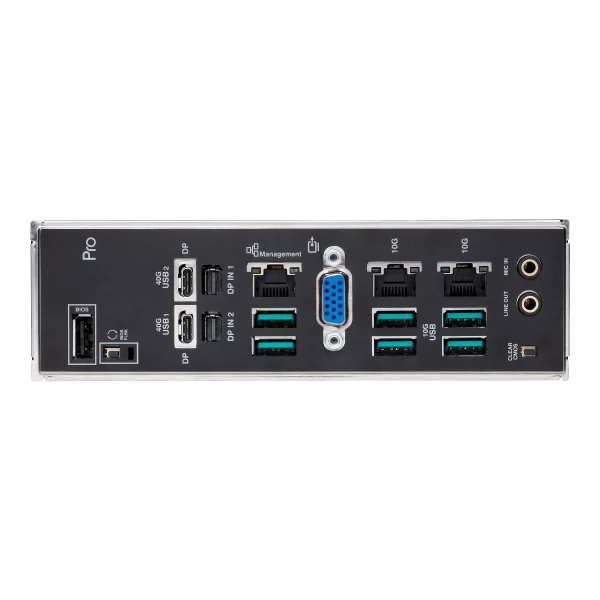

Back Panel I/O

2 x USB4 Type-C
6 x USB 10Gbps
1 x USB 2.0
1 x VGA
2 x mini DisplayPort IN
Dual 10Gb Ethernet
1 x 1Gb management LAN
2 x audio jacks
BIOS FlashBack button
Clear CMOS button

Internal I/O Connectors

Power:

1 x 24-pin ATX
2 x 8-pin CPU power
2 x 8-pin PCIe to CPU power
2 x 8-pin PCIe power

Cooling:

CPU fan + CPU OPT
5 x chassis fan headers
VRM fan headers
M.2 fan header
W_PUMP+

Storage:

4 x M.2
2 x SlimSAS
4 x SATA

USB:

1 x USB 20Gbps Type-C
1 x USB 5Gbps header
2 x USB 2.0 headers

Misc:

TPM header
Thermal sensor
Start / Retry / Safe Boot buttons
LN2 mode
ProbeIt points

Special Features

ASUS 5X Protection III:
DIGI+ VRM, ESD Guards, Overvoltage Protection, SafeSlot

ASUS Q-Design:
Q-Code, Q-LED, Q-DIMM, Q-Slot, Q-Connector

Thermal Design:
VRM heatsink with active fans
M.2 heatsinks + backplate

Workstation / Server Features:
BMC (AST2600) with IPMI
Dedicated management LAN
microSD slot for management
Remote monitoring & control

Software Features
Armoury Crate
Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (trial)
Norton 360 (trial)

BIOS
256Mb Flash ROM, UEFI AMI BIOS (text-based)

Manageability
WOL, PXE (UEFI)

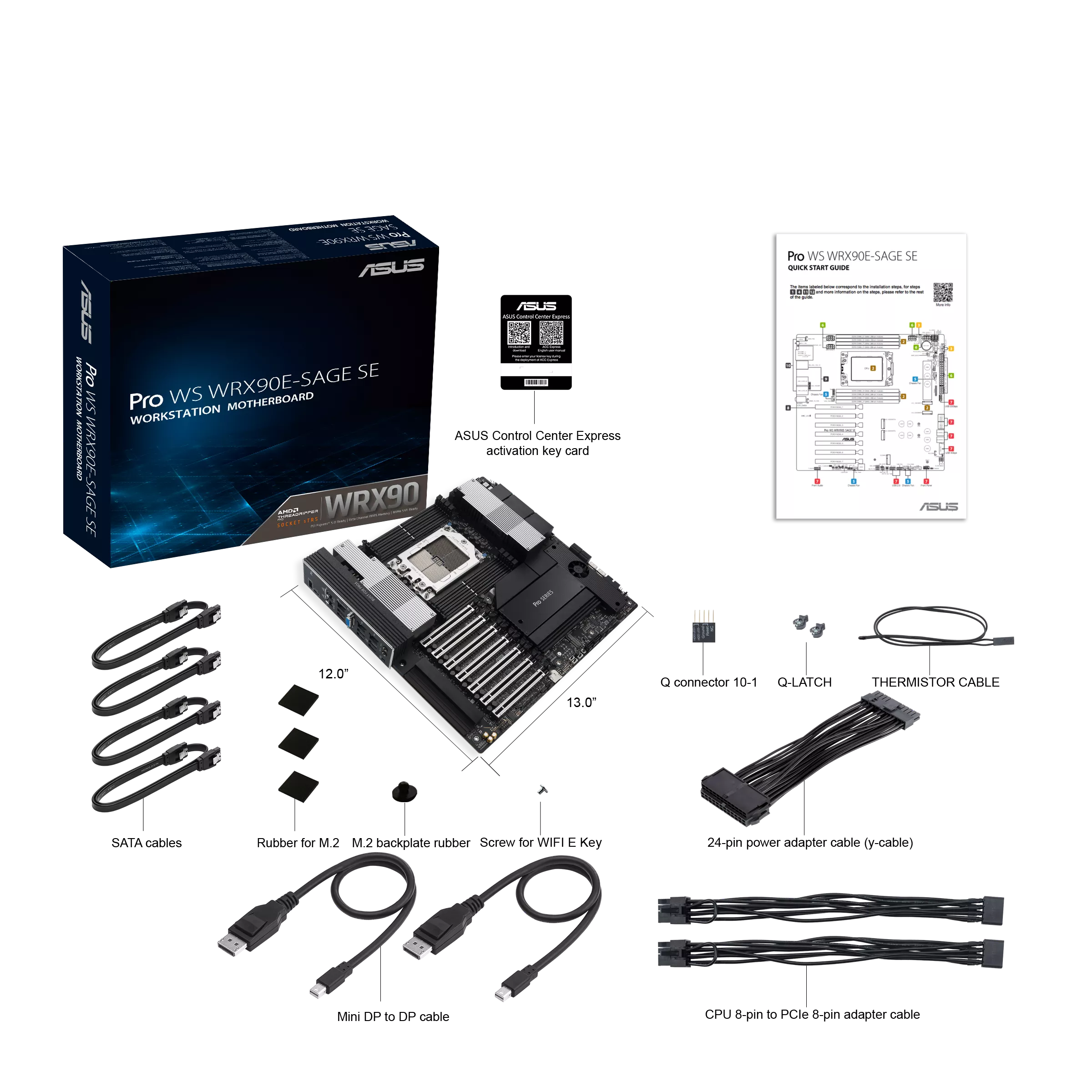

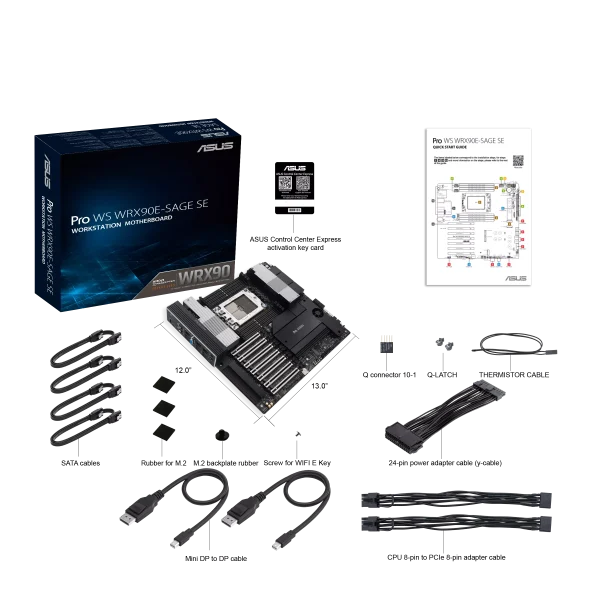

Accessories
PCIe power cables
Mini DisplayPort cables
SATA cables
Thermistor cables
Q-connector
M.2 accessories

Operating System
Windows 11
Windows 10 64-bit

Form Factor
EEB
30.5 cm x 33 cm
