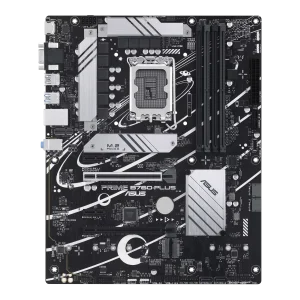

ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
Quick Overview
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Original price was: AED 899.00.AED 629.00Current price is: AED 629.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
1
Item sold in last 24 hours
18
People watching this product now!
B760-PLUS
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
PRIME B760-PLUS motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
The PRIME B760-PLUS motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760-PLUS is geared to cater to the demands of these high-core-count CPUs.
Specification
General
- Model: PRIME B760-PLUS
- Chipset: Intel® B760
- Form Factor: ATX (30.5 cm x 24.4 cm)
- Operating System: Windows® 11, Windows® 10 (64-bit)
CPU Support
- Intel® Socket LGA1700
- Supports:
- Intel® Core™ 14th Gen
- Intel® Core™ 13th Gen
- Intel® Core™ 12th Gen
- Pentium® Gold & Celeron® processors
- Intel® Turbo Boost Technology 2.0
- Intel® Turbo Boost Max Technology 3.0
Memory
- Slots: 4 x DIMM
- Max Capacity: 192GB
- Type: DDR5 (Non-ECC, Unbuffered)
- Speed Support:
- 7200+(OC) to 4800 MHz
- Dual Channel Architecture
- Intel® XMP Support
- OptiMem II
- On-Die ECC (DDR5)
Graphics
- 1 x DisplayPort (4K @ 60Hz)
- 1 x HDMI™ (4K @ 60Hz)
- 1 x VGA port
Expansion Slots
- 1 x PCIe 5.0 x16
- 1 x PCIe 4.0 x16 (x4 mode)
- 2 x PCIe 3.0 x1
Storage
- M.2 Slots: 3 x (PCIe 4.0 x4 / x2)
- SATA: 4 x SATA 6Gb/s
- Supports SATA RAID 0 / 1 / 5 / 10
Networking
- Ethernet: Realtek 2.5Gb LAN
Wireless & Expandability
- Vertical M.2 Key-E slot for Wi-Fi module (module sold separately)
USB Connectivity
Rear I/O (6 Ports)
- 1 x USB 3.2 Gen 2×2 Type-C
- 2 x USB 3.2 Gen 2 Type-A
- 1 x USB 3.2 Gen 1 Type-A
- 2 x USB 2.0
Front Panel (Up to 7 Ports)
- 1 x USB Type-C (USB 3.2 Gen 1)
- 2 x USB 3.2 Gen 1
- 4 x USB 2.0
Audio
- Realtek 7.1 Surround Sound HD Audio
- Supports 24-bit / 192 kHz playback
- Audio shielding & premium capacitors

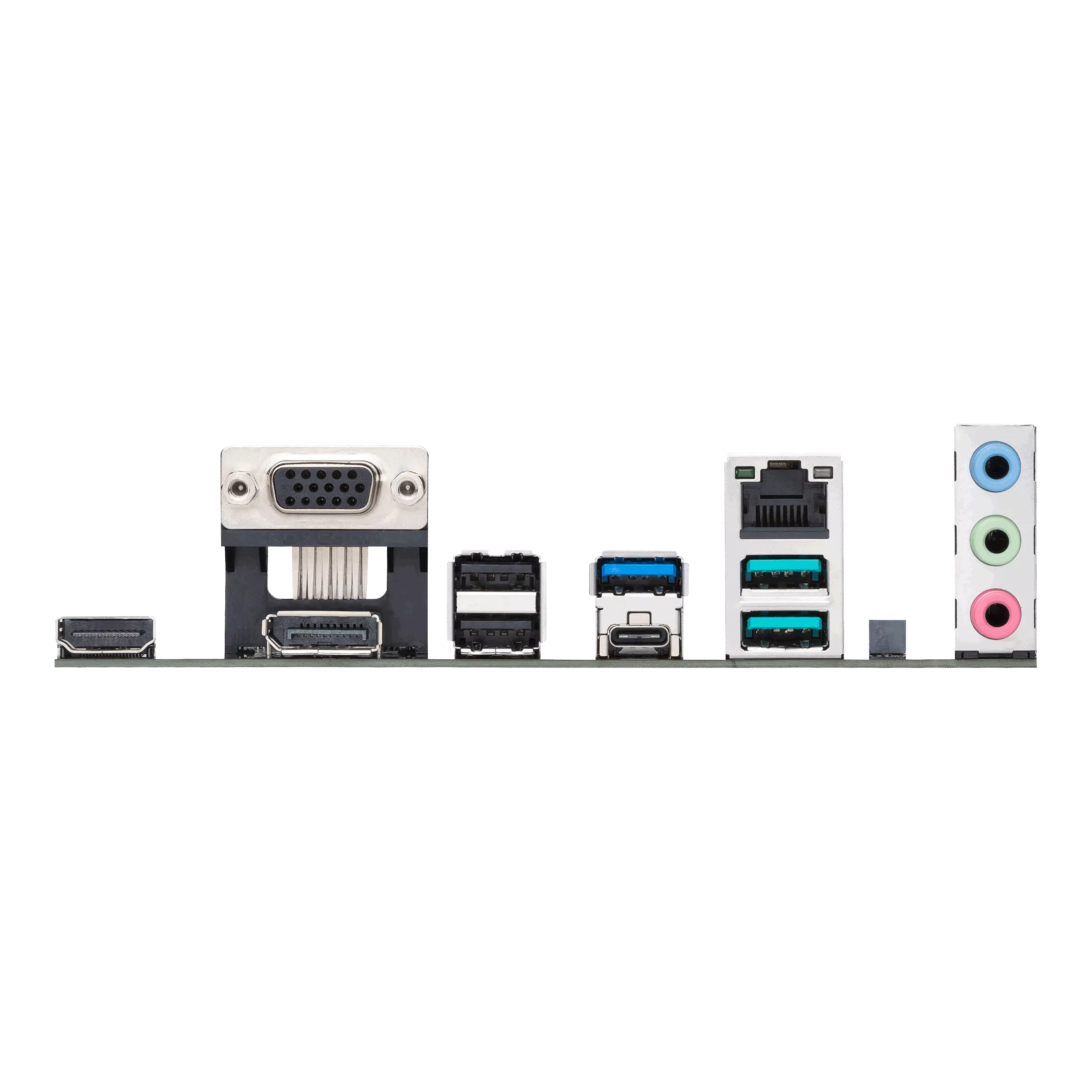

Back Panel I/O
- 1 x USB 3.2 Gen 2×2 Type-C
- 2 x USB 3.2 Gen 2
- 1 x USB 3.2 Gen 1
- 2 x USB 2.0
- 1 x DisplayPort
- 1 x HDMI
- 1 x VGA
- 1 x M.2 Key-E (Wi-Fi slot)
- 1 x 2.5Gb Ethernet
- 3 x Audio jacks
Internal Connectors
- 1 x CPU fan + 1 x AIO pump header
- 3 x chassis fan headers
- 24-pin ATX + 8-pin CPU power
- 3 x M.2, 4 x SATA
- USB headers (Type-C, USB 3.2 Gen 1, USB 2.0)
- 3 x Addressable Gen 2 RGB + 1 x Aura RGB
- TPM, COM, S/PDIF, chassis intrusion header
- Thunderbolt™ (USB4®) header
Cooling & Build Features
- VRM heatsink design
- M.2 heatsink
- ASUS Q-DIMM, Q-Slot, Q-LED Core
- ProCool power connector
Special Features
- ASUS 5X Protection III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
- Aura Sync RGB
Software
- Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+)
- AI Suite 3
- ASUS CPU-Z
- Norton 360 Deluxe (Trial)
- WinRAR
BIOS & Management
- 128 Mb UEFI AMI BIOS
- ASUS EZ Flash 3 / CrashFree BIOS 3
- Wake-on-LAN (WOL), PXE
In the Box
- 2 x SATA cables
- I/O Shield
- M.2 rubber & screw packages
- User guide
