FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING

PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

Specification

General

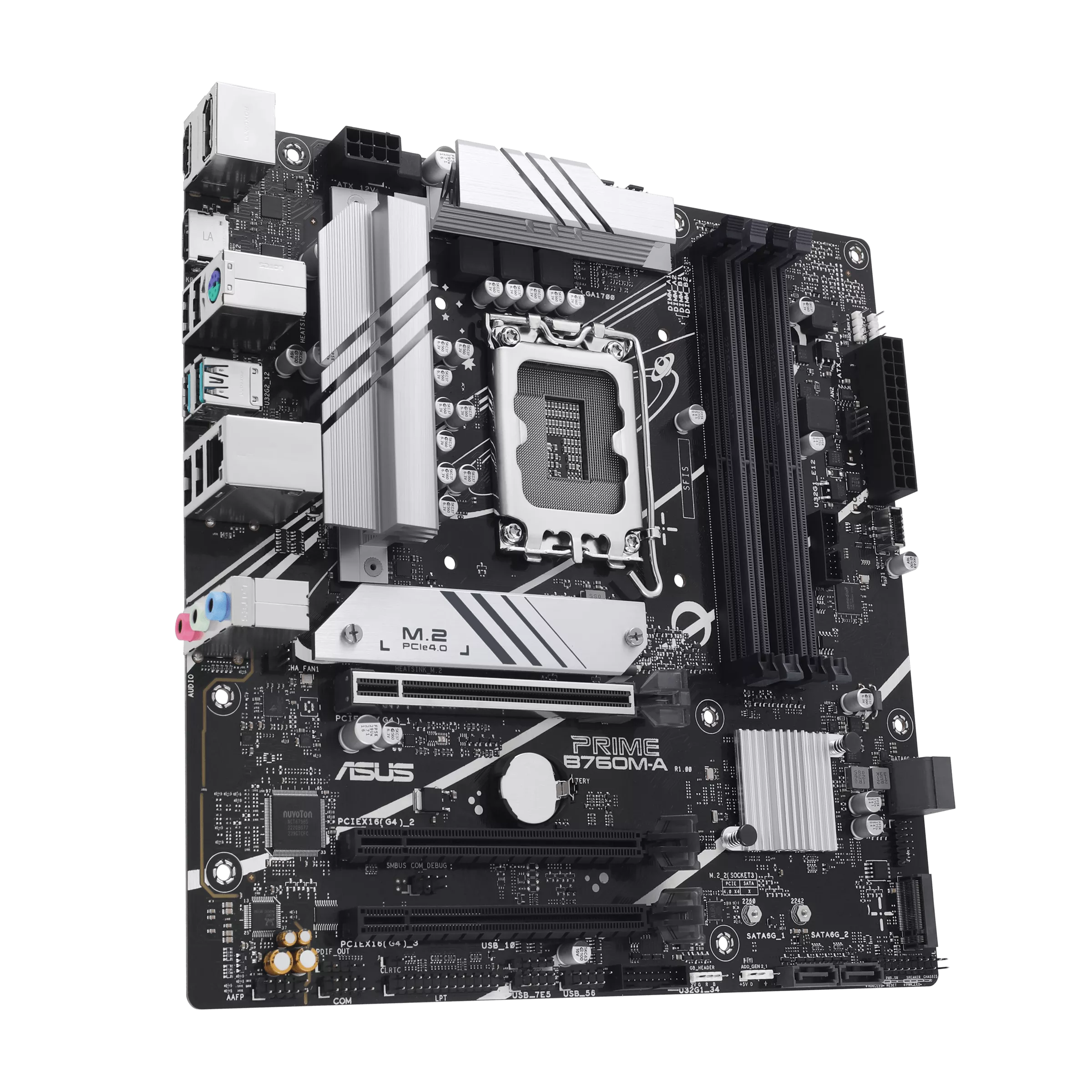

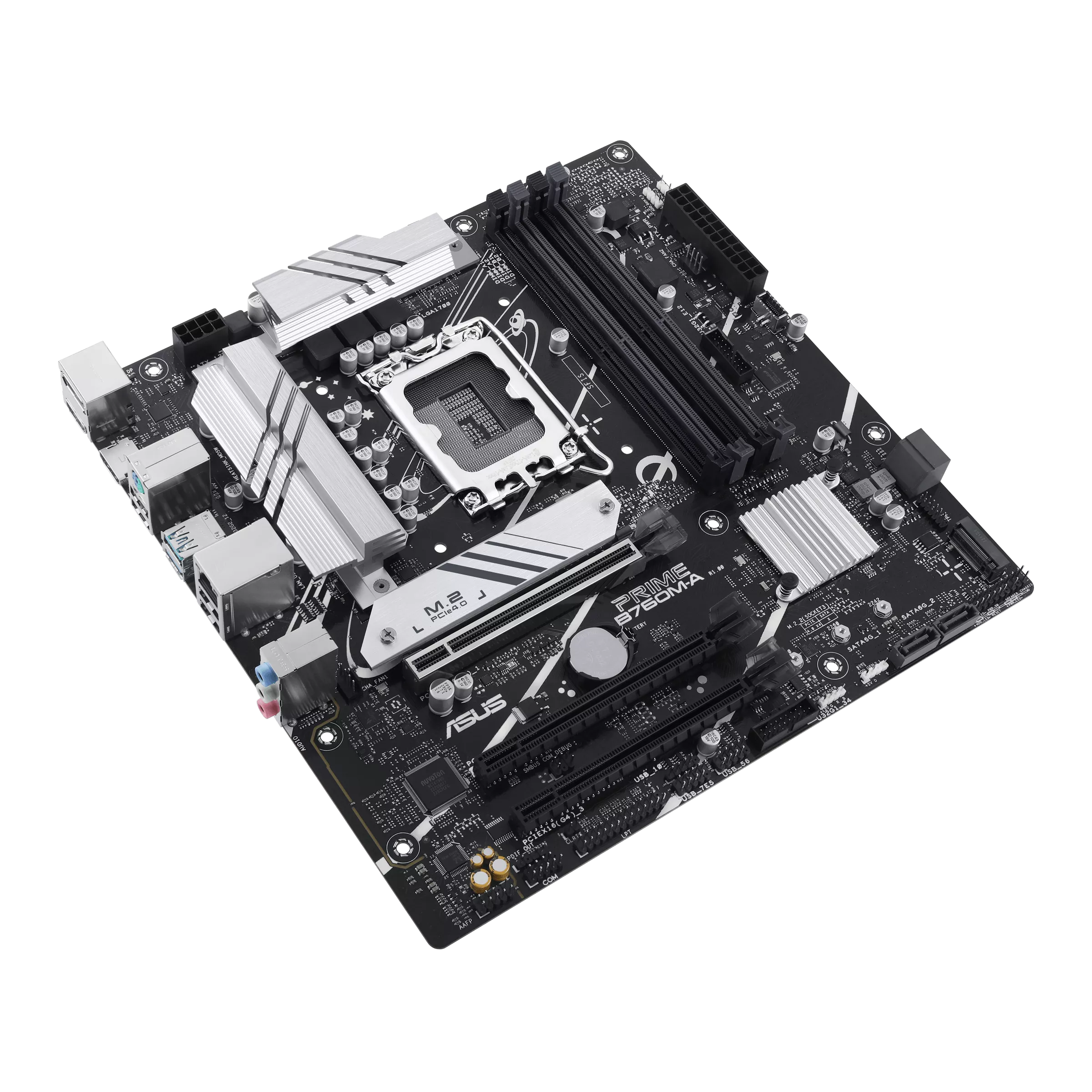

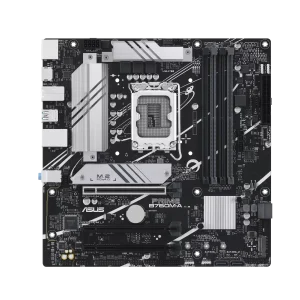

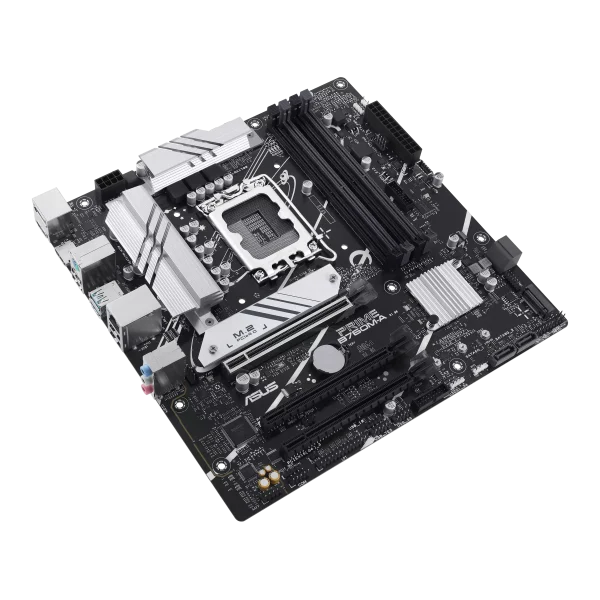

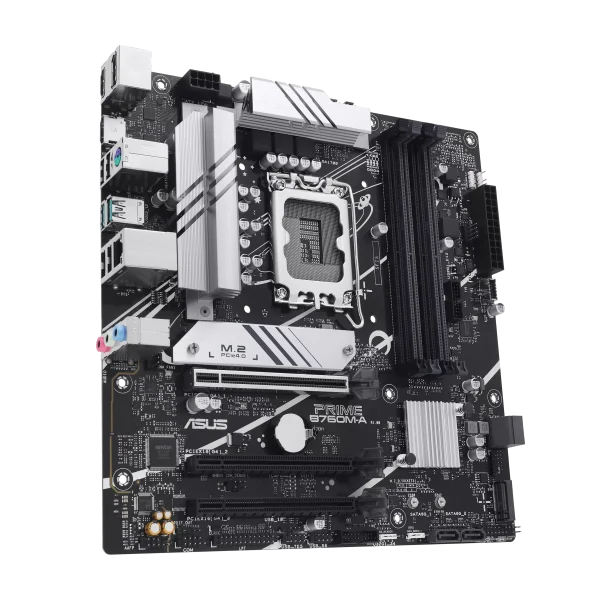

• Model: PRIME B760M-A-CSM
• Chipset: Intel® B760
• Form Factor: mATX (24.4 cm x 24.4 cm)
• Operating System: Windows® 11, Windows® 10 (64-bit)

CPU Support

• Intel® Socket LGA1700
• Supports:
  • Intel® Core™ 14th Gen
  • Intel® Core™ 13th Gen
  • Intel® Core™ 12th Gen
  • Pentium® Gold & Celeron® processors
• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Memory

• Slots: 4 x DIMM
• Max Capacity: 128GB
• Type: DDR5 (Non-ECC, Unbuffered)
• Speed Support:
  • 7200+(OC) to 4800 MHz
• Dual Channel Architecture
• Intel® XMP Support
• OptiMem II
• On-Die ECC (DDR5)

Graphics

• 1 x DisplayPort (4K @ 60Hz)
• 2 x HDMI® ports (4K @ 60Hz)

Expansion Slots

• 1 x PCIe 4.0 x16
• 1 x PCIe 4.0 x16 (x4 mode)
• 1 x PCIe 4.0 x16 (x1 mode)

Storage

• M.2 Slots: 2 x (PCIe 4.0 x4)
• SATA: 4 x SATA 6Gb/s
• Supports SATA RAID 0 / 1 / 5 / 10

Networking

• Ethernet: Realtek 2.5Gb LAN

Wireless & Connectivity

• Wi-Fi Module Slot Present (module availability depends on SKU/package)
• Bluetooth: Depends on installed Wi-Fi module

USB Connectivity

Rear I/O (6 Ports)

• 2 x USB 3.2 Gen 2 Type-A
• 4 x USB 2.0

Front Panel (Up to 10 Ports)

• 1 x USB Type-C (USB 3.2 Gen 1)
• 4 x USB 3.2 Gen 1
• 5 x USB 2.0

Audio

• Realtek 7.1 Surround Sound HD Audio
• Supports 24-bit / 192 kHz playback
• Audio shielding & premium capacitors

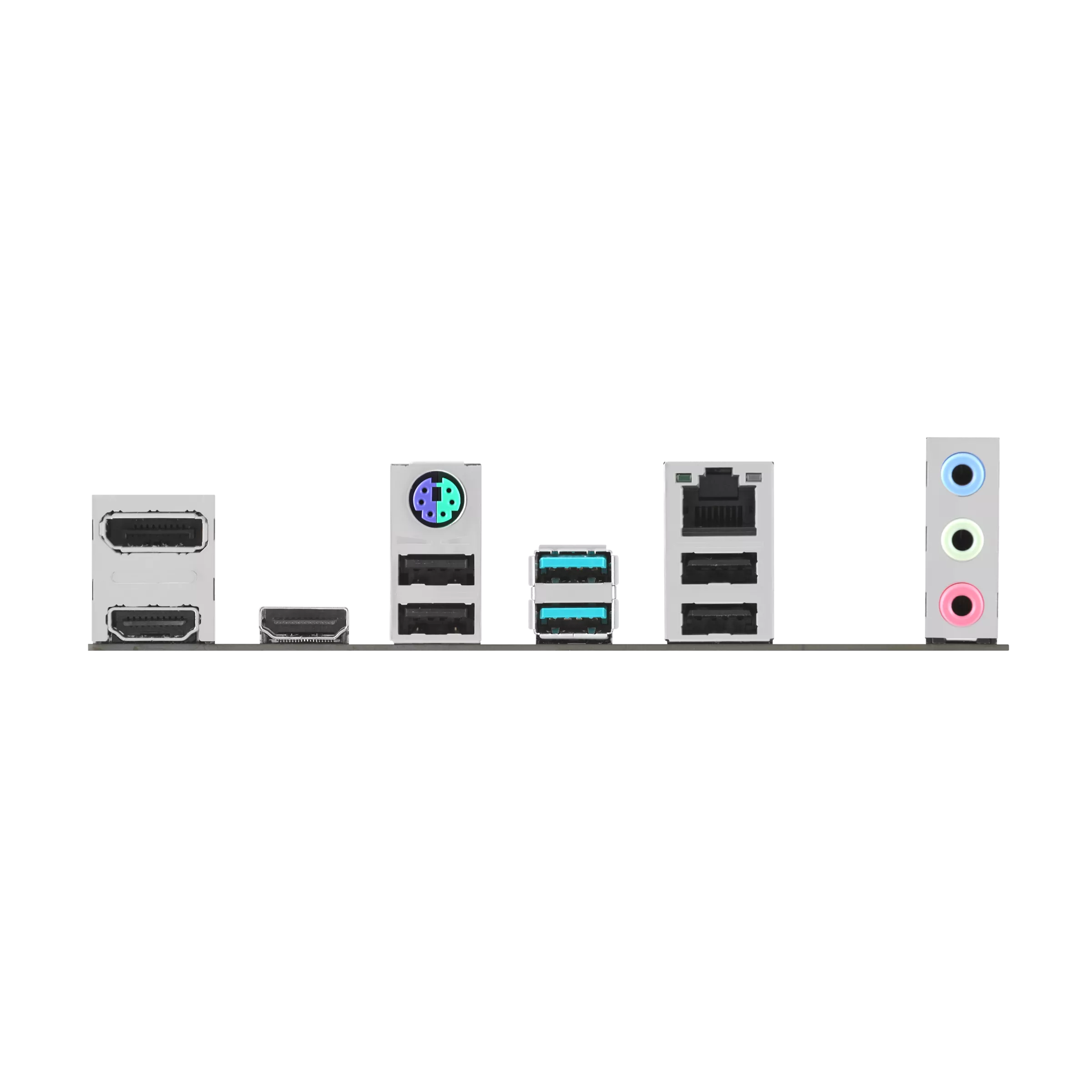

Back Panel I/O

• 2 x USB 3.2 Gen 2
• 4 x USB 2.0
• 1 x DisplayPort
• 2 x HDMI
• 1 x Wi-Fi module slot
• 1 x 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 combo port

Internal Connectors

• 1 x CPU fan + 1 x CPU OPT fan
• 2 x chassis fan headers
• 24-pin ATX + 8-pin CPU power
• 2 x M.2, 4 x SATA
• USB headers (Type-C, USB 3.2 Gen 1, USB 2.0)
• 3 x Addressable Gen 2 RGB + 1 x Aura RGB
• TPM, COM, LPT, S/PDIF, chassis intrusion header

Cooling & Build Features

• VRM heatsink design
• M.2 heatsink
• ASUS Q-DIMM, Q-Slot, Q-LED Core
• ProCool power connector

Special Features

• ASUS 5X Protection III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
• Stainless-Steel Back I/O
• Aura Sync RGB

Software

• Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+)
• AI Suite 3
• ASUS CPU-Z
• Norton 360 Deluxe (Trial)
• WinRAR

BIOS & Management

• 128 Mb UEFI AMI BIOS
• ASUS EZ Flash 3 / CrashFree BIOS 3
• Wake-on-LAN (WOL), PXE

In the Box

• 2 x SATA cables
• I/O Shield
• M.2 rubber & screw package
• ACC Express Activation Key Card (CSM)
• User guide
