All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

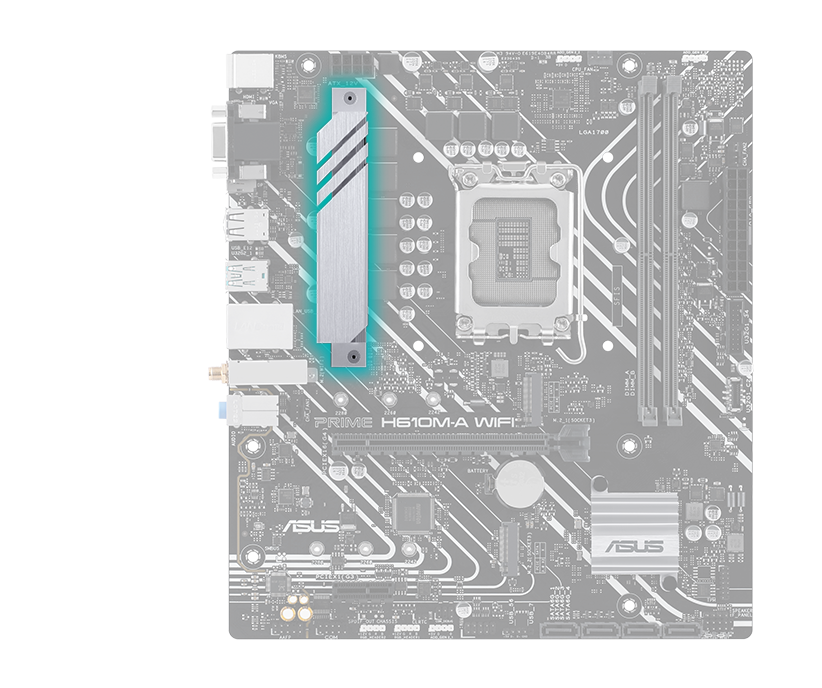

VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

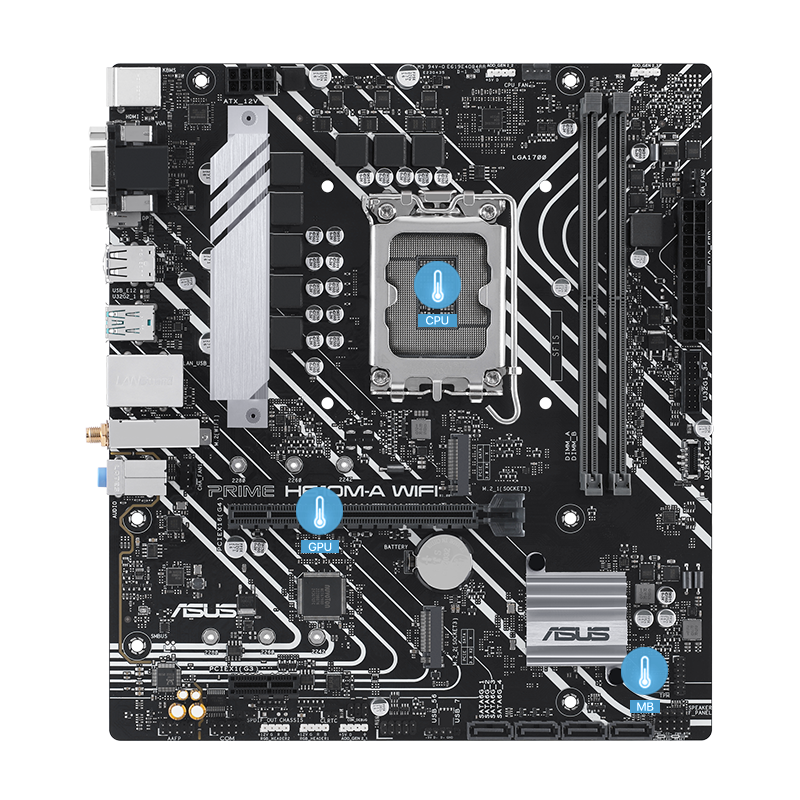

Cooler by Design
Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Storage

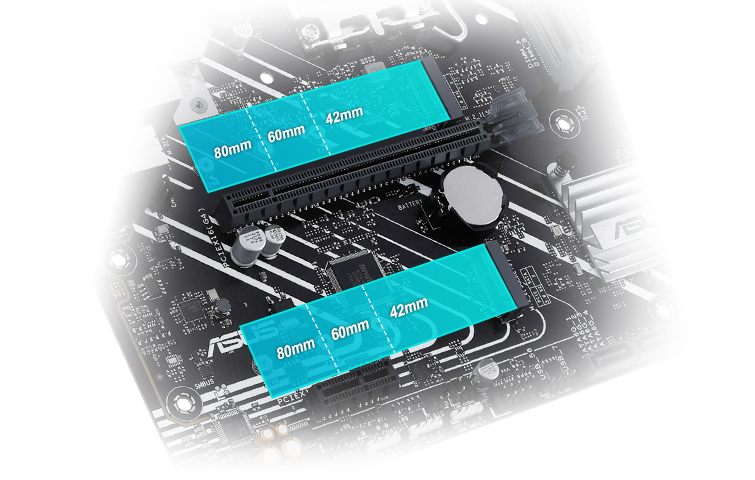

Dual M.2 slots (up to 32 Gbps)
PRIME H610M-A WIFI offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

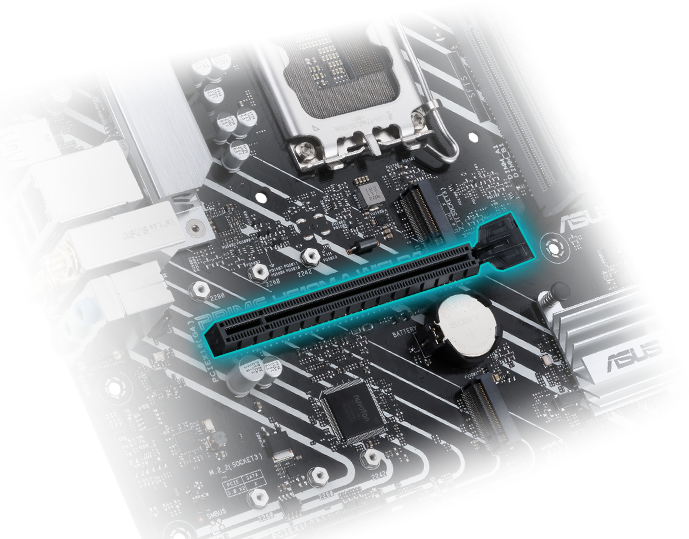

PCIe® 4.0
Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Specification
Processor (CPU)
- Intel® Socket LGA1700
- Supports Intel® Core™ 14th / 13th / 12th Gen processors
- Supports Pentium® Gold & Celeron® CPUs
- Intel® Turbo Boost Technology 2.0
- Intel® Turbo Boost Max Technology 3.0*
Chipset
- Intel® H610 Chipset
Memory
- 2 x DIMM slots, up to 96GB
- DDR5 support: 5600 / 5400 / 5200 / 5000 / 4800 MHz
- Dual-channel architecture
- Supports Intel® XMP
- Non-ECC, Unbuffered DDR5 (On-die ECC supported)
Graphics
- 1 x DisplayPort (up to 4K@60Hz)
- 1 x HDMI™ (up to 4K@60Hz)
- 1 x VGA port
Expansion Slots
- 1 x PCIe 4.0 x16 slot
- 1 x PCIe 3.0 x1 slot
Storage
- 2 x M.2 slots
- 1 x PCIe 3.0 x4
- 1 x PCIe 3.0 x2
- 4 x SATA 6Gb/s ports
Networking
- 1 x Intel® 1Gb Ethernet
- ASUS LANGuard protection
Wireless & Bluetooth
- Wi-Fi 5 (802.11 a/b/g/n/ac)
- Dual-band (2.4GHz / 5GHz)
- Bluetooth® 5.0
USB Connectivity
Rear I/O:
- 1 x USB 3.2 Gen 2 (10Gbps) Type-A
- 4 x USB 2.0
Front I/O:
- 1 x USB 3.2 Gen 1 Type-C® header
- 1 x USB 3.2 Gen 1 header (2 ports)
- 2 x USB 2.0 headers (up to 3 ports)
Audio
- Realtek 7.1 Surround Sound HD Audio
- Supports 24-bit / 192kHz playback
- Audio shielding & premium capacitors
Back Panel I/O
- 1 x USB 3.2 Gen 2 Type-A
- 4 x USB 2.0
- 1 x DisplayPort
- 1 x HDMI™
- 1 x VGA
- 1 x LAN (RJ-45)
- 3 x Audio jacks
- PS/2 Keyboard & Mouse ports
- Wi-Fi antenna connectors
Internal Connectors
- 1 x CPU Fan header
- 2 x Chassis Fan headers
- 1 x 24-pin ATX power
- 1 x 8-pin CPU power
- 2 x M.2 slots
- 4 x SATA ports
- USB headers (Type-C + USB 3.2 + USB 2.0)
- RGB & ARGB headers
- TPM, COM, S/PDIF, speaker headers
Special Features
- ASUS 5X Protection III
- DIGI+ VRM
- SafeSlot Core
- Stainless-steel I/O back panel
- Q-LED Core & Q-DIMM
- Aura Sync RGB support
Cooling & Design
- VRM heatsink design
- Multiple fan headers for system cooling
Software
- Armoury Crate (Aura Sync, Fan Xpert 2+)
- AI Suite 3 (TurboV EVO, EPU, PC Cleaner)
- Two-Way AI Noise Cancellation
- ASUS CPU-Z
BIOS
- 128Mb Flash ROM
- UEFI AMI BIOS
- ASUS EZ Flash 3
- CrashFree BIOS 3
Accessories
- 2 x SATA cables
- Wi-Fi moving antennas
- I/O Shield
- M.2 screw package
- User guide
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Form Factor
- mATX (Micro-ATX)
- 9.6″ x 8.5″ (24.4 cm x 21.6 cm)
