ASUS Prime B760M-K Intel® B760 LGA 1700 mATX Motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

Quick Overview

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel^® LGA 1700 Socket: Ready for 14^th, 13^th and 12^th Gen Intel^® processors
Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

SKU: 90MB1FI0-M1EAY0 Categories: Computer Components, Motherboards Tag: B760 Motherboard

Original price was: AED 699.00.Current price is: AED 525.00.

Warranty

Included Warranty	1 Year Free Warranty

Delivery

Standard Delivery	One Day Delivery

4 Items sold in last 24 hours

6 People watching this product now!

Description
Additional information

B760M-K

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14^th Gen Intel^® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

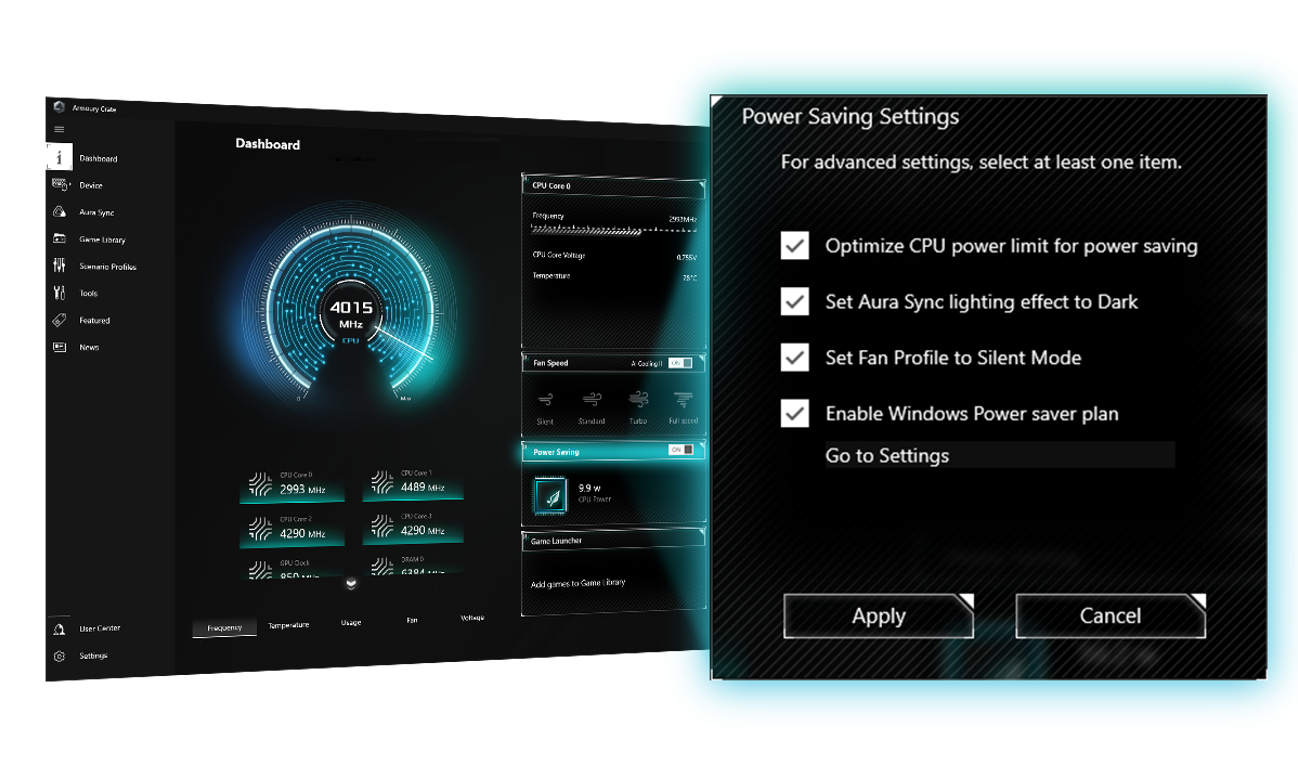

UI of Power Saving settings

COOLING

PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs for better cooling performance.

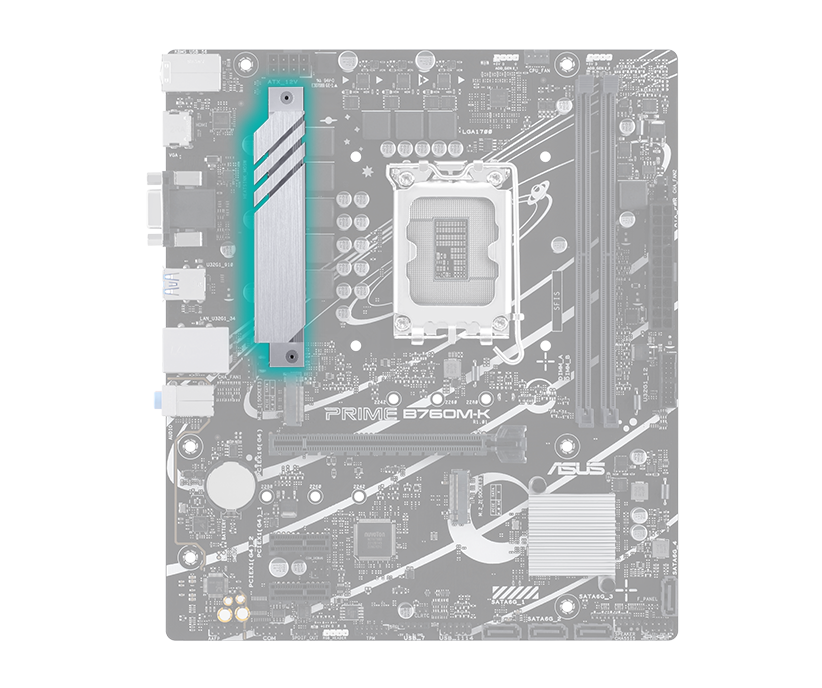

Prime motherboard with VRM heatsink image

PERFORMANCE

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14^th, 13^th and 12^th Gen Intel^® Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel^® processors. The PRIME B760M-K is geared to cater to the demands of these high-core-count CPUs.

ProCool Connector

Proprietary connectors augment the motherboard’s link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

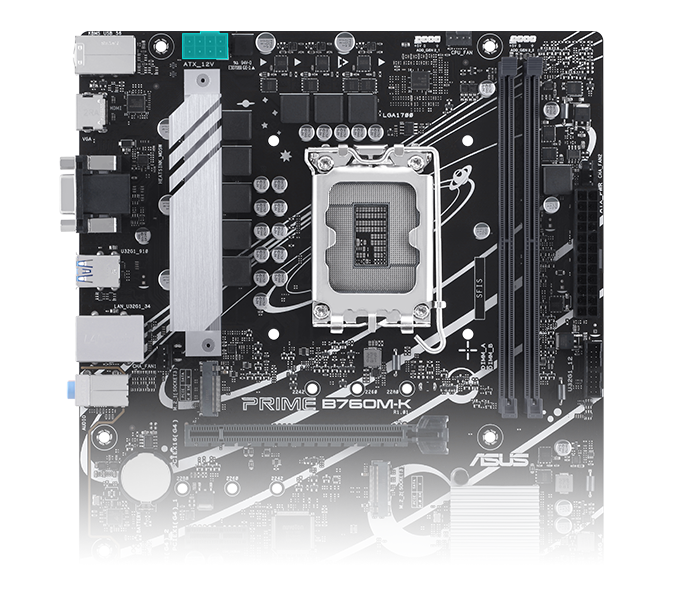

Features ProCool Connector

Specification

General

Model: PRIME B760M-K
Chipset: Intel® B760
Form Factor: mATX (24.4 cm x 21.1 cm)
Operating System: Windows® 11, Windows® 10 (64-bit)

CPU Support

Intel® Socket LGA1700
Supports:
- Intel® Core™ 14th Gen
- Intel® Core™ 13th Gen
- Intel® Core™ 12th Gen
- Pentium® Gold & Celeron® processors
Intel® Turbo Boost Technology 2.0
Intel® Turbo Boost Max Technology 3.0

Memory

Slots: 2 x DIMM
Max Capacity: 96GB
Type: DDR5 (Non-ECC, Unbuffered)
Speed Support:
- 8000(OC) to 4800 MHz
Dual Channel Architecture
Intel® XMP Support
On-Die ECC (DDR5)

Graphics

1 x HDMI™ (4K @ 60Hz)
1 x VGA port

Expansion Slots

1 x PCIe 4.0 x16
2 x PCIe 4.0 x1

Storage

M.2 Slots: 2 x (PCIe 4.0 x4)
SATA: 4 x SATA 6Gb/s
Supports SATA RAID 0 / 1 / 5 / 10

Networking

Ethernet: Realtek 2.5Gb LAN

USB Connectivity

Rear I/O (6 Ports)

4 x USB 3.2 Gen 1 (5Gbps)
2 x USB 2.0

Front Panel (Up to 5 Ports)

2 x USB 3.2 Gen 1
3 x USB 2.0

Audio

Realtek 7.1 Surround Sound HD Audio
Supports 24-bit / 192 kHz playback
Audio shielding & premium capacitors

Back Panel I/O

4 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
1 x 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 combo port

Internal Connectors

1 x CPU fan header
2 x chassis fan headers
24-pin ATX + 8-pin CPU power
2 x M.2, 4 x SATA
USB headers (USB 3.2 Gen 1 & USB 2.0)
2 x Addressable Gen 2 RGB + 1 x Aura RGB
TPM, COM, S/PDIF, speaker & front panel headers

Cooling & Build Features

VRM heatsink design
ASUS Q-DIMM, Q-Slot, Q-LED Core
ProCool power connector

Special Features

ASUS 5X Protection III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
Stainless-Steel Back I/O
Aura Sync RGB

Software

Armoury Crate (Aura Sync, Fan Xpert 2+)
AI Suite 3
ASUS CPU-Z
Norton 360 Deluxe (Trial)
WinRAR

BIOS & Management

128 Mb UEFI AMI BIOS
ASUS EZ Flash 3 / CrashFree BIOS 3
Wake-on-LAN (WOL), PXE

In the Box

2 x SATA cables
I/O Shield
2 x M.2 anchors
User guide
