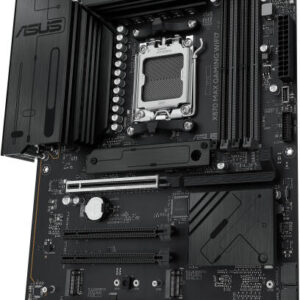

Asus X870 Max Gaming WIFI7 ATX Motherboard, AM5 Socket, 4x DDR5 DIMM Slots, 256GB Max Memory, Wi-Fi 7, Bluetooth

Quick Overview

AI Solutions for advanced AI capabilities
AEMP for enhanced DDR5 performance
WiFi 7 for stable WiFi connection and lower latency
PCIe 5.0 slots for graphics card and storage

SKU: 90MB1LY0-M0EAY0 Categories: Computer Components, Motherboards Tags: Asus amd motherboard, x870 motherboard

AED 1,250.00

Warranty

Included Warranty	1 Year Free Warranty

Delivery

Standard Delivery	One Day Delivery

5 Items sold in last 24 hours

12 People watching this product now!

Description
Additional information

X870
MAX GAMING WIFI7

ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen^™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance

AI Solutions

ASUS AI Solutions include AI Cache Boost to supercharge large language model (LLM) workflows, ASUS AI Advisor as your technical expert with expertise in PC performance, AI Cooling II for automated temperature control.

AI Cache Boost

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen^™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

ASUS AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way

AI Cooling II

Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Performance

Robust power design

Stable power is crucial for maximizing the performance of AMD processors. The X870 series is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

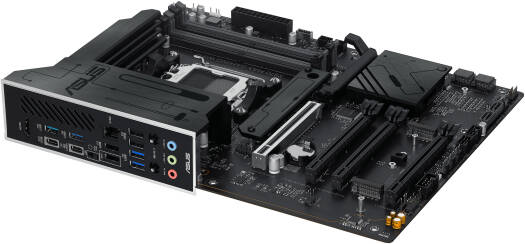

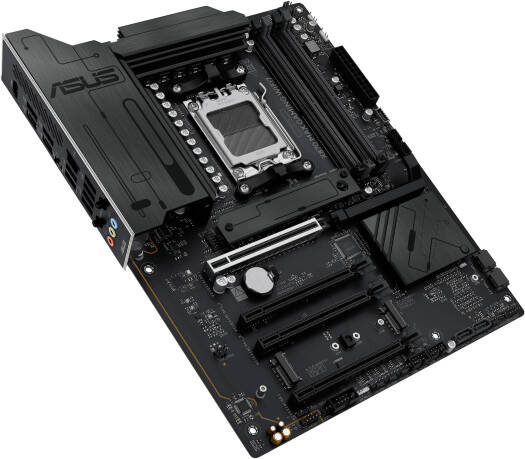

Angled top-down view of X870 MAX GAMING WIFI7 motherboard.

Enhanced Memory & Storage Performance

Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of X870 series motherboards. The X870 MAX GAMING WIFI7 maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.²

For entry-level modules without EXPO^™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the X870 MAX GAMING WIFI7 offers extensive AMD Extended Profiles for Overclocking (EXPO^™) support and a wide array of UEFI settings for further performance tweaks³.

Three M.2 slots (up to 128 Gbps)

X870 MAX GAMING WIFI7 offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives⁴.

Graphic depicting different M.2 slots on a motherboard.

Cooling

Cooler by design

The X870 MAX GAMING WIFI7 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart Cooling precision

ASUS Fan Xpert 4

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.⁵

ASUS motherboard and AIO cooler on a table.

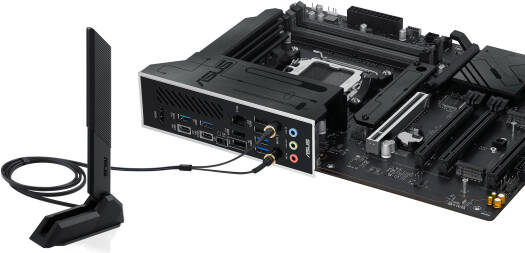

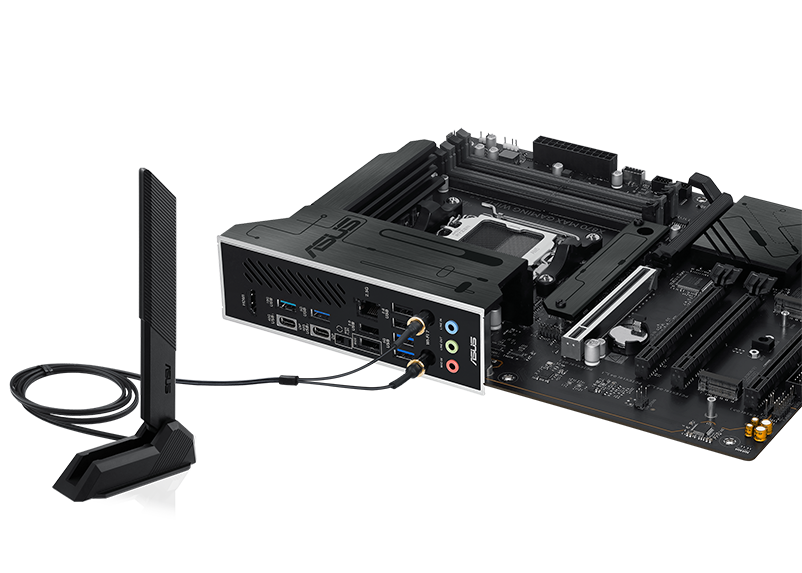

WiFi 7

The next-gen WiFi 7⁶ supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

Customization

Personalization

The X870 series enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

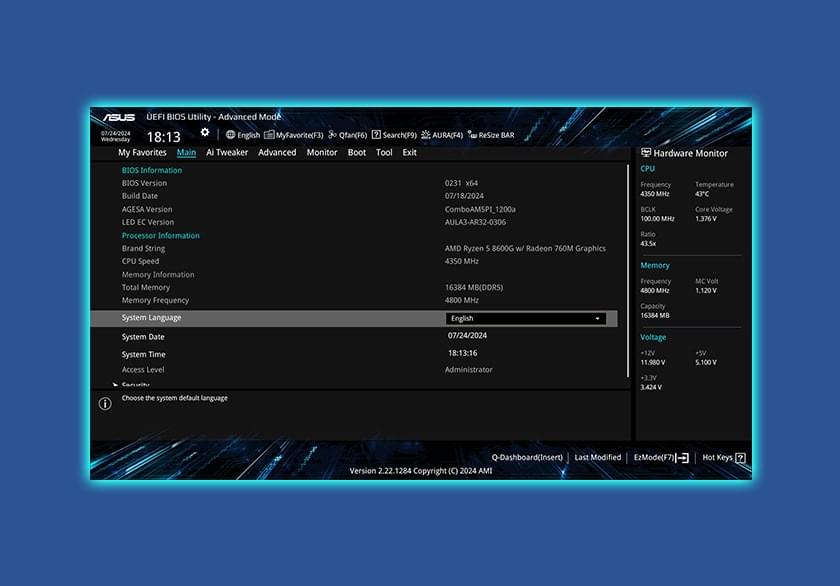

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

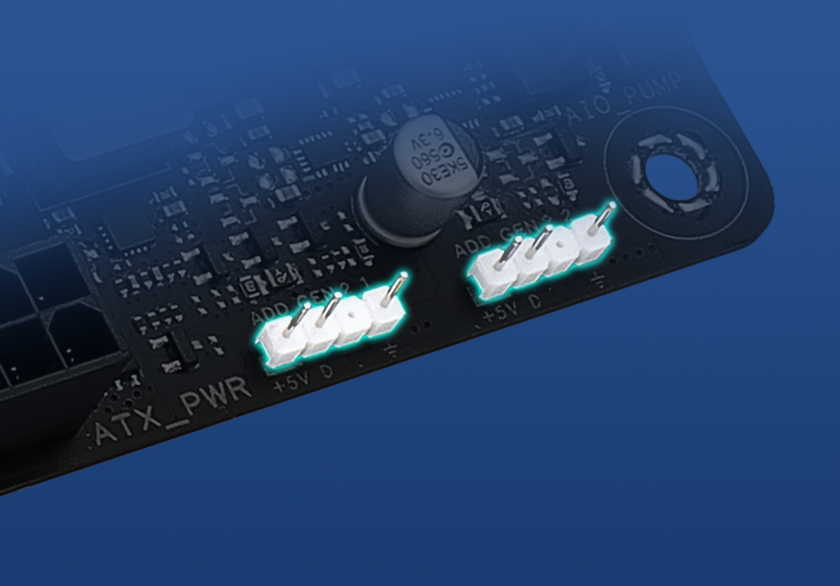

Addressable RGB Gen 2 headers

Three Addressable RGB Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

Image depicting X870 MAX GAMING WIFI7 ARGB connectors.

Pre-Mounted I/O Shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

BIOS FlashBack^™

BIOS FlashBack^™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack^™ port, and press a button—no CPU or memory needed.

SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Build for the most advanced pc for gaming and creating

When only the fastest will do, ASUS X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking⁷ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO^™ technology and PCIe^® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS X870E/X870 motherboard and AMD Ryzen^™ 9000, 8000, and 7000 Series processors.

Specification

General

Model: X870 MAX GAMING WIFI7
Form Factor: ATX (30.5 cm x 24.4 cm)
Chipset: AMD X870
OS Support: Windows 11

CPU Support

Socket: AMD AM5
Compatible Processors:
- Ryzen 9000 Series
- Ryzen 8000 Series
- Ryzen 7000 Series

Memory

4 x DDR5 DIMM slots
Up to 256GB maximum capacity
Supports up to 8000+ MT/s (OC)
Dual-channel architecture
ECC & Non-ECC support
AMD EXPO™ & ASUS AEMP support

Graphics

1 x HDMI (supports up to 4K @ 60Hz)
2 x USB4 (40Gbps Type-C with display output support)

Expansion Slots

1 x PCIe 5.0 x16 (Ryzen 9000/7000)
1 x PCIe 4.0 x16 (Ryzen 8000)
2 x PCIe 4.0 x16 (x1 mode)
1 x PCIe 3.0 x16 (x1 mode)

Storage

3 x M.2 slots
- 1 x PCIe 5.0
- 2 x PCIe 4.0
4 x SATA 6Gb/s

RAID Support

Ryzen 9000: RAID 0/1/5/10
Ryzen 8000: RAID 0/1
Ryzen 7000: RAID 0/1/10

Networking

Ethernet: Realtek 2.5Gb LAN with ASUS LANGuard
Wireless: Wi-Fi 7 (2×2, 2.4/5/6GHz)
Bluetooth: 5.4

USB Connectivity

Rear USB Ports

2 x USB4 (Type-C, 40Gbps)
1 x USB 10Gbps
3 x USB 5Gbps
4 x USB 2.0

Front USB Ports

1 x USB 20Gbps (Type-C header)
1 x USB 5Gbps header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)

Audio

Realtek 7.1 Surround Sound HD Audio CODEC
Jack-detection
24-Bit / 192kHz playback

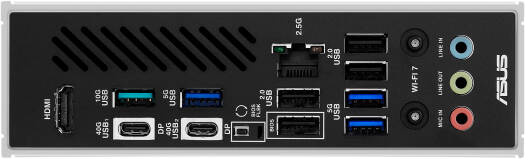

Back Panel I/O

2 x USB4
1 x USB 10Gbps
3 x USB 5Gbps
4 x USB 2.0
1 x HDMI
1 x Ethernet (2.5Gb)
3 x Audio jacks
1 x BIOS FlashBack button

Internal Connectors

CPU Fan
CPU OPT
AIO Pump header
4 x Chassis Fan headers
24-pin ATX power
2 x 8-pin CPU power
3 x M.2
4 x SATA
USB headers
RGB headers
TPM header

Special Features

Q-Design (tool-friendly installation)
5X Protection III
Aura Sync RGB
BIOS FlashBack
M.2 Heatsink
SafeSlot

Software

Armoury Crate
AI Advisor
DriverHub
GlideX
TurboV Core
ASUS CPU-Z

BIOS

256Mb Flash ROM
UEFI AMI BIOS
EZ Flash
MyHotkey

Manageability

WOL by PME
PXE

Accessories Included

2 x SATA cables
WiFi antenna
M.2 screws & rubber
Quick Start Guide

Operating System Support

Supported OS: Windows 11 (64-bit)

Form Factor

Type: ATX
Dimensions: 30.5 cm x 24.4 cm
Compatibility: Fits standard ATX mid-tower and full-tower PC cases

Weight	2.15 kg
Dimensions	7 × 36 × 27.51 cm
CPU Type	INTEL, AMD
RAM Technology	DDR 3, DDR 4, DDR 5
Included Warranty	1 Year Free Warranty
Standard Delivery	One Day Delivery
