ASUS AI
INTELLIGENCE

AI CACHE BOOST

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

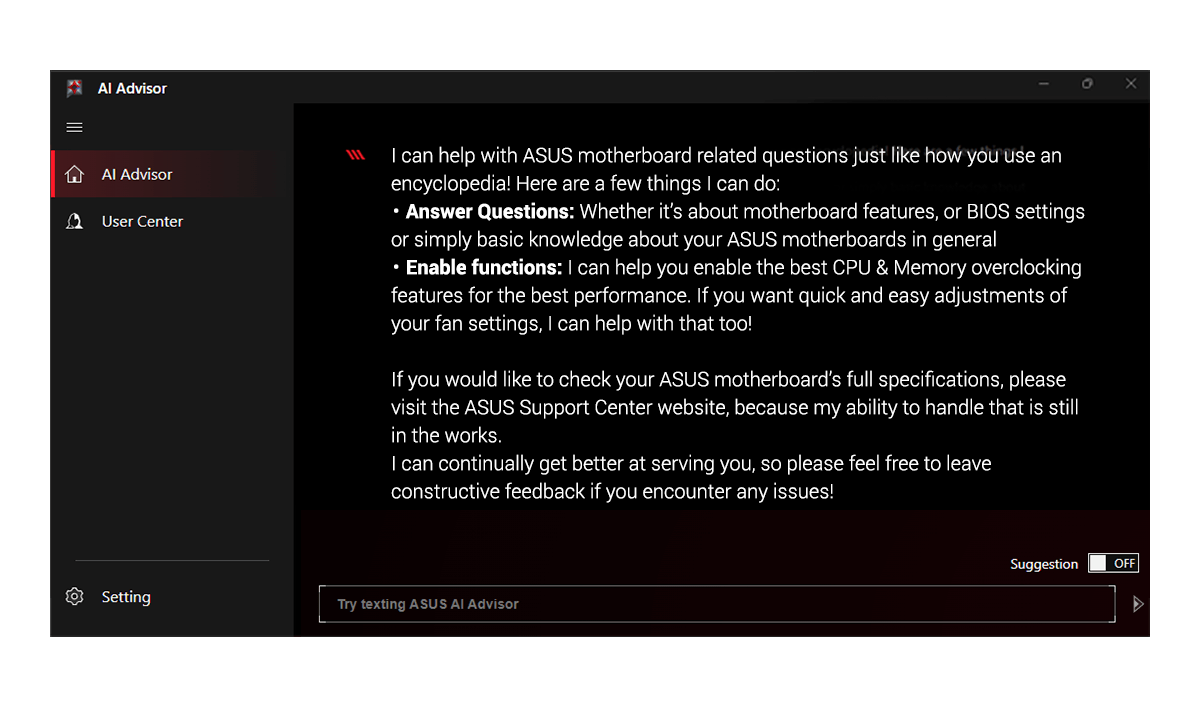

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

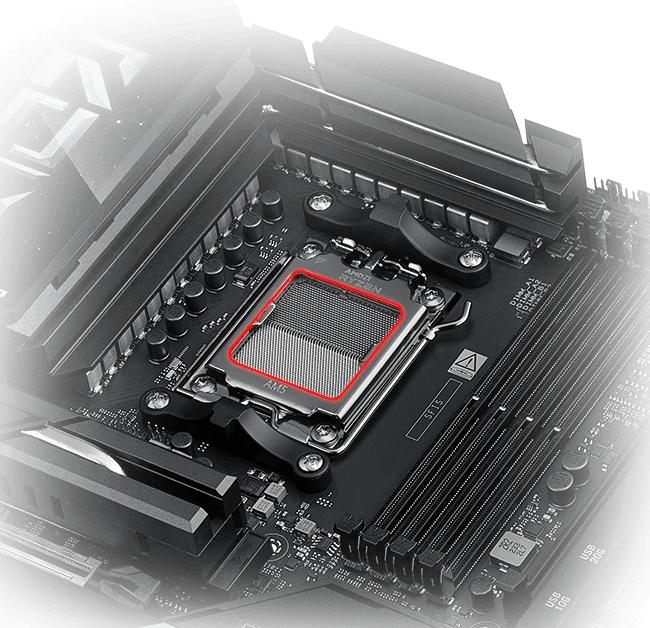

AI OVERCLOCKING

Tuning is now faster and smarter than ever before.

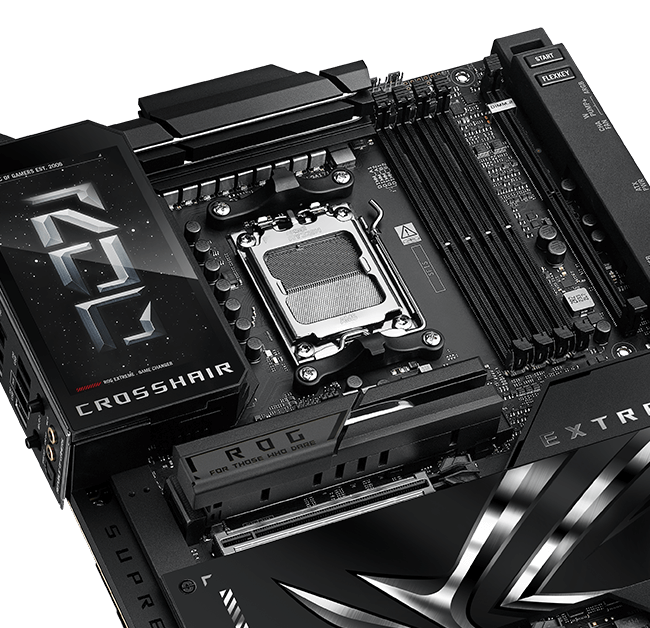

AI COOLING II

Balance the thermals and acoustics of any build with a single click.

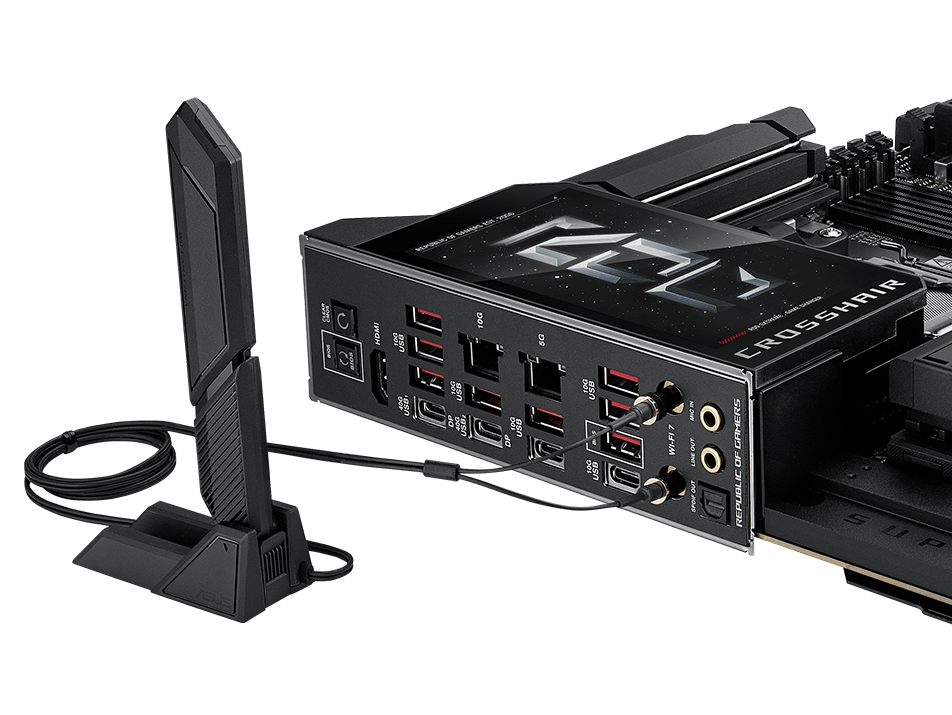

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance MEMORY

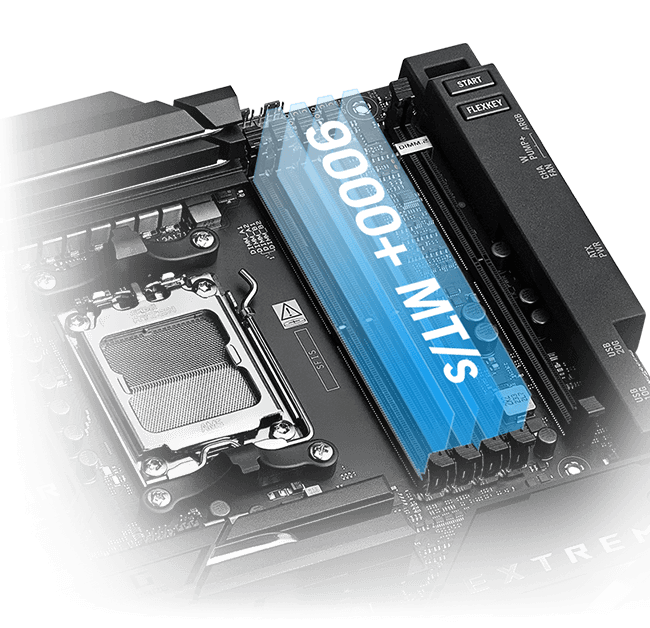

DDR5 DOMINATION

Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Crosshair X870E Extreme*.

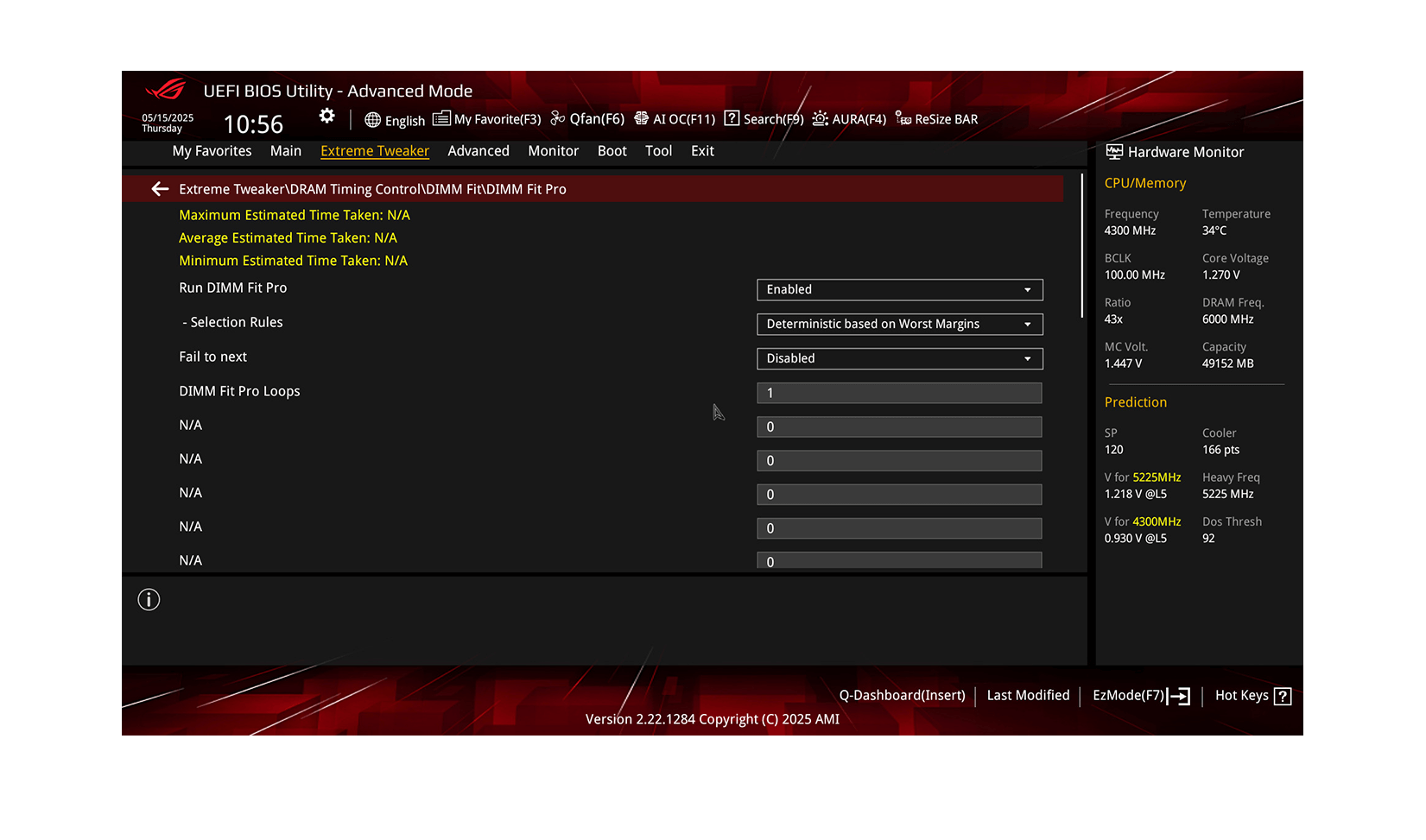

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

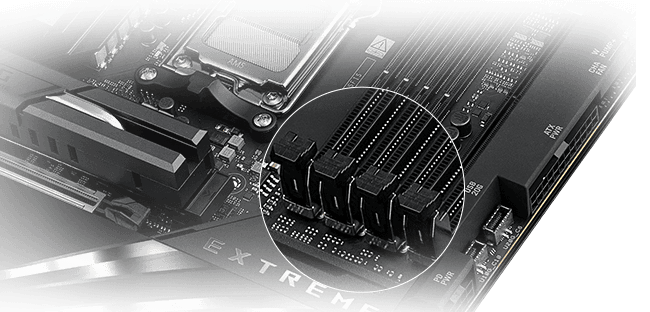

NitroPath DRAM Technology

Frequency up to 400 MT/s higher

Slot retention force enhanced by 57%

Specification

Model

ROG Crosshair X870E Extreme

CPU

AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset

AMD X870E

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to:
  • 8200+ MT/s (OC) – Ryzen™ 9000 Series
  • 9000+ MT/s (OC) – Ryzen™ 8000 Series
  • 8000+ MT/s (OC) – Ryzen™ 7000 Series
• ECC & Non-ECC Un-buffered DIMM
• Dual Channel Architecture

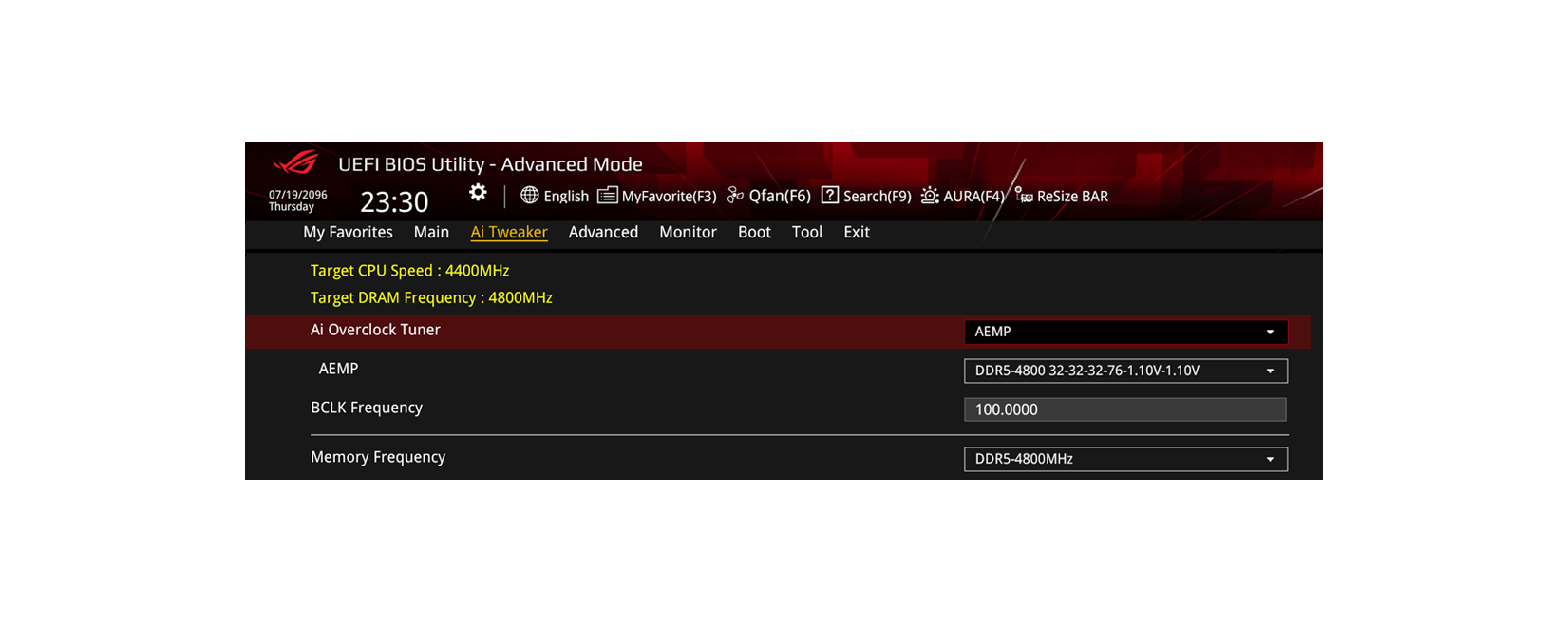

• Supports EXPO™, AEMP, NitroPath DRAM Technology

Graphics

• 1 x HDMI™ port (4K@60Hz)
• 2 x USB4® (40Gbps) Type-C display outputs (up to 4K@60Hz)

Expansion Slots

Ryzen™ 9000 / 7000 Series:

• 2 x PCIe 5.0 x16 slots (x16 / x8+x8 / x8+x4+x4)

Ryzen™ 8000 Series:

• 2 x PCIe 4.0 x16 slots (limited bandwidth modes)

Storage

• Supports 5 x M.2 + 1 x SlimSAS + 4 x SATA

CPU (Ryzen 9000 / 7000):

• 3 x M.2 PCIe 5.0 x4

CPU (Ryzen 8000):

• 1 x M.2 PCIe 4.0 x4

Chipset:

• 2 x DIMM.2 (via ROG Q-DIMM.2, PCIe 4.0 x4)
• 1 x SlimSAS (PCIe 4.0 x4)
• 4 x SATA 6Gb/s

RAID Support

AMD RAIDXpert2:

• Ryzen 9000: RAID 0/1/5/10
• Ryzen 8000: RAID 0/1
• Ryzen 7000: RAID 0/1/10

Ethernet

• 1 x Realtek 5Gb Ethernet
• 1 x Marvell AQtion 10Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 7 (2×2, 802.11be, up to 6.5Gbps)
• Bluetooth 5.4

USB

Rear (12 ports):

• 2 x USB4 (40Gbps, Type-C)
• 10 x USB 10Gbps (8 Type-A + 2 Type-C)

Front:

• 1 x USB 20Gbps Type-C (up to 60W PD)
• 1 x USB 10Gbps Type-C
• 2 x USB 5Gbps headers (4 ports)
• 2 x USB 2.0 headers (4 ports)

Audio

ROG SupremeFX ALC4082 (7.1 Surround)

• ESS ES9219 Quad DAC
• Optical S/PDIF out
• Gold-plated jacks
• 32-bit / 384 kHz playback

Back Panel I/O

• 2 x USB4 Type-C
• 10 x USB 10Gbps
• 1 x HDMI
• Wi-Fi module
• 5Gb + 10Gb Ethernet
• 2 x audio jacks + optical S/PDIF
• BIOS FlashBack & Clear CMOS

Internal I/O Connectors

• 2 x 8-pin CPU power + 24-pin ATX
• 1 x PCIe 8-pin power
• 5 x M.2 + DIMM.2 support
• 1 x SlimSAS
• Multiple fan, pump & sensor headers
• USB headers (20Gbps, 10Gbps, 5Gbps, 2.0)

Special Features

Extreme OC Kit

• LN2 Mode, Safe Boot, Retry, Start button
• Slow Mode, ProbeIt

ASUS Q-Design

• Q-Code, Q-DIMM.2, Q-Release Slim
• M.2 Q-Latch / Q-Release / Q-Slide

Thermal Design

• VRM heatsinks + metal backplate
• 3D VC M.2 heatsink

Other

• Dual BIOS
• 5” Full-color LCD display
• Aura Sync RGB

Software Features

• Armoury Crate, Aura Sync, Fan Xpert 4
• AIDA64 Extreme (1 year)
• Dolby Atmos
• ASUS AI Advisor
• TurboV Core

BIOS

• 2 x 256Mb Flash ROM, UEFI AMI BIOS

Accessories

• ROG DIMM.2 with heatsink
• Fan kits, thermal pads
• ARGB cables, SATA cables
• USB drive with drivers

Operating System

Windows 11

Form Factor

E-ATX
30.5 cm x 27.7 cm
