All You Need for Maximum Productivity

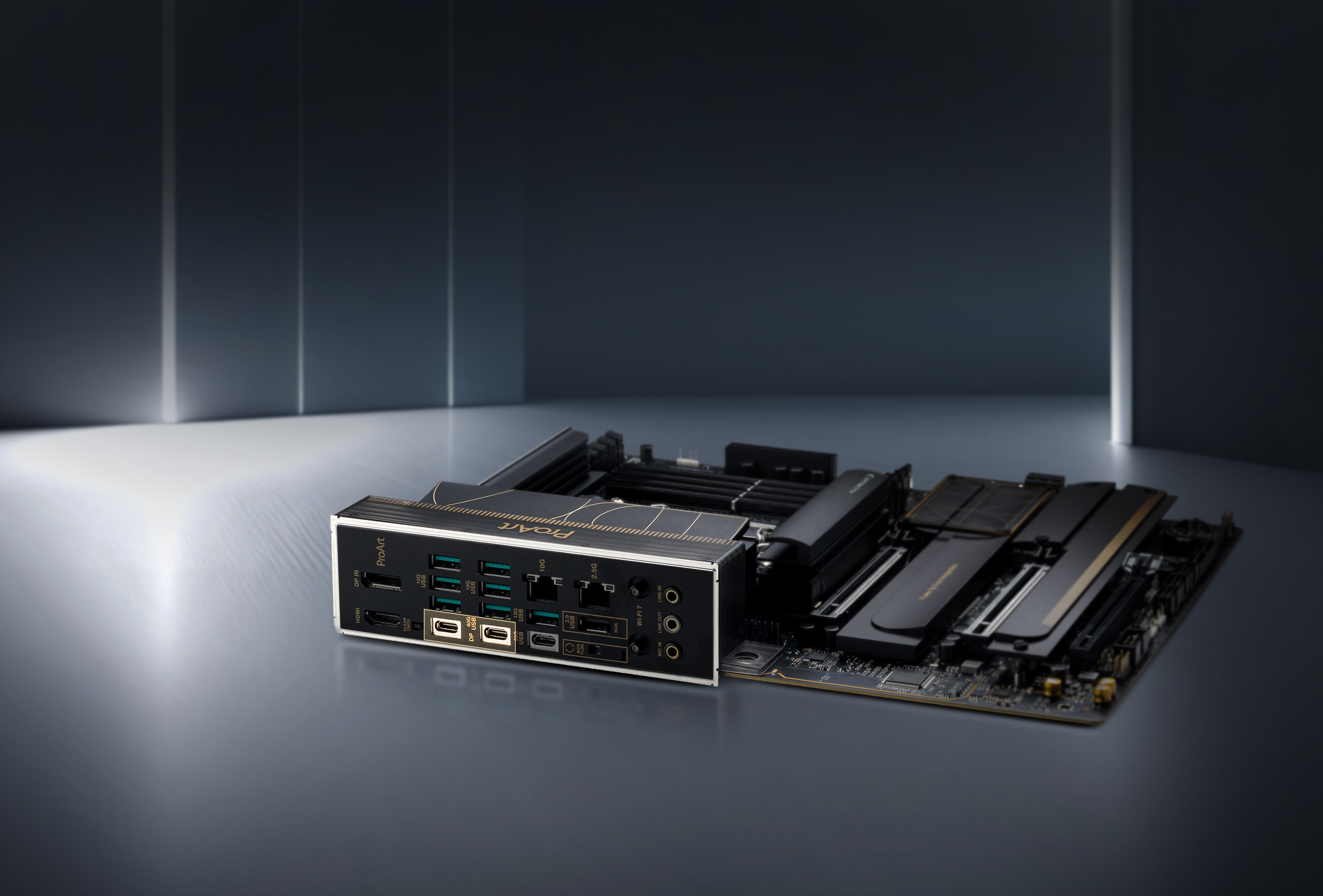

Dual USB4^® Connectivity

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.​

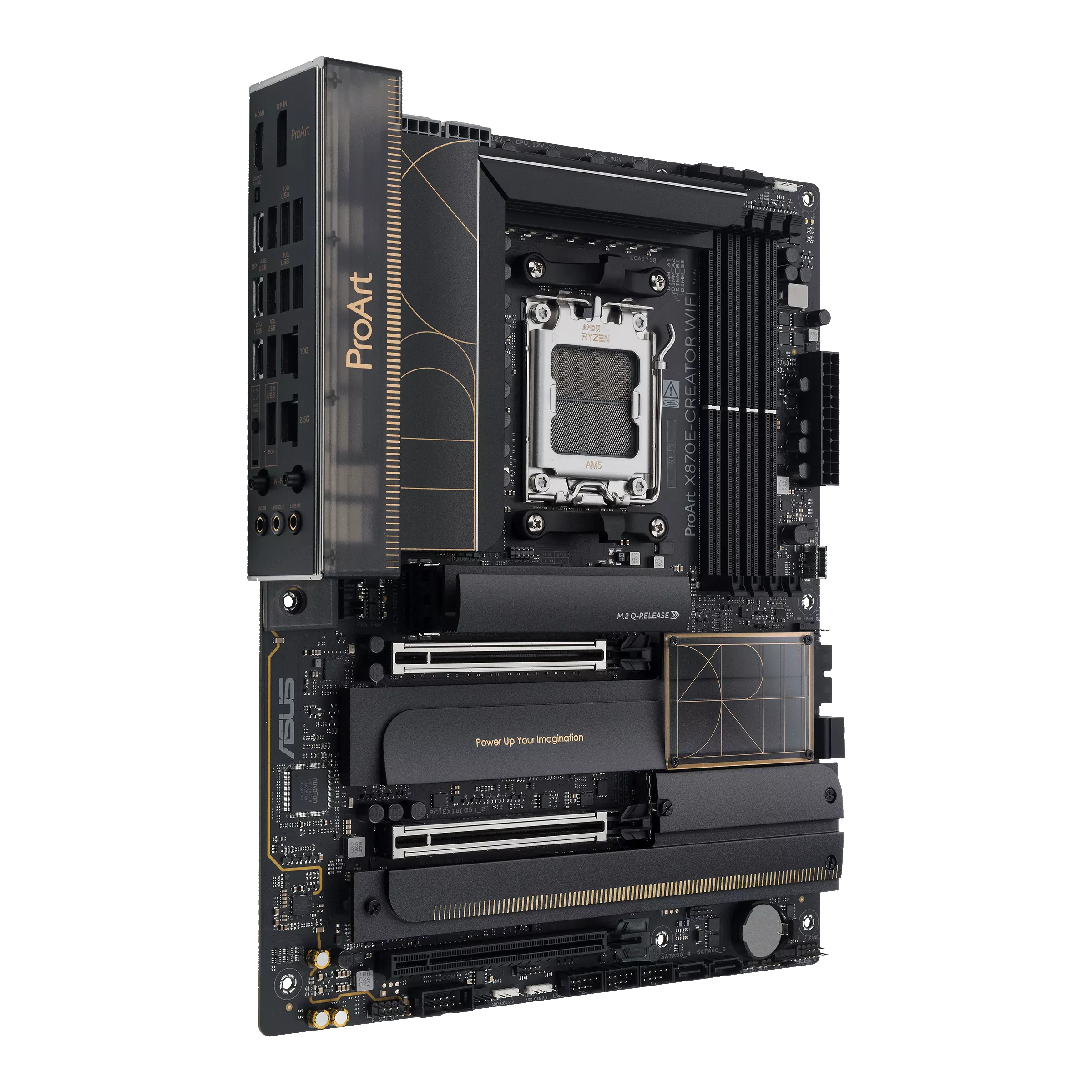

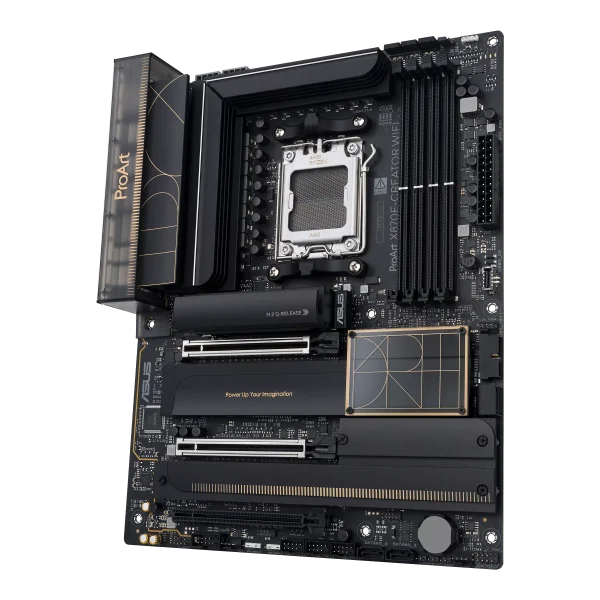

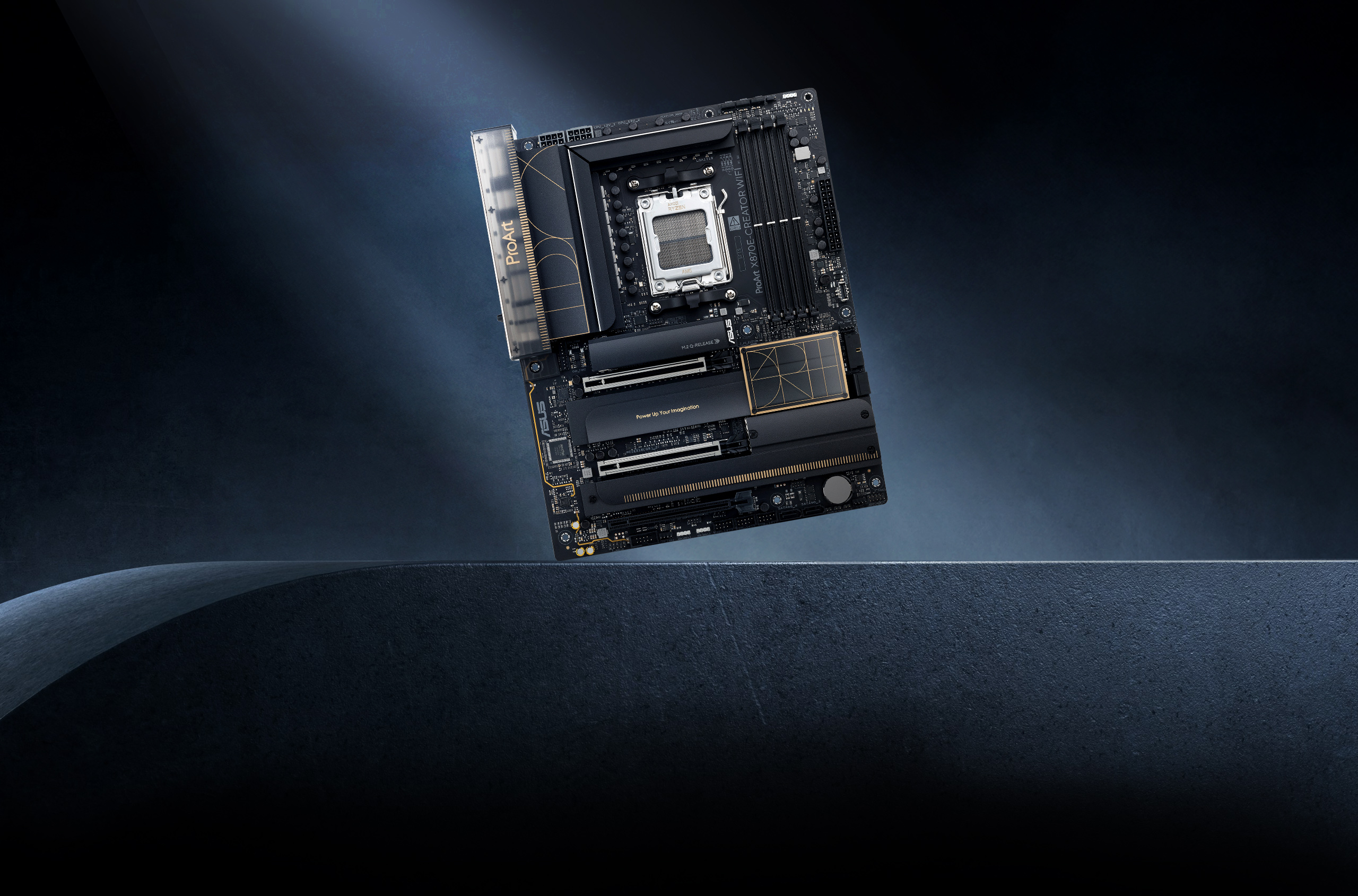

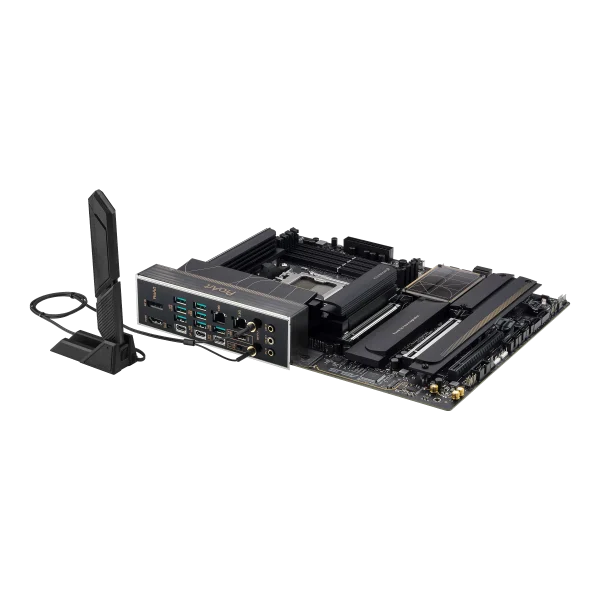

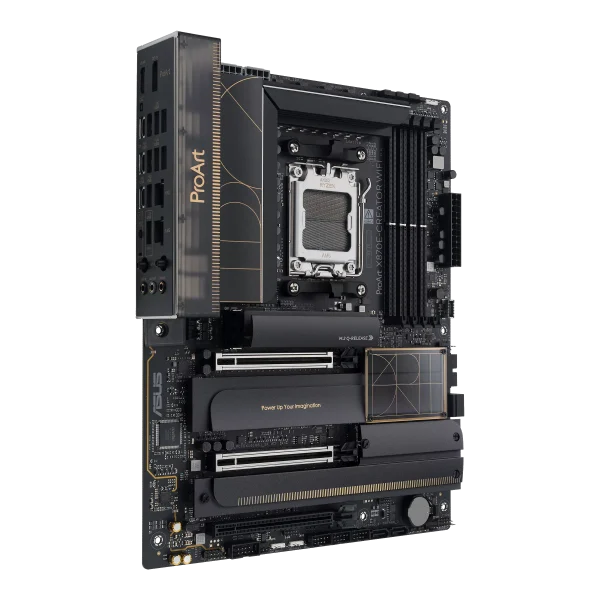

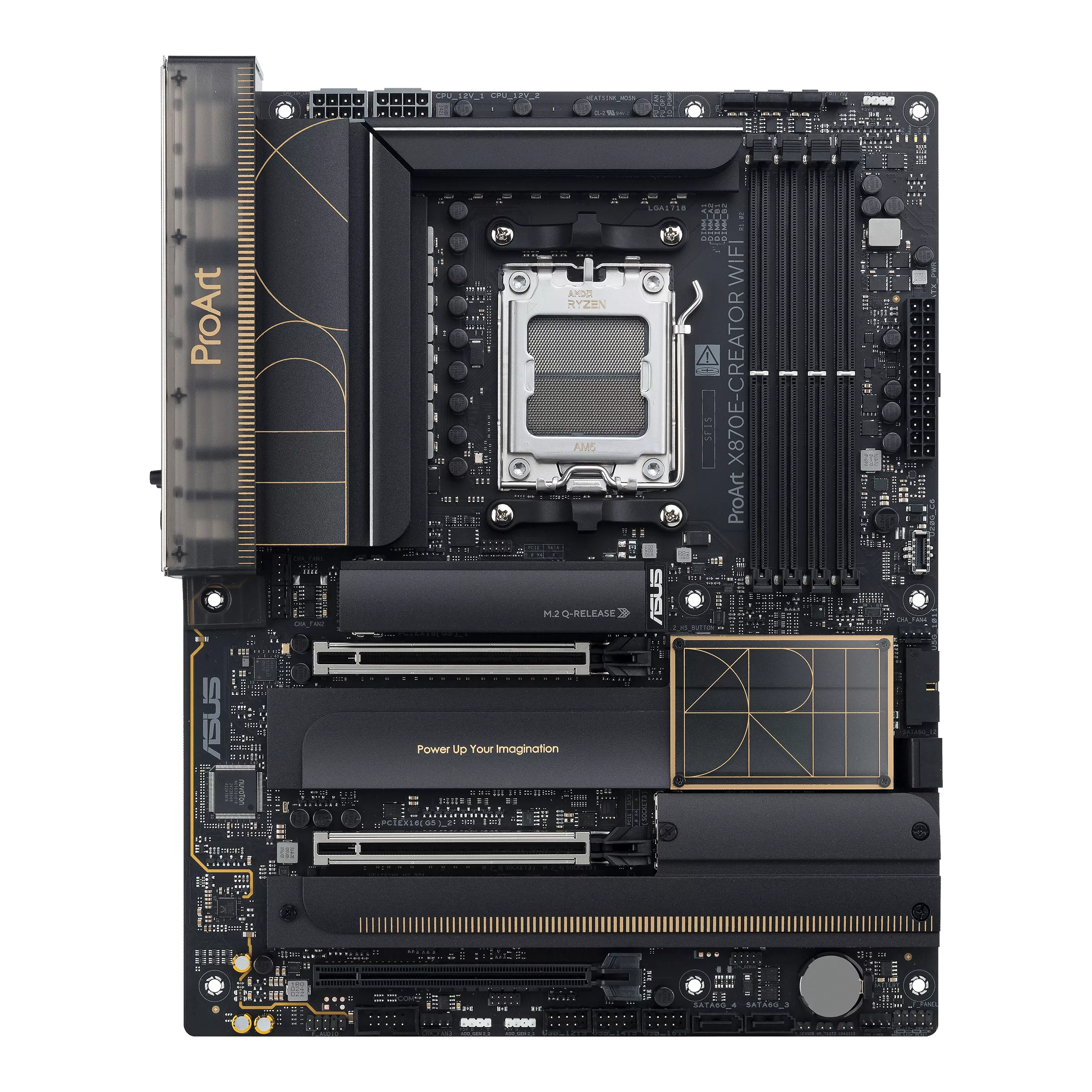

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe^® 5.0 and lightning-fast connectivity including dual USB4^®, 10G and 2.5G Ethernet, and WiFi 7.​

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​

Ultrafast Networking​

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

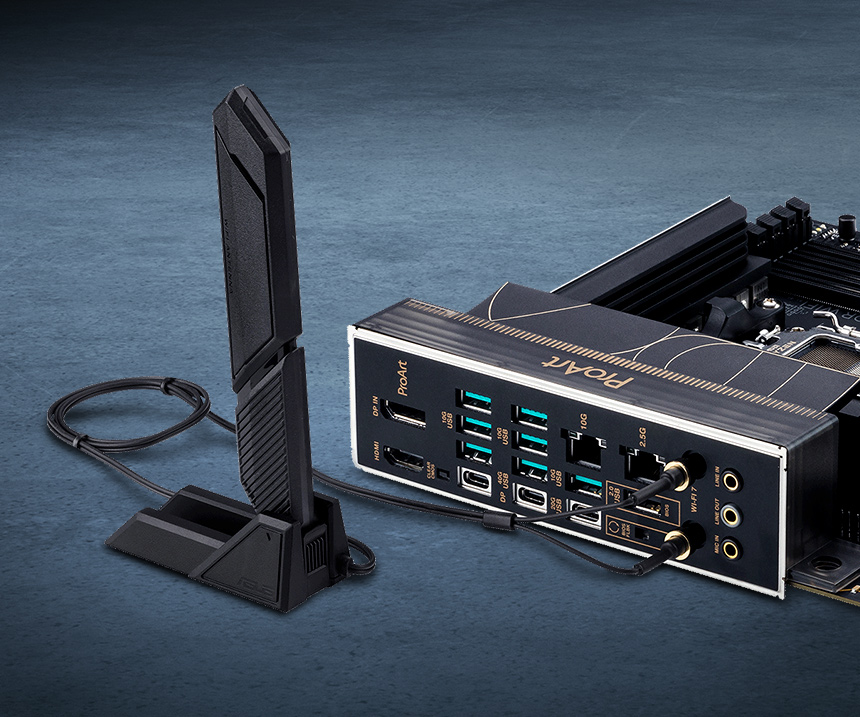

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

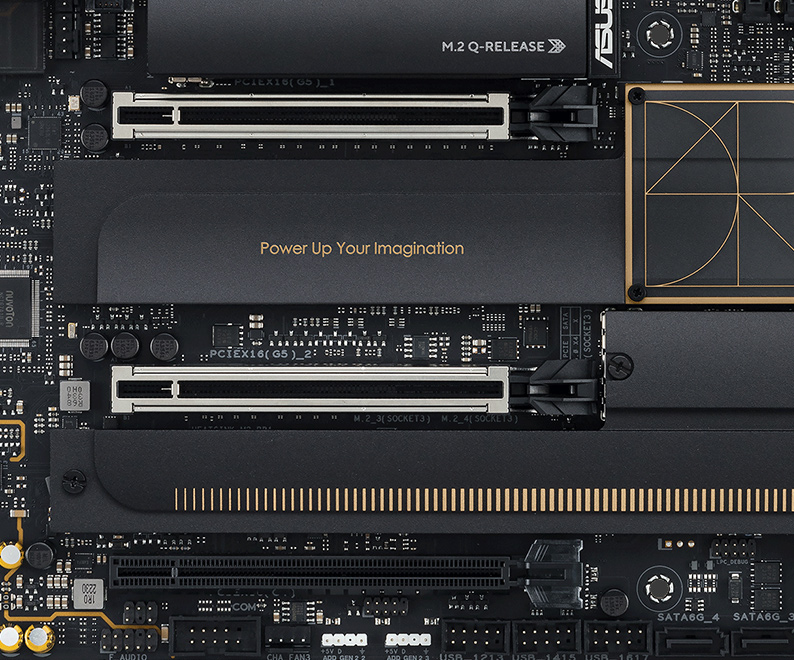

PCIe 5.0 Support

Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Quick-charging Your USB Devices

USB 20Gbps Type-C front-panel connector with Quick Charge 4+​

This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.​

The Core of Your Powerful Workstation

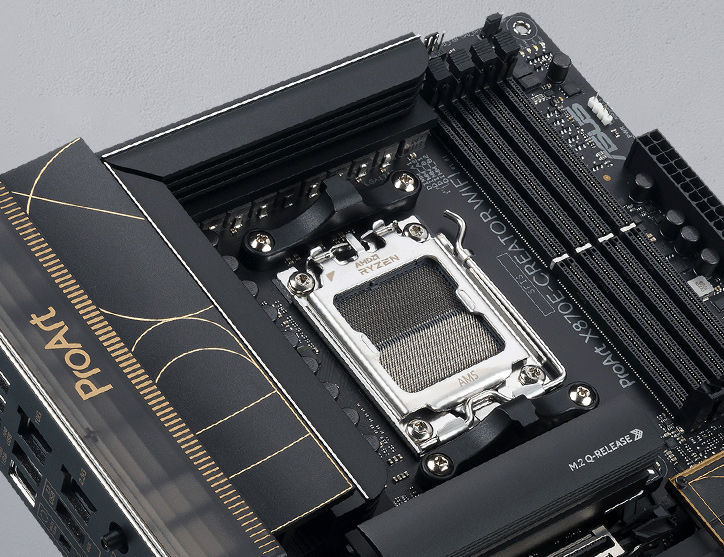

Robust Power Design

Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Performance Boost

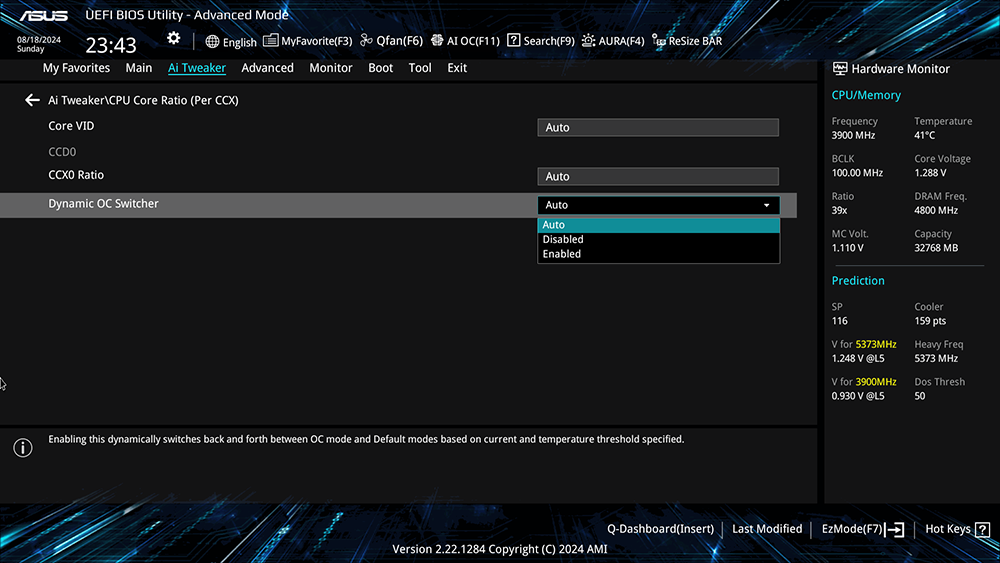

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The new Overclocking Load Guard also has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

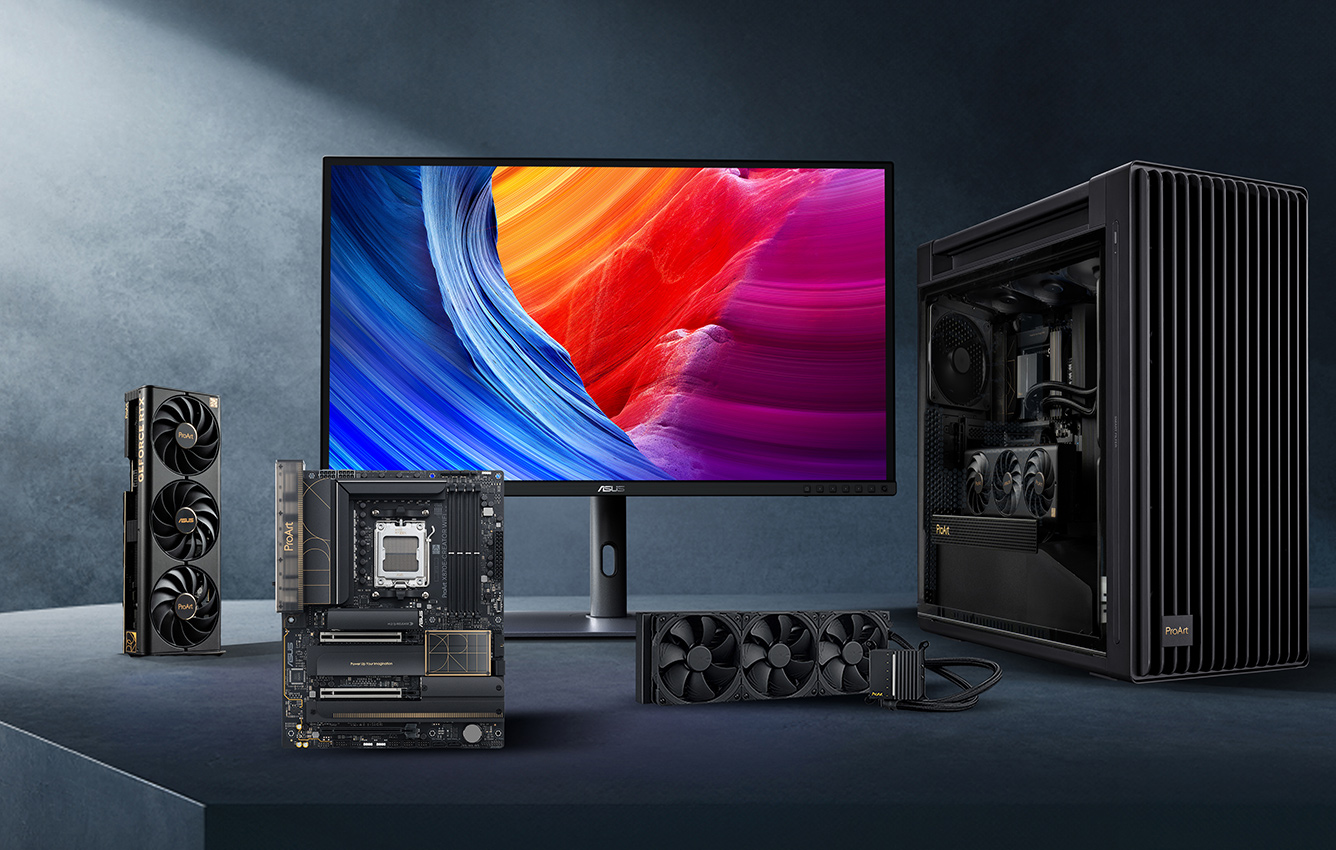

The Power of Minimalist Design

A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Specification

CPU

• AMD Socket AM5
• Supports AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
• Refer to ASUS support site for CPU compatibility list

Chipset

• AMD X870E

Memory

• 4 × DIMM slots, up to 256GB DDR5
• Supports up to:
  • 8000+ MT/s (Ryzen 9000)
  • 8000+ MT/s (Ryzen 8000)
  • 8000+ MT/s (Ryzen 7000)
• ECC & Non-ECC, Un-buffered DIMM
• Dual-channel architecture
• Supports EXPO™ & AEMP

Graphics

• 1 × HDMI™ (4K@60Hz)
• 2 × USB4® Type-C (Display output up to 8K@60Hz)

Expansion Slots

Ryzen 9000 & 7000:

• 2 × PCIe 5.0 x16 (x16 / x8+x8 / x8+x4+x4)

Ryzen 8000:

• 1 × PCIe 4.0 x16 (x8 or x4, second slot disabled)

Chipset:

• 1 × PCIe 4.0 x16 (x4 mode)

Storage

• 4 × M.2 slots
• 4 × SATA 6Gb/s

CPU (Ryzen 9000/7000):

• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 5.0 x4

CPU (Ryzen 8000):

• M.2_1: PCIe 4.0 x4
• M.2_2: Not supported

Chipset:

• M.2_3: PCIe 4.0 x4
• M.2_4: PCIe 4.0 x4

RAID Support:

• Ryzen 9000: RAID 0/1/5/10
• Ryzen 8000: RAID 0/1
• Ryzen 7000: RAID 0/1/10

Networking

• 1 × Marvell AQtion 10Gb Ethernet
• 1 × Intel 2.5Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 7 (2×2, 320MHz)
• Bluetooth 5.4

USB

Rear I/O (11 ports):

• 2 × USB4 (40Gbps, Type-C)
• 1 × USB 20Gbps (Type-C)
• 7 × USB 10Gbps (Type-A)
• 1 × USB 2.0

Front I/O:

• 1 × USB 20Gbps Type-C (30W PD/QC4+)
• 1 × USB 5Gbps header (2 ports)
• 3 × USB 2.0 headers (6 ports)

Audio

• Realtek ALC1220P 7.1 HD Audio
• 120 dB SNR playback / 113 dB recording
• Supports 32-bit / 192 kHz
• Built-in amplifier + shielding

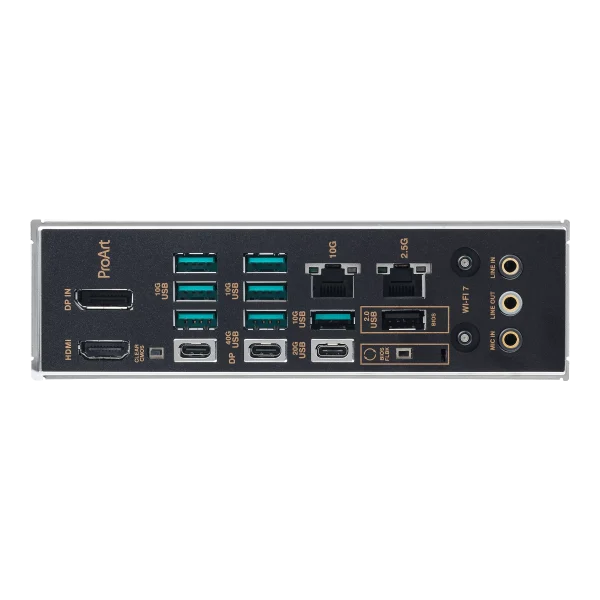

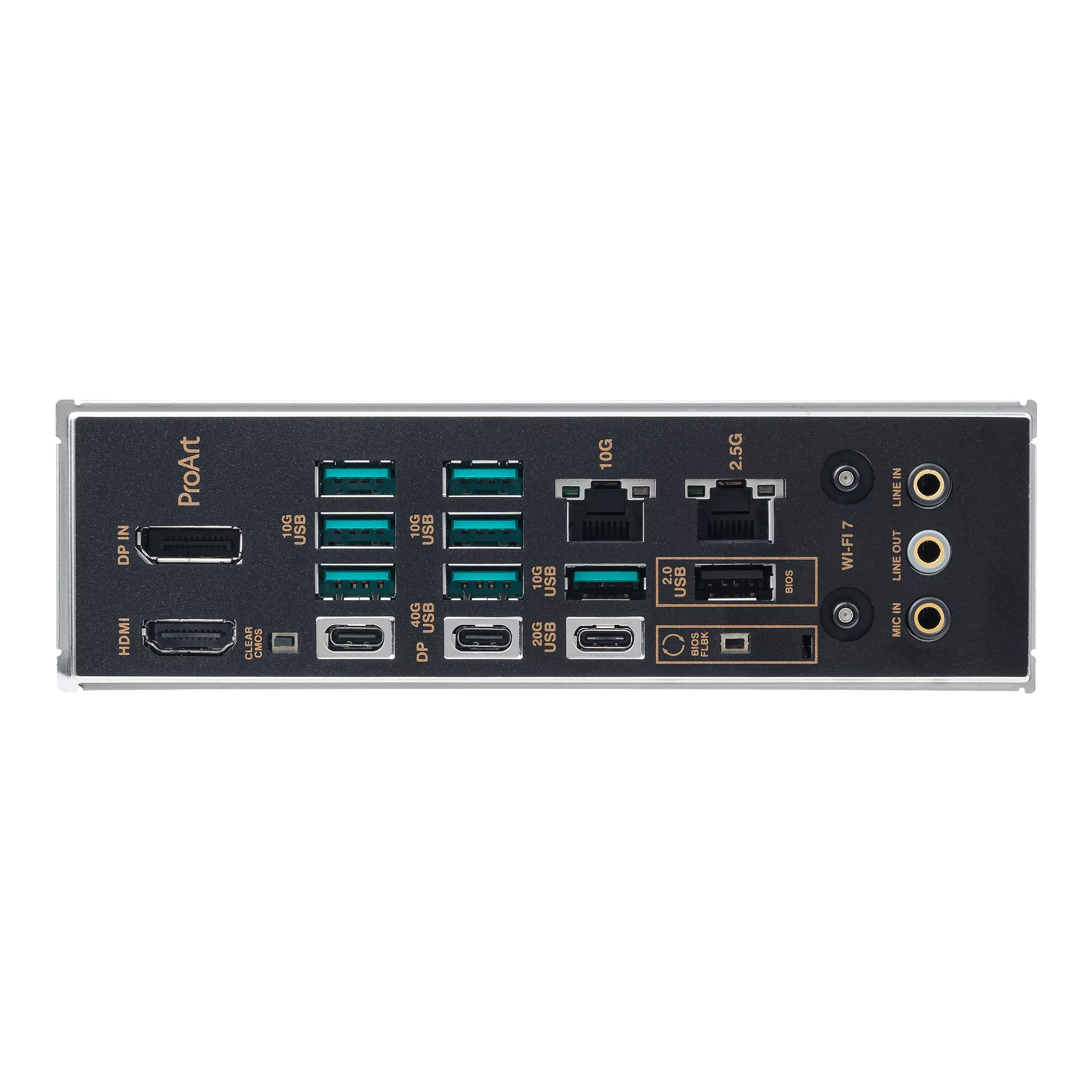

Back Panel I/O

• 2 × USB4 Type-C
• 1 × USB 20Gbps Type-C
• 7 × USB 10Gbps Type-A
• 1 × USB 2.0
• 1 × DisplayPort (Input)
• 1 × HDMI
• 1 × Wi-Fi module
• 1 × 10Gb Ethernet
• 1 × 2.5Gb Ethernet
• 3 × Audio jacks
• BIOS FlashBack + Clear CMOS

Internal I/O

Cooling:

• 1 × CPU Fan
• 1 × CPU OPT
• 1 × AIO Pump
• 5 × Chassis Fans

Power:

• 1 × 24-pin ATX
• 2 × 8-pin CPU

Storage:

• 4 × M.2
• 4 × SATA

USB:

• 1 × USB 20Gbps Type-C
• 1 × USB 5Gbps header
• 3 × USB 2.0 headers

Special Features

• ASUS 5X Protection III
• Q-Design (Q-Latch, Q-Release, Q-DIMM, Q-LED, etc.)
• Advanced VRM & thermal design
• Aura Sync RGB
• ProArt Creator features (reliability + creator tools)

Software

• Armoury Crate
• ProArt Creator Hub
• Fan Xpert 4
• TurboV Core
• Adobe Creative Cloud (Trial)

BIOS

• 256 Mb UEFI AMI BIOS
• EZ Flash, CrashFree BIOS

Form Factor

• ATX
• 30.5 × 24.4 cm
