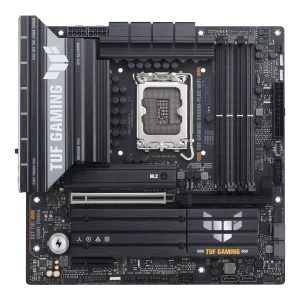

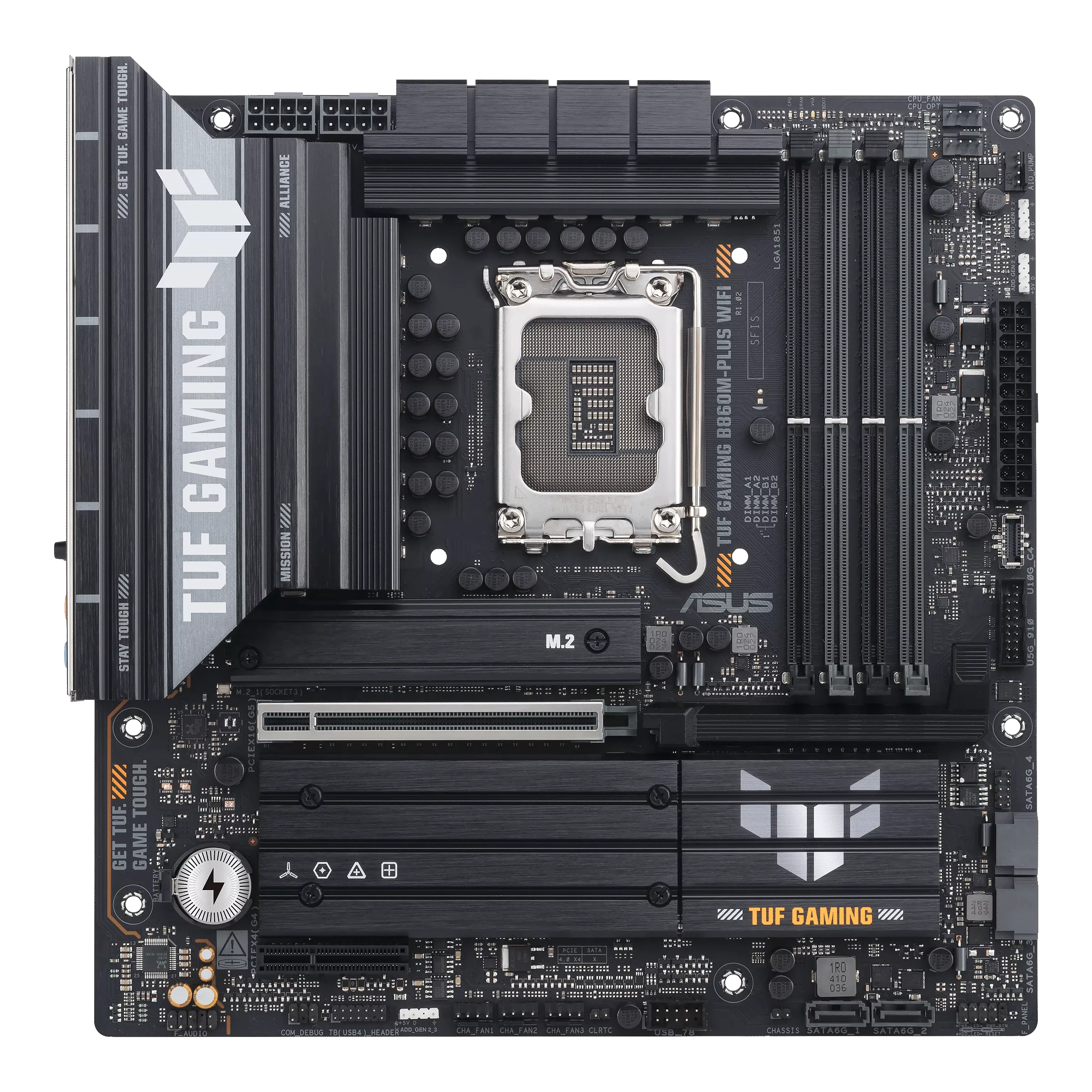

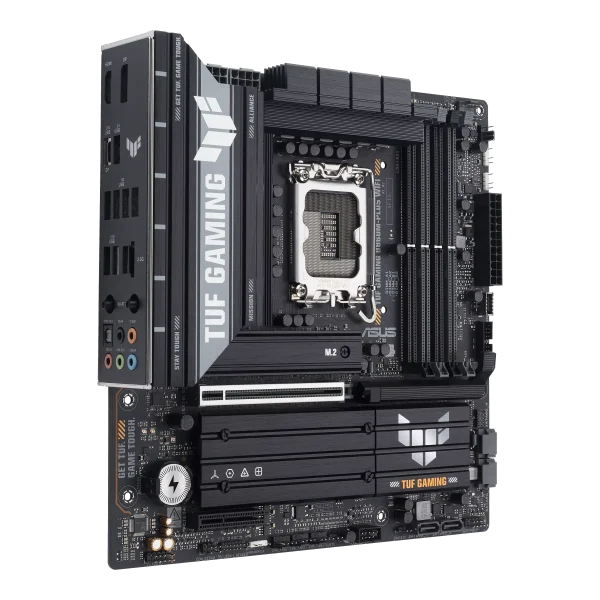

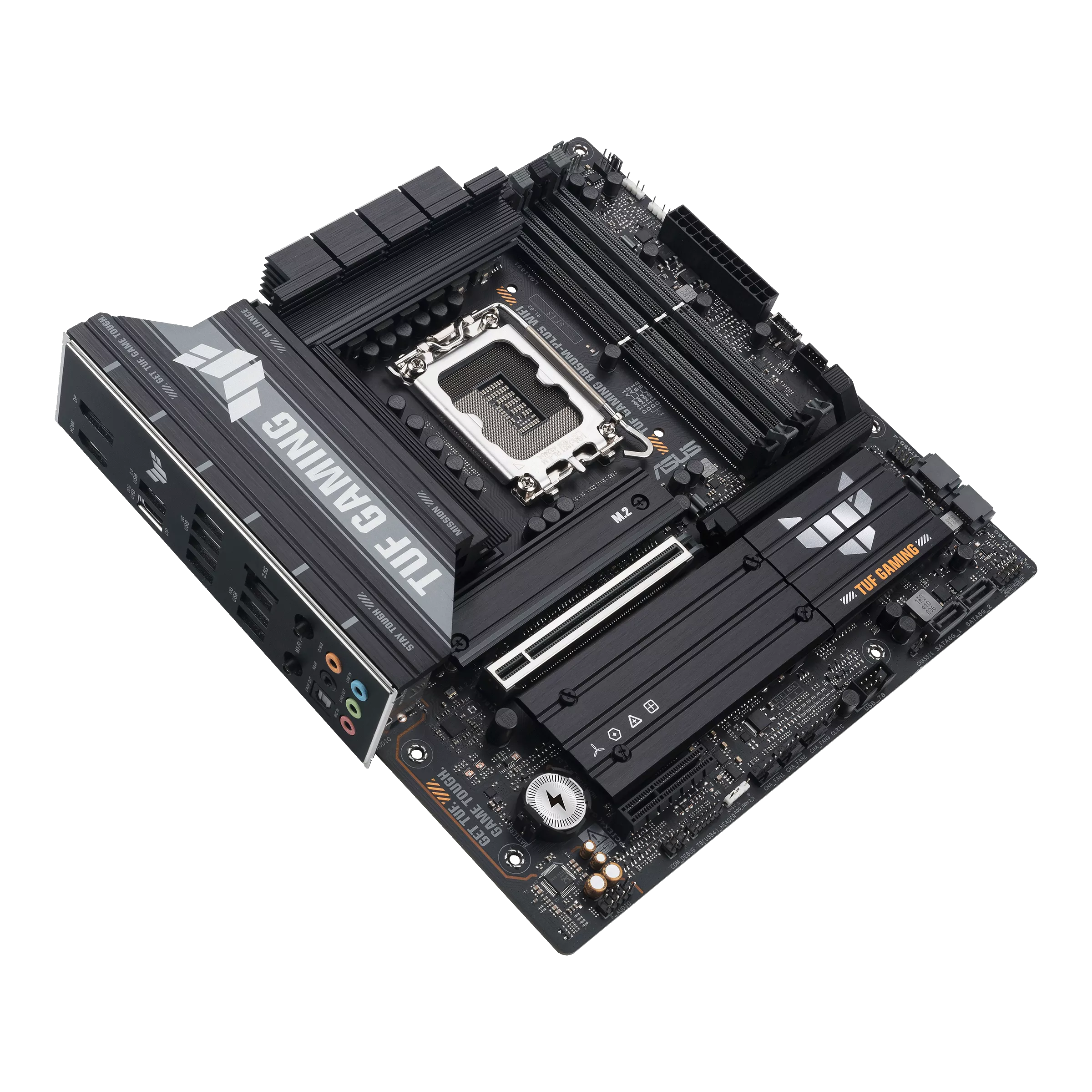

TUF GAMING
B860M-PLUS WIFI

ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel^® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Intelligent Overclocking

NPU Boost

The integrated NPU in Intel^® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Asynchronous Clock

For next-level frequency flexibility, the TUF Gaming B860M features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.

Intelligent Control

AI Advisor

ASUS AI Advisor is an ASUS technical expert that’s always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

TurboV Core

TurboV Core is engineered for overclocking enthusiasts to elevate system capability with unprecedented simplicity. Accessed via ASUS DriverHub, TurboV Core provides intuitive configuration of CPU and DRAM parameters to unlock your computer’s potential. No need to enter the BIOS, you can seamlessly modify settings directly from the Windows interface, and apply them right away without restart interruptions.

Performance

Premium Power Design

Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

Specification

General

• Model: TUF GAMING B860M-PLUS WIFI
• Chipset: Intel® B860
• Form Factor: micro-ATX (24.4 cm x 24.4 cm)
• Operating System: Windows 11 (22H2 & later)

CPU Support

• Socket: LGA1851
• Supports:
  • Intel® Core™ Ultra Processors (Series 2)
• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Memory

• Slots: 4 x DIMM
• Max Capacity: 256GB
• Type: DDR5 (Non-ECC, Unbuffered, CUDIMM)
• Speed: Up to 8800+ MT/s (OC)
• Dual Channel Architecture
• Intel® XMP Support
• ASUS AEMP III
• DIMM Fit optimization
• On-Die ECC support

Graphics

• 1 x DisplayPort (4K @ 60Hz)
• 1 x HDMI™ (4K @ 60Hz)
• 1 x USB Type-C (20Gbps) with DisplayPort output

Expansion Slots

• 1 x PCIe 5.0 x16 (GPU Ready )
• 1 x PCIe 4.0 x4

Storage

• M.2 Slots:
  • 1 x PCIe 5.0 x4 (Next-gen SSD )
  • 2 x PCIe 4.0 x4
• SATA: 4 x SATA 6Gb/s
• RAID support (0 / 1 / 5 / 10)

Networking

• LAN: Realtek 2.5Gb Ethernet
• Wi-Fi: Wi-Fi 7 (802.11be)
  • 2.4GHz / 5GHz / 6GHz bands
  • Up to 2.9Gbps speeds
• Bluetooth: v5.4

USB Connectivity

Rear I/O (8 Ports)

• 1 x USB 20Gbps Type-C (DP Alt Mode)
• 2 x USB 10Gbps
• 4 x USB 5Gbps
• 1 x USB 2.0

Front Panel (Up to 5 Ports)

• 1 x USB Type-C (10Gbps)
• 2 x USB 5Gbps
• 2 x USB 2.0

Audio

• Realtek 7.1 Surround Sound
• 24-bit / 192 kHz playback
• Optical S/PDIF output
• Premium capacitors + shielding

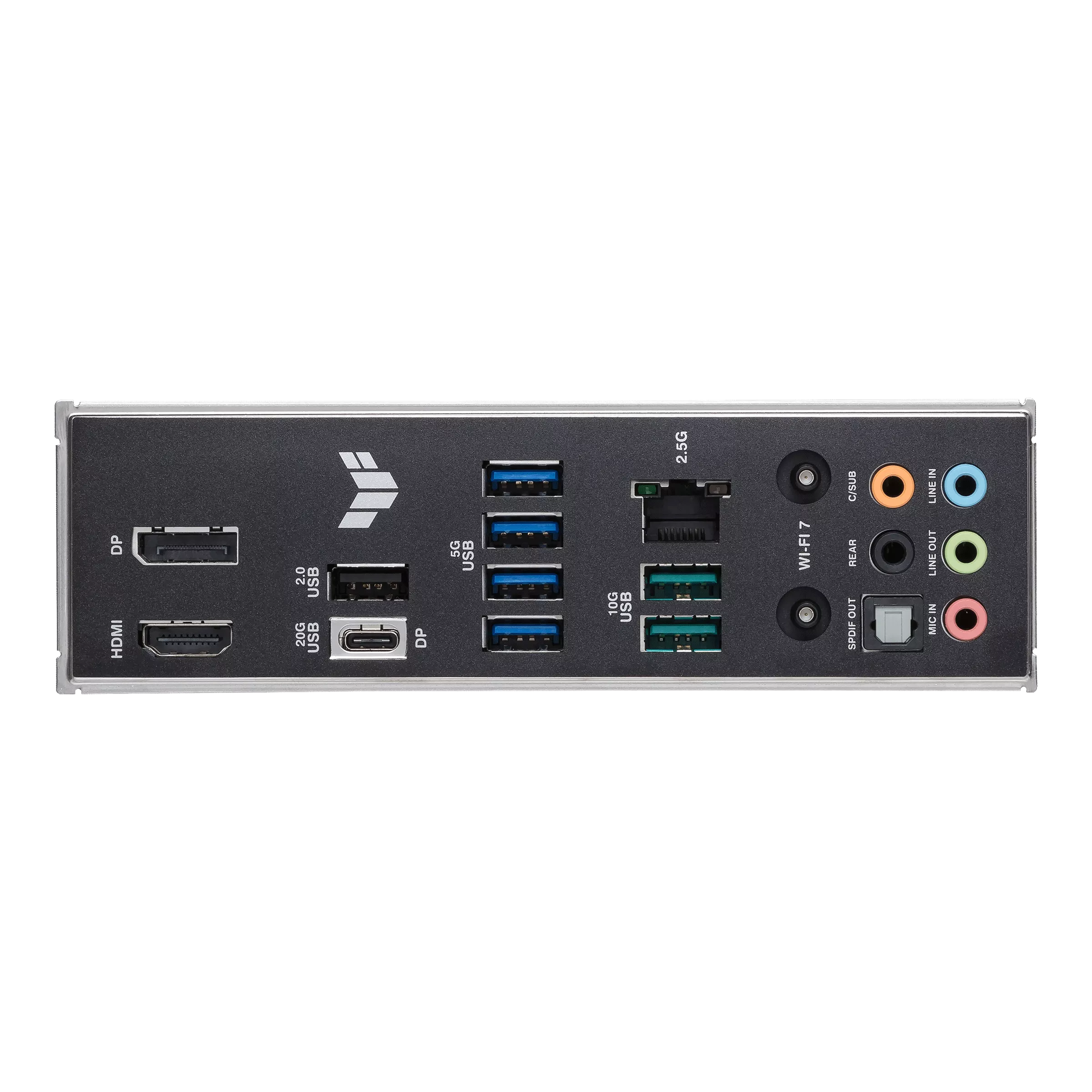

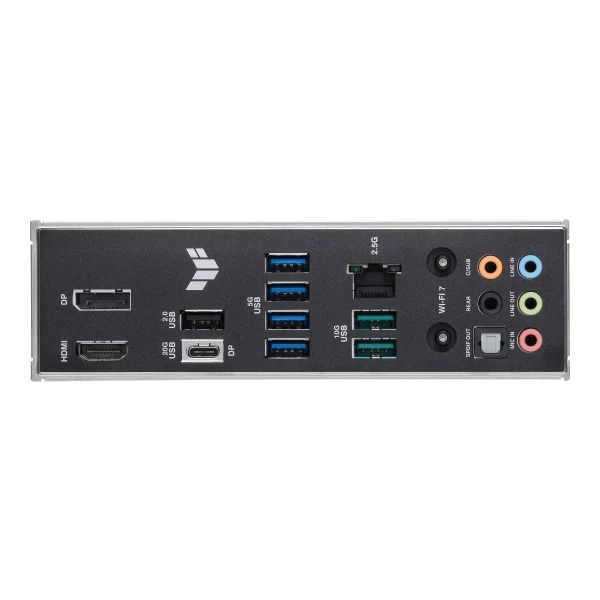

Back Panel I/O

• USB Type-C (20Gbps with DP)
• Multiple USB-A (10Gbps / 5Gbps / 2.0)
• DisplayPort + HDMI
• Wi-Fi module
• 2.5Gb Ethernet
• 5 x audio jacks + optical output

Internal Connectors

• 1 x CPU fan + 1 x CPU OPT + 1 x AIO pump
• 3 x chassis fan headers
• Dual 8-pin CPU power
• 3 x M.2 + 4 x SATA
• USB Type-C header (10Gbps)
• Thunderbolt (USB4) header
• RGB: 3 x Addressable Gen 2

Cooling & Build Features

• Enlarged VRM heatsinks
• M.2 heatsinks
• Pre-mounted I/O shield
• ProCool power connectors
• SafeDIMM protection

TUF Protection Features

• DIGI+ VRM (DrMOS)
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot reinforced PCIe
• Stainless-steel I/O

ASUS Q-Design (DIY Friendly)

• M.2 Q-Latch (tool-less SSD install)
• PCIe Q-Release (easy GPU removal)
• Q-Antenna
• Q-Dashboard (diagnostics)
• Q-LED indicators

RGB & Customization

• Aura Sync support
• Addressable Gen 2 RGB headers

Software Suite

• Armoury Crate (Aura Sync, Fan control)
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• TUF Gaming CPU-Z
• DTS Audio Processing
• Norton 360 (Trial)
• WinRAR (Trial)

BIOS & Management

• Dual BIOS (2 x 128 Mb Flash ROM)
• UEFI BIOS (EZ Mode + Advanced)
• ASUS EZ Flash / CrashFree BIOS
• Wake-on-LAN, PXE
• ASUS MyHotkey
• NPU Boost support

In the Box

• 2 x SATA cables
• Wi-Fi Q-Antenna
• M.2 rubber packages
• TUF sticker
• SSD screw kit
• Quick start guide
