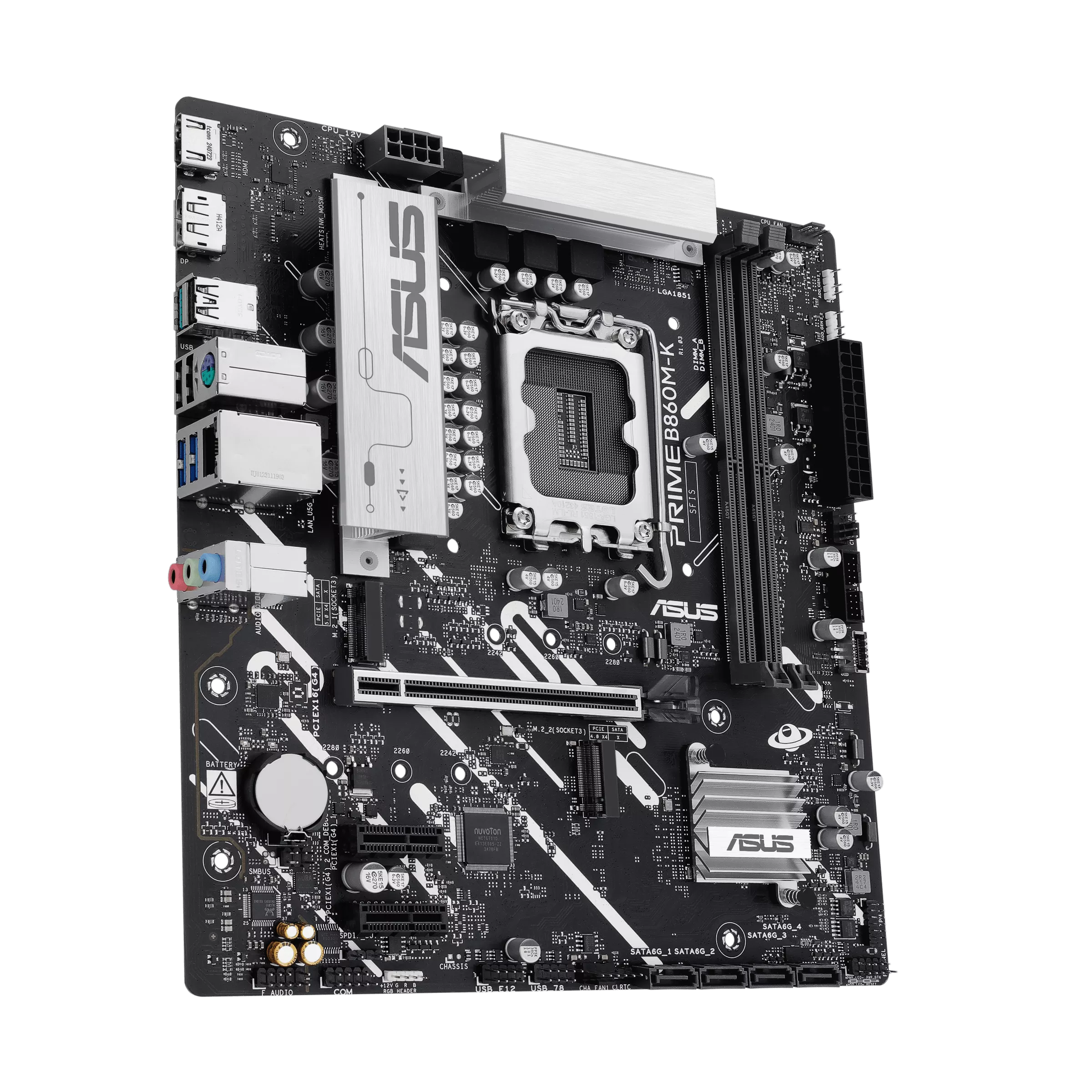

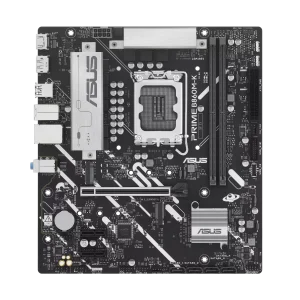

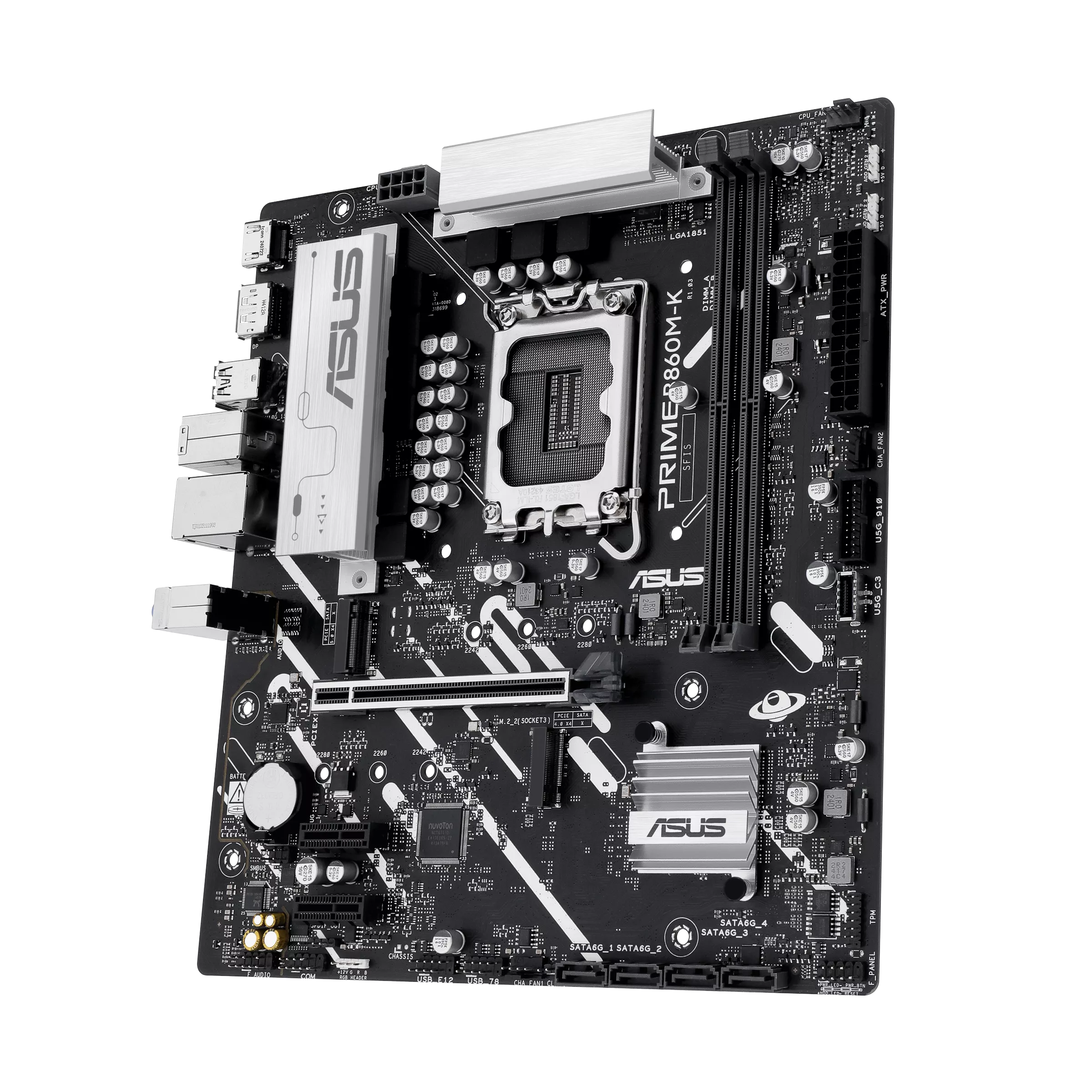

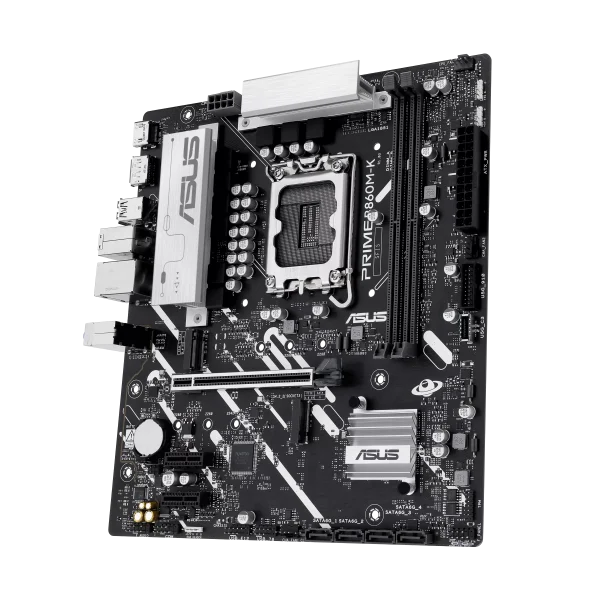

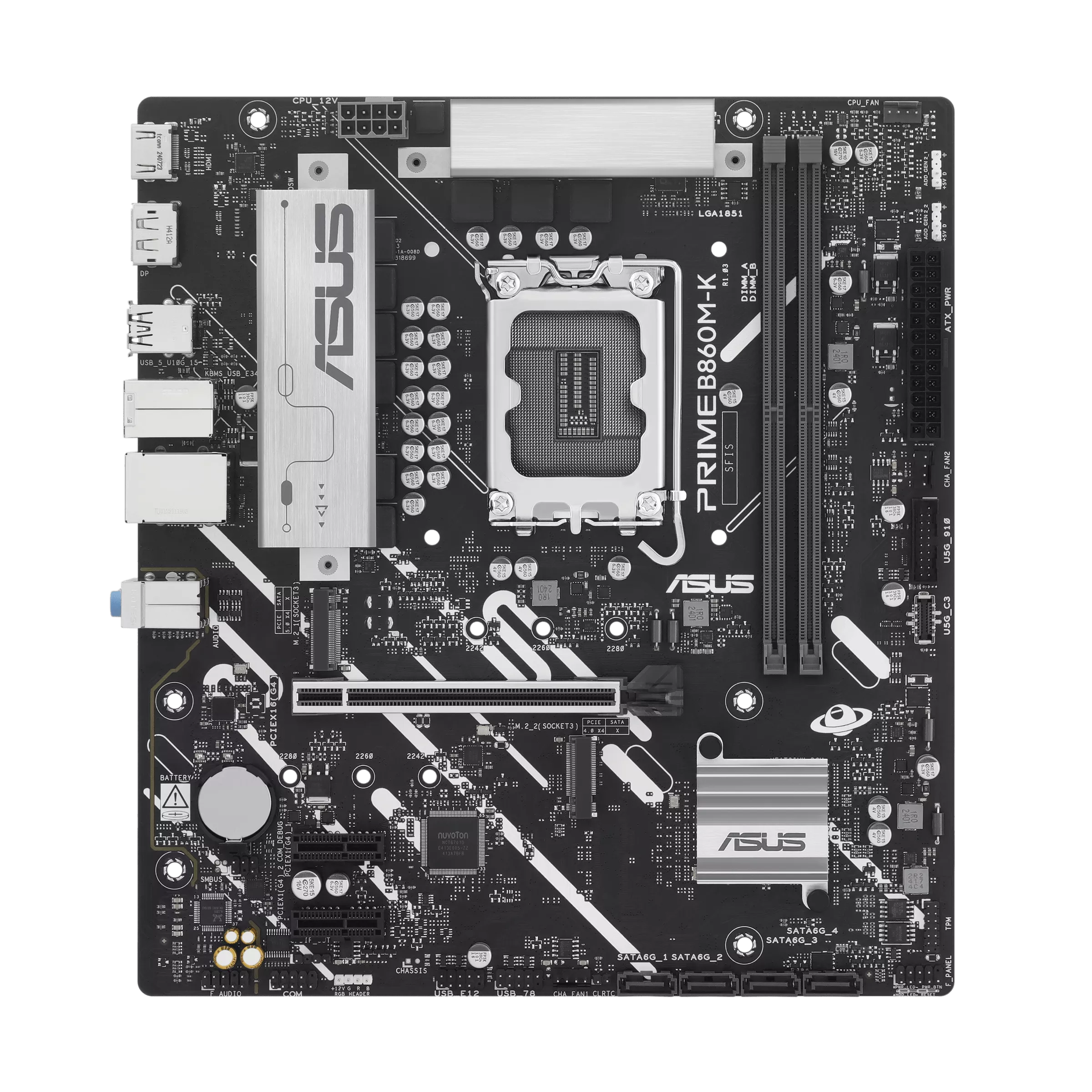

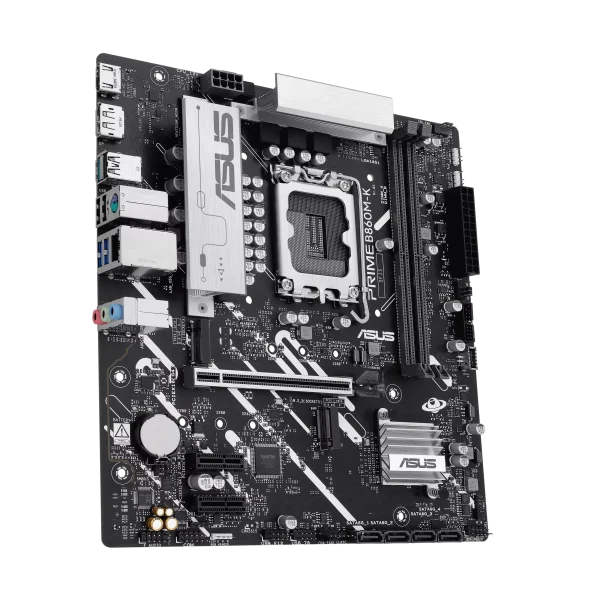

B860M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.
AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Performance
Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME B860M-K features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.
Enhanced Memory & Storage Performance
AEMP III for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.
Two M.2 slots (up to 128Gbps)
PRIME B860M-K offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooling
Cooler by design
The PRIME B860M-K motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
Specification
General
- Model: PRIME B860M-K
- Chipset: Intel® B860
- Form Factor: micro-ATX (24.4 cm x 22.2 cm)
- Operating System:
- Windows 11 (22H2 & later)
- Windows 10 (21H2 & later)
CPU Support
- Intel® Socket LGA1851
- Supports:
- Intel® Core™ Ultra Processors (Series 2)
- Intel® Turbo Boost Technology 2.0
- Intel® Turbo Boost Max Technology 3.0
Memory
- Slots: 2 x DIMM
- Max Capacity: 128GB
- Type: DDR5 (Non-ECC, Unbuffered, CUDIMM)
- Speed Support:
- Up to 8800+ MT/s (OC)
- Dual Channel Architecture
- Intel® XMP Support
- ASUS AEMP III (Enhanced Memory Profile)
- DIMM Fit optimization
- On-Die ECC support
Graphics
- 1 x DisplayPort (4K @ 60Hz)
- 1 x HDMI™ (4K @ 60Hz)
Expansion Slots
- 1 x PCIe 4.0 x16
- 2 x PCIe 4.0 x1
Storage
- M.2 Slots:
- 1 x PCIe 5.0 x4 (Primary SSD slot 🔥)
- 1 x PCIe 4.0 x4
- SATA: 4 x SATA 6Gb/s
- Supports SATA RAID 0 / 1 / 5 / 10
Networking
- Ethernet: Realtek 2.5Gb LAN
- ASUS LANGuard protection
USB Connectivity
Rear I/O (6 Ports)
- 1 x USB 10Gbps (USB 3.2 Gen 2)
- 2 x USB 5Gbps (USB 3.2 Gen 1)
- 3 x USB 2.0
Front Panel (Up to 7 Ports)
- 1 x USB Type-C (5Gbps)
- 2 x USB 5Gbps
- 4 x USB 2.0
Audio
- Realtek 7.1 Surround Sound HD Audio
- Supports 24-bit / 192 kHz playback
- Audio shielding & premium capacitors

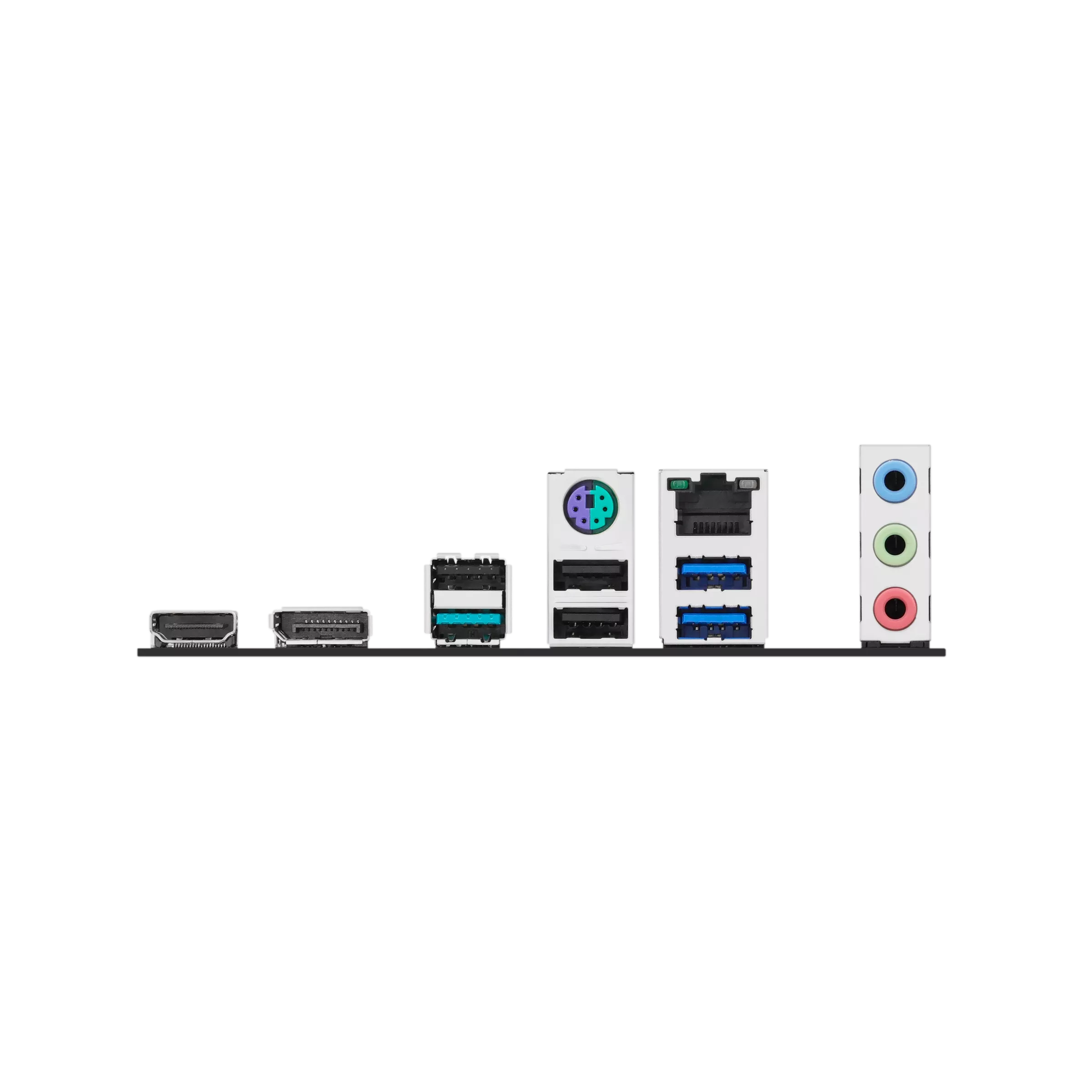

Back Panel I/O
- 1 x USB 10Gbps
- 2 x USB 5Gbps
- 3 x USB 2.0
- 1 x DisplayPort
- 1 x HDMI
- 1 x 2.5Gb Ethernet
- 3 x Audio jacks
- 1 x PS/2 combo port
Internal Connectors
- 1 x CPU fan header
- 2 x chassis fan headers
- 24-pin ATX + 8-pin CPU power
- 2 x M.2, 4 x SATA
- USB headers (Type-C, USB 5Gbps, USB 2.0)
- 2 x Addressable Gen 2 RGB + 1 x Aura RGB
- TPM, COM, S/PDIF, front panel header
Cooling & Build Features
- VRM heatsink design
- ASUS Q-DIMM, Q-Slot, Q-LED Core
- Q-Dashboard (new-gen troubleshooting aid)
- ProCool power connector
Special Features
- ASUS 5X Protection III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-steel back I/O
- Aura Sync RGB
Software
- Armoury Crate (Aura Sync, Fan Xpert 2+)
- ASUS AI Advisor
- ASUS DriverHub
- ASUS CPU-Z
- Norton 360 Deluxe (Trial)
- WinRAR (Trial)
BIOS & Management
- 256 Mb UEFI AMI BIOS
- ASUS EZ Flash / CrashFree BIOS 3
- ASUS MyHotkey
- Wake-on-LAN (WOL), PXE
In the Box
- 2 x SATA cables
- I/O Shield
- M.2 anchor package
- Quick start guide
