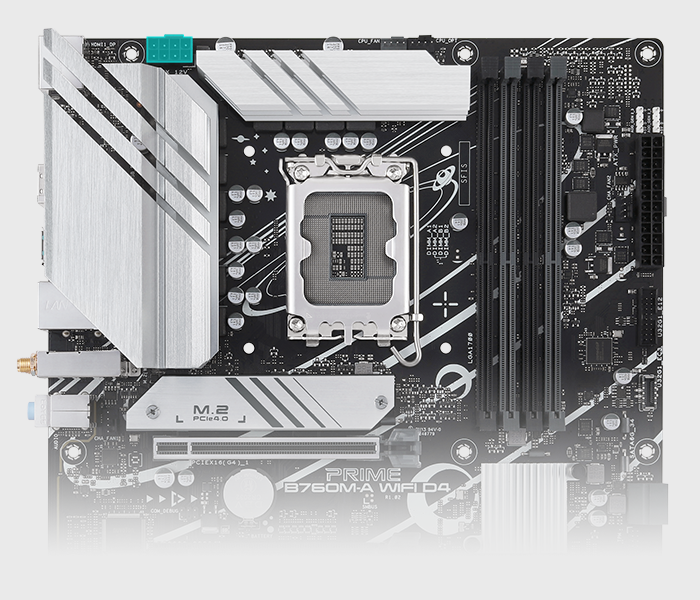

ProCool Connector

Proprietary connectors augment the motherboard’s link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

Specification

General

• Model: PRIME B760M-A WIFI D4
• Chipset: Intel® B760
• Form Factor: mATX (24.4 cm x 24.4 cm)
• Operating System: Windows® 11, Windows® 10 (64-bit)

CPU Support

• Intel® Socket LGA1700
• Supports:
  • Intel® Core™ 14th Gen
  • Intel® Core™ 13th Gen
  • Intel® Core™ 12th Gen
  • Pentium® Gold & Celeron® processors
• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Memory

• Slots: 4 x DIMM
• Max Capacity: 128GB
• Type: DDR4 (Non-ECC, Unbuffered)
• Speed Support:
  • 5333(OC) to 2133 MHz
• Dual Channel Architecture
• Intel® XMP Support
• OptiMem II

Graphics

• 1 x DisplayPort (4K @ 60Hz)
• 2 x HDMI® ports (4K @ 60Hz)

Expansion Slots

• 1 x PCIe 4.0 x16
• 1 x PCIe 4.0 x16 (x4 mode)
• 1 x PCIe 4.0 x16 (x1 mode)

Storage

• M.2 Slots: 2 x (PCIe 4.0 x4)
• SATA: 4 x SATA 6Gb/s
• Supports SATA RAID 0 / 1 / 5 / 10

Networking

• Ethernet: Realtek 2.5Gb LAN
• Wi-Fi: Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Dual-band (2.4GHz / 5GHz)
• Bluetooth: v5.2

USB Connectivity

Rear I/O (6 Ports)

• 2 x USB 3.2 Gen 2 Type-A
• 4 x USB 2.0

Front Panel (Up to 10 Ports)

• 1 x USB Type-C (USB 3.2 Gen 1)
• 4 x USB 3.2 Gen 1
• 5 x USB 2.0

Audio

• Realtek 7.1 Surround Sound HD Audio
• Supports 24-bit / 192 kHz playback
• Audio shielding & premium capacitors

Back Panel I/O

• 2 x USB 3.2 Gen 2
• 4 x USB 2.0
• 1 x DisplayPort
• 2 x HDMI
• 1 x Wi-Fi module
• 1 x 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 combo port

Internal Connectors

• 1 x CPU fan + 1 x CPU OPT fan
• 2 x chassis fan headers
• 24-pin ATX + 8-pin CPU power
• 2 x M.2, 4 x SATA
• USB headers (Type-C, USB 3.2 Gen 1, USB 2.0)
• 3 x Addressable Gen 2 RGB + 1 x Aura RGB
• TPM, COM, LPT, S/PDIF, chassis intrusion header

Cooling & Build Features

• VRM heatsink design

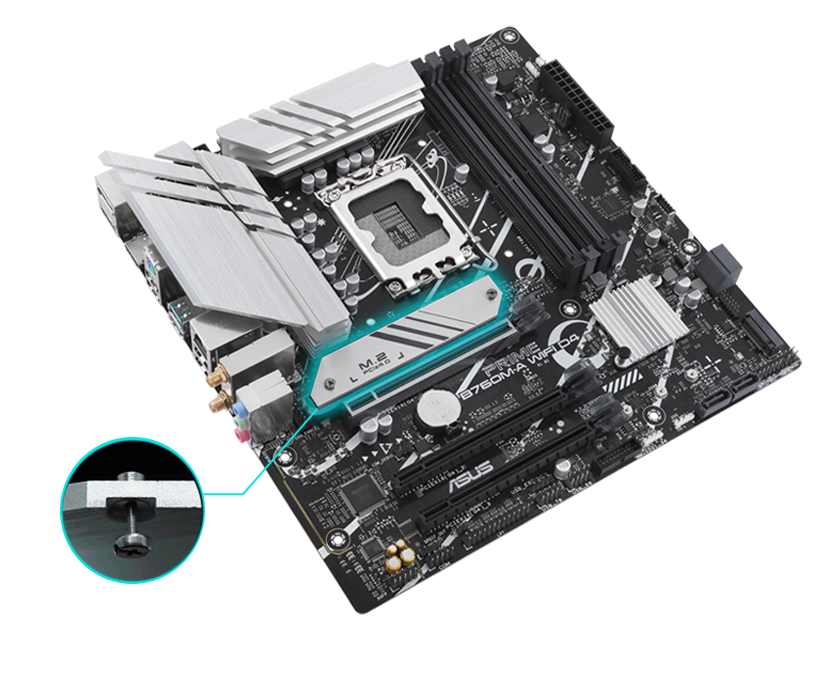

• M.2 heatsink
• ASUS Q-DIMM, Q-Slot, Q-LED Core
• ProCool power connector

Special Features

• ASUS 5X Protection III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
• Stainless-Steel Back I/O
• Aura Sync RGB

Software

• Armoury Crate (Aura Sync, Aura Creator, Fan Xpert 2+)
• AI Suite 3
• ASUS CPU-Z
• MyASUS
• Norton 360 Deluxe (Trial)
• WinRAR

BIOS & Management

• 128 Mb UEFI AMI BIOS
• ASUS EZ Flash 3 / CrashFree BIOS 3
• Wake-on-LAN (WOL), PXE

In the Box

• 2 x SATA cables
• Wi-Fi antenna
• I/O Shield
• M.2 rubber & screw package
• User guide
