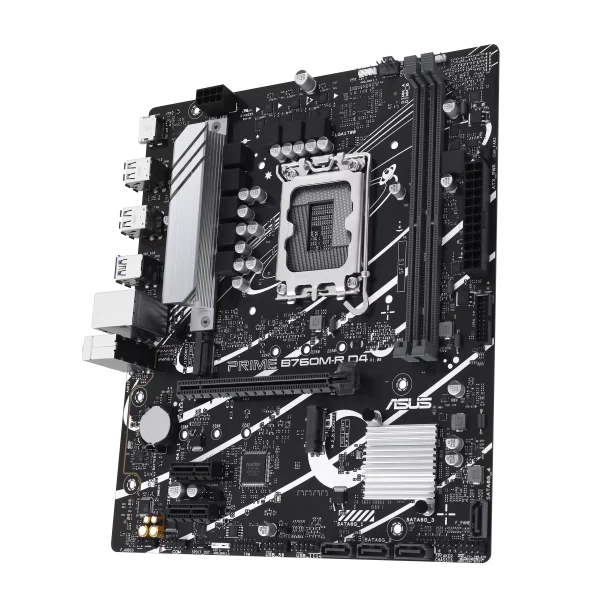

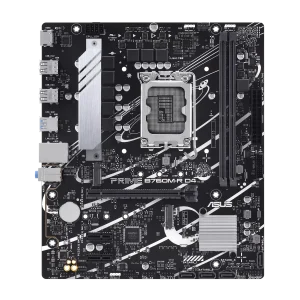

ASUS PRIME B760M-R D4 Intel® B760 LGA 1700 Micro-ATX Motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps ports, Aura Sync

Quick Overview

  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel® LGA 1700 Socket: Ready for 14th,13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
  • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
SKU: 90MB1HA0-M0EAY0 Categories: , Tag:

Original price was: AED 599.00.Current price is: AED 449.00.

Warranty

Included Warranty1 Year Free Warranty

Delivery

Standard DeliveryOne Day Delivery
1 Item sold in last 24 hours
7 People watching this product now!

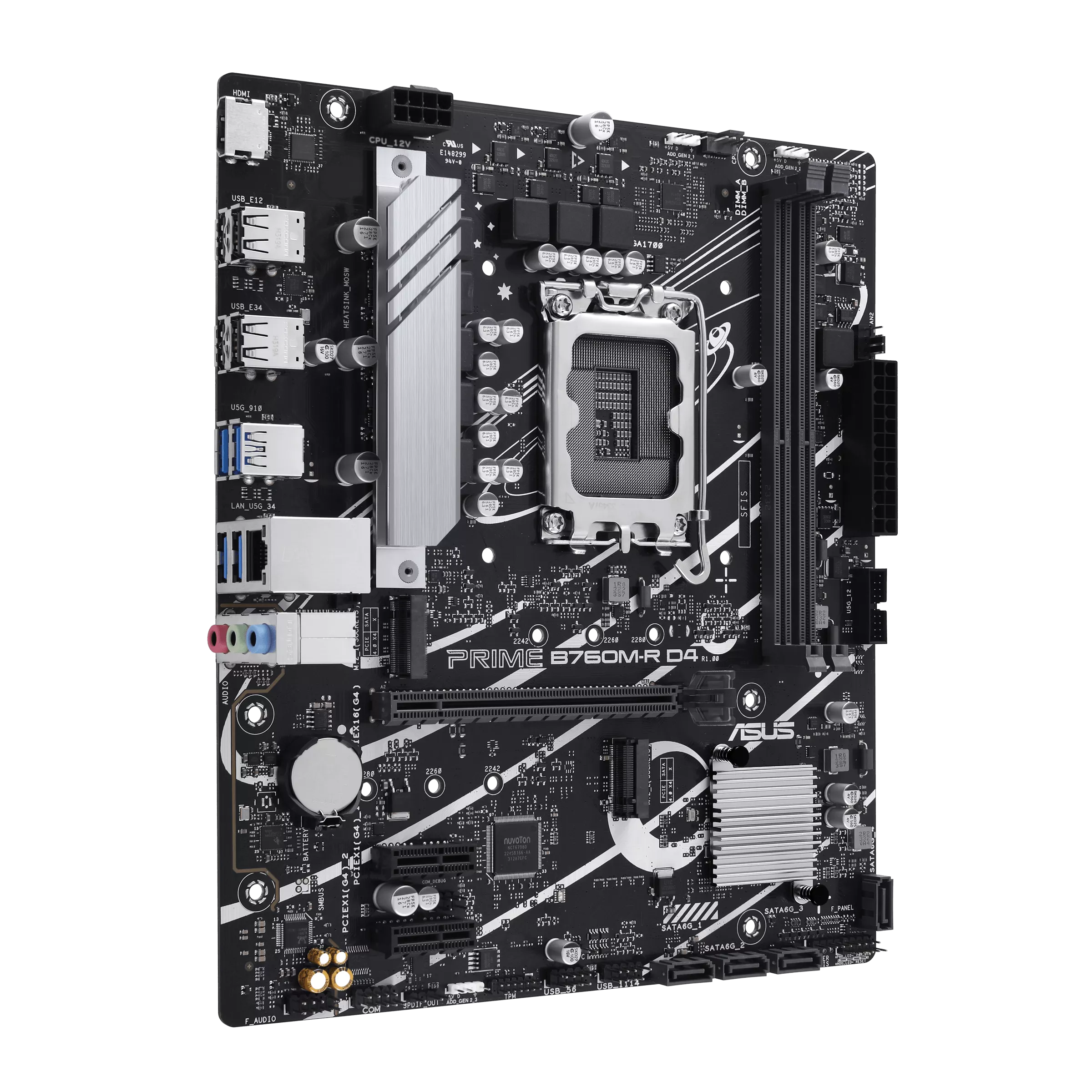

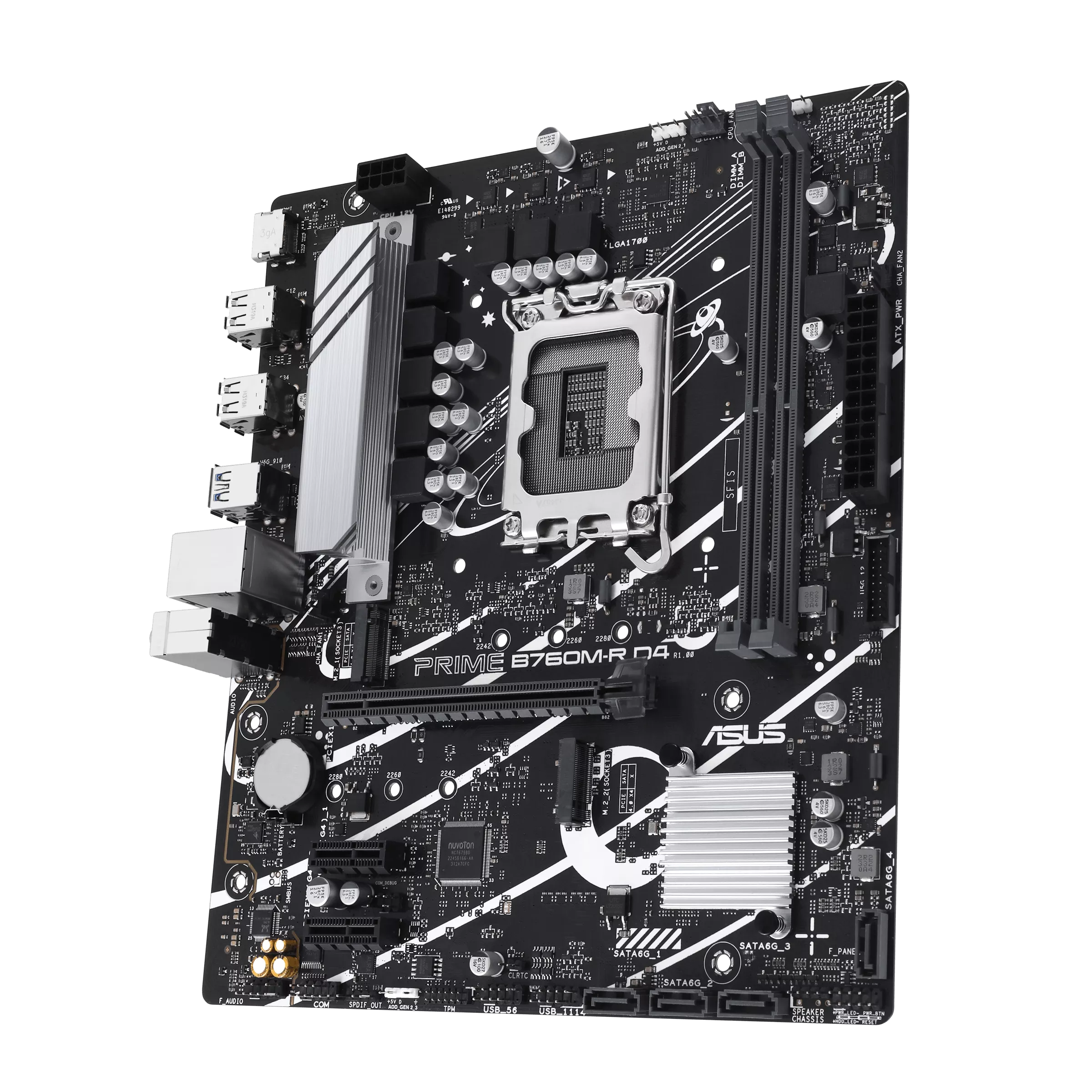

B760M-R D4

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th & 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-R D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

UI of Power Saving settings

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING

PRIME B760 series are engineered with multiple onboard heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsink

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.

Prime motherboard with VRM heatsink image

PERFORMANCE

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14th & 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-R D4 is geared to cater to the demands of these high-core-count CPUs.

ProCool Connector

Proprietary connectors augment the motherboard’s link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

Features ProCool Connector

CUSTOMIZATION

PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Specification

General

  • Model: PRIME B760M-R D4
  • Chipset: Intel® B760
  • Form Factor: micro-ATX (24.4 cm x 21.1 cm)
  • Operating System: Windows® 11, Windows® 10 (64-bit)

CPU Support

  • Intel® Socket LGA1700
  • Supports:
    • Intel® Core™ 14th Gen
    • Intel® Core™ 13th Gen
    • Intel® Core™ 12th Gen
    • Pentium® Gold & Celeron® processors
  • Intel® Turbo Boost Technology 2.0
  • Intel® Turbo Boost Max Technology 3.0

Memory

  • Slots: 2 x DIMM
  • Max Capacity: 64GB
  • Type: DDR4 (Non-ECC, Unbuffered)
  • Speed Support:
    • 5333(OC) to 2133 MHz
  • Dual Channel Architecture
  • Intel® XMP Support

Graphics

  • 1 x HDMI™ port
  • Supports 4K @ 60Hz (HDMI 2.1)

Expansion Slots

  • 1 x PCIe 4.0 x16
  • 2 x PCIe 4.0 x1

Storage

  • M.2 Slots: 2 x (PCIe 4.0 x4)
  • SATA: 4 x SATA 6Gb/s
  • Supports SATA RAID 0 / 1 / 5 / 10

Networking

  • Ethernet: Realtek 2.5Gb LAN

USB Connectivity

Rear I/O (8 Ports)

  • 4 x USB 5Gbps (USB 3.2 Gen 1 Type-A)
  • 4 x USB 2.0

Front Panel (Up to 6 Ports)

  • 2 x USB 5Gbps
  • 4 x USB 2.0

Audio

  • Realtek 7.1 Surround Sound HD Audio
  • Supports 24-bit / 192 kHz playback
  • Audio shielding & premium capacitors

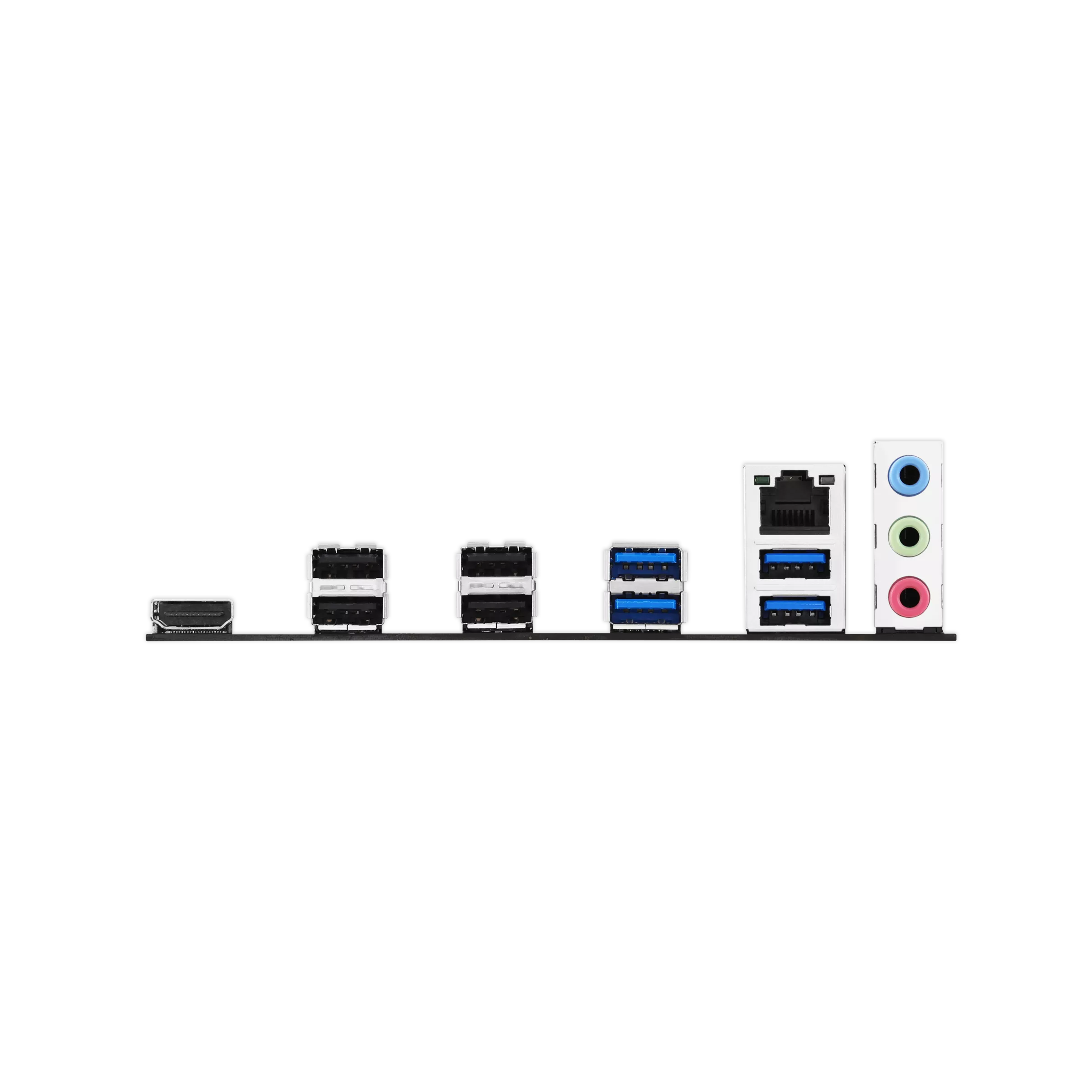

Back Panel I/O

  • 4 x USB 5Gbps
  • 4 x USB 2.0
  • 1 x HDMI™
  • 1 x 2.5Gb Ethernet
  • 3 x Audio jacks

Internal Connectors

  • 1 x CPU fan header
  • 2 x chassis fan headers
  • 24-pin ATX + 8-pin CPU power
  • 2 x M.2, 4 x SATA
  • USB headers (USB 5Gbps & USB 2.0)
  • Addressable Gen 2 RGB headers
  • TPM, COM, S/PDIF, speaker & front panel headers

Cooling & Build Features

  • VRM heatsink design
  • ASUS Q-DIMM, Q-Slot, Q-LED Core
  • ProCool power connector

Special Features

  • ASUS 5X Protection III
    • DIGI+ VRM
    • LANGuard
    • Overvoltage Protection
    • SafeSlot Core
  • Stainless-steel back I/O
  • Aura Sync RGB (Addressable Gen 2)

Software

  • Armoury Crate (Aura Sync, Fan Xpert 2+)
  • AI Suite 3
  • ASUS CPU-Z
  • Norton 360 Deluxe (Trial)
  • WinRAR (Trial)

BIOS & Management

  • 128 Mb UEFI AMI BIOS
  • ASUS EZ Flash 3 / CrashFree BIOS 3
  • Wake-on-LAN (WOL), PXE

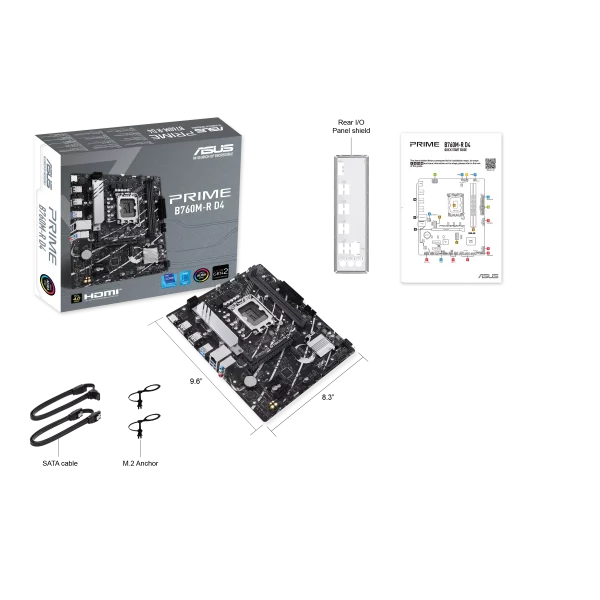

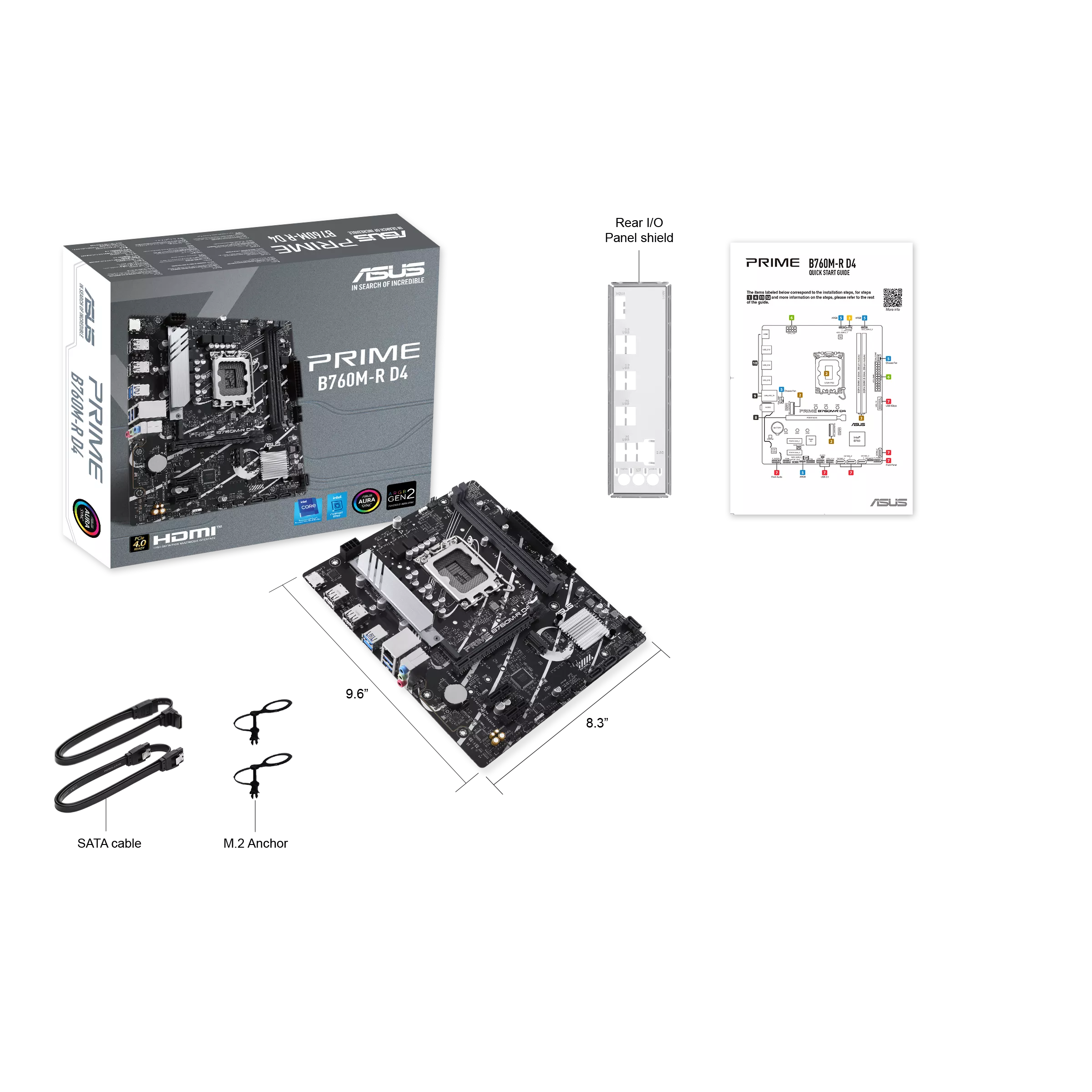

In the Box

  • 2 x SATA cables
  • I/O Shield
  • 2 x M.2 anchors
  • Quick start guide
