Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

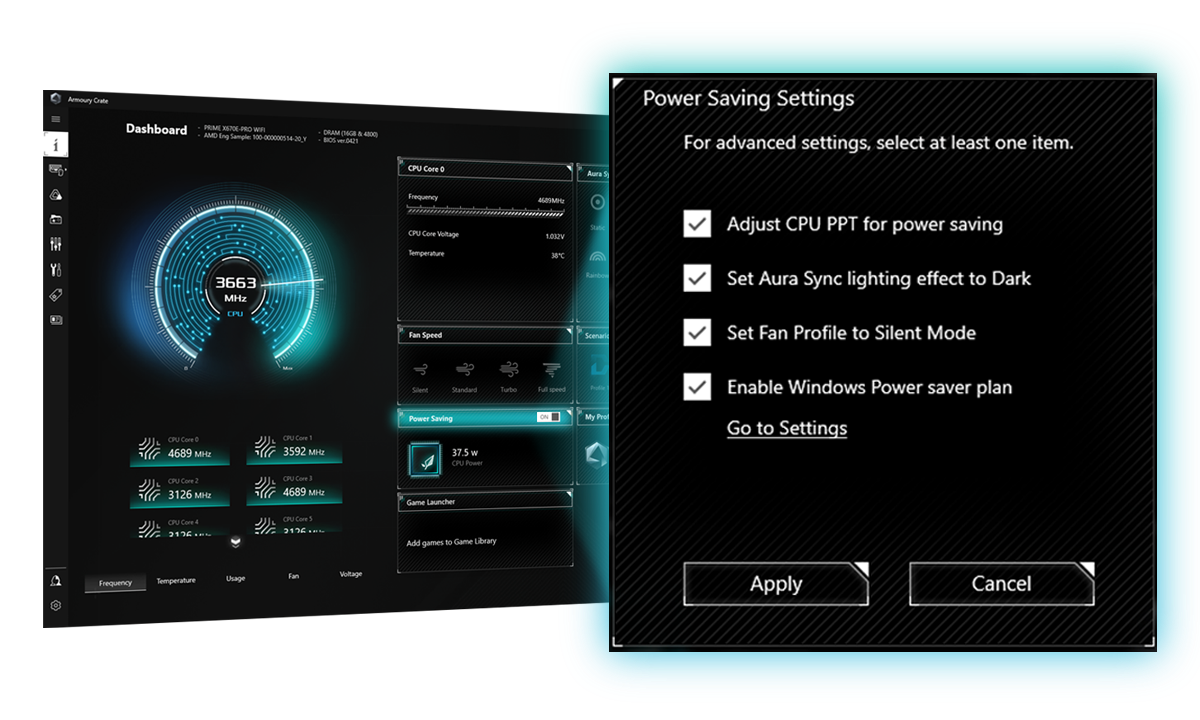

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING

PRIME Z790-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

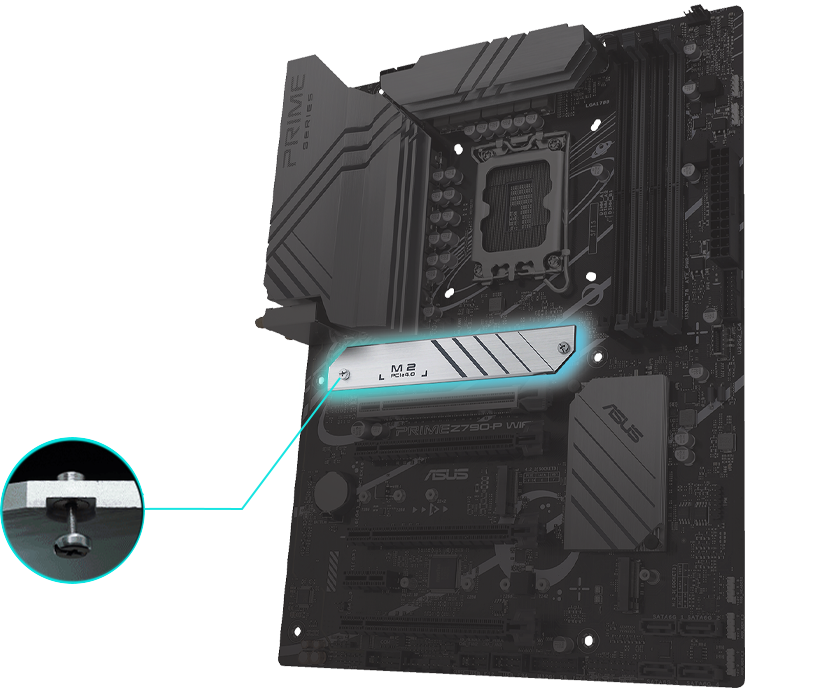

M.2 Heatsink

The flexible M.2 heatsink with removable captive screws can take care of the M.2_1 or M.2_3 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
Removable captive screws reduce risk of drops or loss during heatsink removal.

PERFORMANCE

The PRIME Z790-P WIFI motherboard is built to handle the high core counts and bandwidth demands of 14^th, 13^th and 12^th Gen Intel^® Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel^® processors. The PRIME Z790-P WIFI is geared to cater to the demands of these high-core-count CPUs.

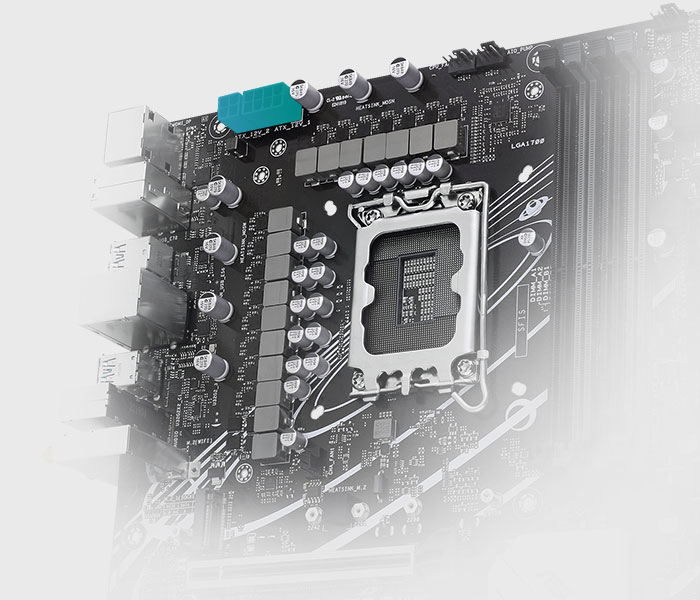

ProCool Connectors

Proprietary connectors augment the motherboard’s link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

Specification

General

• Model: PRIME Z790-P WIFI
• Chipset: Intel® Z790
• Form Factor: ATX (30.5 cm x 23.4 cm)
• Operating System: Windows® 11, Windows® 10 (64-bit)

CPU Support

• Intel® Socket LGA1700
• Supports:
  • Intel® Core™ 14th Gen
  • Intel® Core™ 13th Gen
  • Intel® Core™ 12th Gen
  • Pentium® Gold & Celeron® processors
• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Memory

• Slots: 4 x DIMM
• Max Capacity: 192GB
• Type: DDR5 (Non-ECC, Unbuffered)
• Speed Support:
  • 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC)
  • 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC)
  • 5600 / 5400 / 5200 / 5000 / 4800
• Dual Channel Architecture
• Intel® XMP Support
• OptiMem II

Graphics

• 1 x DisplayPort (4K @ 60Hz)
• 1 x HDMI® (4K @ 60Hz)

Expansion Slots

• 1 x PCIe 5.0 x16
• 3 x PCIe 4.0 x16 (x4 mode)
• 1 x PCIe 3.0 x1

Storage

• M.2 Slots: 3 x (PCIe 4.0 x4)
• SATA: 4 x SATA 6Gb/s
• Supports RAID (0/1/5/10) for PCIe & SATA

Networking

• Ethernet: Realtek 2.5Gb LAN
• Wi-Fi: Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Dual-band (2.4GHz / 5GHz)
• Bluetooth: v5.2

USB Connectivity

Rear I/O (8 Ports)

• 1 x USB 3.2 Gen 2×2 Type-C
• 1 x USB 3.2 Gen 2 Type-A
• 2 x USB 3.2 Gen 1 Type-A
• 4 x USB 2.0

Front Panel (Up to 9 Ports)

• 1 x USB 3.2 Gen 2 Type-C
• 4 x USB 3.2 Gen 1
• 4 x USB 2.0

Audio

• Realtek 7.1 Surround Sound HD Audio
• Supports 24-bit / 192 kHz playback
• Audio shielding & premium capacitors

Back Panel I/O

• USB ports (as above)
• 1 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 combo port

Internal Connectors

• Multiple fan headers (CPU, AIO, chassis)
• 24-pin ATX + 8-pin + 4-pin CPU power
• 3 x M.2, 4 x SATA
• USB headers (Gen 2, Gen 1, USB 2.0)
• RGB & Addressable Gen 2 headers
• Thunderbolt™ (USB4®) header
• TPM, COM, S/PDIF, CMOS, Front Panel

Cooling & Build Features

• VRM heatsinks
• Flexible M.2 heatsink
• ASUS Q-DIMM, Q-Slot, Q-LED Core
• ProCool power connectors

Special Features

• ASUS 5X Protection III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
• Stainless Steel Back I/O
• Aura Sync RGB

Software

• Armoury Crate (Aura Sync, Fan Xpert 4)
• AI Suite 3
• ASUS CPU-Z
• MyASUS
• Norton 360 Deluxe (Trial)
• WinRAR

BIOS & Management

• 192 Mb UEFI AMI BIOS
• ASUS EZ Flash 3 / CrashFree BIOS 3
• Wake-on-LAN (WOL), PXE

In the Box

• 2 x SATA cables
• Wi-Fi antenna
• I/O Shield
• M.2 screws & rubber package
• User manual
