Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storages, the TUF GAMING B760-PLUS WIFI is the perfect foundation for your next Intel battle rig.

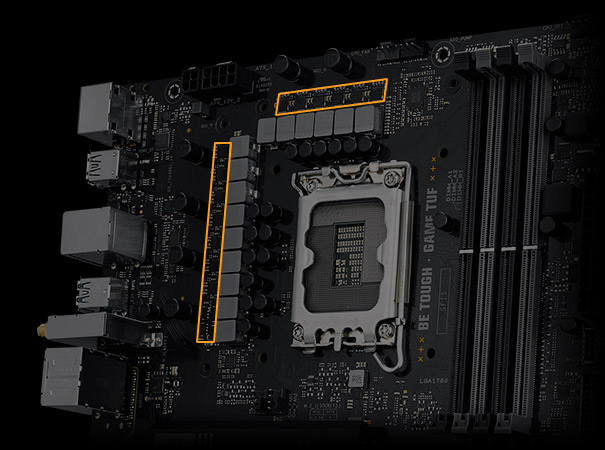

12(50A)+1(60A)+1 Power Stages

12(50A)+1(60A)+1 power stages combine high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

Easy PC DIY

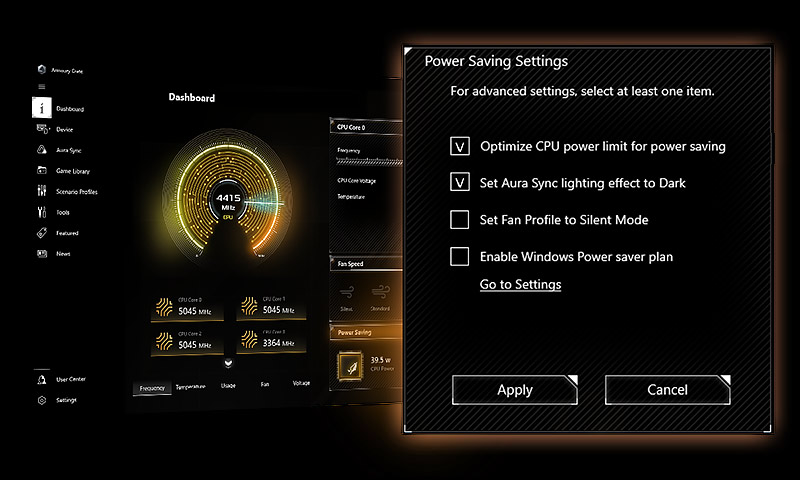

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

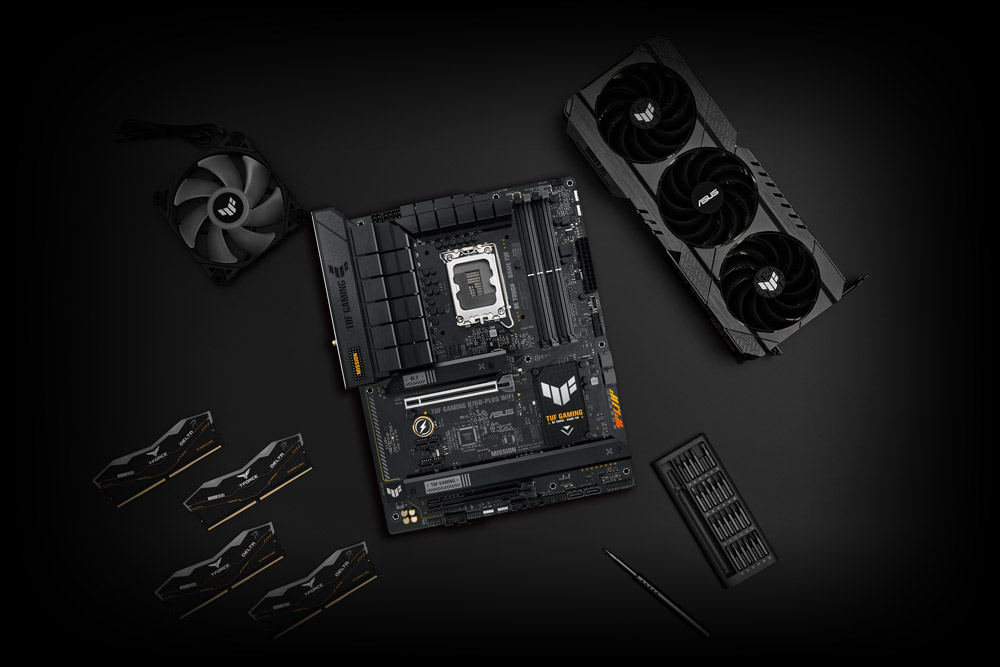

Build With Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

Immersive Gaming

TUF GAMING B760 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

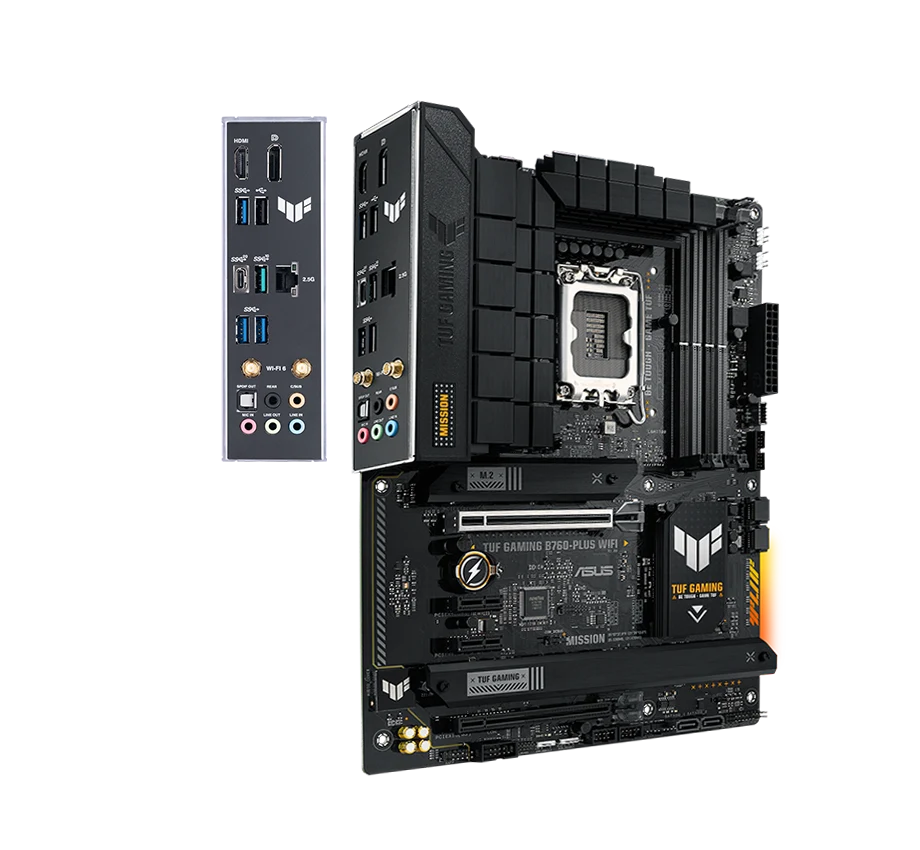

Specification

General

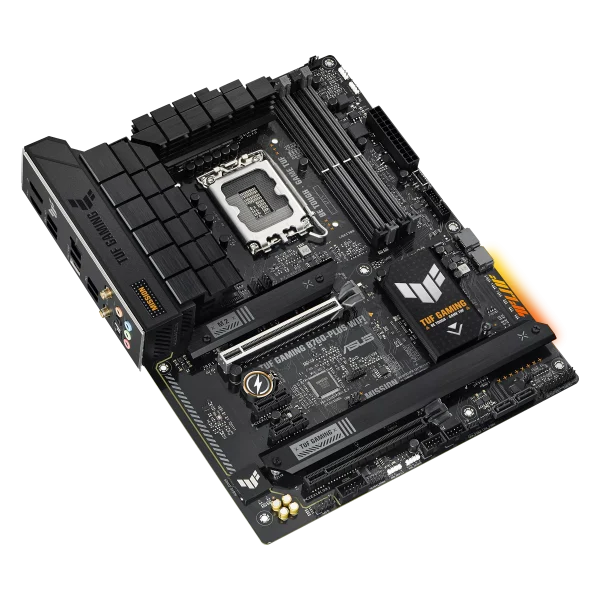

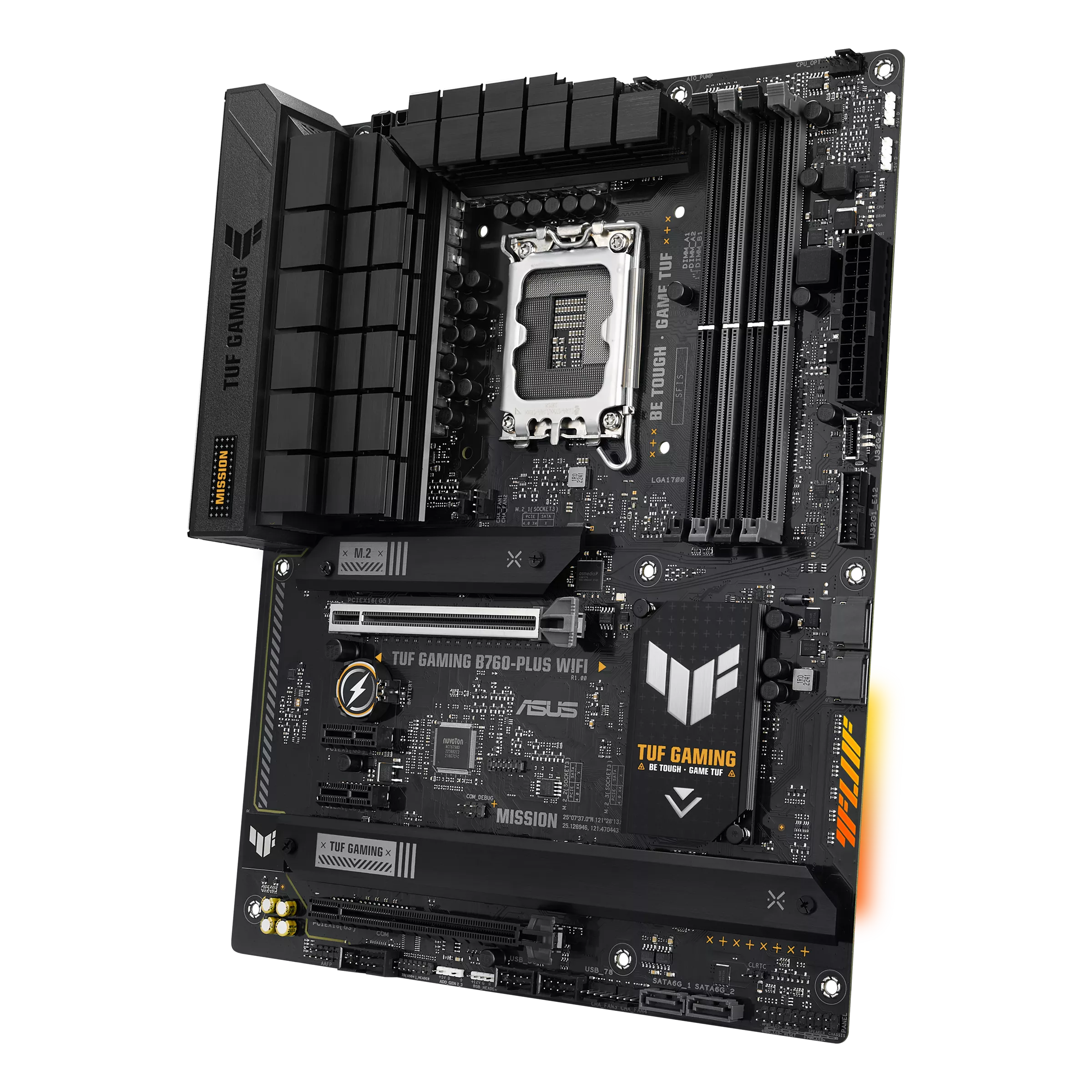

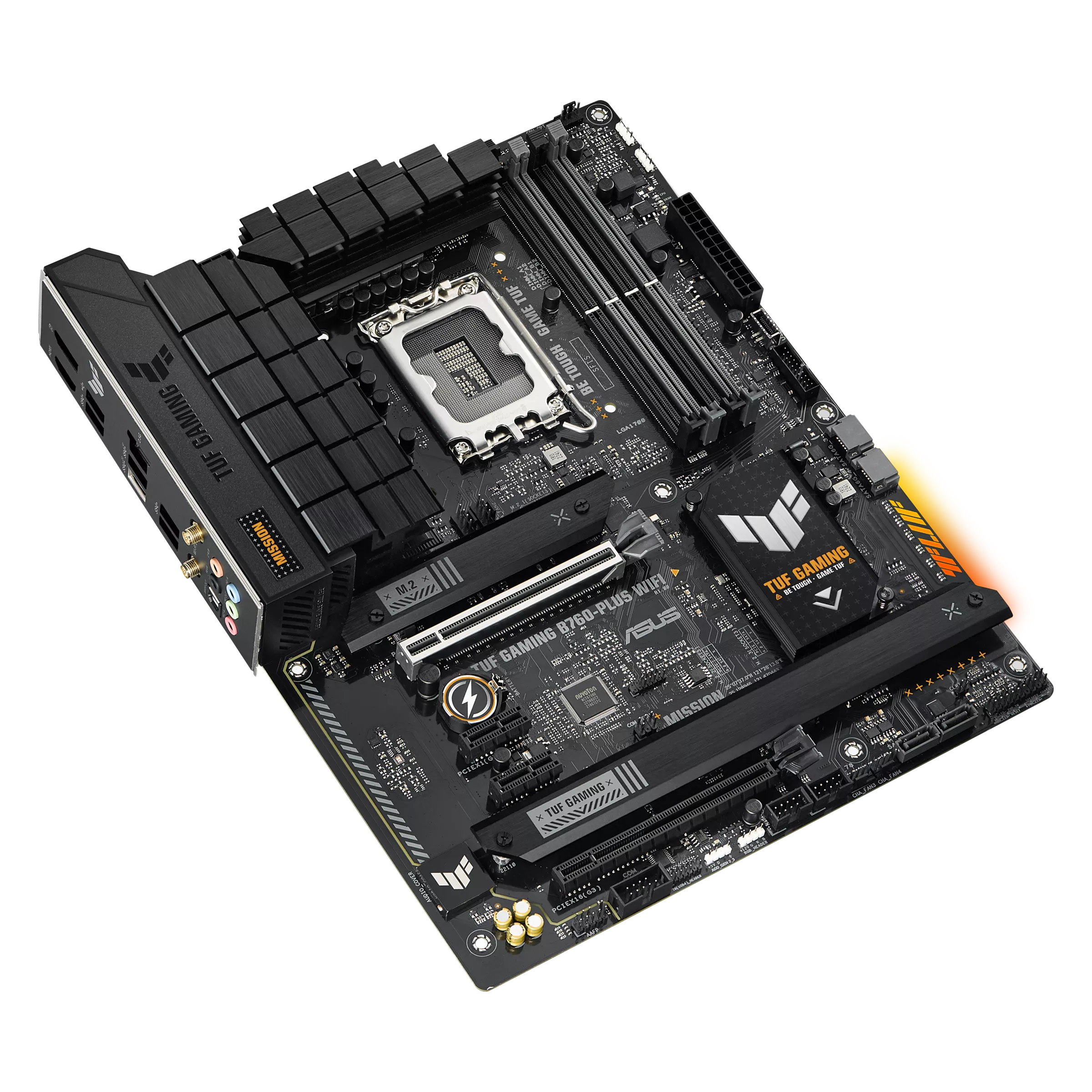

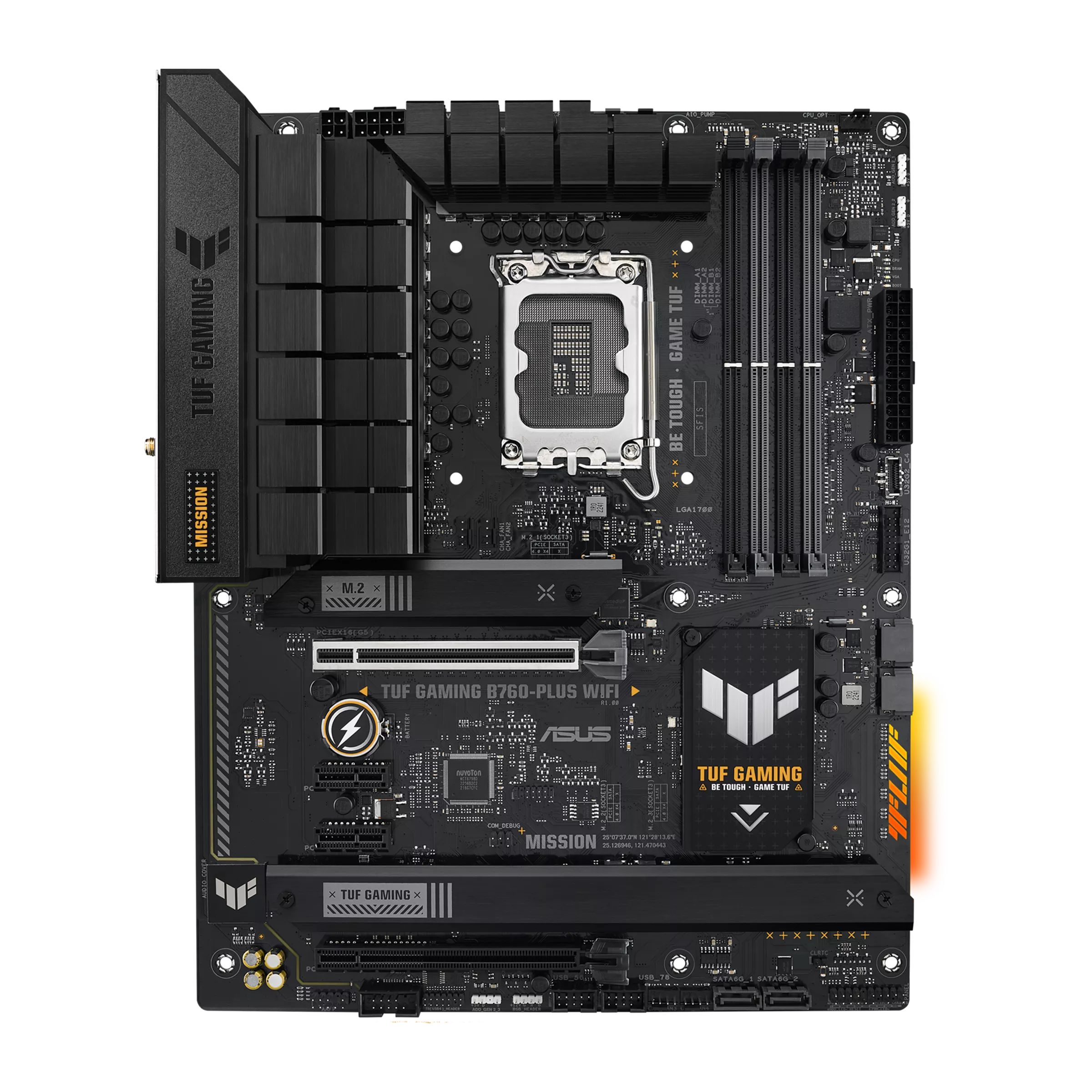

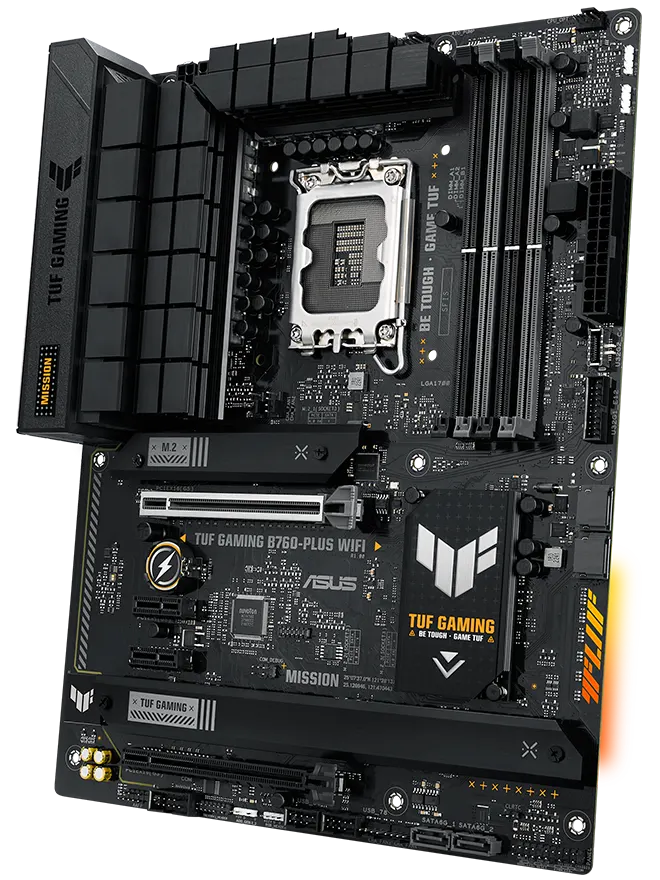

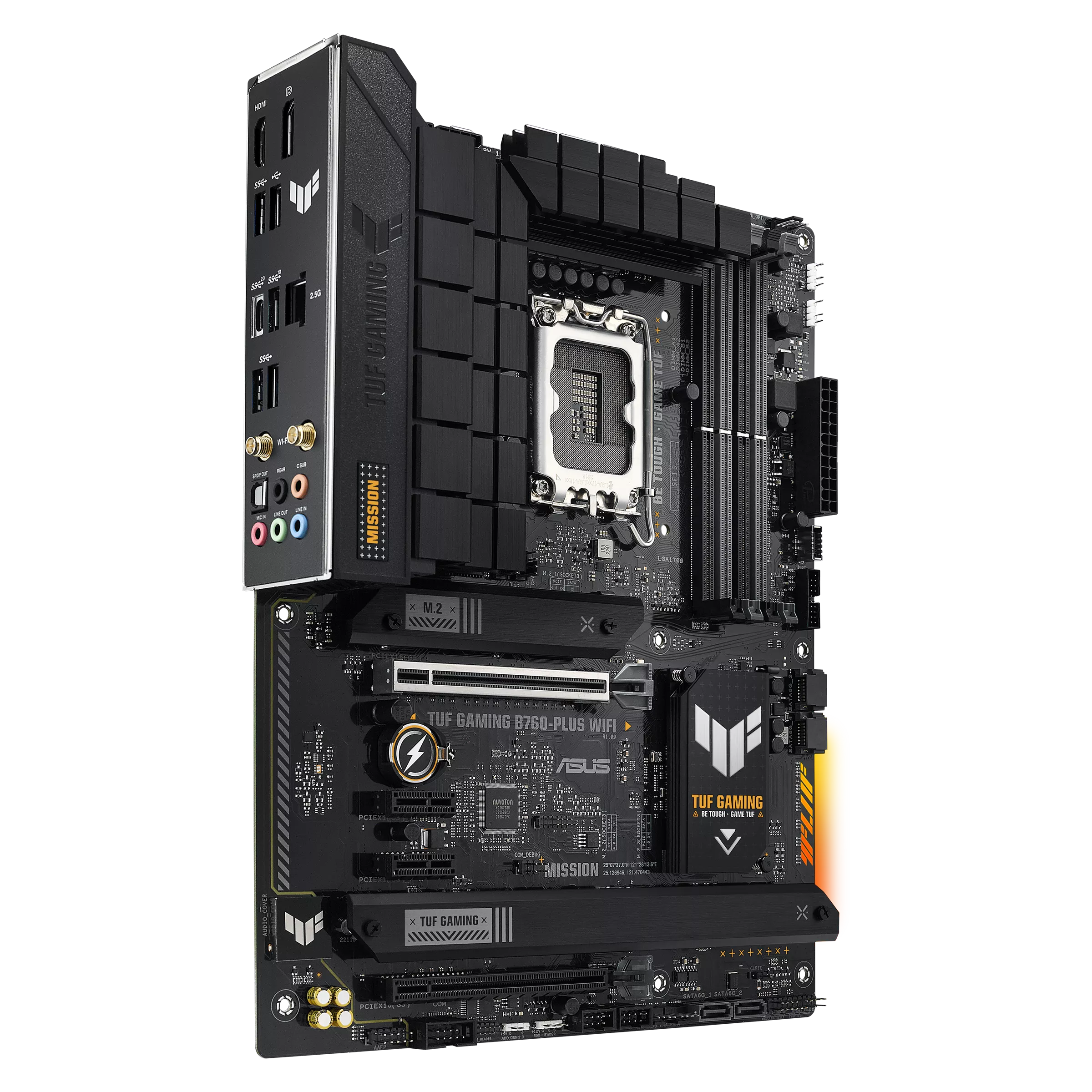

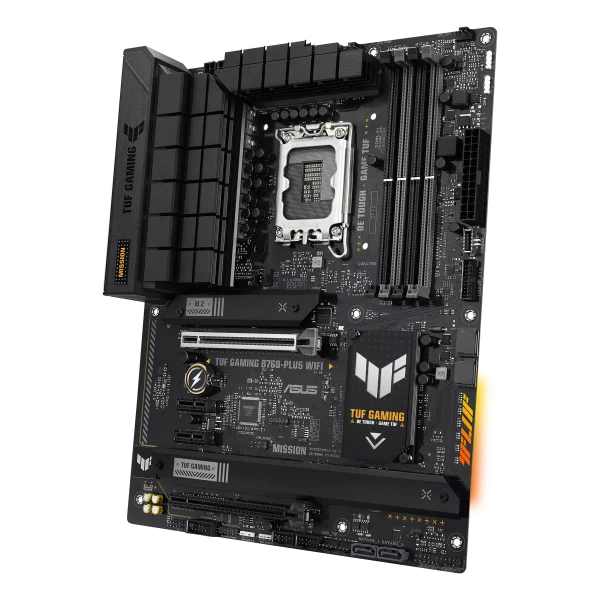

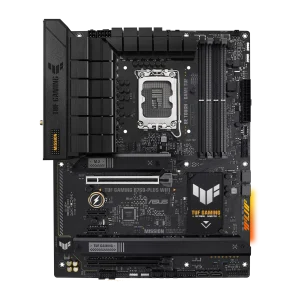

• Model: TUF GAMING B760-PLUS WIFI
• Chipset: Intel® B760
• Form Factor: ATX (30.5 cm x 24.4 cm)
• Operating System: Windows® 11, Windows® 10 (64-bit)

CPU Support

• Intel® Socket LGA1700
• Supports:
  • Intel® Core™ 14th Gen
  • Intel® Core™ 13th Gen
  • Intel® Core™ 12th Gen
  • Pentium® Gold & Celeron® processors
• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Memory

• Slots: 4 x DIMM
• Max Capacity: 192GB
• Type: DDR5 (Non-ECC, Unbuffered)
• Speed Support:
  • 7200(OC) to 4800 MHz
• Dual Channel Architecture
• Intel® XMP Support
• OptiMem II
• On-Die ECC (DDR5)

Graphics

• 1 x DisplayPort (4K @ 60Hz)
• 1 x HDMI™ (4K @ 60Hz)

Expansion Slots

• 1 x PCIe 5.0 x16
• 1 x PCIe 3.0 x16 (x4 mode)
• 2 x PCIe 3.0 x1

Storage

• M.2 Slots: 3 x (PCIe 4.0 x4)
• SATA: 4 x SATA 6Gb/s
• Supports SATA RAID 0 / 1 / 5 / 10

Networking

• Ethernet: Realtek 2.5Gb LAN
• TUF LANGuard protection

Wireless & Bluetooth

• Wi-Fi 6 (2×2) – 802.11 a/b/g/n/ac/ax
• Dual-band (2.4GHz / 5GHz)
• Bluetooth: v5.2

USB Connectivity

Rear I/O (6 Ports)

• 1 x USB 3.2 Gen 2×2 Type-C
• 1 x USB 3.2 Gen 2 Type-A
• 3 x USB 3.2 Gen 1 Type-A
• 1 x USB 2.0

Front Panel (Up to 7 Ports)

• 1 x USB Type-C (USB 3.2 Gen 2)
• 2 x USB 3.2 Gen 1
• 4 x USB 2.0

Audio

• Realtek 7.1 Surround Sound HD Audio
• Supports 24-bit / 192 kHz playback
• Optical S/PDIF out port
• Audio shielding & premium capacitors

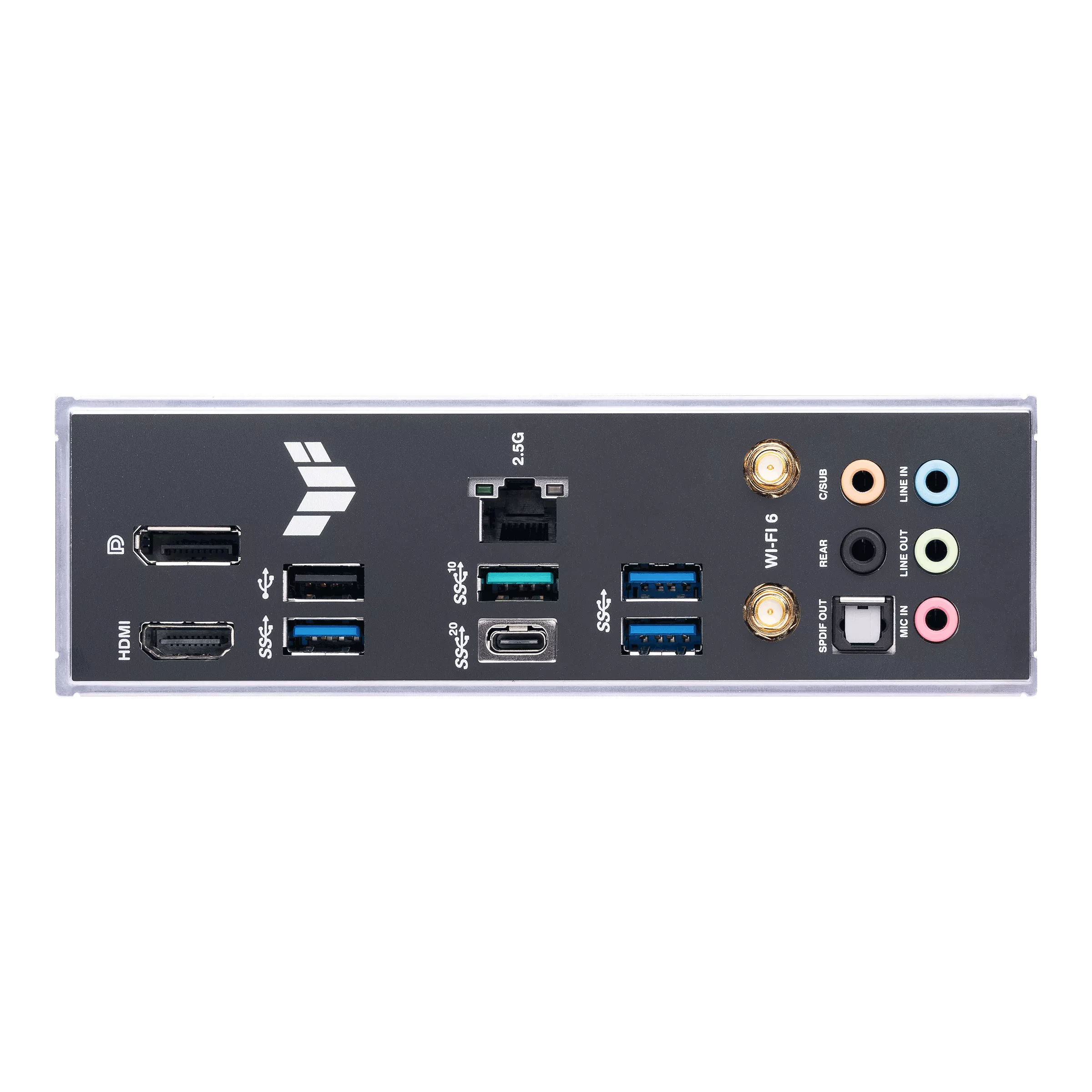

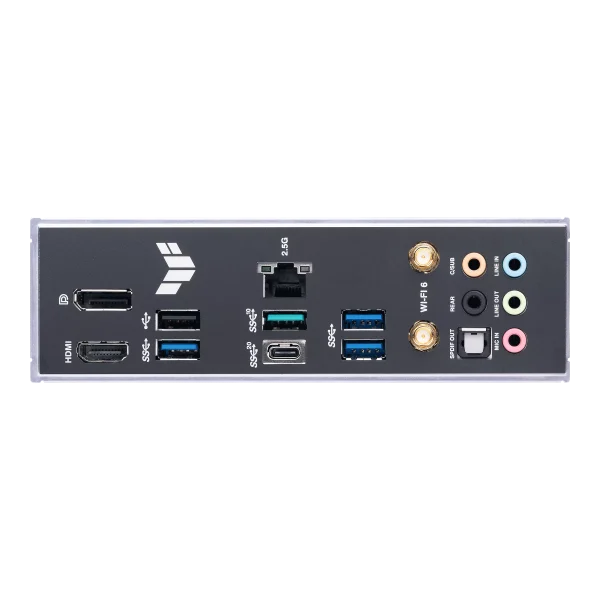

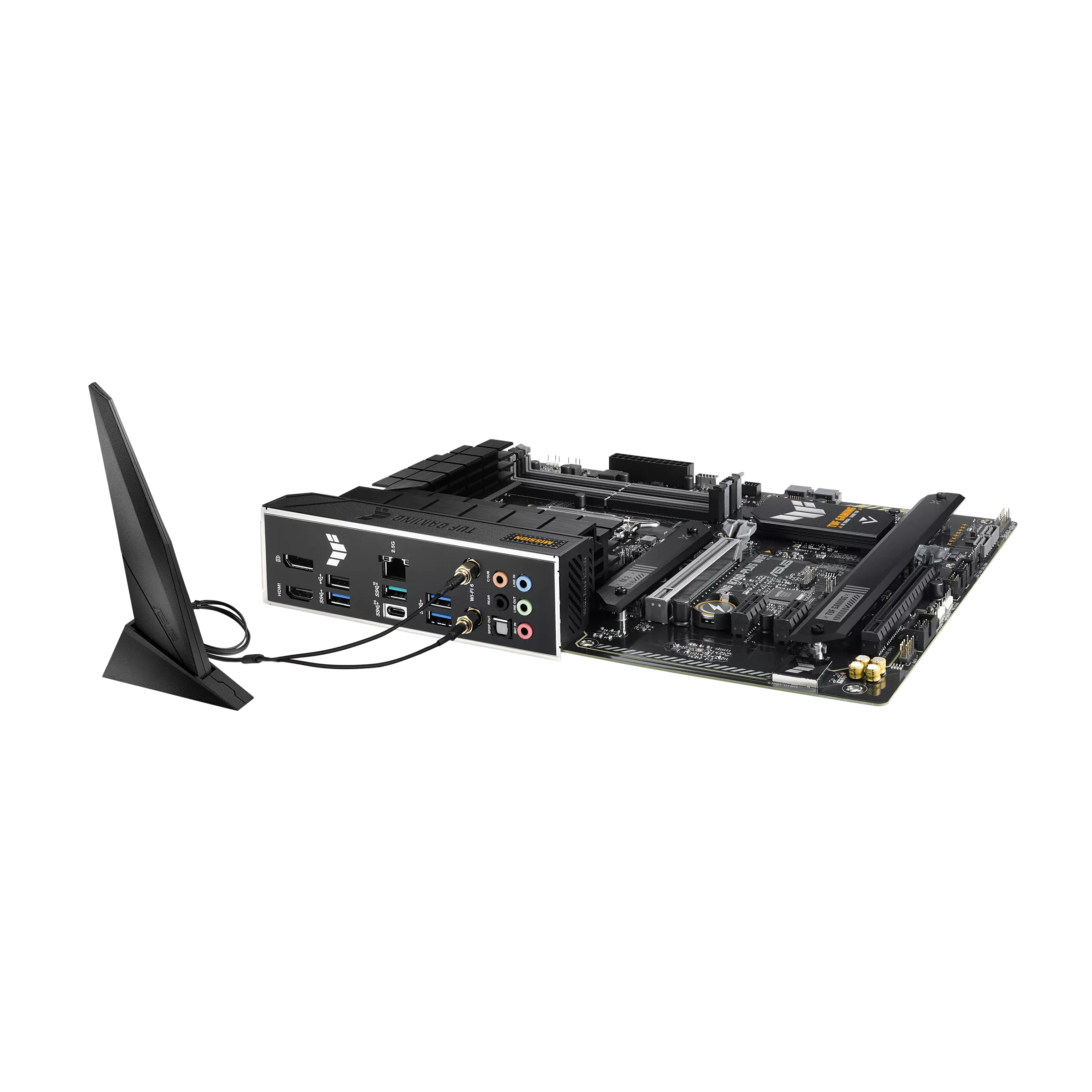

Back Panel I/O

• 1 x USB 3.2 Gen 2×2 Type-C
• 1 x USB 3.2 Gen 2
• 3 x USB 3.2 Gen 1
• 1 x USB 2.0
• 1 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x Optical S/PDIF

Internal Connectors

• 1 x CPU fan + 1 x CPU OPT + 1 x AIO pump
• 4 x chassis fan headers
• 24-pin ATX + 8-pin + 4-pin CPU power
• 3 x M.2, 4 x SATA
• USB headers (Type-C Gen 2, USB 3.2 Gen 1, USB 2.0)
• 3 x Addressable Gen 2 RGB + 1 x Aura RGB
• TPM, COM, Thunderbolt™ (USB4®), system panel

Cooling & Build Features

• VRM heatsink design
• M.2 heatsinks
• M.2 Q-Latch (tool-less installation)
• Pre-mounted I/O shield
• SafeDIMM & SafeSlot Core+

Special Features (TUF Advantage)

• ASUS TUF Protection:
  • DIGI+ VRM (DrMOS)
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
• Military-grade durability focus
• Aura Sync RGB

Software

• Armoury Crate (Aura Creator, Fan Xpert 4)
• AI Suite 3
• TUF Gaming CPU-Z
• DTS Audio Processing
• MyASUS
• Norton 360 for Gamers
• WinRAR

BIOS & Management

• 128 Mb UEFI AMI BIOS
• ASUS EZ Flash 3 / CrashFree BIOS 3
• Wake-on-LAN (WOL), PXE

In the Box

• 2 x SATA cables

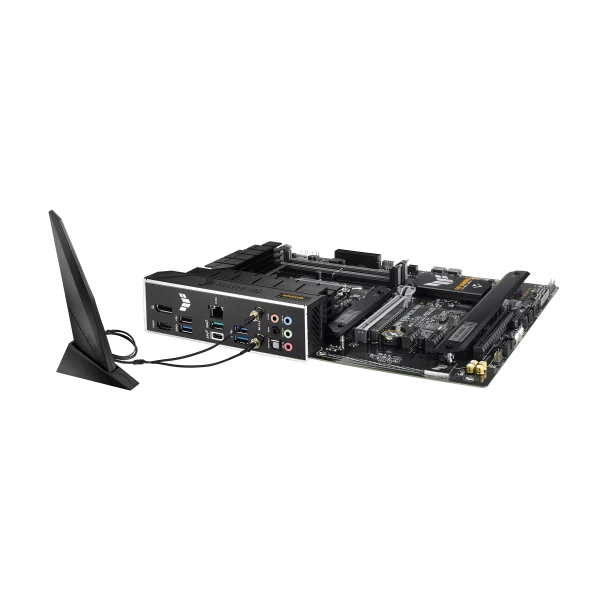

• Wi-Fi antenna
• TUF Gaming sticker
• M.2 rubber & screw packages
• TUF certification card
• User guide
