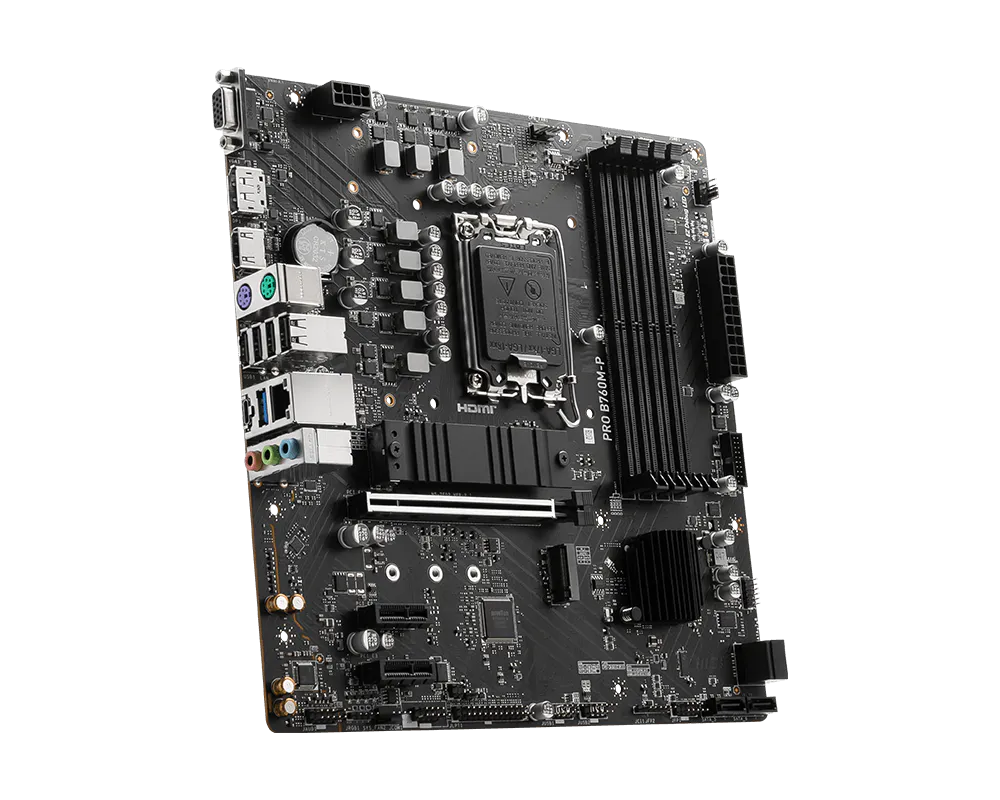

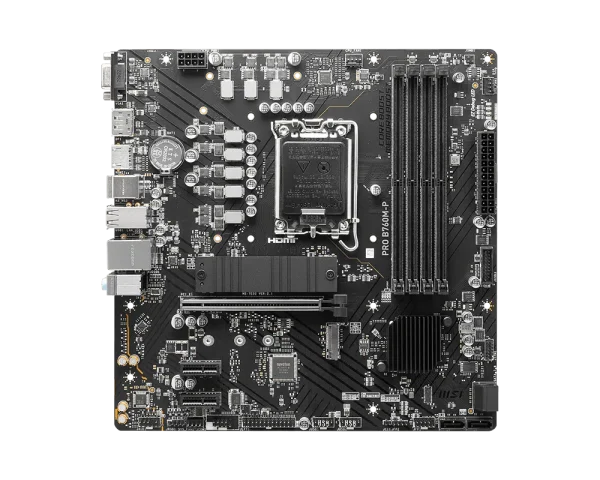

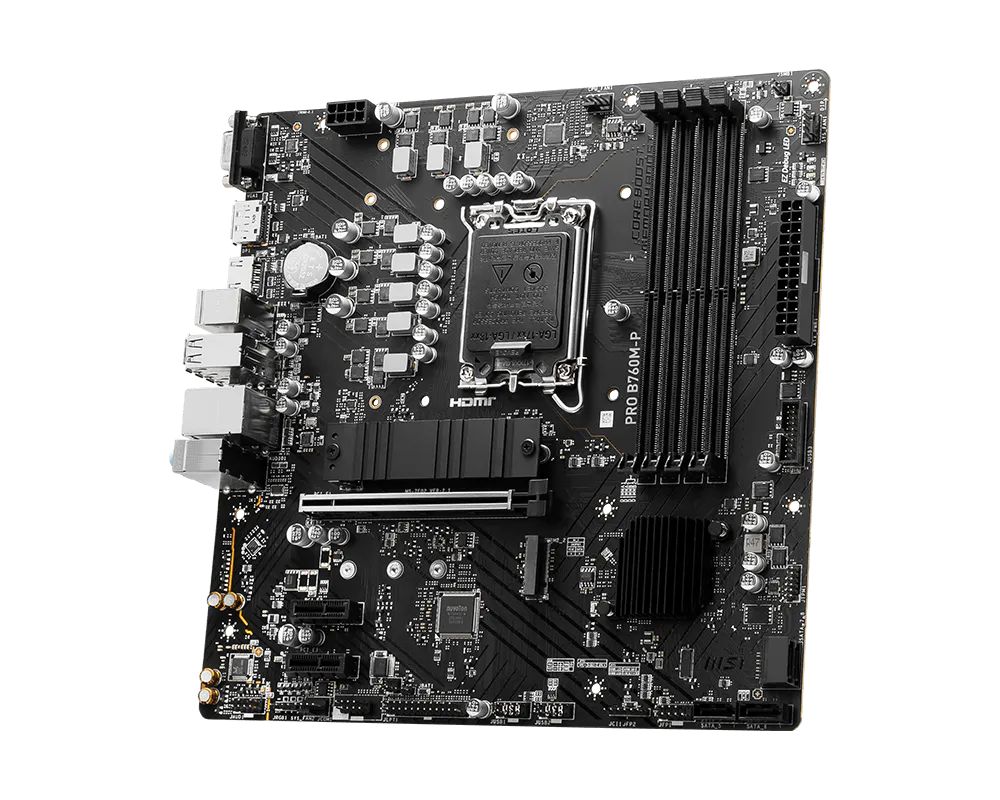

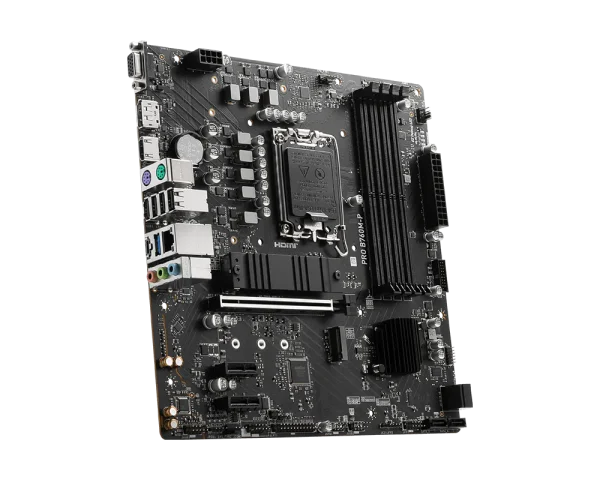

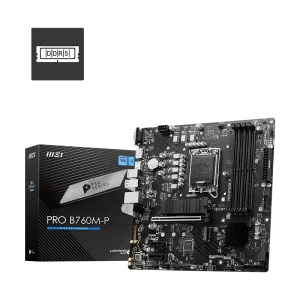

MSI PRO B760M-P Motherboard, Lightning Gen 4 PCI-e with Steel Armor, Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC), Black
Quick Overview
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Original price was: AED 999.00.AED 525.00Current price is: AED 525.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
2
Items sold in last 24 hours
4
People watching this product now!

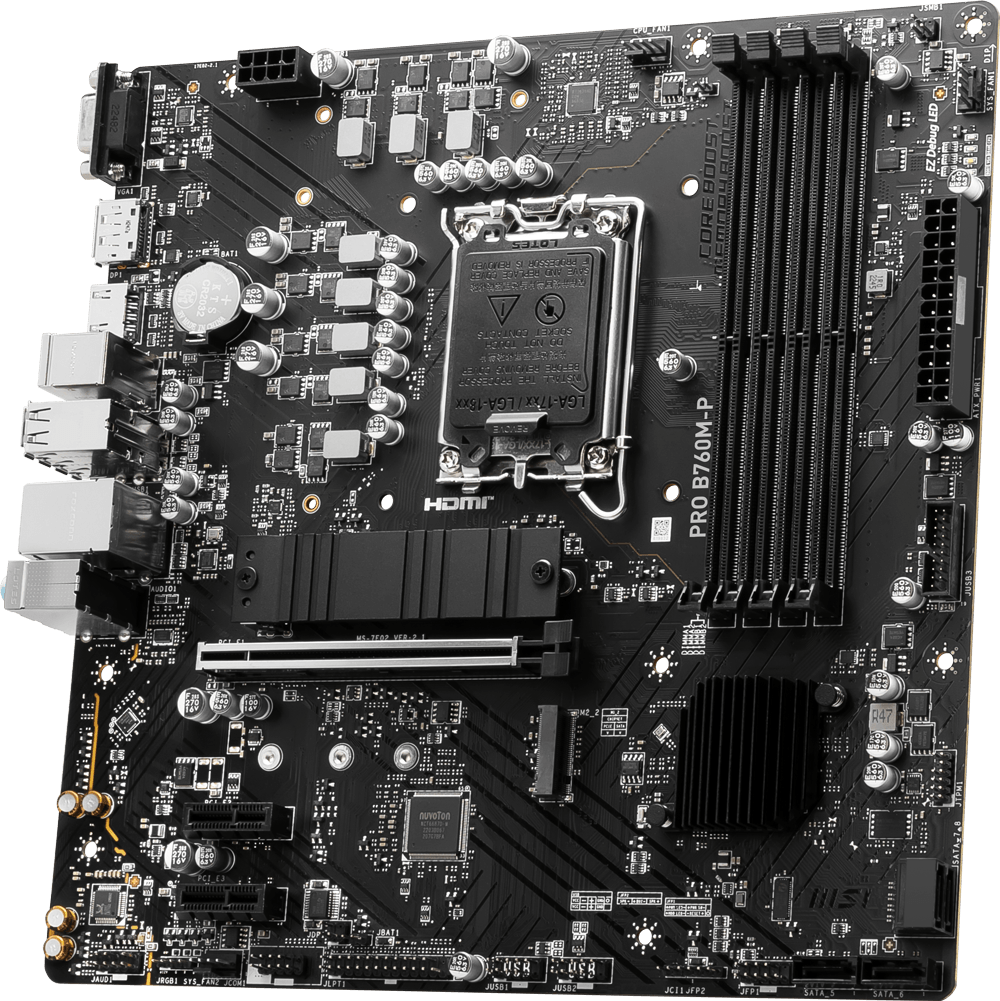

PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.

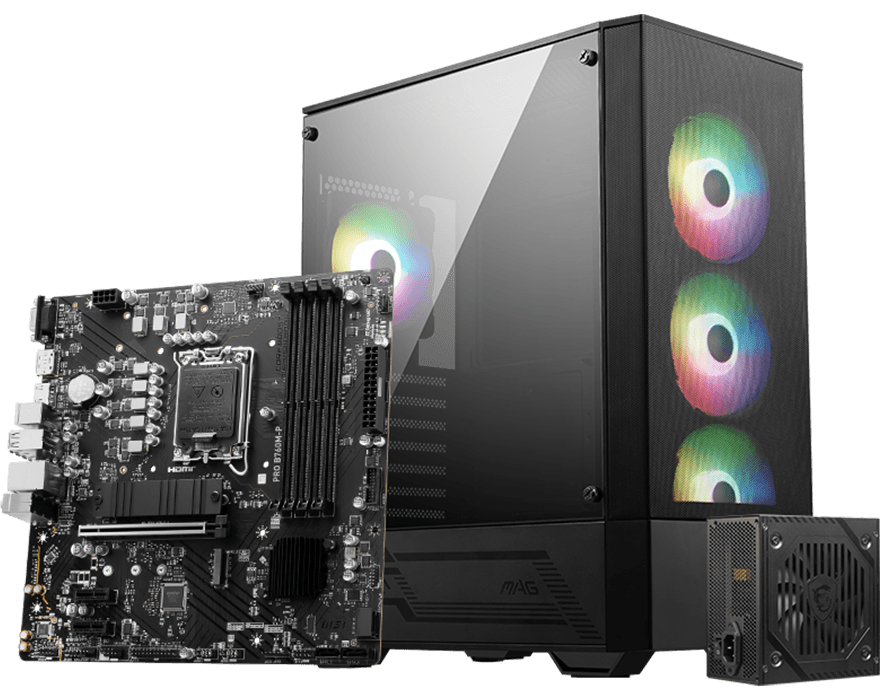

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

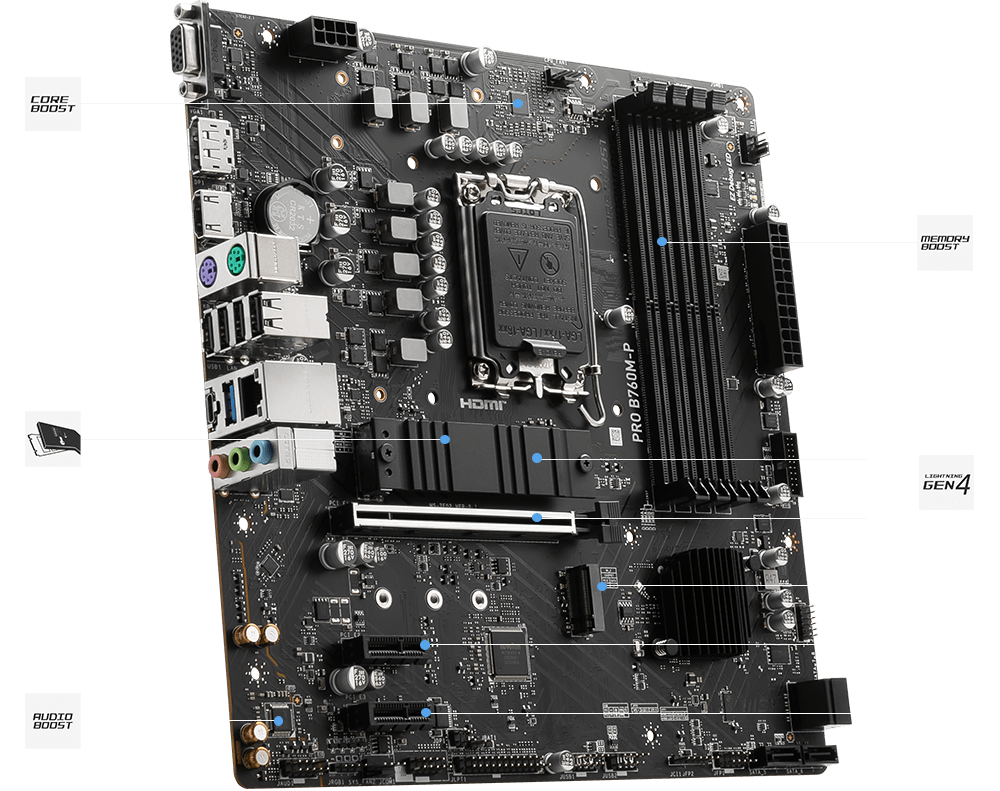

EXCLUSIVE FEATURES
Specification
Chipset
- Intel® B760 Chipset
Processor (CPU)
- Supports:
- Intel® Core™ 14th Gen Processors
- Intel® Core™ 13th Gen Processors
- Intel® Core™ 12th Gen Processors
- Intel® Pentium® Gold
- Intel® Celeron®
- Socket: LGA 1700
Memory
- 4 x DDR5 DIMM slots
- Maximum capacity: 256GB
- Memory speeds:
- 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC)
- 5600 / 5400 / 5200 / 5000 / 4800 MHz (JEDEC)
- Overclocking support:
- 1DPC 1R: up to 6800+ MHz
- 1DPC 2R: up to 6400+ MHz
- 2DPC 1R: up to 6000+ MHz
- 2DPC 2R: up to 5600+ MHz
- Supports:
- Intel® XMP 3.0
- Dual-channel architecture
- Non-ECC, unbuffered memory
Graphics (Onboard)
- 1 x HDMI™ (4K @ 30Hz, HDMI 1.4)
- 1 x DisplayPort (4K @ 60Hz, DP 1.4)
- 1 x VGA (D-Sub)
- Up to 2048×1536 @ 50Hz
- 2048×1280 @ 60Hz
- 1920×1200 @ 60Hz
- Available only with CPUs featuring integrated graphics
Expansion Slots
- 1 x PCIe 4.0 x16 slot (from CPU)
- 2 x PCIe 4.0 x1 slots (from chipset)
Storage
- 2 x M.2 slots:
- M.2_1 (CPU): PCIe 4.0 x4 (2242/2260/2280)
- M.2_2 (Chipset): PCIe 4.0 x4 / SATA (2242/2260/2280)
- 4 x SATA 6Gb/s ports
- Note:
- SATA5 unavailable when using M.2 SATA SSD in M.2_2
RAID Support
- RAID 0, RAID 1, RAID 5, RAID 10 (SATA)
USB Connectivity
Rear Ports
- 4 x USB 2.0
- 1 x USB 5Gbps (Type-A)
- 1 x USB 10Gbps (Type-C)
Front Ports
- 4 x USB 2.0
- 2 x USB 5Gbps (Type-A)
Networking (LAN)
- Realtek® RTL8111H Gigabit LAN
Audio
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Internal I/O Connectors
- Power:
- 1 x ATX 24-pin
- 1 x CPU power connector
- Cooling:
- 1 x CPU fan header
- 2 x System fan headers
- Front Panel & Misc:
- 2 x Front panel headers (JFP)
- 1 x Chassis intrusion (JCI)
- 1 x Front audio (JAUD)
- 1 x Printer port (LPT)
- 1 x COM port
- 1 x RGB LED header (JRGB)
- 1 x TPM header (TPM 2.0 support)
- USB headers:
- 4 x USB 2.0 ports
- 2 x USB 5Gbps ports
LED Features
- 4 x EZ Debug LEDs

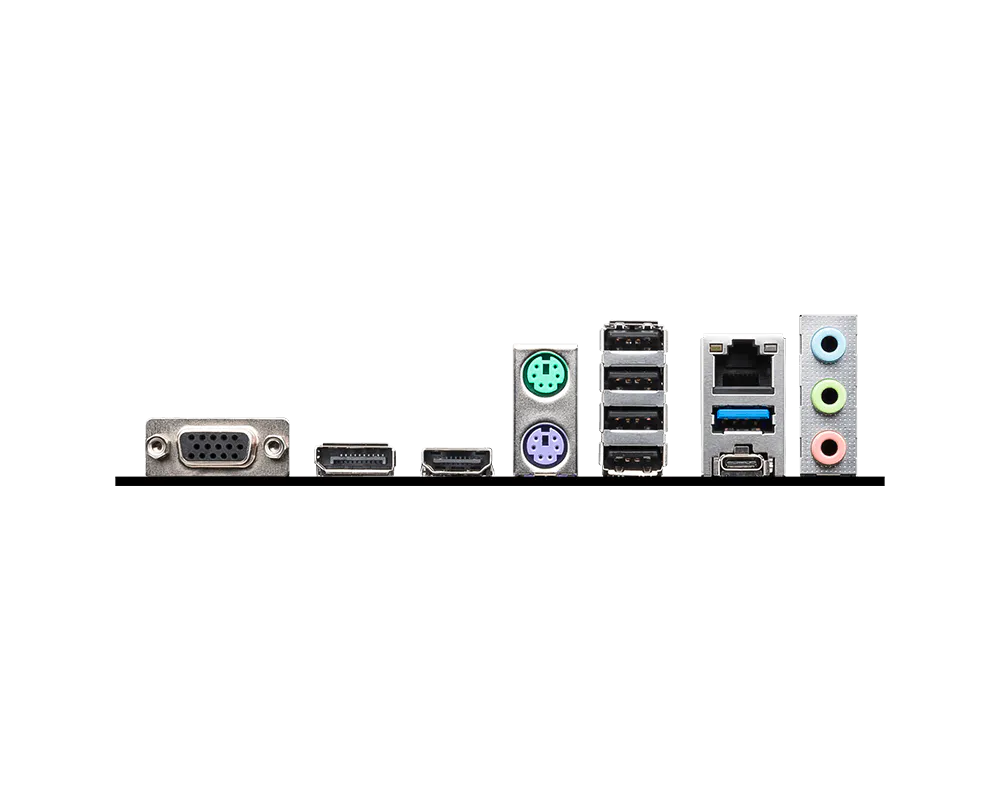

Back Panel I/O Ports
- VGA
- DisplayPort
- HDMI™
- PS/2 Keyboard/Mouse combo
- USB 2.0 ports
- LAN (RJ-45)
- Audio jacks
- USB 3.2 Gen 1 (5Gbps Type-A)
- USB 3.2 Gen 2 (10Gbps Type-C)
Operating System Support
- Windows® 11 (64-bit)
- Windows® 10 (64-bit)
