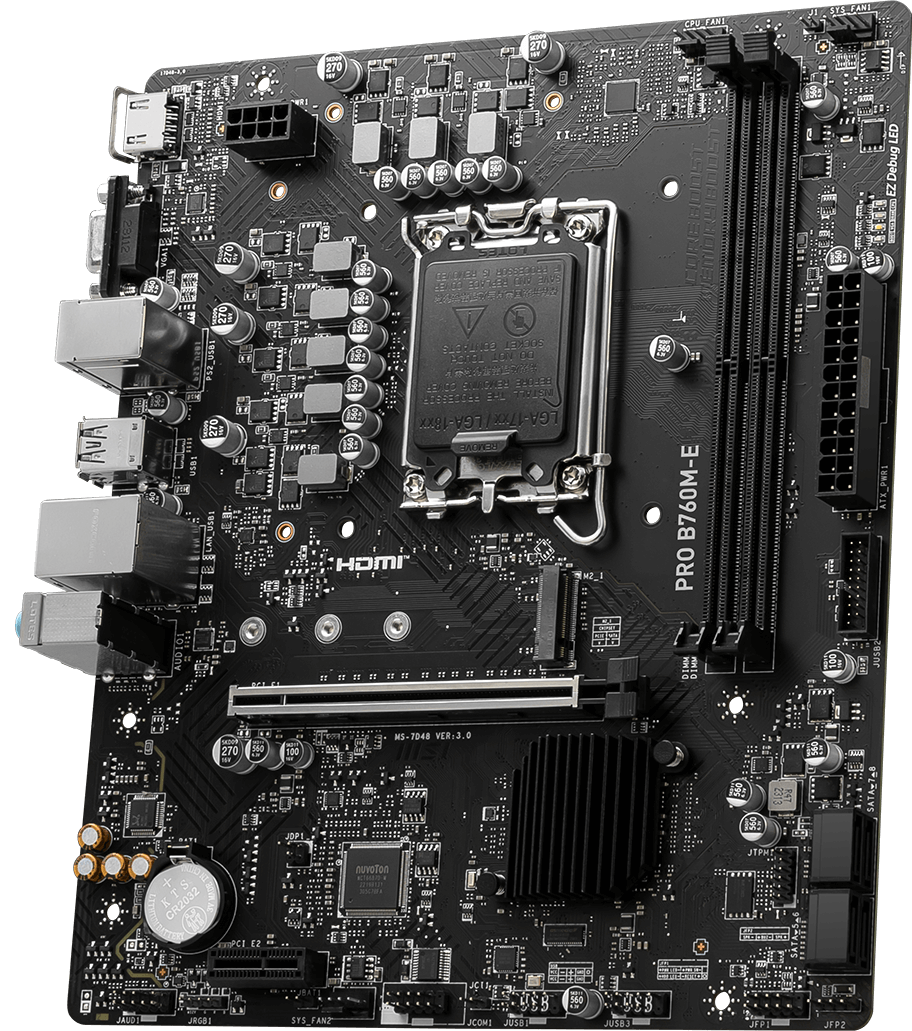

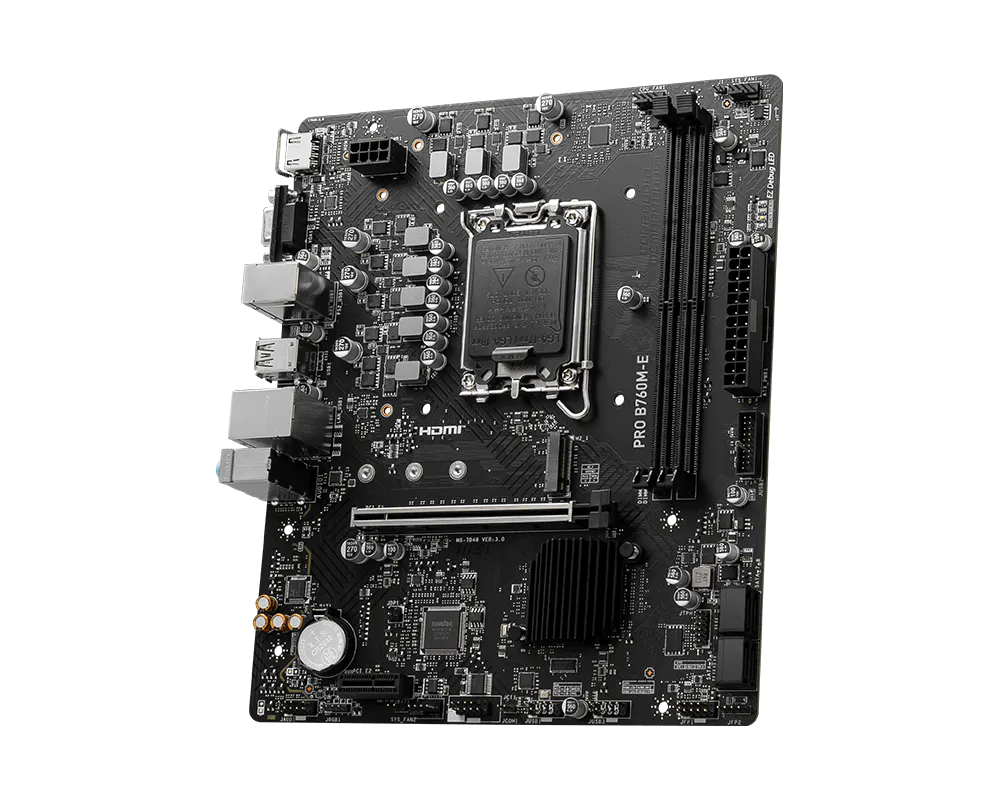

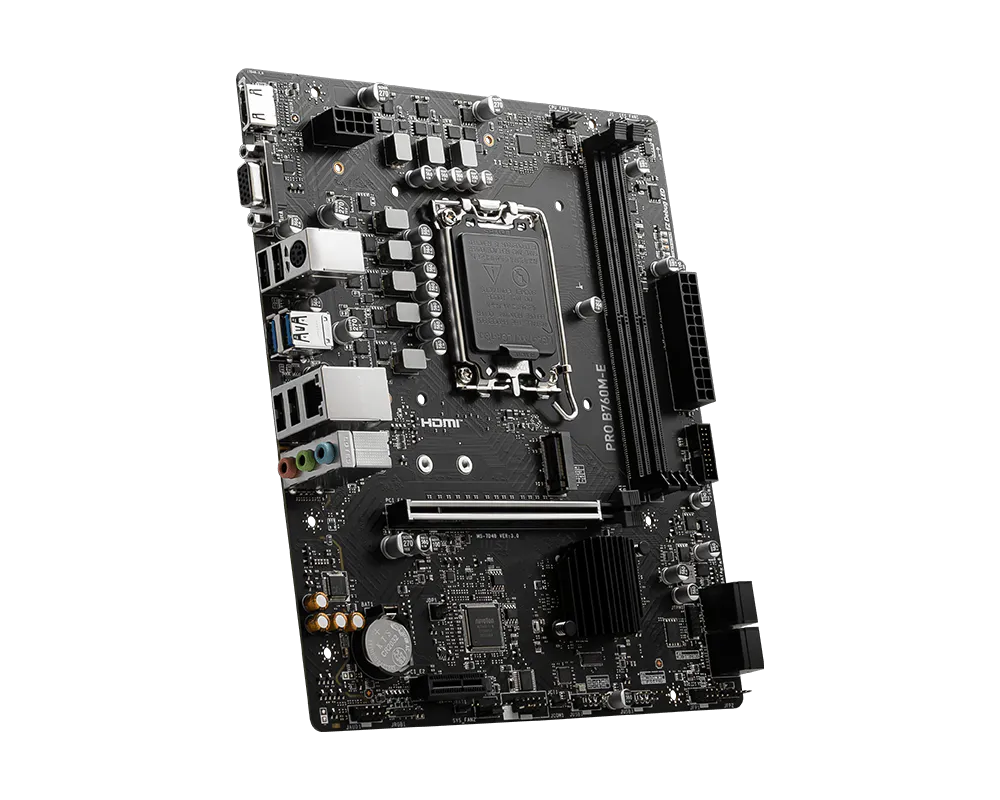

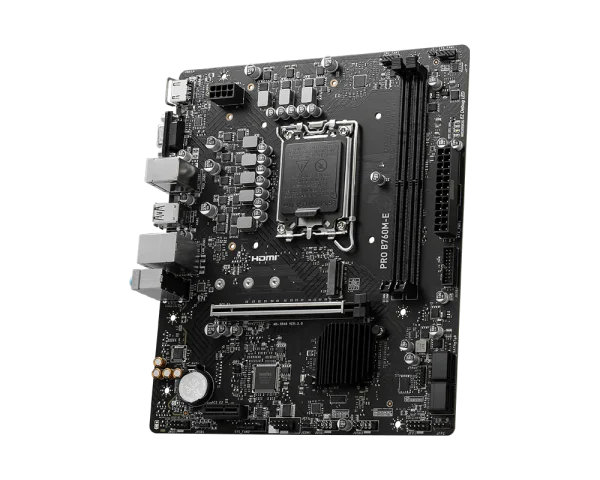

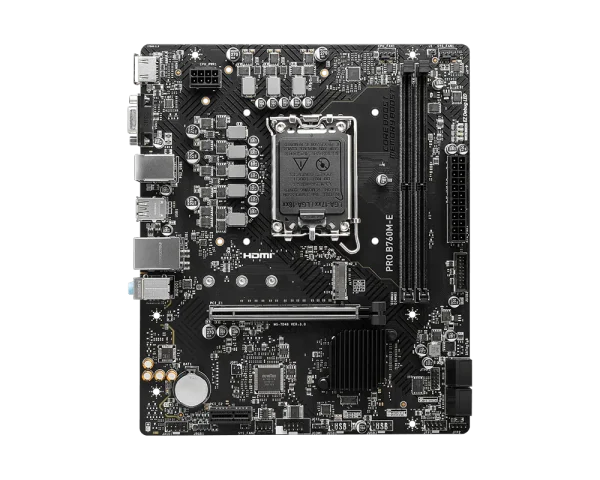

PRO B760M-E is designed with tons of flexible tools with DDR5 memory version.

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

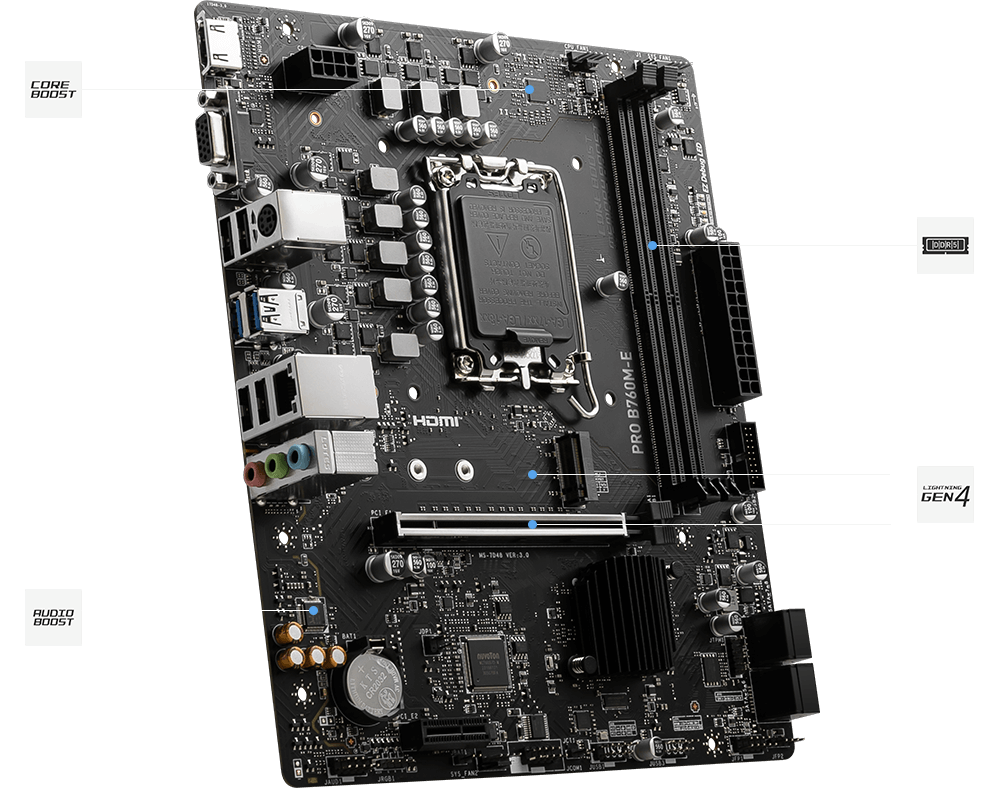

EXCLUSIVE FEATURES

Specification

Chipset

• Intel® B760 Chipset

Processor (CPU)

• Supports:
  • Intel® Core™ 14th Gen
  • Intel® Core™ 13th Gen
  • Intel® Core™ 12th Gen
  • Intel® Pentium® Gold
  • Intel® Celeron®
• Socket: LGA 1700

Memory

• 2 x DDR5 DIMM slots
• Maximum capacity: 128GB
• Memory speeds:
  • 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC)
  • 5600 / 5400 / 5200 / 5000 / 4800 MHz (JEDEC)
• Overclocking support:
  • 1DPC 1R: up to 6400+ MHz
  • 1DPC 2R: up to 5600+ MHz
• Supports:
  • Intel® XMP 3.0
  • Dual-channel architecture
  • Non-ECC, unbuffered memory

Graphics (Onboard)

• 1 x HDMI™ (4K @ 30Hz, HDMI 1.4 with HDR)
• 1 x VGA (D-Sub)
  • Up to 2048×1536 @ 50Hz
  • 2048×1280 @ 60Hz
  • 1920×1200 @ 60Hz
• Available only with CPUs featuring integrated graphics

Expansion Slots

• 1 x PCIe 4.0 x16 slot (from CPU)
• 1 x PCIe 3.0 x1 slot (from chipset)

Storage

• 1 x M.2 slot:
  • PCIe 4.0 x4 / SATA (2242/2260/2280)
• 4 x SATA 6Gb/s ports
• Note:
  • SATA5 unavailable when using M.2 SATA SSD

RAID Support

• RAID 0, RAID 1, RAID 5, RAID 10 (SATA)

USB Connectivity

Rear Ports

• 4 x USB 2.0
• 2 x USB 5Gbps (Type-A)

Front Ports

• 4 x USB 2.0
• 2 x USB 5Gbps (Type-A)

Networking (LAN)

• Realtek® RTL8111H Gigabit LAN

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Internal I/O Connectors

• Power:
  • 1 x 24-pin ATX
  • 1 x CPU power connector
• Cooling:
  • 1 x CPU fan header
  • 2 x system fan headers
• Front Panel & Misc:
  • 2 x front panel headers
  • 1 x chassis intrusion header
  • 1 x front audio header
  • 1 x COM port header
  • 1 x RGB LED header
  • 1 x TPM header (TPM 2.0 support)
• USB headers:
  • 4 x USB 2.0 ports
  • 2 x USB 5Gbps ports

LED Features

• 4 x EZ Debug LEDs

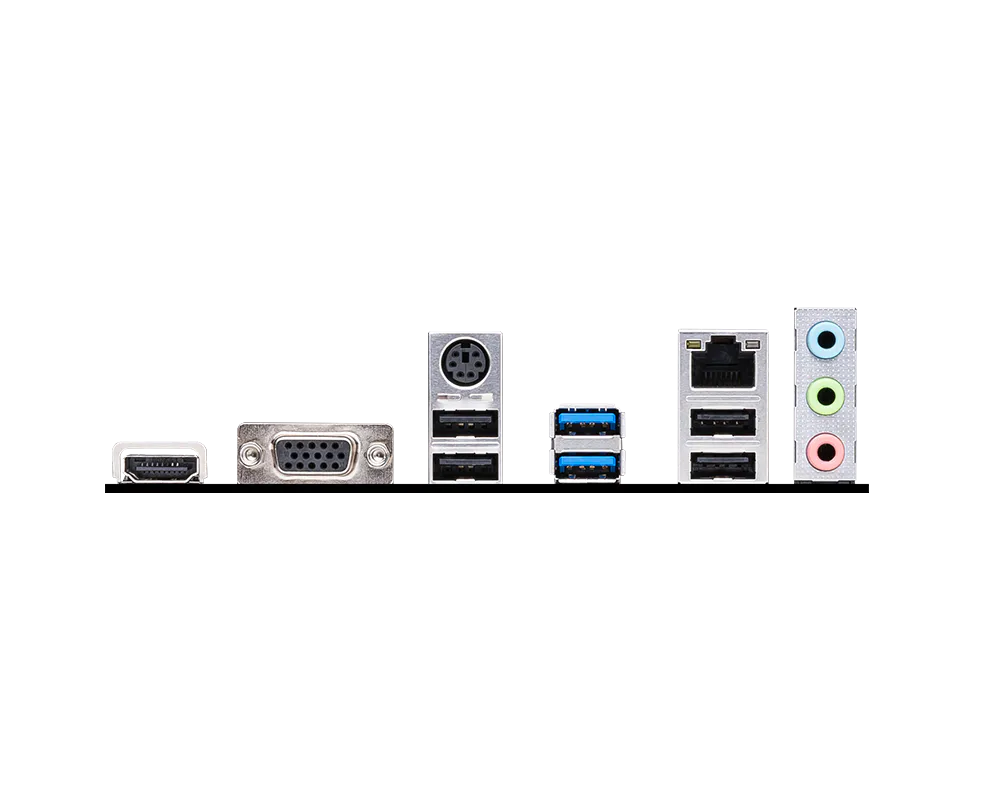

Back Panel I/O

• 1 x HDMI™
• 1 x VGA
• 1 x PS/2 keyboard/mouse combo
• USB 3.2 Gen 1 (5Gbps Type-A)
• USB 2.0 ports
• 1 x LAN (RJ-45)
• Audio jacks

Operating System Support

• Windows® 11 (64-bit)
• Windows® 10 (64-bit)
