UNDENIABLY ROG STRIX

The I/O shield and M.2 heatsink feature a perforated metal mesh that can either reflect the glow of internal RGB components or blend seamlessly into the shadows of a stealthy build. The cyber-style text and sharp, angular details firmly establish this motherboard as a member of the ROG Strix family.

ASUS AI
INTELLIGENCE

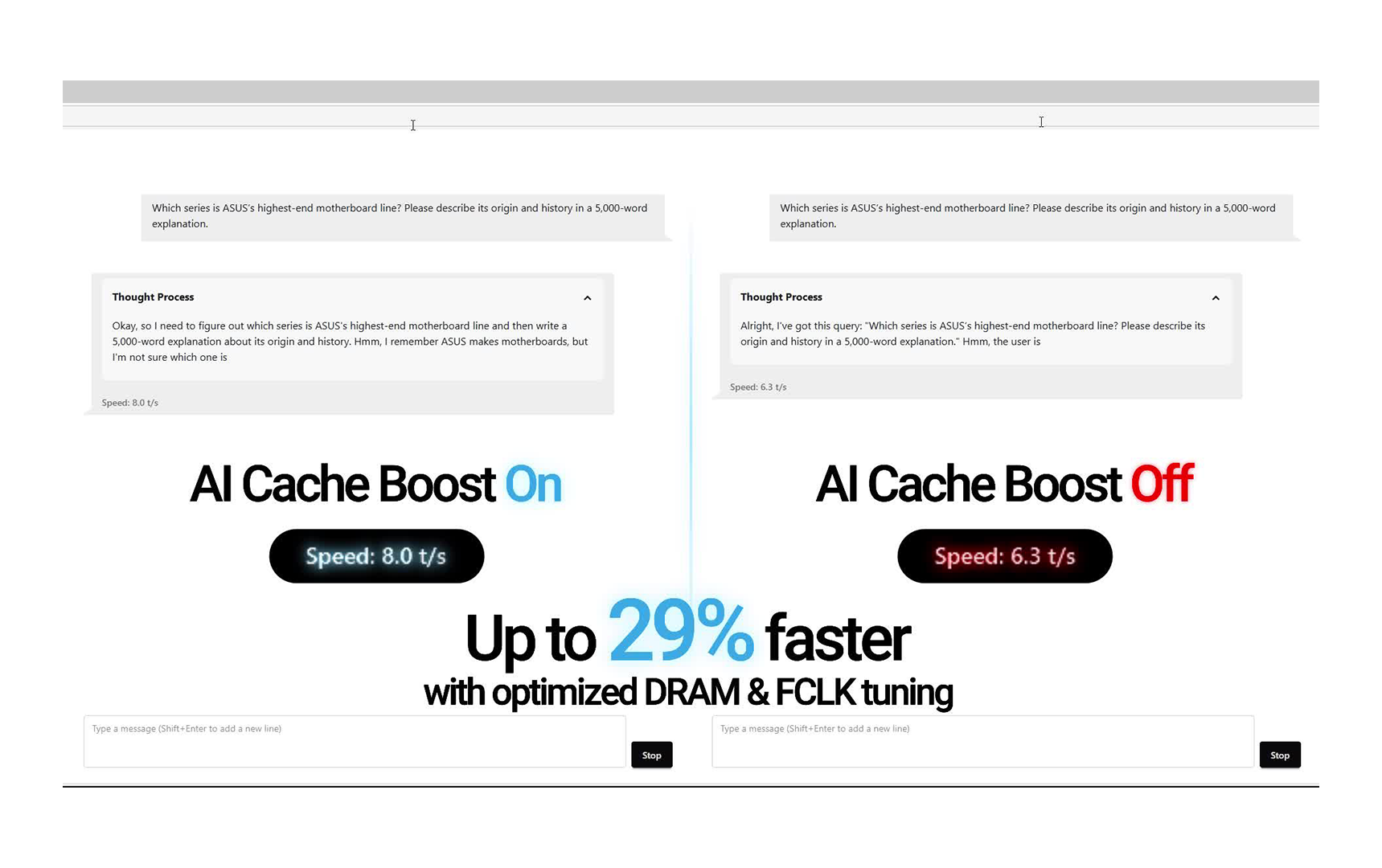

AI CACHE BOOST

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Specification

CPU

• AMD Socket AM5
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset

• AMD X870

Memory

• 2 x DIMM slots (DDR5)
• Max Capacity: 128GB
• Speed Support:
  • Ryzen 9000: up to 8400+ MT/s (OC)
  • Ryzen 8000: up to 8600+ MT/s (OC)
  • Ryzen 7000: up to 8000+ MT/s (OC)
• ECC & Non-ECC Unbuffered DIMM
• Dual Channel Architecture
• Supports EXPO™ & AEMP

Graphics

• 1 x HDMI 2.1 (up to 4K@60Hz)
• 2 x USB4 (Type-C, DisplayPort output up to 4K@60Hz)

Expansion Slots

• Ryzen 9000 / 7000:
  • 1 x PCIe 5.0 x16
• Ryzen 8000:
  • 1 x PCIe 4.0 x16 (x8/x4 mode)

Storage

• 2 x M.2 slots:
  • M.2_1: PCIe 5.0 x4 (9000/7000) / PCIe 4.0 (8000)
  • M.2_2: PCIe 4.0 x4 (chipset)
• 2 x SATA 6Gb/s (via ROG FPS Card)
• RAID support: 0 / 1 / 10

Networking

• 1 x Intel 2.5Gb Ethernet
• Wi-Fi 7 (2×2, up to 6.5Gbps, 320MHz)
• Bluetooth 5.4

USB Ports

Rear I/O:

• 2 x USB4 (40Gbps, Type-C)
• 5 x USB 10Gbps (4A + 1C)
• 3 x USB 2.0

Front I/O:

• 1 x USB 10Gbps (Type-C)
• 1 x USB 5Gbps header (2 ports)

Additional (ROG STRIX HIVE II):

• 2 x USB 10Gbps

Audio

• External ROG STRIX HIVE II Audio
  • ESS SABRE9260Q DAC
  • Volume knob + controls
  • High-end DAC + headphone output

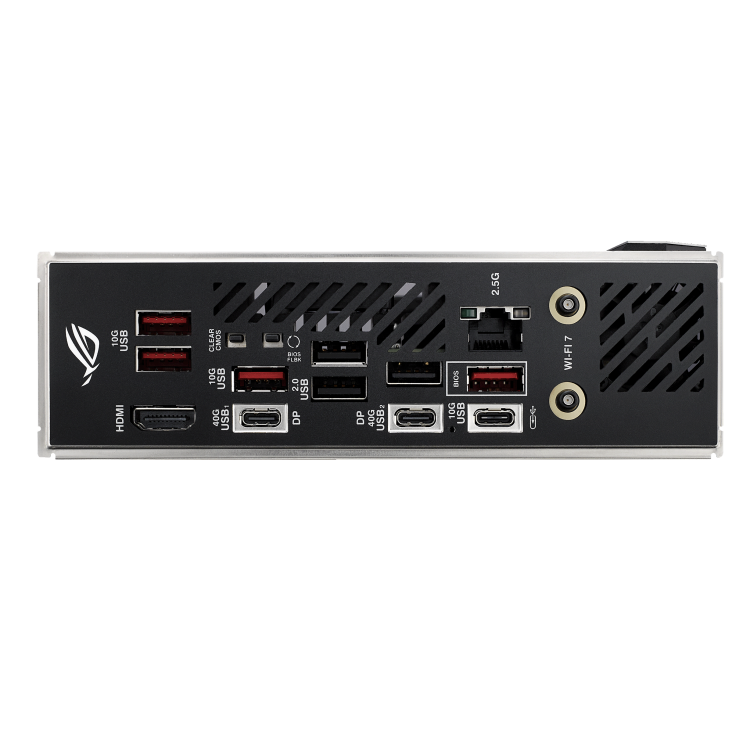

Back Panel I/O

• 2 x USB4 Type-C
• 5 x USB 10Gbps
• 3 x USB 2.0
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x 2.5G LAN
• BIOS FlashBack + Clear CMOS

Internal Connectors

Cooling:

• 1 x CPU Fan
• 1 x AIO Pump
• 1 x Chassis Fan

Power:

• 1 x 24-pin ATX
• 1 x 8-pin CPU

Storage:

• 2 x M.2

Extras:

• ROG FPS Card connector
• USB headers
• Thermal sensor
• RGB headers (Gen 2)

Special Features

• ROG STRIX HIVE II (external control module)
• ROG FPS Card (expansion for SATA & USB)
• PCIe Q-Release Slim
• M.2 Q-Latch
• BIOS FlashBack & Clear CMOS
• AI Overclocking + Dynamic OC Switcher

Software

• Armoury Crate
• Aura Sync / Creator
• Fan Xpert 4
• GameFirst
• HWiNFO
• Dolby Atmos

BIOS

• 256Mb UEFI AMI BIOS
• EZ Flash 3 / CrashFree BIOS

Form Factor

• Mini-ITX
• 6.7” x 6.7” (17 x 17 cm)
