Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 14^th, 13^th & 12^th Generation Intel^® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Storage

M.2 slot (up to 32 Gbps)

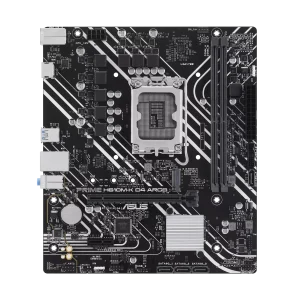

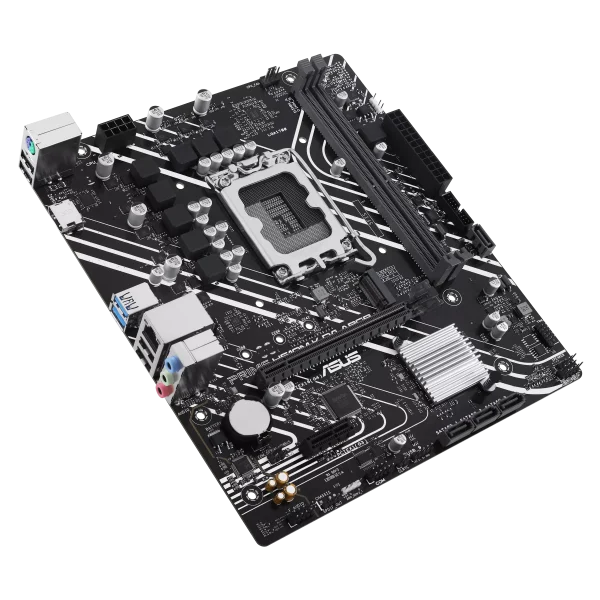

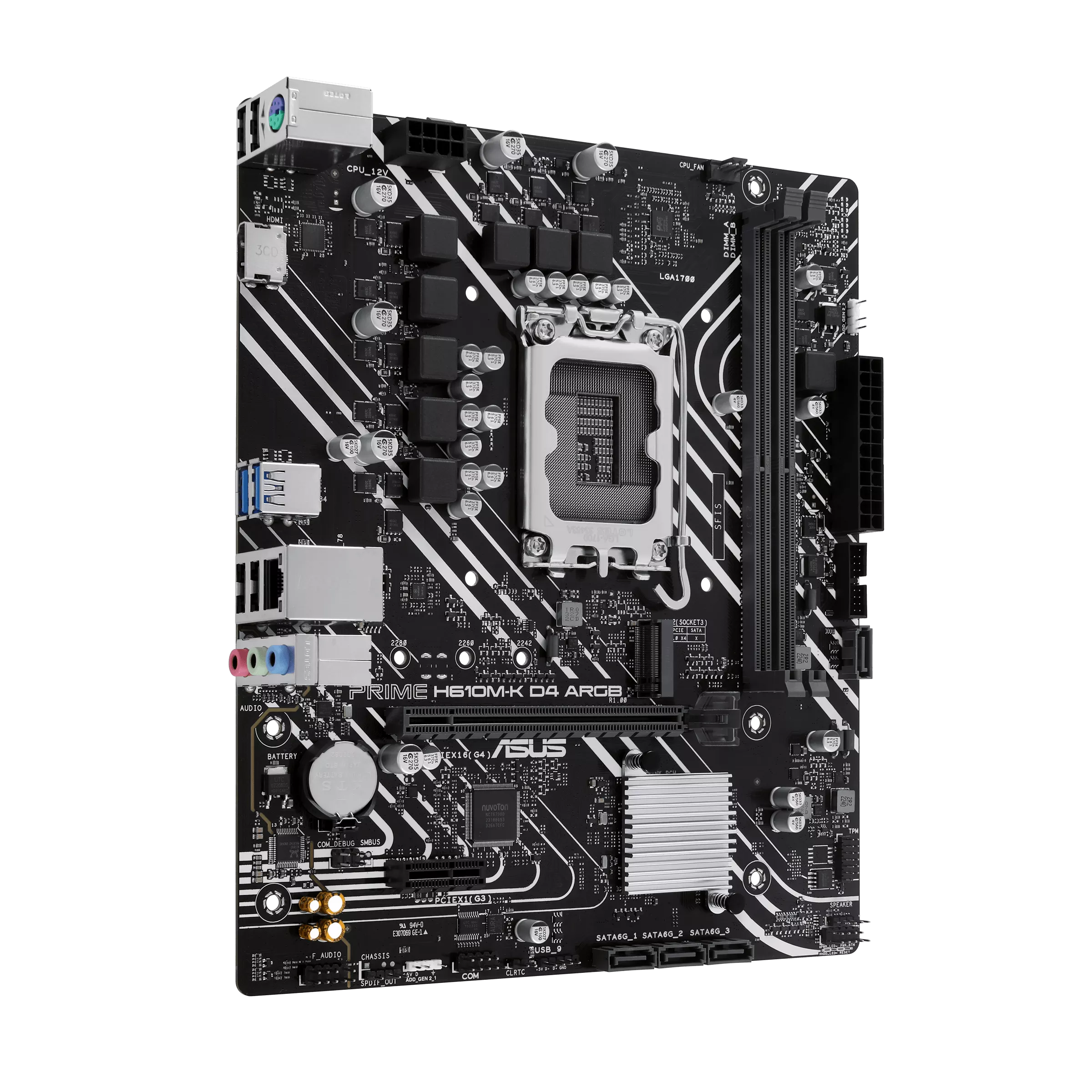

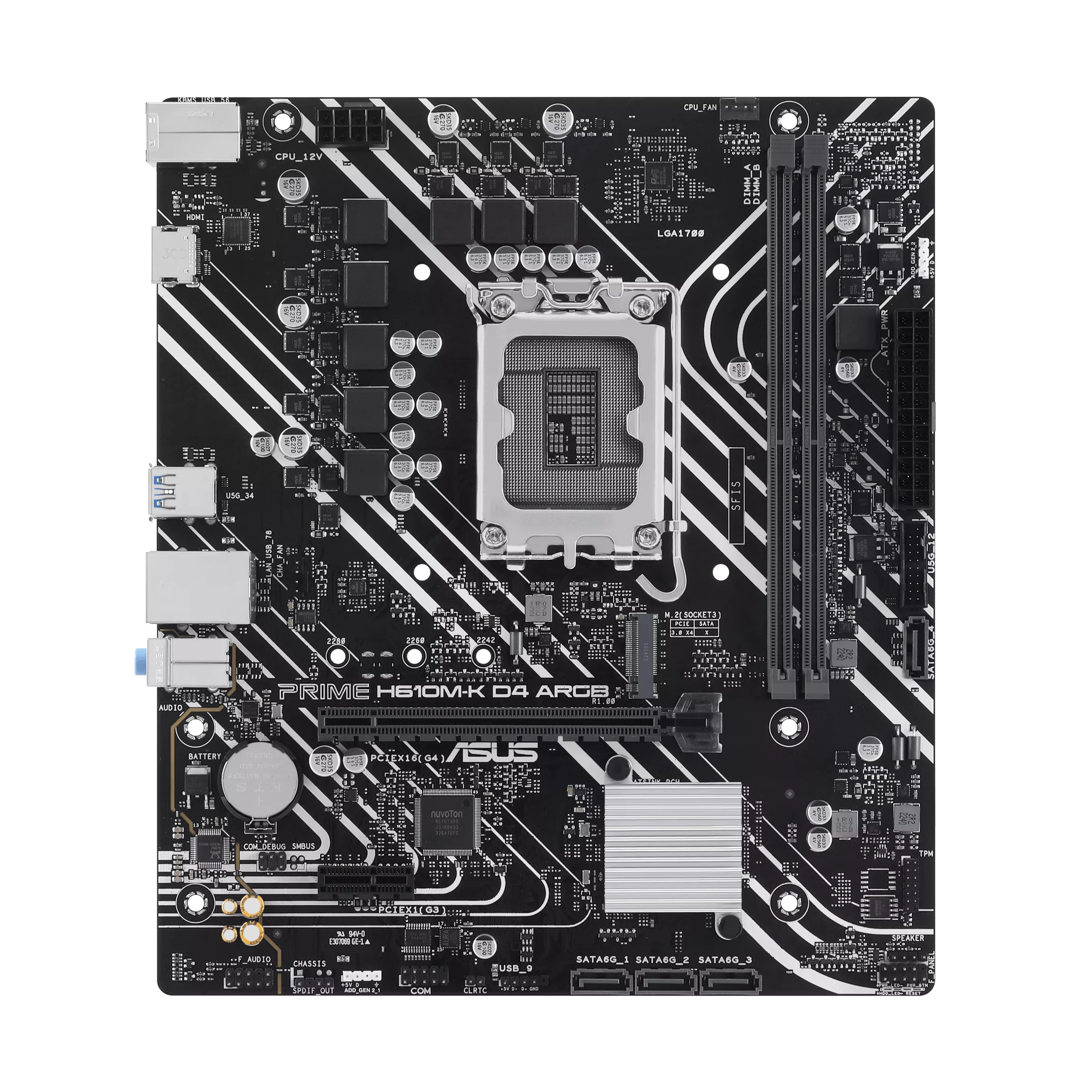

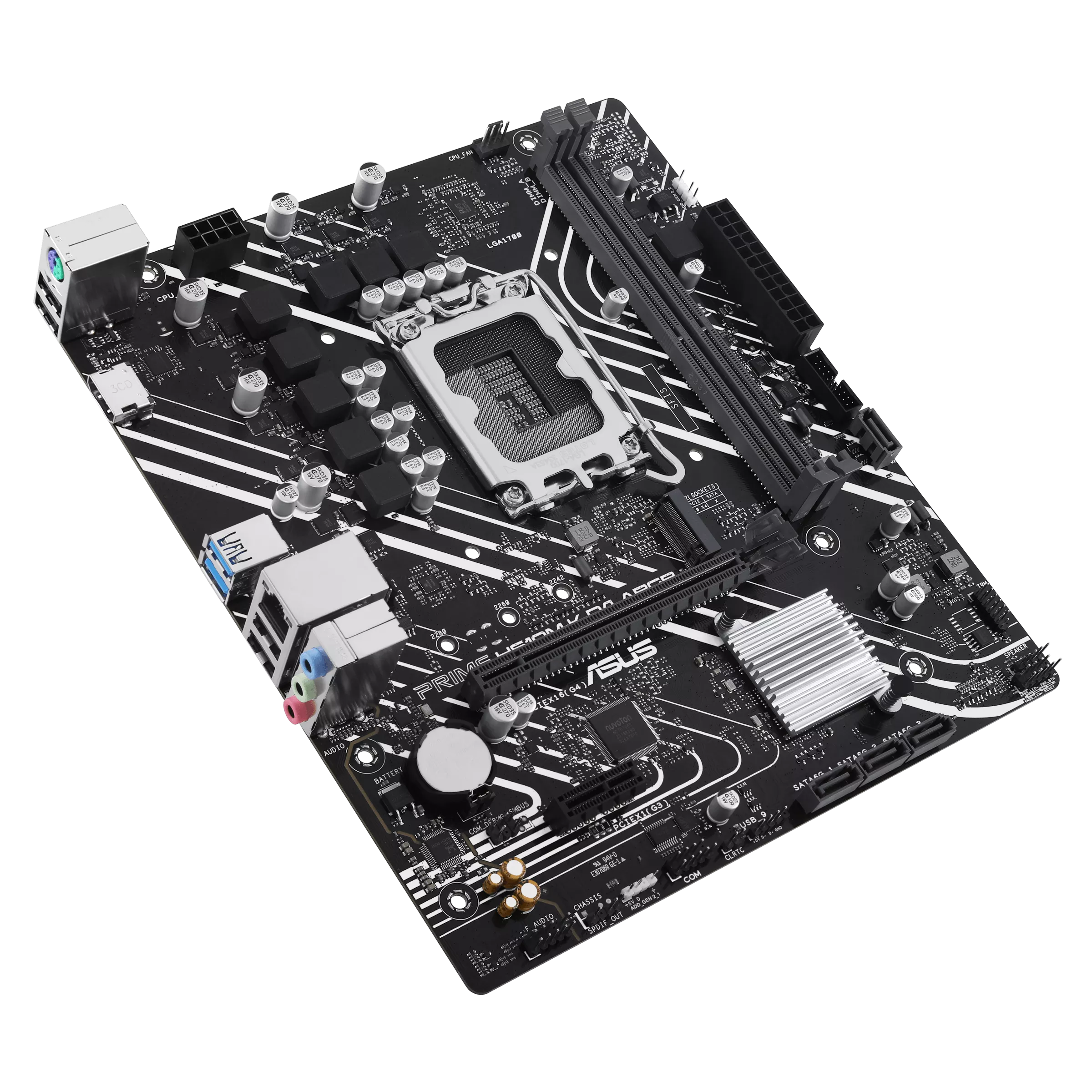

PRIME H610M-K D4 ARGB offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe 4.0

Prime H610 motherboards are designed specifically for 14^th, 13^th & 12^th Generation Intel^® Core™ CPUs and offer PCIe 4.0 connectivity for GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

Specification

Processor (CPU)

• Intel® Socket LGA1700
• Supports Intel® Core™ 14th, 13th & 12th Gen Processors
• Supports Pentium® Gold & Celeron® processors
• Supports Intel® Turbo Boost Technology 2.0
• Supports Intel® Turbo Boost Max Technology 3.0*

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM slots, up to 64GB
• DDR4 support: 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• Dual-channel memory architecture
• Supports Intel® XMP (Extreme Memory Profile)
• Non-ECC, Unbuffered memory

Graphics

• 1 x HDMI™ port
• Supports up to 4K @ 60Hz

Expansion Slots

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Storage

• 1 x M.2 slot (PCIe 3.0 x4)
• 4 x SATA 6Gb/s ports

Networking

• 1 x Realtek 1Gb Ethernet

USB Ports

Rear I/O:

• 2 x USB 5Gbps (Type-A)
• 4 x USB 2.0

Front I/O:

• 1 x USB 5Gbps header (supports 2 ports)
• 1 x USB 2.0 header

Audio

• Realtek 7.1 Surround Sound HD Audio
• Supports 24-bit / 192kHz playback
• Audio shielding & premium capacitors

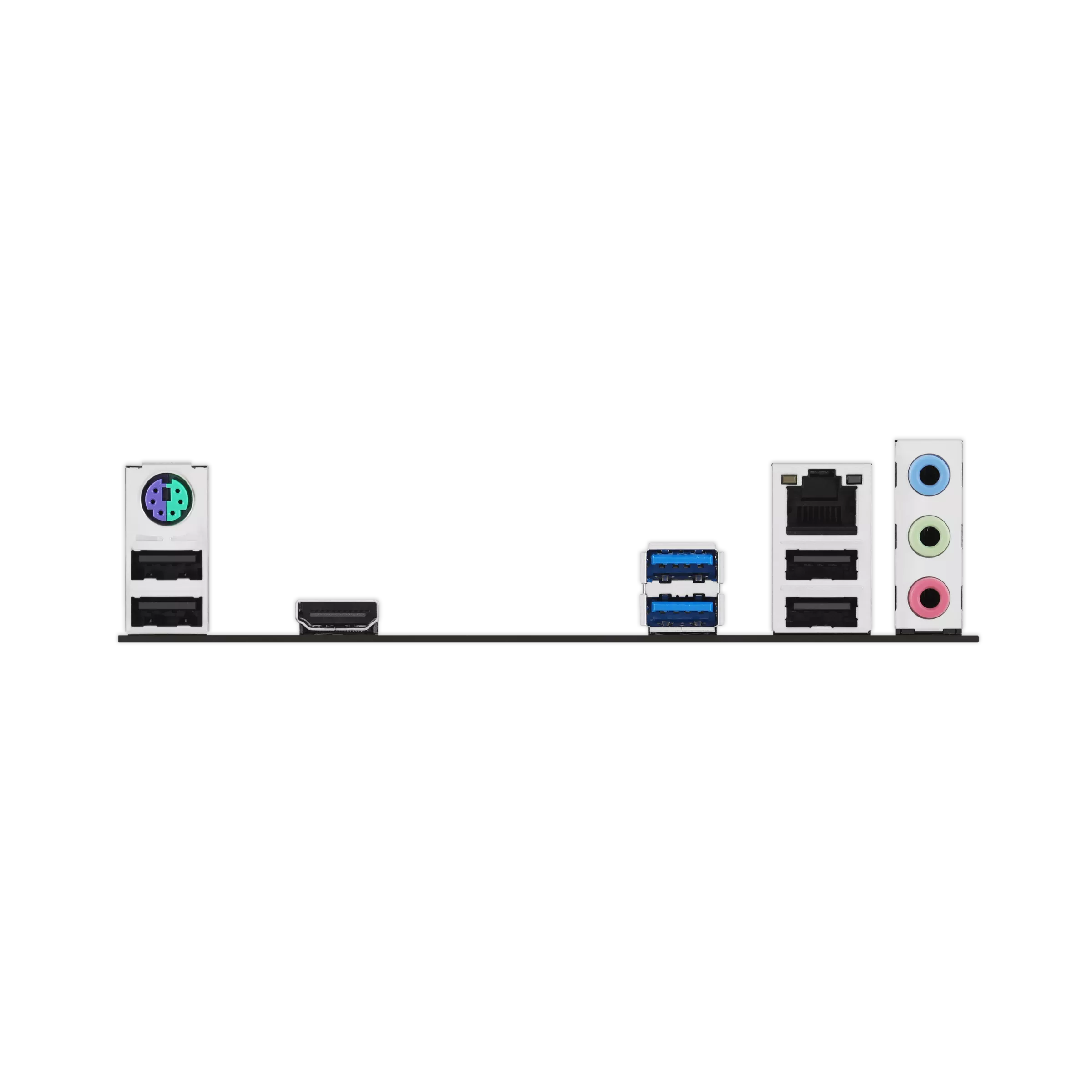

Back Panel I/O

• 2 x USB 5Gbps (Type-A)
• 4 x USB 2.0
• 1 x HDMI™
• 1 x LAN (RJ-45)
• 3 x Audio jacks
• 1 x PS/2 combo port

Internal Connectors

• 1 x CPU Fan header
• 1 x Chassis Fan header
• 1 x 24-pin power connector
• 1 x 8-pin CPU power connector
• 1 x M.2 slot
• 4 x SATA ports
• USB & front panel headers
• TPM, COM, S/PDIF, speaker headers

Special Features

• ASUS 5X Protection III
• DIGI+ VRM & Overvoltage Protection
• SafeSlot Core
• Stainless-steel back I/O
• Q-LED Core & Q-DIMM

Cooling & Design

• Aluminum heatsink design

Software

• Armoury Crate
• Aura Sync & Aura Creator
• Fan Xpert
• AI Suite 3
• ASUS CPU-Z

BIOS

• 128Mb Flash ROM
• UEFI AMI BIOS
• ASUS EZ Flash 3
• CrashFree BIOS 3

Accessories

• 2 x SATA cables
• I/O Shield
• M.2 anchor
• Quick start guide

Operating System Support

• Windows 11
• Windows 10 (64-bit)

Form Factor

• micro-ATX
• 9.2″ x 8.0″ (23.4 cm x 20.3 cm)
