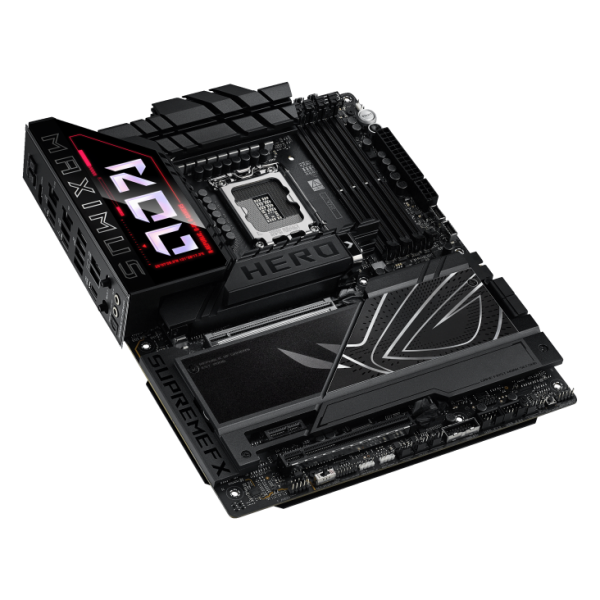

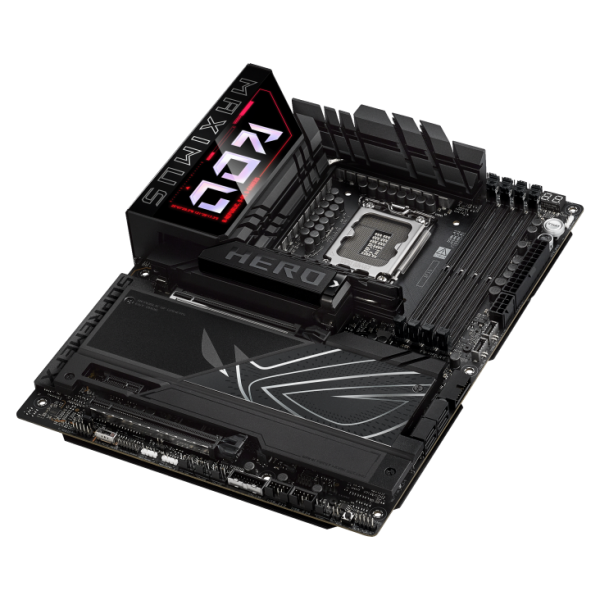

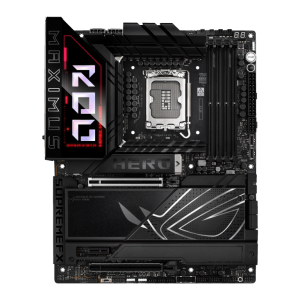

ASUS ROG MAXIMUS Z890 HERO Intel® Z890 LGA 1851 ATX Motherboard, Advanced AI PC-ready, 22+1+2+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna
Quick Overview
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- Exclusive AI Technologies: ASUS AI Advisor, AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
- Advanced Overclocking & Memory Technologies: NPU Boost, NitroPath DRAM Technology, DIMM Fit, DIMM Flex and AEMP III
- Robust Power Solution: 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
- Latest M.2 Support: Three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, all with substantial cooling solutions
- Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics cards, HDMI™ 2.1
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet
- DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9219 Quad DAC for up to 32-Bit/384 kHz playback Unmatched Personalization: I/O cover with Polymo Lighting II, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: ASUS DriverHub, Dolby Atmos®, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO, and bundled 1-year AIDA64 Extreme subscription
AED 3,499.00
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|

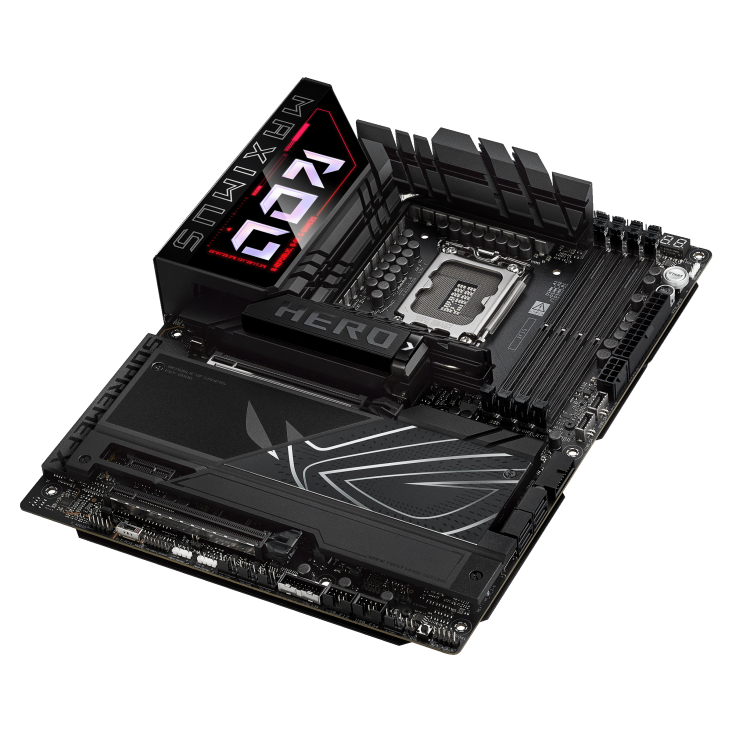

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
Extreme Power & Performance
ASUS AI INTELLIGENCE

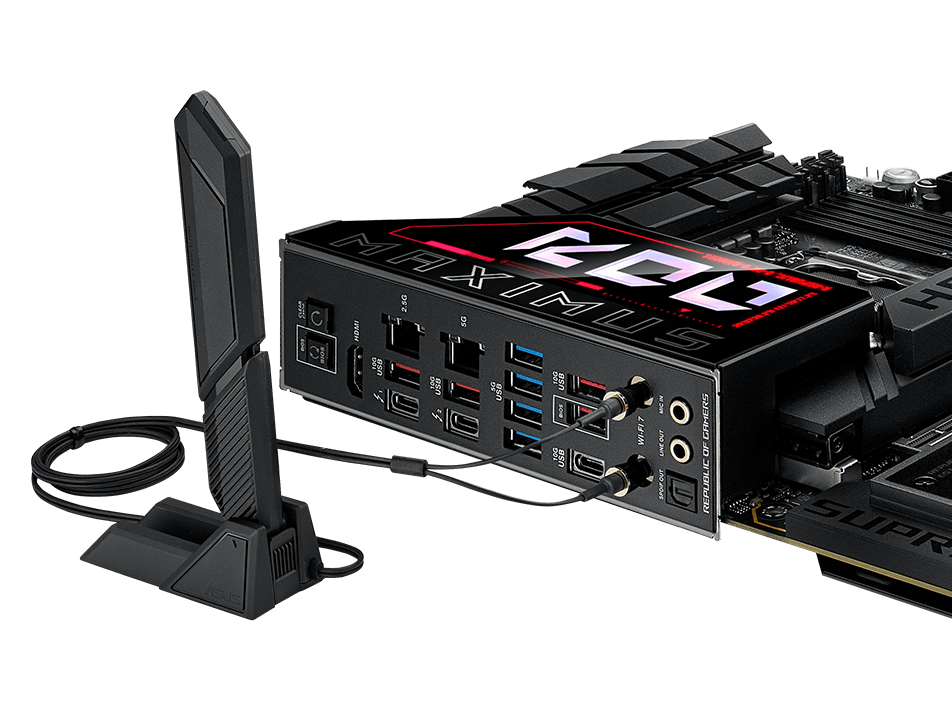

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

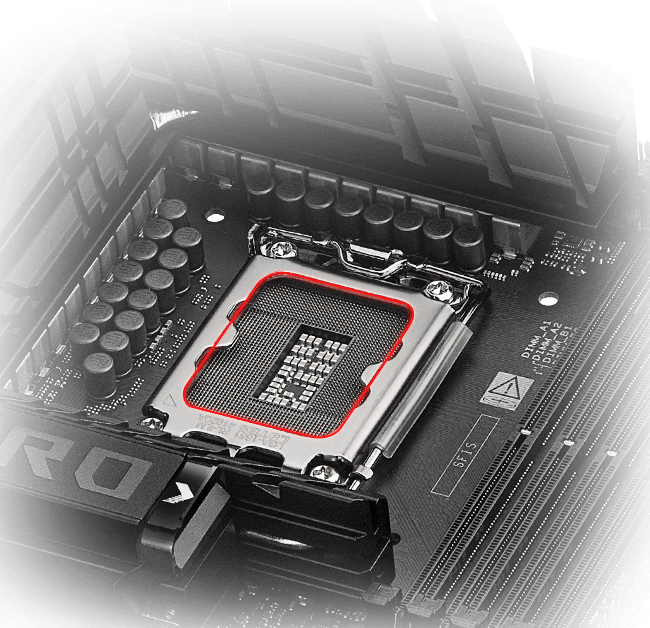

ai OVERCLOCKING
Tuning is now faster and smarter than ever before.

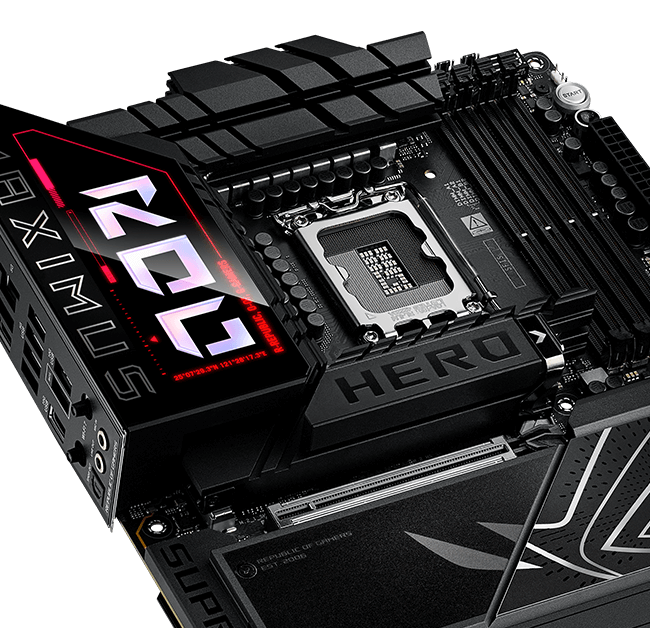

AI COOLING II
Balance the thermals and acoustics of any build with a single click.

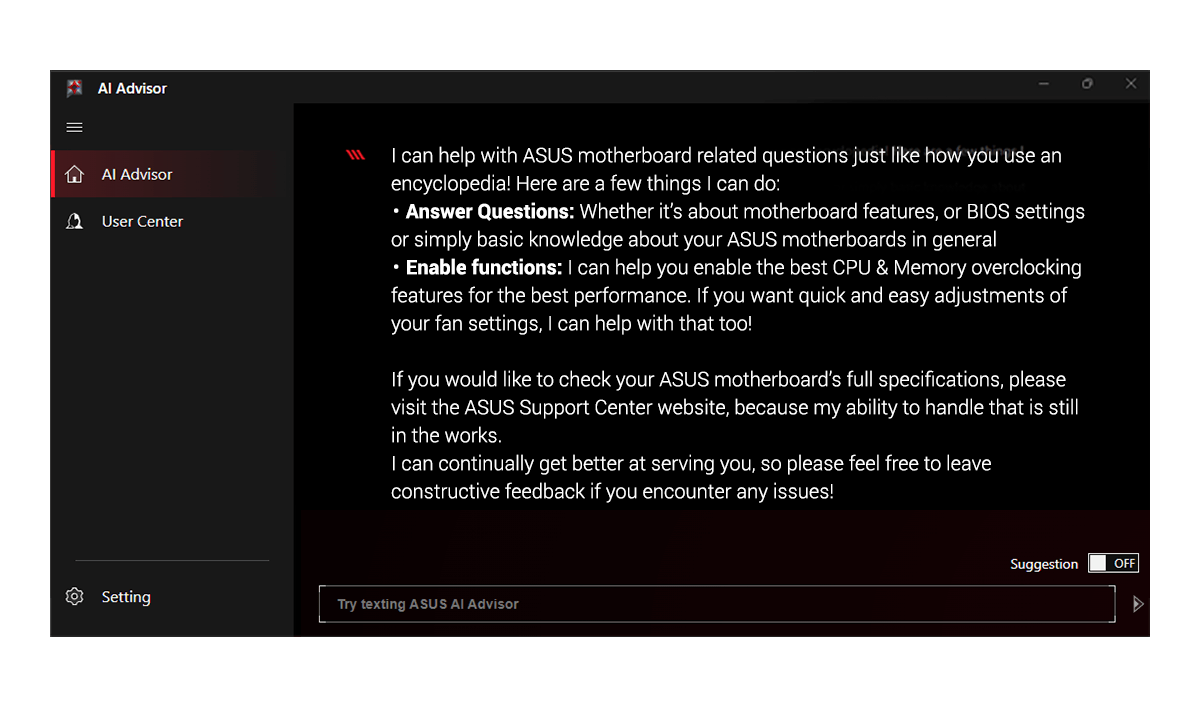

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Performance OVERCLOCKING

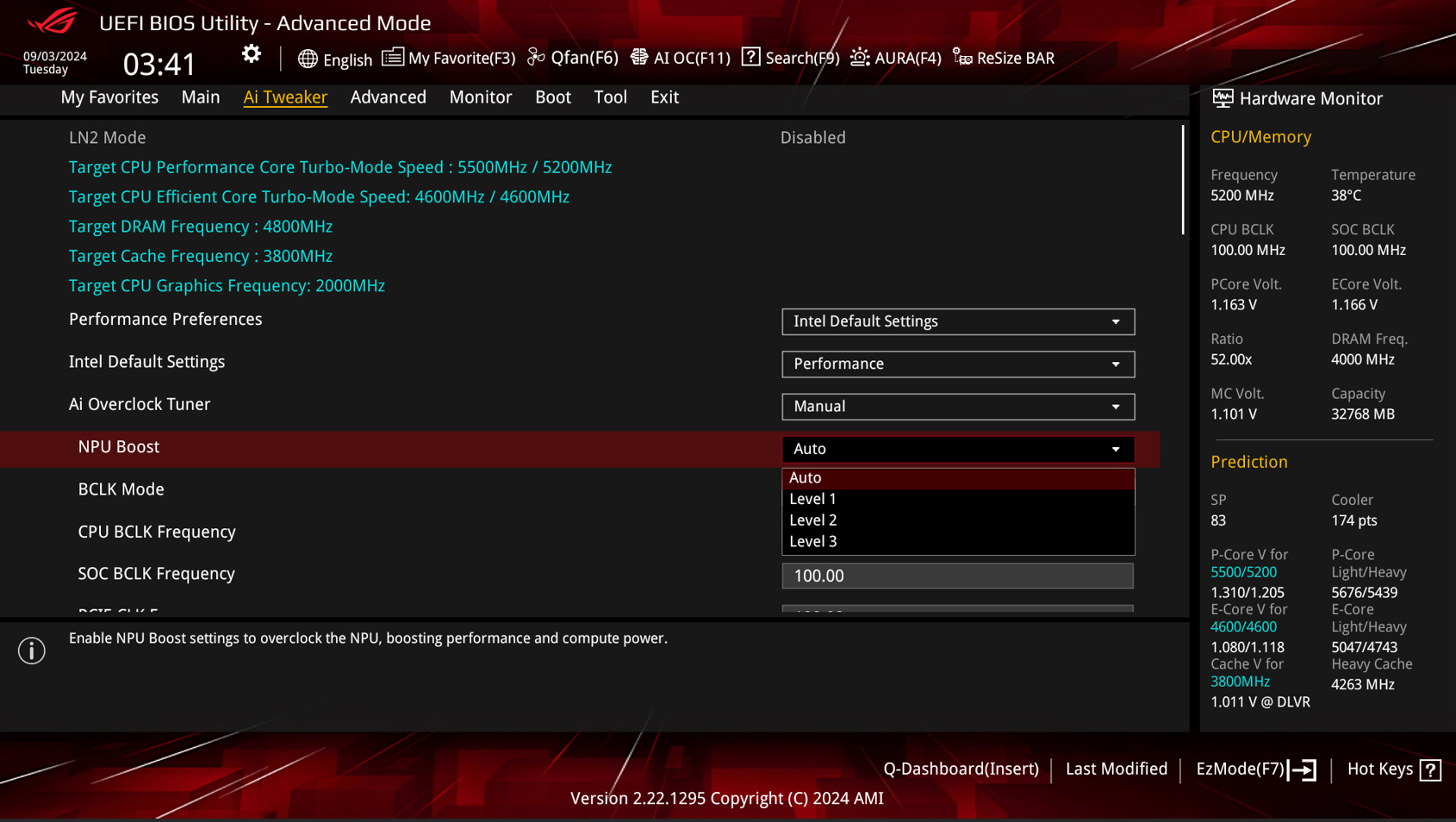

NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

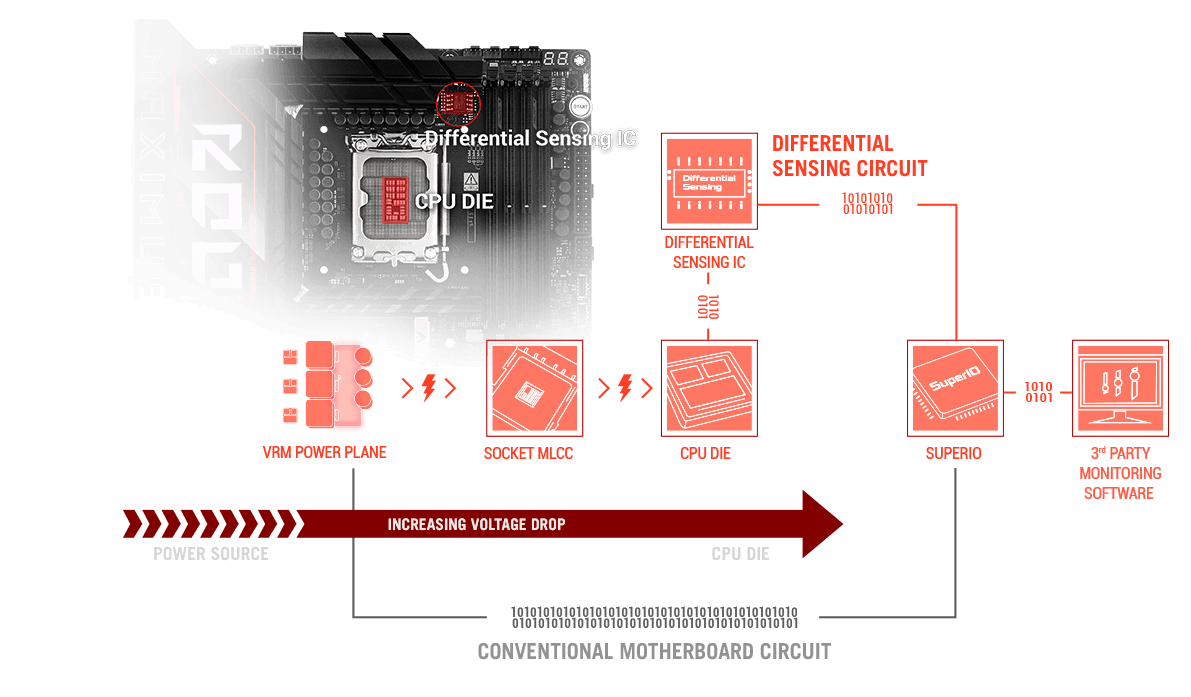

DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn’t ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

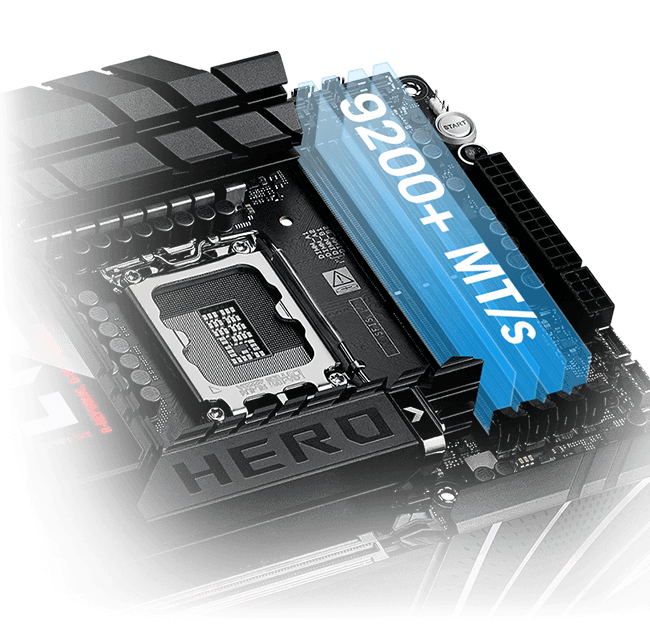

DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Maximus Z890 Hero*.

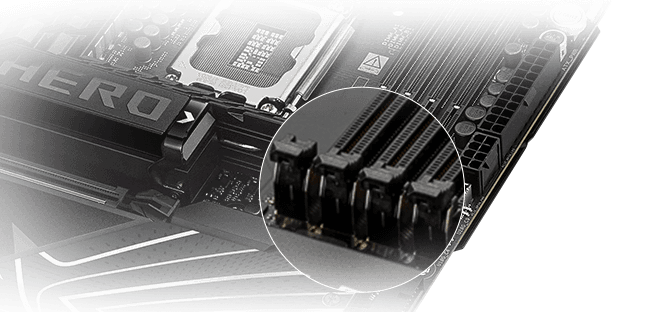

NitroPath DRAM Technology
Frequency up to 400 MT/s higher
Slot retention force enhanced by 57%

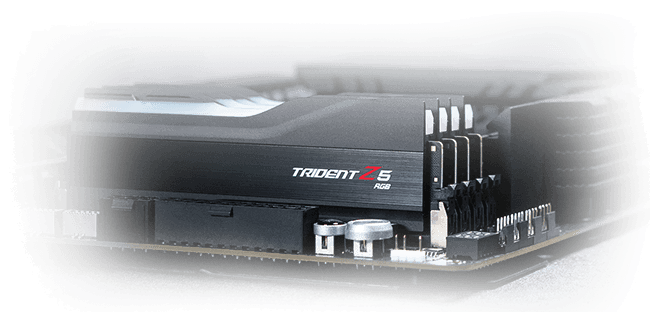

DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

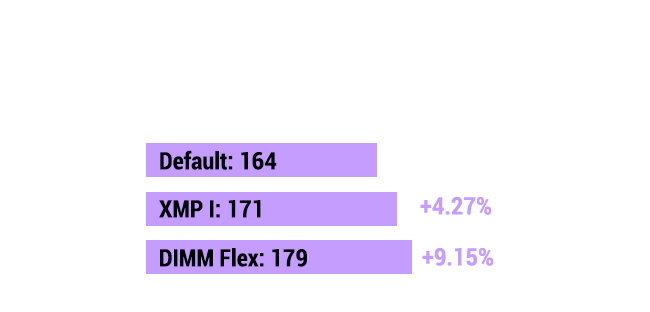

DIMM FLEX
DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

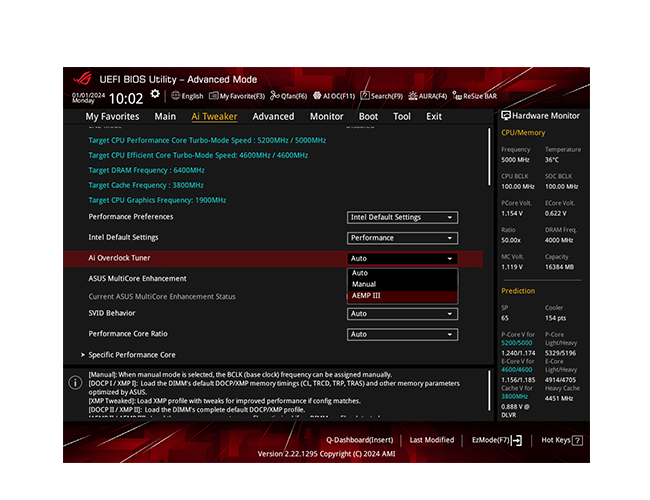

AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

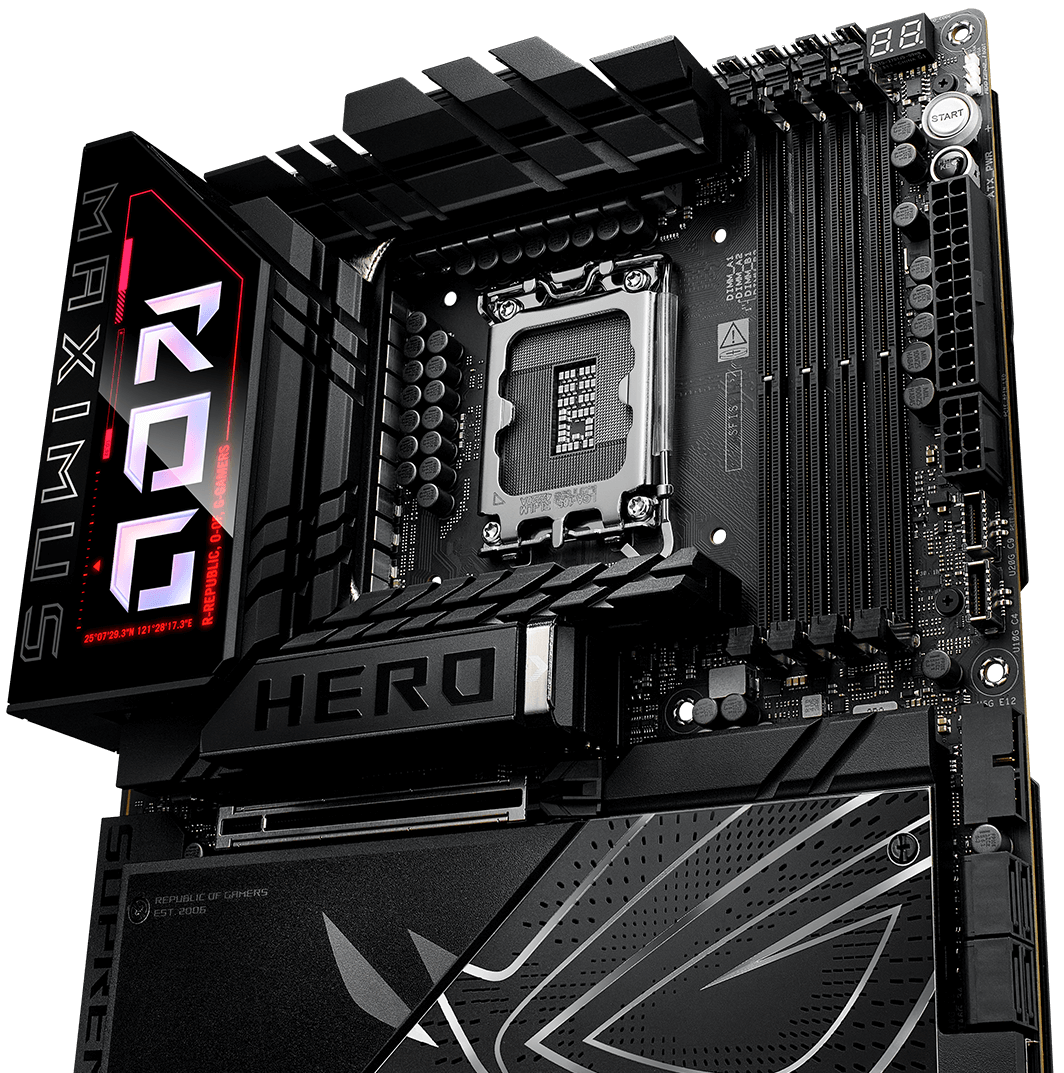

ROG Ultimate Power Solution 22(110A)+1(90A)+2(90A)+2(80A) Power Stages
Specification
Processor (CPU)
- Intel® Socket LGA1851
- Supports Intel® Core™ Ultra Processors (Series 2)
- Intel® Turbo Boost Technology 2.0
- Intel® Turbo Boost Max Technology 3.0*
* Feature support depends on CPU model
Chipset
- Intel® Z890 Chipset
Memory
- 4 × DIMM Slots (Max 256GB)
- DDR5 Memory Support
- Up to 9200+ MT/s (Overclocked)
- Non-ECC, Unbuffered DIMM (CUDIMM)
- Dual Channel Architecture
- Intel® XMP Support
- ASUS AEMP III Support
- DIMM Flex, DIMM Fit
- NitroPath DRAM Technology
Graphics & Display
- 1 × HDMI™ (Up to 8K @ 60Hz with DSC)
- 2 × Thunderbolt™ 4 (USB Type-C®)
- Supports DisplayPort output
- Up to 8K @ 60Hz or dual 4K displays
* Display output depends on CPU
Expansion Slots
- 1 × PCIe 5.0 x16 Slot (x16 / x8 / x4 / x4 modes)
- 1 × PCIe 4.0 x16 Slot (x4 mode)
- 1 × PCIe 4.0 x1 Slot
* PCIe bandwidth may adjust based on M.2 usage
Storage
- Up to 6 × M.2 Slots
- 3 × PCIe 5.0 x4
- 3 × PCIe 4.0 x4
- 1 × SlimSAS Connector (PCIe 4.0 x4 or SATA via adapter)
- 4 × SATA 6Gb/s Ports
- RAID Support (PCIe & SATA RAID 0/1/5/10)
Networking
Ethernet
- 1 × Intel® 2.5Gb Ethernet
- 1 × Realtek 5Gb Ethernet
- ASUS LANGuard Protection
Wireless & Bluetooth
- Wi-Fi 7 (802.11be, 2×2)
- 320MHz Bandwidth Support
- Up to 5.8Gbps Transfer Speed
- Bluetooth® 5.4
USB Connectivity
Rear I/O (11 Ports)
- 2 × Thunderbolt™ 4 (USB Type-C®)
- 1 × USB Type-C® (10Gbps)
- 4 × USB Type-A (10Gbps)
- 4 × USB Type-A (5Gbps)
Front I/O (Up to 10 Ports)
- 1 × USB Type-C® (20Gbps with up to 60W PD/QC4+)
- 1 × USB Type-C® (10Gbps)
- 4 × USB 5Gbps
- 4 × USB 2.0
Audio
- ROG SupremeFX ALC4082 7.1 HD Audio Codec
- ESS® ES9219 QUAD DAC
- 120 dB SNR Playback / 110 dB Recording
- Supports up to 32-bit / 384kHz (Front Panel)
Audio Features
- SupremeFX Shielding
- Gold-Plated Audio Jacks
- Optical S/PDIF Output
- Premium Audio Capacitors

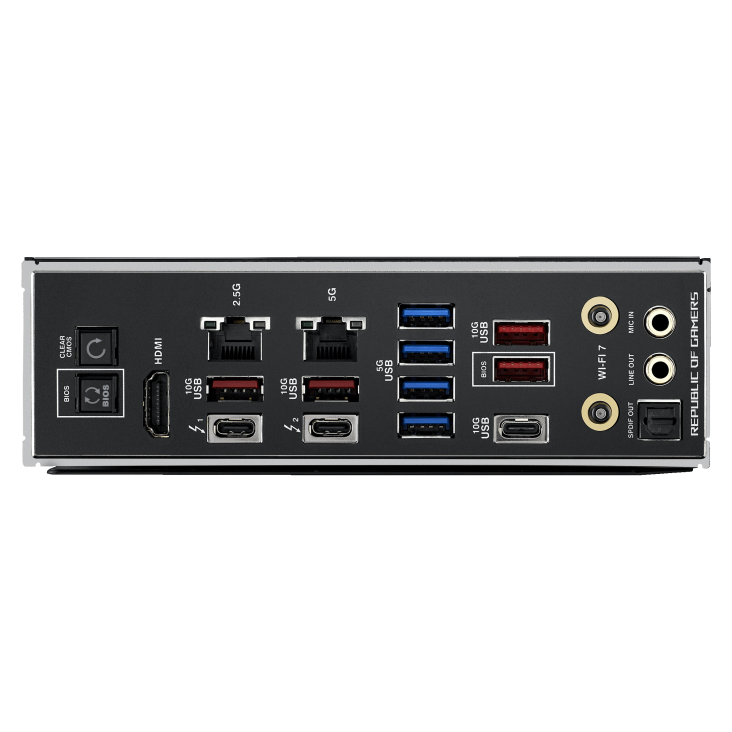

Back Panel I/O
- 2 × Thunderbolt™ 4 (USB Type-C®)
- 5 × USB 10Gbps (Type-A + Type-C®)
- 4 × USB 5Gbps (Type-A)
- HDMI™
- Wi-Fi Module
- 2.5Gb + 5Gb Ethernet Ports
- 2 × Gold-Plated Audio Jacks + Optical S/PDIF
- BIOS FlashBack™ Button
- Clear CMOS Button
Internal Connectors
Cooling
- CPU Fan Header
- CPU OPT Fan Header
- AIO Pump Header
- 4 × Chassis Fan Headers
- W_PUMP+ Header
Power
- 24-pin ATX Power Connector
- 2 × 8-pin CPU Power Connectors
- 1 × PCIe 8-pin Power Connector
Storage
- 6 × M.2 Slots
- 4 × SATA Ports
- SlimSAS Connector
USB Headers
- USB Type-C® (20Gbps, 60W PD)
- USB Type-C® (10Gbps)
- 2 × USB 5Gbps Headers
- 2 × USB 2.0 Headers
Additional Controls & Connectors
- Start Button (Onboard)
- ReTry Button
- FlexKey Button
- PCIe Mode Switch
- Thermal Sensor Header
- Thunderbolt™ Header
Special Features
Extreme OC Kit
- Start / ReTry / FlexKey Buttons
Power Design
- Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Chokes
ASUS Q-Design
- M.2 Q-Latch / Q-Release / Q-Slide
- PCIe Q-Release Slim (SafeSlot)
- Q-Code Display
- Q-Connector
- Q-LED Indicators
Thermal Design
- VRM Heatsinks
- M.2 Heatsinks + Backplate

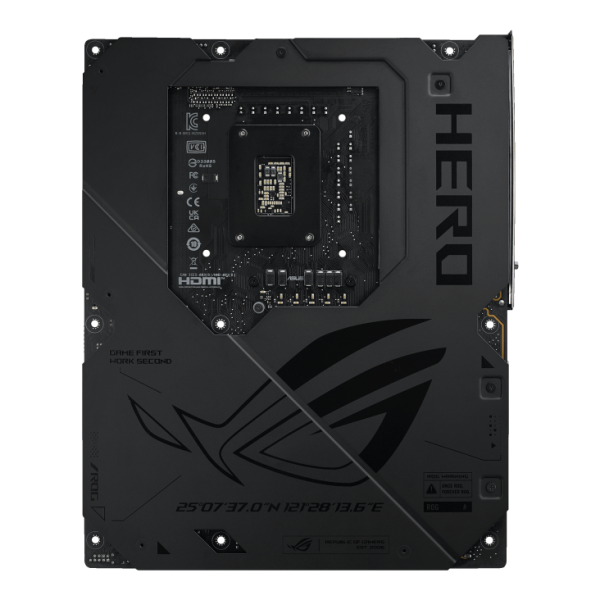

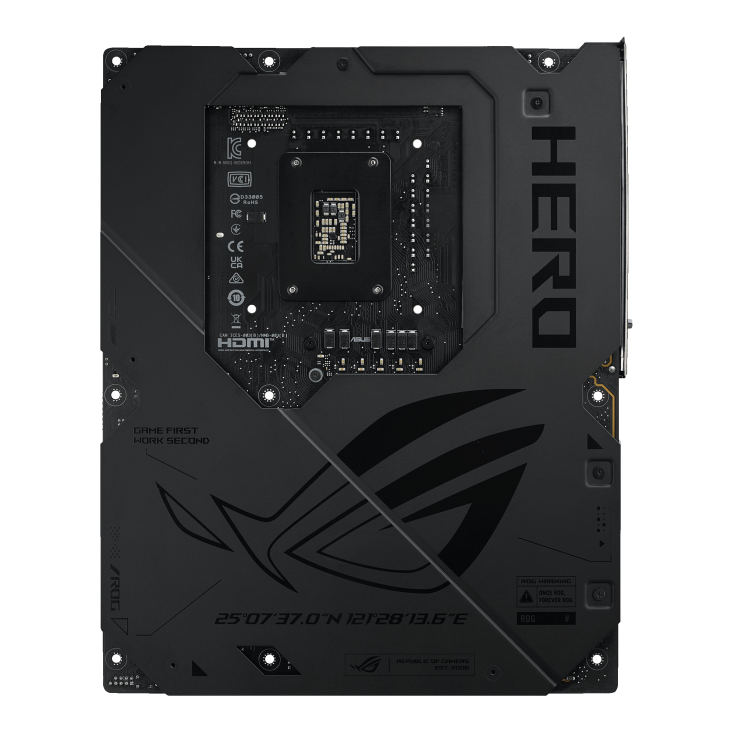

- Metal Backplate
DIY Features
- BIOS FlashBack™
- Clear CMOS Button
- Pre-mounted I/O Shield
- ProCool II Power Connector
- SafeDIMM
Aura Sync RGB
- Addressable Gen2 Headers
Fast Charging
- Front USB Type-C® up to 60W (PD 3.0 + PPS)
Software
ROG Exclusive
- ROG CPU-Z
- Dolby Atmos
- Polymo Lighting II
- Internet Security (1-Year)
ASUS Suite
- Armoury Crate
- Aura Sync & Aura Creator
- Fan Xpert 4 (AI Cooling II)
- GameFirst
- HWiNFO
- ASUS AI Advisor
- ASUS DriverHub
- ASUS GlideX
- Thunderbolt™ Share
- USB Wattage Watcher
- TurboV Core
Included Software
- AIDA64 Extreme (1-Year)
- Adobe Creative Cloud (Trial)
- WinRAR (Trial)
BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
- AI Overclocking Guide
- NPU Boost
- EZ Flash & CrashFree BIOS
- FlexKey
Manageability
- Wake-on-LAN (WOL)
Accessories
- 4 × SATA Cables
- ARGB Extension Cable
- ASUS Wi-Fi Q-Antenna
- Q-Connector
- M.2 Q-Latch & Q-Slide Kits
- M.2 Rubber Kits
- DDR5 Fan Holder
- Thermal Pad (M.2 22110)
- ROG Stickers & Bottle Opener
- USB Drive (Drivers & Utilities)
- Quick Start Guide
Operating System
- Windows 11 (22H2 & later)
Form Factor
- ATX
- 12″ × 9.6″ (30.5 × 24.4 cm)
