Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power up next-gen technology with one new 12VHPWR cable.

Power Up Next Generation Hardware

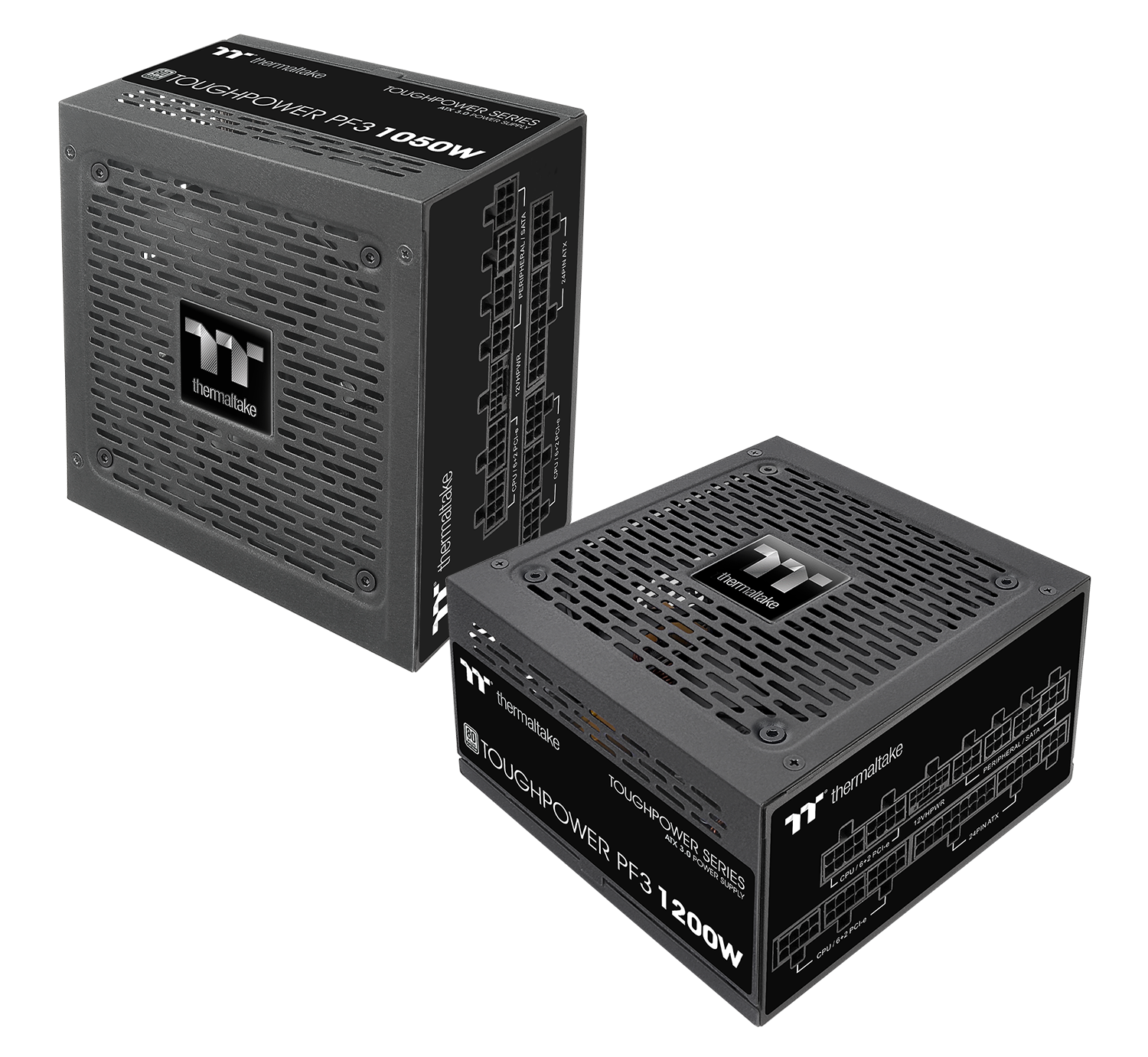

To fully support next-gen hardware, Toughpower PF3 Platinum Series (750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.

Fully Compatible with Intel ATX 3.0 Standards

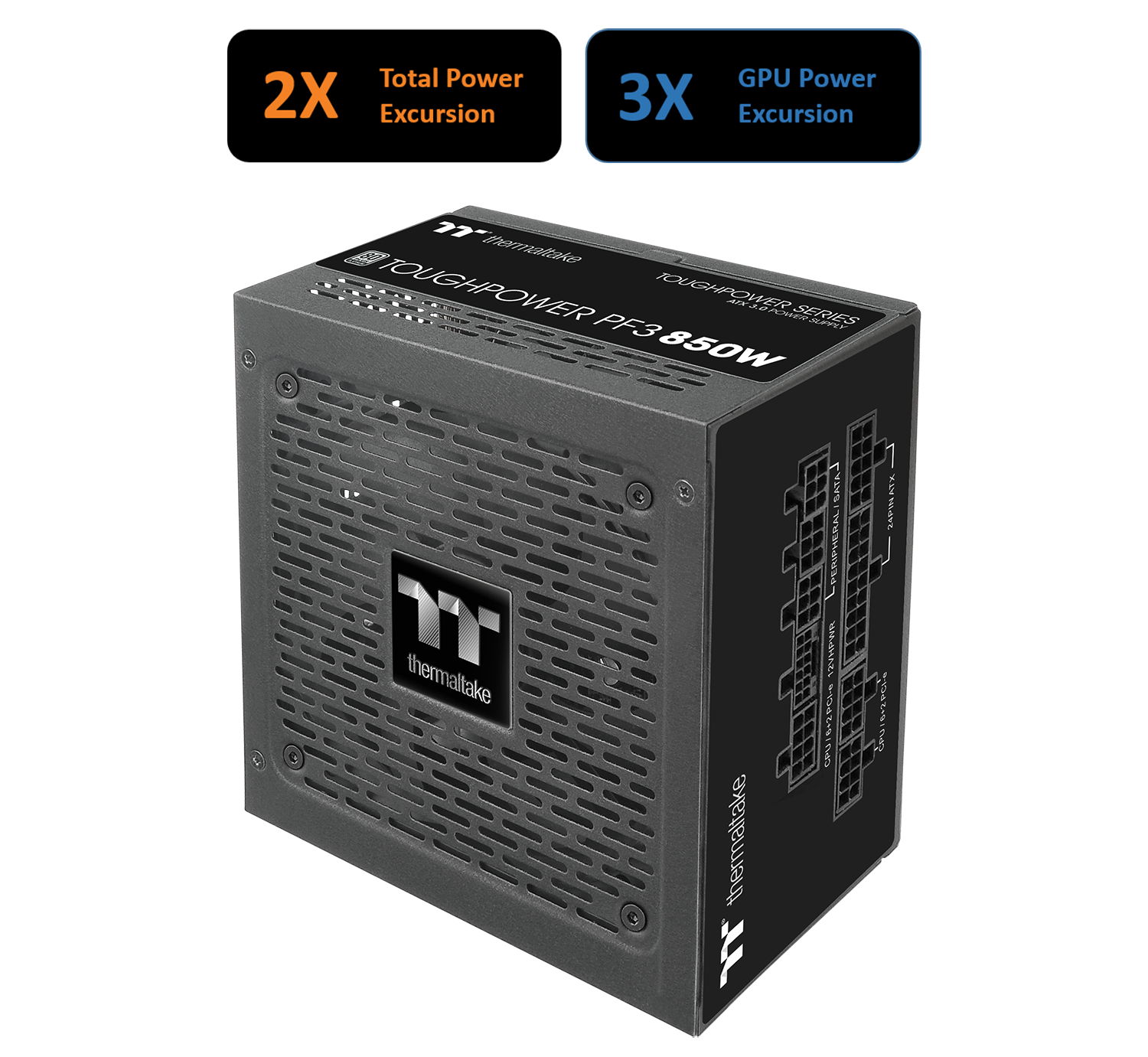

Toughpower PF3 Platinum series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

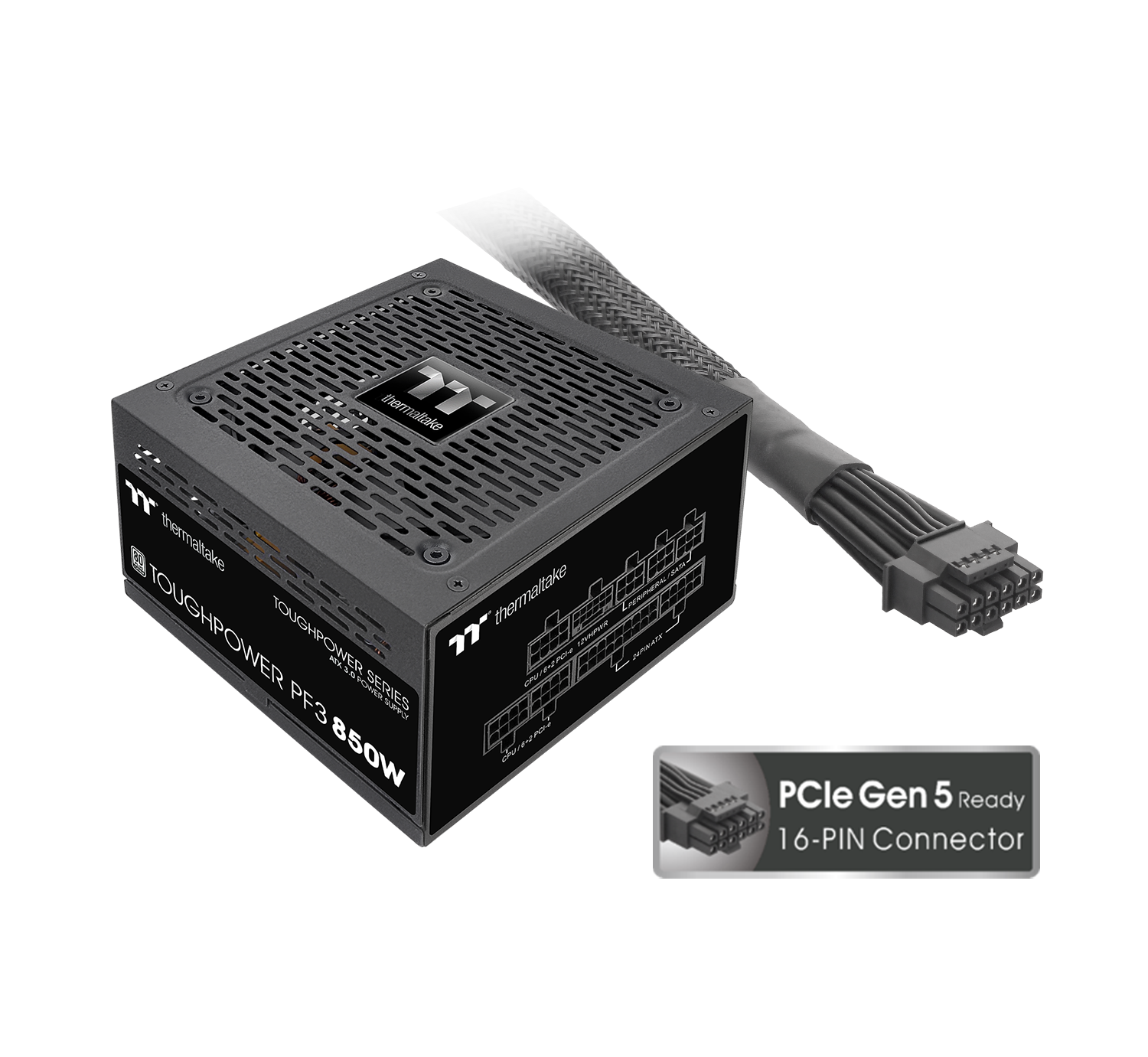

PCIe Gen 5.0 Ready

Toughpower PF3 series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the PF3 850W can deliver up to 450W for PCIe 5.0 graphics cards.

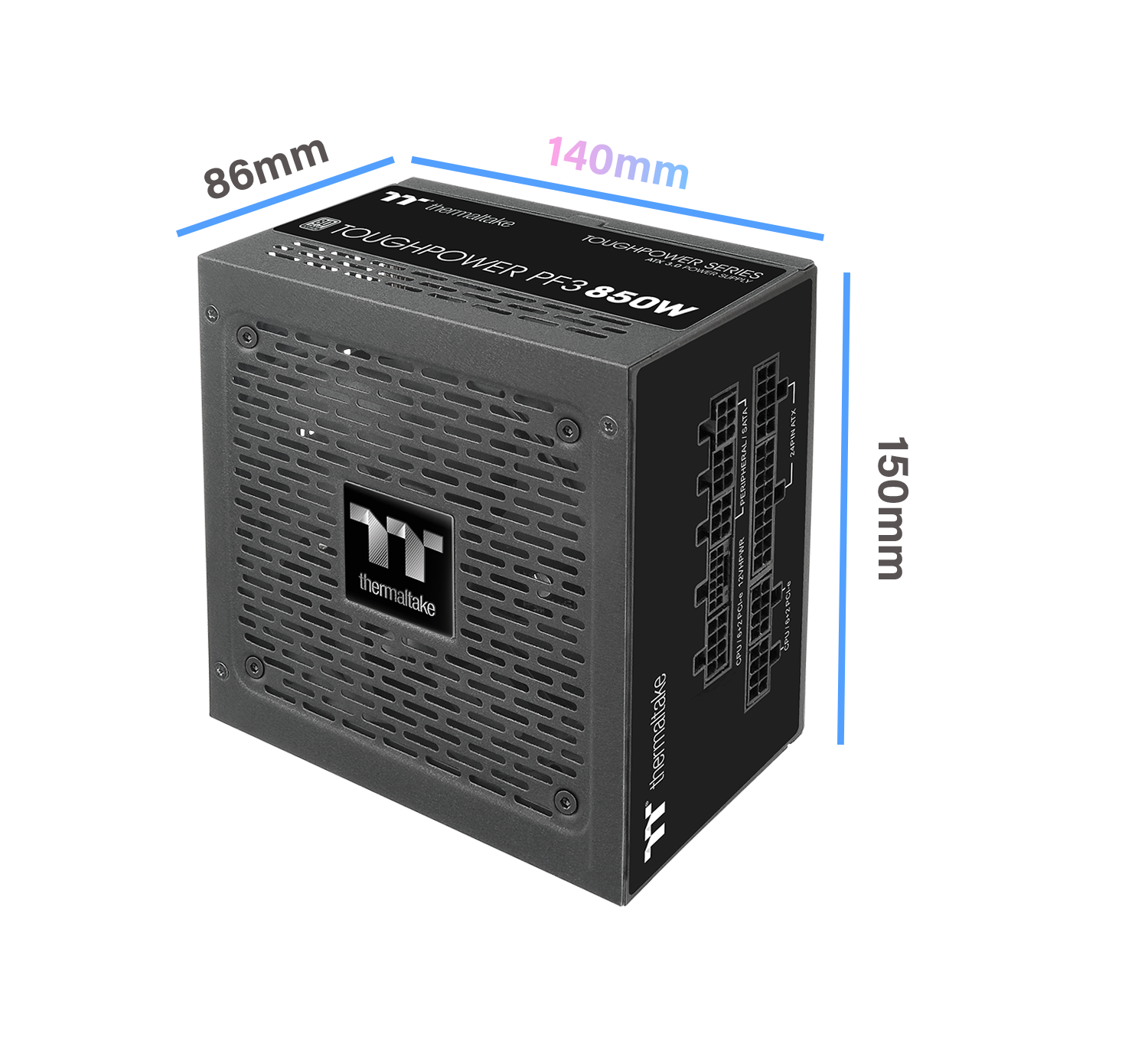

Compact Design with 140mm Depth

The Toughower PF3 Plantinum Series is designed to be compact with size of 140mm (D) x 86mm (H) x 150mm (W) which provides ample space for cable management.

Specification

General

• Product Name / Model: TPD-850AH2FKP
• Part Number (P/N): PS-TPD-0850FNFAPx-3
• Power Output: 850W
• Max Output Capacity: 850W
• Efficiency Rating: 80 PLUS® Platinum (at 115V AC input)
• PFC Type: Active PFC
• MTBF: 100,000 hours minimum
• Color: Black

Input Specifications

• Input Voltage: 100 ~ 240V AC
• Input Current: 10A
• Input Frequency Range: 50 / 60Hz
• Power Good Signal: 100 – 250 ms
• Hold-Up Time: >17 ms

Environmental Conditions

• Operating Temperature: 0°C to +40°C
• Operating Humidity: 5% to 85% (non-condensing)
• Storage Temperature: -40°C to +70°C
• Storage Humidity: 5% to 95% (non-condensing)

Cooling

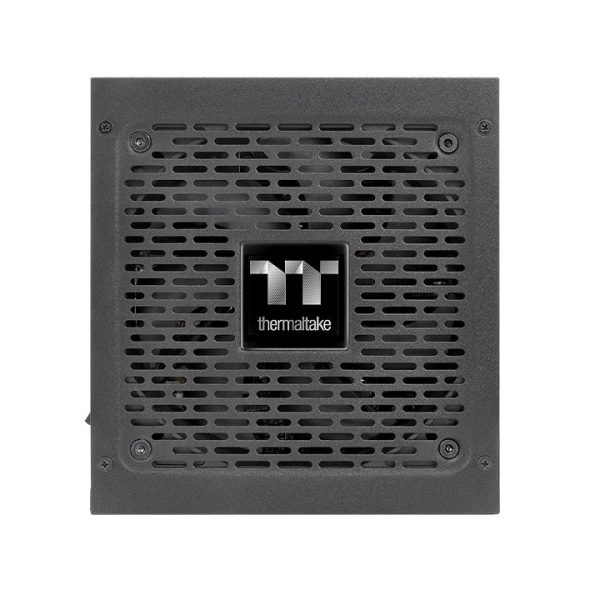

• Cooling System: 120 mm Fan
• Fan Bearing: Fluid Dynamic Bearing (FDB)

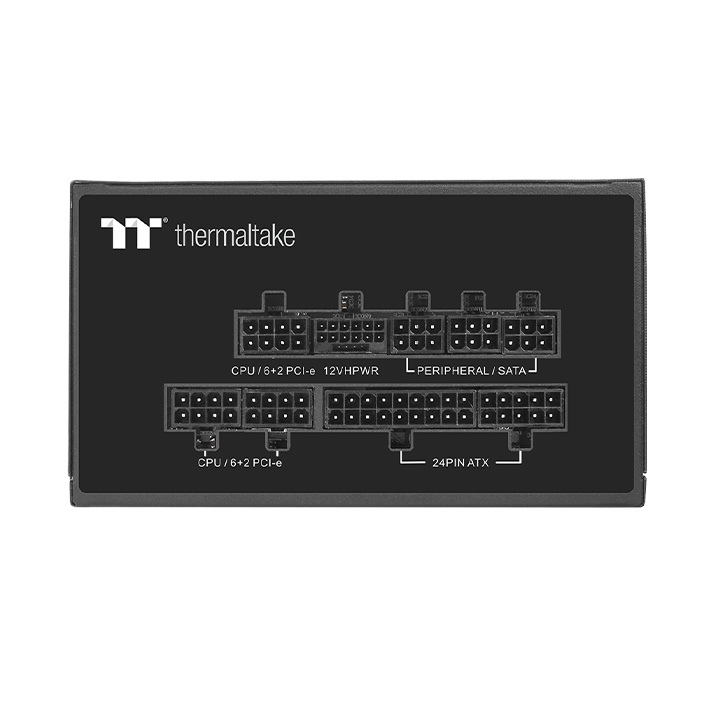

Connectors

• PCIe (6+2 pin): 4
• PCIe 12+4 pin (12VHPWR): 1

Dimensions

• Size (W x H x D):
  150 x 86 x 140 mm
