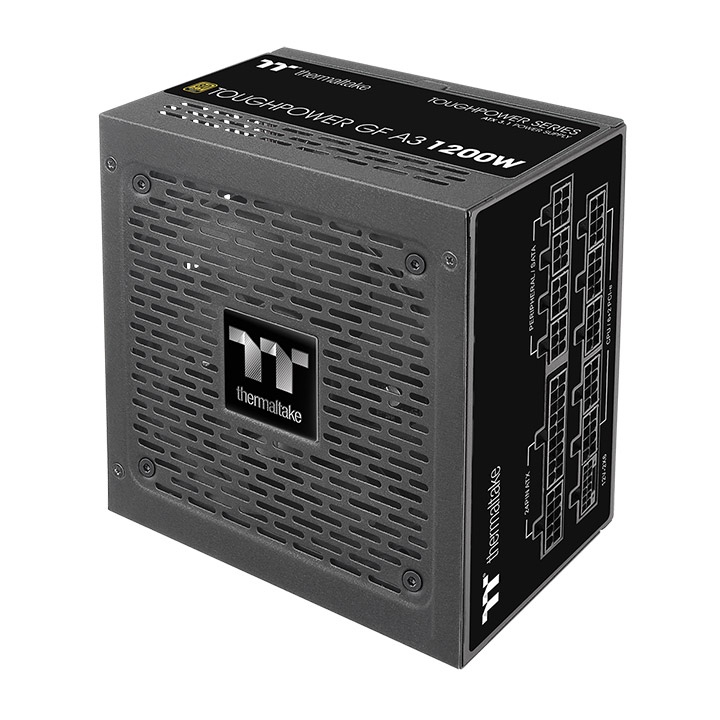

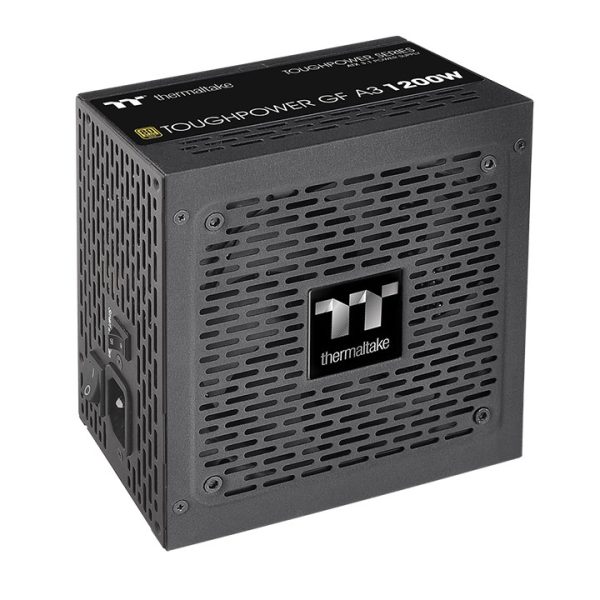

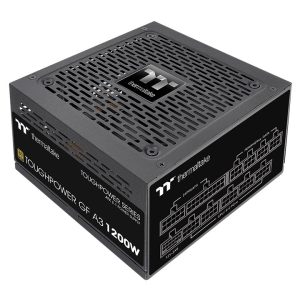

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.1 specifications. Designed with a native PCIe Gen 5.1 connector, it can power up next-gen technology with one new 12V-2×6 cable.

The wattage marked on the 12V-2×6’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12V-2×6) PCIe connector of the GF A3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.

Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.1 standards, including a PCIe Gen 5.1 12V-2×6 connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.

Fully Compatible with Intel ATX 3.1 Standards

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.1 Ready

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12V-2×6’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12V-2×6) PCIe connector of the GF A3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.

Be Smart, Stay Quiet

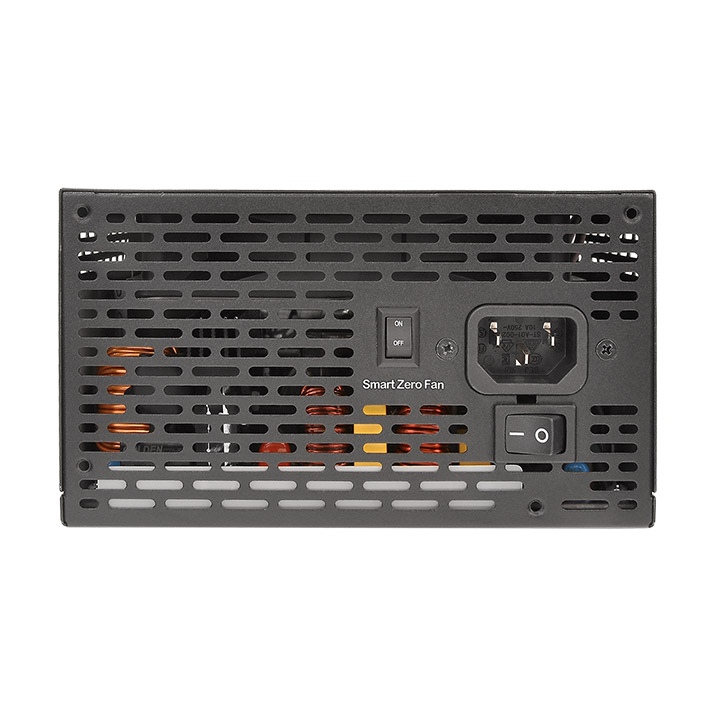

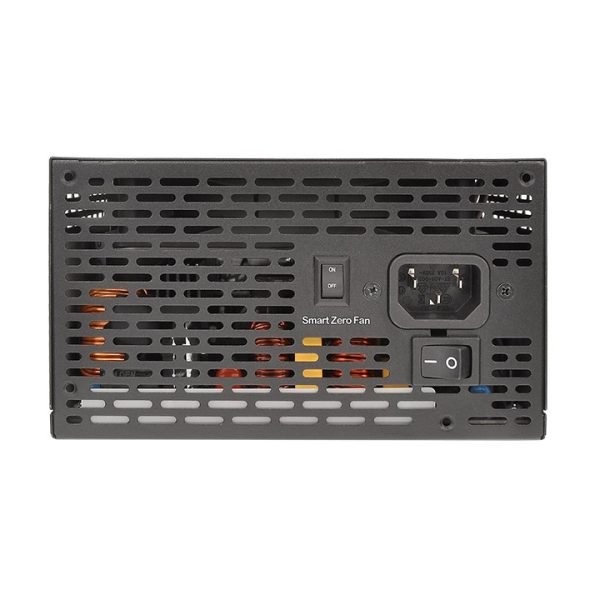

Featuring a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.

Specification

General

• Product Name / Model: TTP-1200AH2FKG
• Part Number (P/N): PS-TPD-1200FNFAGx-H
• Power Output: 1200W
• Max Output Capacity: 1200W
• Efficiency Rating: 80 PLUS® Gold (at 115V AC input)
• PFC Type: Active PFC
• MTBF: 100,000 hours minimum
• Color: Black

Input Specifications

• Input Voltage: 100 ~ 240V AC
• Input Current: 15A (Max)
• Input Frequency Range: 50 ~ 60Hz
• Power Good Signal: 100 – 250 ms
• Hold-Up Time: >17 ms

Environmental Conditions

• Operating Temperature: 0°C to +45°C
• Operating Humidity: 5% to 85% (non-condensing)
• Storage Temperature: -40°C to +70°C
• Storage Humidity: 5% to 95% (non-condensing)

Cooling

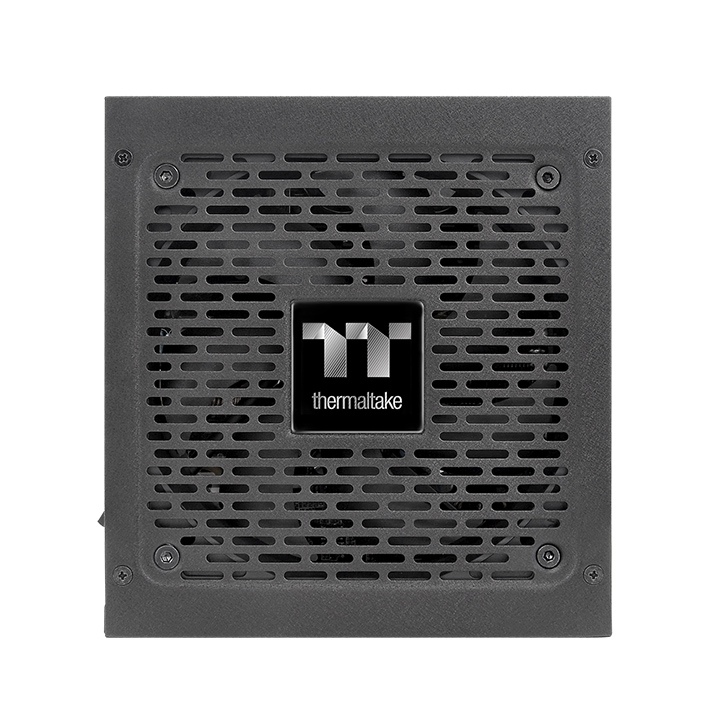

• Cooling System: 120 mm Fan
• Fan Bearing: Fluid Dynamic Bearing (FDB)

Connectors

• PCIe (6+2 pin): 5
• PCIe 12+4 pin (12VHPWR): 1 (600W)

Dimensions

• Size (W x H x D):
  150 x 86 x 140 mm
