Thermaltake SWAFAN EX14 RGB PC Cooling Fan TT Premium Edition Case Fan (3-Fan Pack), Magnetic Force Design, Quick-Connect 12V Cable, Swappable Fan Blade Design, White
Quick Overview
- Magnetic force design for quick and easy fan-to-fan connection
- Uses 12V cable connectivity for stable performance
- Features swappable fan blade design for flexible airflow customization
- Supports daisy-chaining up to 3 fans per cable
- Improves installation convenience and connection efficiency
- Enhances cable management for cleaner PC builds
- Ideal for modern gaming and RGB-focused setups
Original price was: AED 799.00.AED 449.00Current price is: AED 449.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|

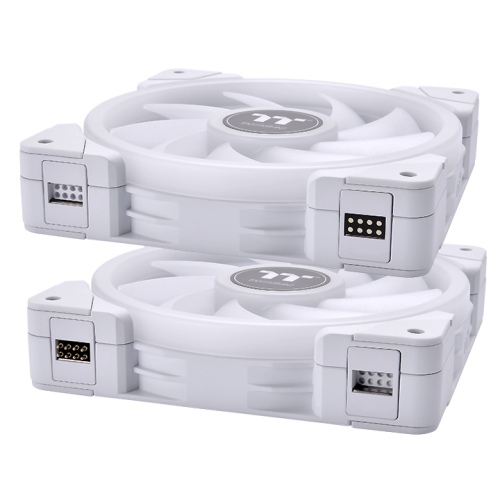

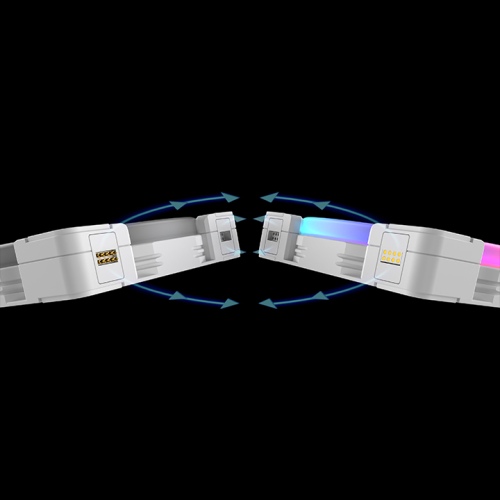

Quick Connect with Magnetic Force Design
The magnetic force design is used on the 12V cable core and the fans to achieve quick connection. Simply placing the cable to the fan or having the fans lying side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.
Say Goodbye to Most of Your Cables
Eliminate cable usage and stray away from crazy cable management by using this Magnetic Force Quick Connect Design fan. You only need to connect one cable to power up three fans at once, making PC building even faster and easier.

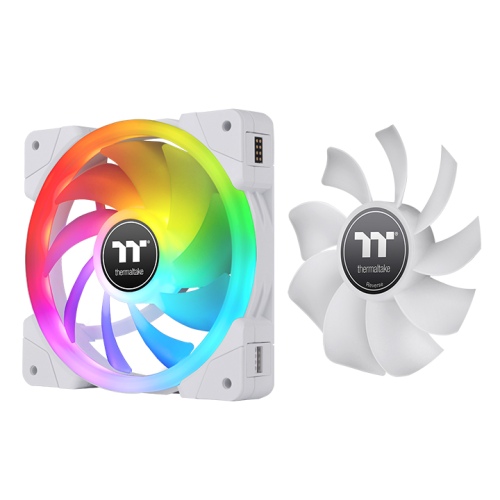

by Simply Popping Out the Fan Blades and Pressing the Fan Blades Back In!
The design guarantees optimal cooling performance under different conditions, like installing fans on thick radiators or air coolers or even a chassis with multiple filters that are difficult to have air naturally pass through.
Pop and insert, it is that easy.
If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply bearing lubricant that is include in the package if needed.
No more sacrificing aesthetics for your airflow direction; SWAFAN EX can now do both!

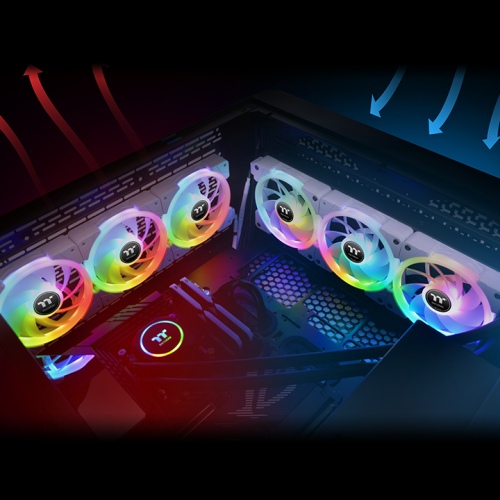

Easily Show off Your RGB Lighting
Two independent LED rings with 20 LEDs allows you to create your own lighting patterns with the TT RGB PLUS 2.0 software.
Control up to 60 RGB lighting at once!
To accommodate our new daisy-chain-designed SWAFAN EX, we’ve modified our TT RGB Plus software to control more LED lights than ever. Syncing up all TT RGB Plus products and show off your lighting show and even LCD screen effects with the latest TT RGB Plus 2.0 software.
Caution: Due to voltage limitation, it is recommended not to connect more than 6 SWAFAN EX fans to a single controller.
TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you
Specification
General Information
- Part Number (P/N): CL-F162-PL14SW-A
- System Compatibility: Windows 10 / 11
Dimensions
- Fan Dimensions: 14 cm (L) x 14 cm (W) x 2.5 cm (H)
Fan Details
- Fan Speed: 500 ~ 2000 R.P.M
- Fan Started Voltage: 9.0V
- Fan Rated Voltage: 12V & 5V
- Rated Current: 12V – 0.31A, 5V – 0.72A (one fan)
- Power Input: 12V – 3.72W, 5V – 3.6W (one fan)
Performance
- Max Air Flow (Standard Fan Blade): 81.6 CFM (one fan)
- Max Air Flow (Reverse Fan Blade): 79.3 CFM (one fan)
- Max Air Pressure (Standard Fan Blade): 3.17 mm-H2O (one fan)
- Max Air Pressure (Reverse Fan Blade): 2.73 mm-H2O (one fan)
- Noise Level (Standard Fan Blade): 34.5 dB-A (one fan)
- Noise Level (Reverse Fan Blade): 38.8 dB-A (one fan)
Build & Durability
- Bearing Type: Hydraulic Bearing
- Life Expectation: 40,000 hrs (25℃)
Connectivity
- Interface: USB 2.0 connector (9 Pin)
Included Accessories
- Fan Frames x 3
- Standard Fan Blade x 3 (Pre-installed)
- Reverse Fan Blade x 3
- Controller x 1
| Dimensions | 14 × 14 × 2.5 cm |
|---|---|
| Color | White |
| Standard Delivery | One Day Delivery |
| Included Warranty | 1 Year Free Warranty |
