Install Freely without Worry

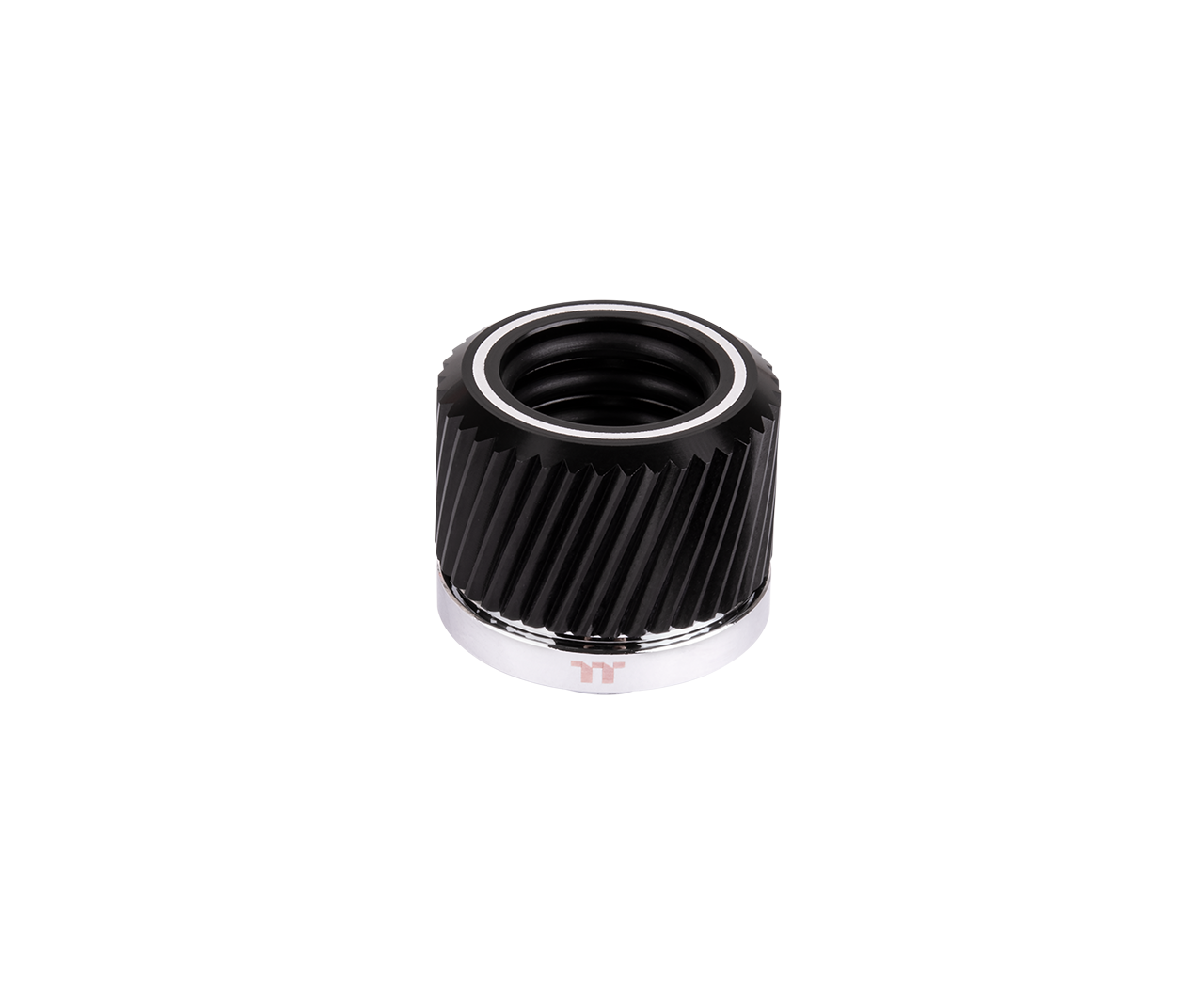

Pacific SF Hard Tube 16mm OD Compression fittings can be used with PETG, Acrylic, and Glass tubing, which is 16mm in outer diameter (OD) and paired with G1/4 screw threads. They are designed to work in tight spaces without compromising the compression seal or impacting the coolant flow. They also feature four O-Rings to provide a more secure seal and reliable performance.

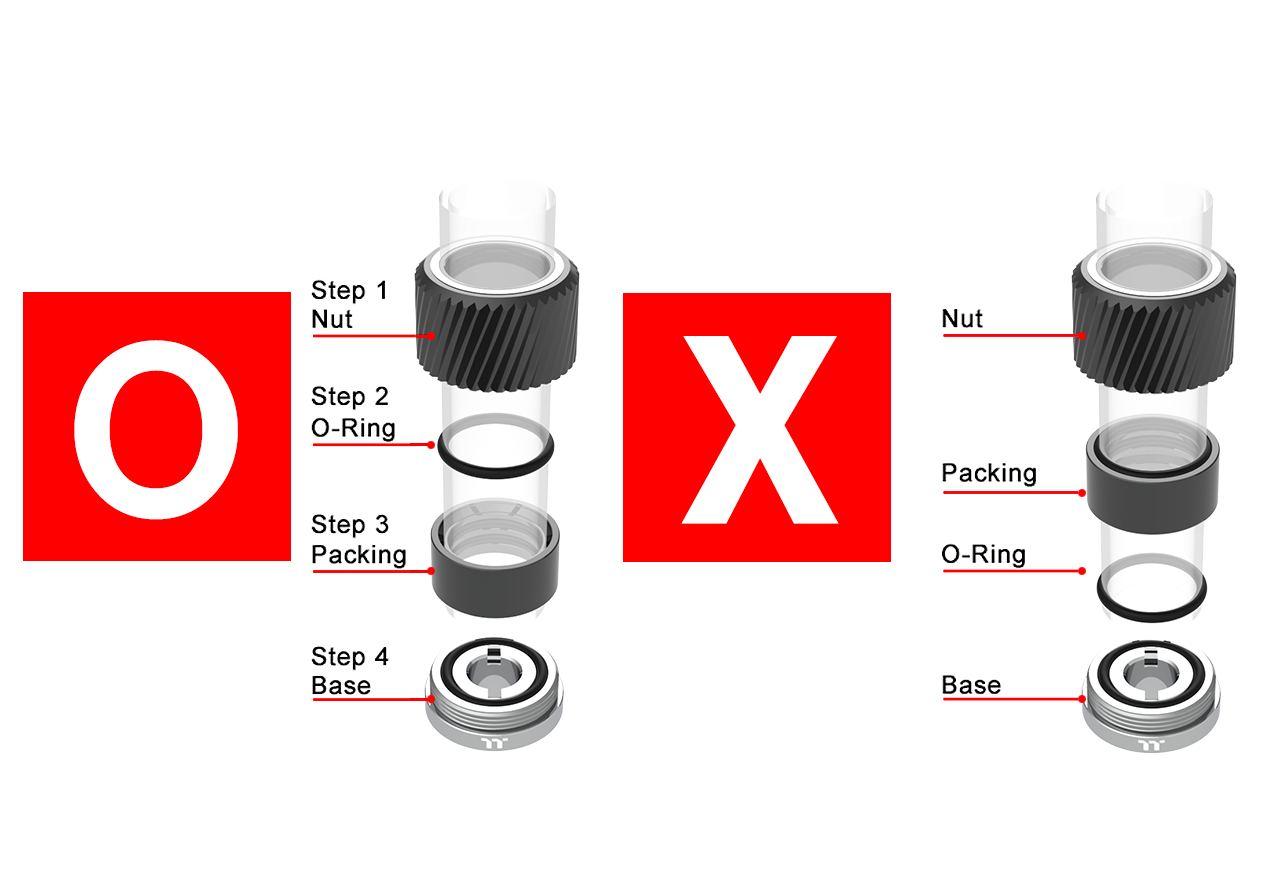

Thermaltake Pacific SF Fittings Installation Guide

Step 1. Slide the compression nut over the tube
Step 2. Install the O-Ring
Step 3. Install the packing
Step 4. Install the fitting base on your components
Step 5. Tighten the compression nut

Specification

Part Number (P/N):
CL-W389-CA16BL-A

Dimensions & Weight

Product Dimensions (Diameter x Height):
Ø27 x 25 mm

Weight:
53 g

Build & Material

Material:
Copper + Aluminum

Compatibility

Tube Type:
Hard Tube (PETG / Acrylic)

Supported Outer Diameter (OD):
16 mm

Thread Type:
G1/4”

Fitting Type

Connector Type:
G1/4 Connector to Tube Fitting
