Specification

General Information

• Product Collection: 12th Gen Intel® Core™ i5 Processors

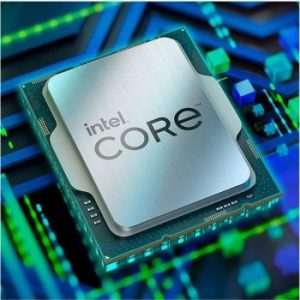

• Processor: Intel® Core™ i5-12400F
• Code Name: Alder Lake
• Segment: Desktop
• Lithography: Intel 7
• Launch Date: Q1 2022
• Status: Launched
• Recommended Price: $184–$194
• Socket: FCLGA1700

Performance

• Cores: 6 Performance Cores
• Threads: 12
• Performance Cores: 6
• Efficient Cores: 0
• Base Clock: 2.50 GHz
• Max Turbo Frequency: 4.40 GHz
• Cache: 18 MB Intel® Smart Cache
• L2 Cache: 7.5 MB

Power & Thermal

• Processor Base Power: 65W
• Maximum Turbo Power: 117W
• Maximum Operating Temperature (TJunction): 100°C

Memory Support

• Maximum Memory Capacity: 128GB
• Memory Types:
  • DDR5-4800
  • DDR4-3200
• Memory Channels: 2
• Maximum Memory Bandwidth: 76.8 GB/s

PCIe & Expansion

• PCI Express Revision: PCIe 5.0 / PCIe 4.0
• Maximum PCIe Lanes: 20
• PCIe Configurations: Up to 1×16+4, 2×8+4
• DMI Revision: 4.0
• Maximum DMI Lanes: 8

Package Details

• Package Size: 45.0 mm × 37.5 mm
• Maximum CPU Configuration: 1
• Thermal Solution Specification: PCG 2020C

Technologies

• Intel® Hyper-Threading Technology
• Intel® Turbo Boost Technology 2.0
• Intel® Deep Learning Boost (DL Boost)
• Intel® Optane™ Memory Support
• Intel® Speed Shift Technology
• Intel® Enhanced SpeedStep® Technology
• Intel® Gaussian & Neural Accelerator 3.0
• Intel® Volume Management Device (VMD)

Security & Virtualization

• Intel® AES New Instructions
• Intel® Secure Key
• Intel® Boot Guard
• Intel® OS Guard
• Intel® Control-Flow Enforcement Technology
• Execute Disable Bit
• Intel® Virtualization Technology (VT-x)
• Intel® Virtualization Technology for Directed I/O (VT-d)
• Intel® VT-x with Extended Page Tables (EPT)
