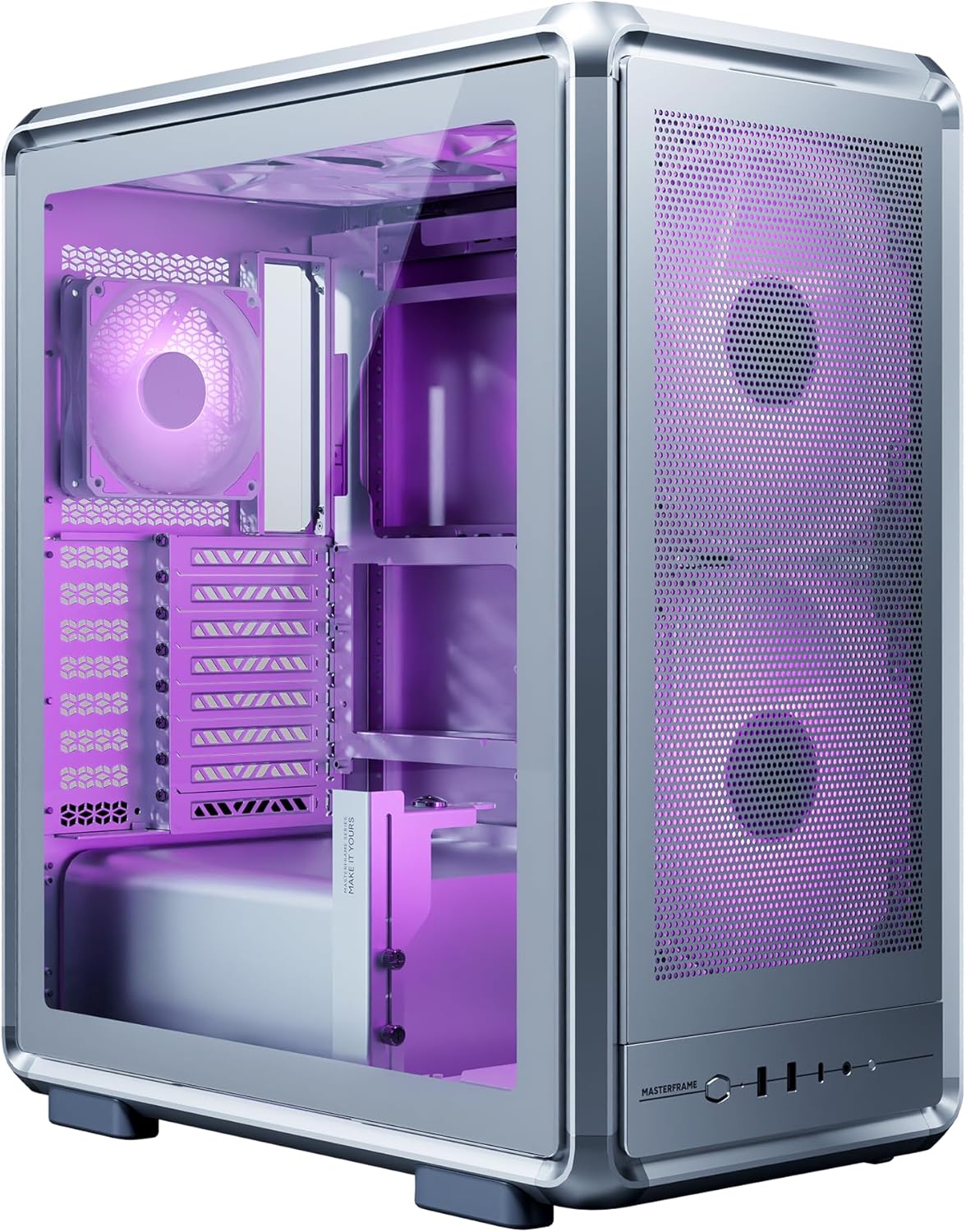

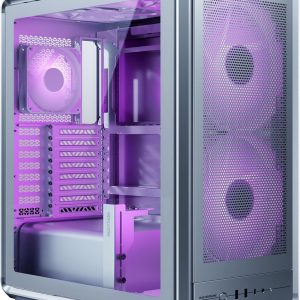

Cooler Master MasterFrame 500 Mesh aRGB Silver Freeform 2.0 Modular Platform Open-Air ATX Mid-Tower Case, Aluminum Frame,Dual 200mm aRGB Fans, 390mm GPU Max, 360mm AIO Max, Type C, Tempered Glass, Silver, MF500M-SHNN-S01
Original price was: AED 999.00.AED 849.00Current price is: AED 849.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
MasterFrame 500 Mesh
The MasterFrame 500 Mesh is a premium open-frame mid-tower chassis built for high-performance components, advanced cooling setups, and limitless customization. Embracing the FreeForm 2.0 design philosophy, it supports ATX to E-ATX motherboards and provides full access to modular design files. With enhanced mesh panels for improved airflow, it empowers builders, modders, and creators to push the boundaries of PC design.
Silver
Pre-installed Fans:
• ARGB Version: Front Dual SickleFlow 200 ARGB PWM Fans, Rear 120 ARGB PWM Fans,
• Non-ARGB: Front Dual SickleFlow 200 non-ARGB PWM Fans, Rear 120 non-ARGB PWM Fans,
Dual 360mm Radiator support,
Tempered Glass side,
USB 3.1 Type-C
Black
Pre-installed Fans:
• ARGB Version: Front Dual SickleFlow 200 ARGB PWM Fans, Rear 120 ARGB PWM Fans,
• Non-ARGB: Front Dual SickleFlow 200 non-ARGB PWM Fans, Rear 120 non-ARGB PWM Fans,
Dual 360mm Radiator support,
Tempered Glass side,
USB 3.1 Type-C

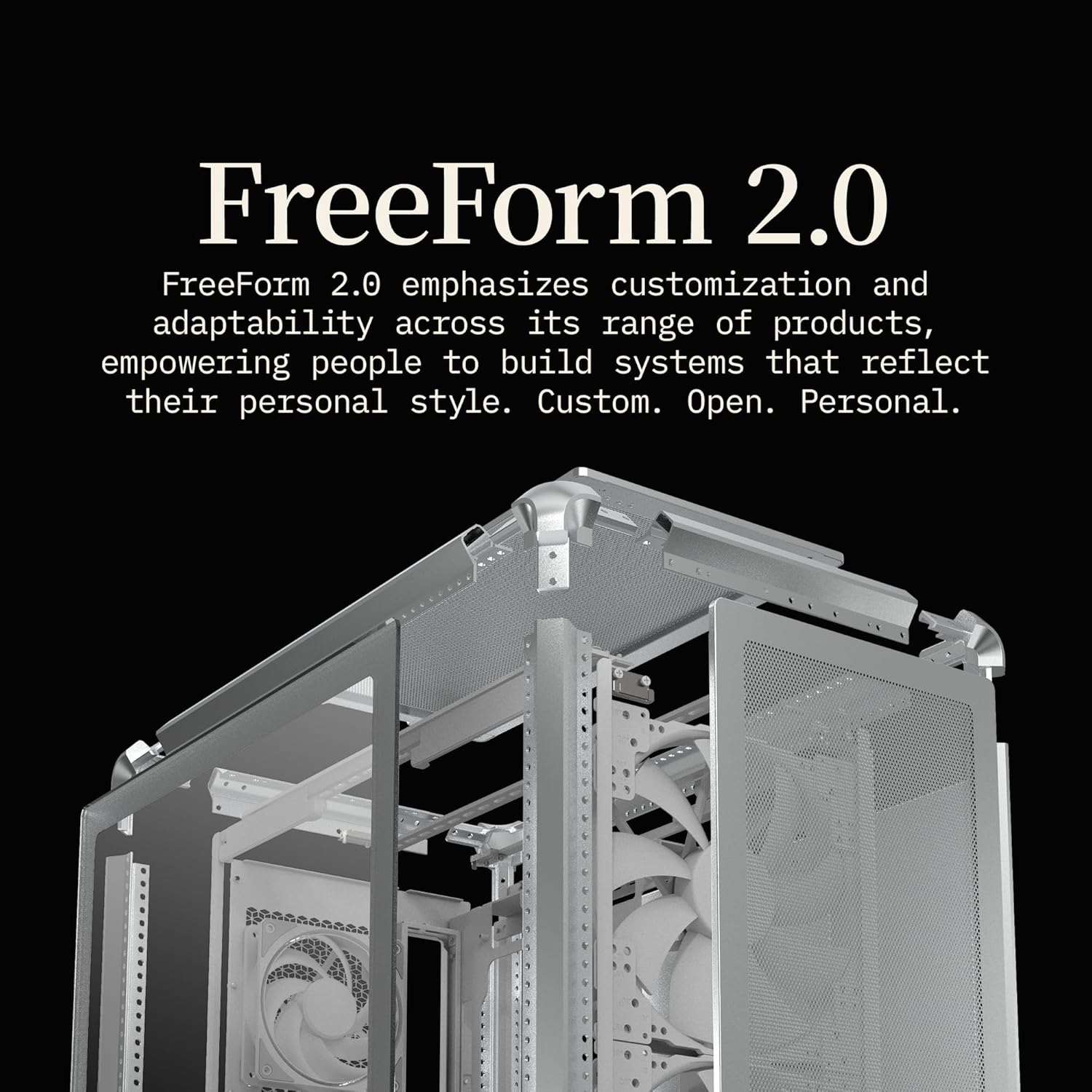

FreeForm 2.0

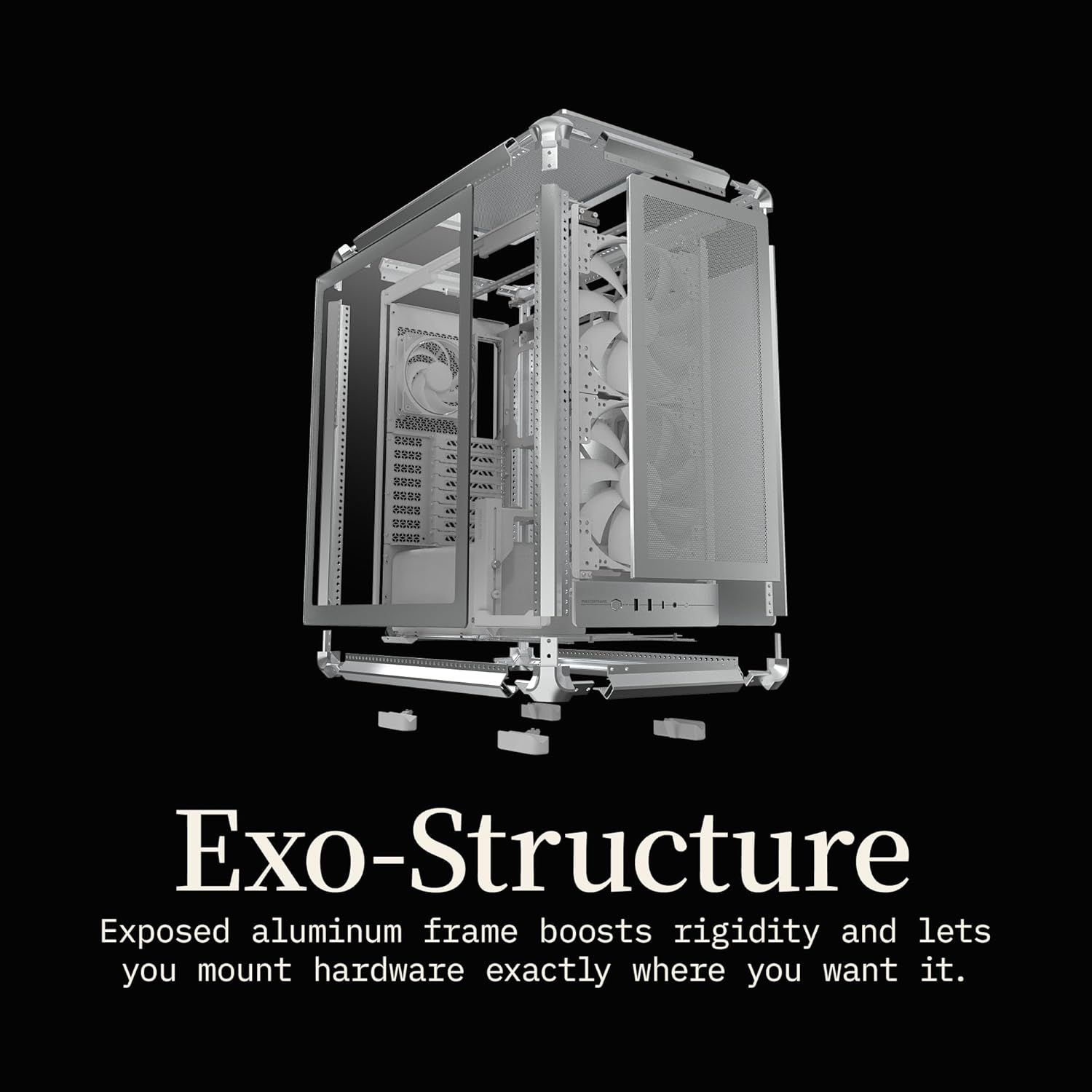

Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.

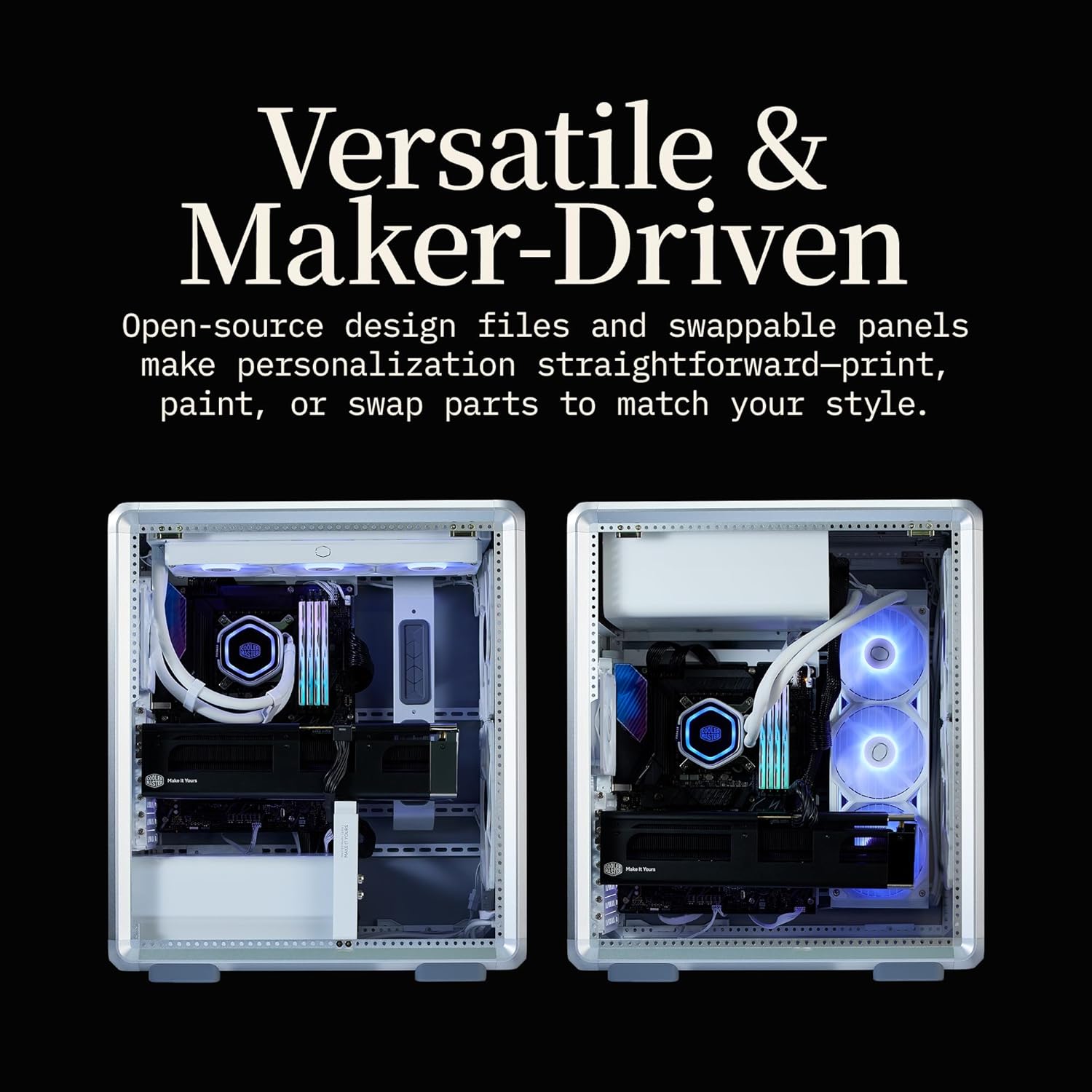

Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.

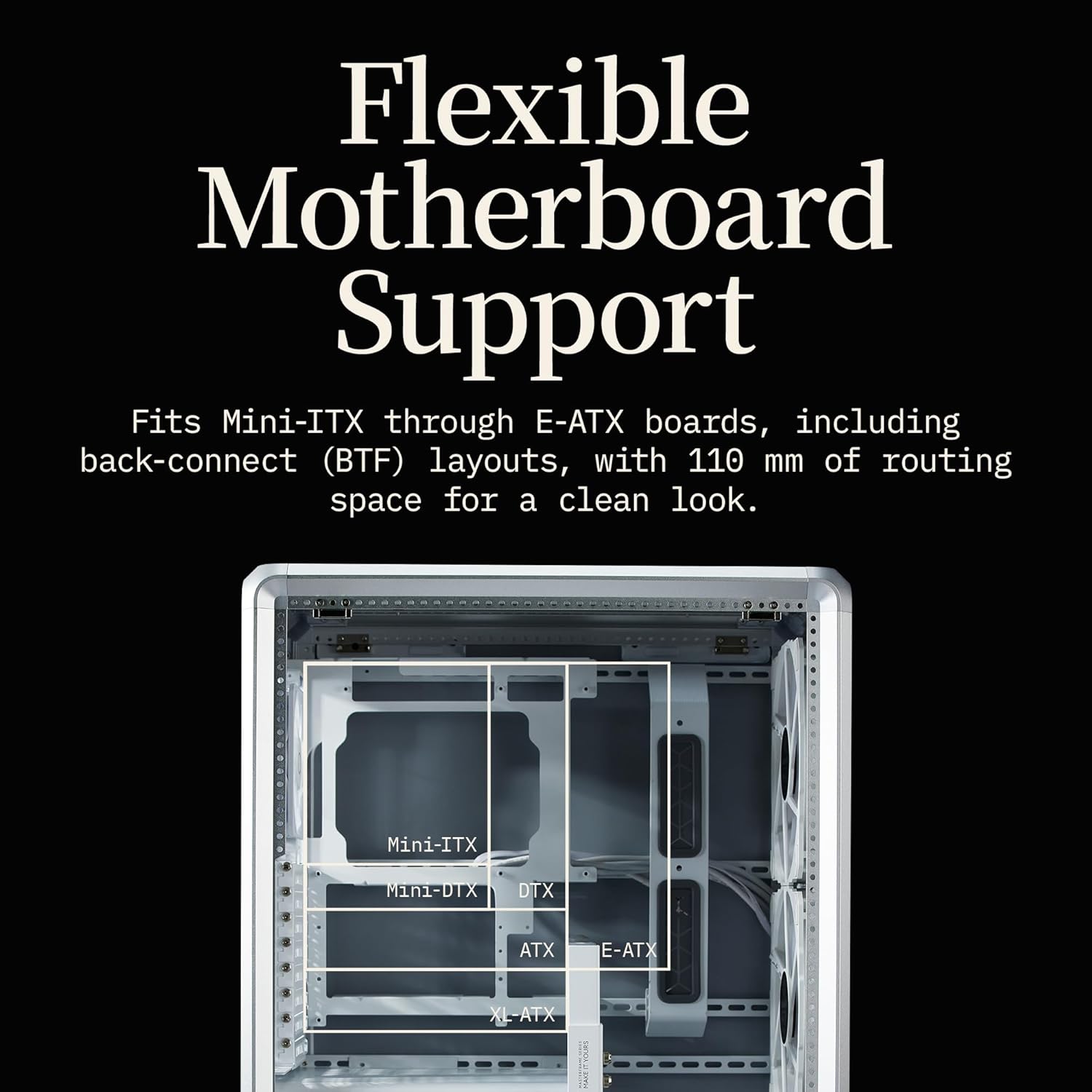

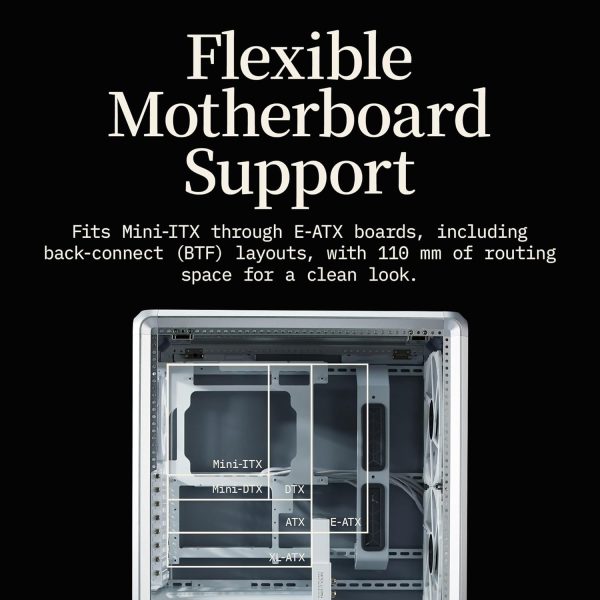

Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.

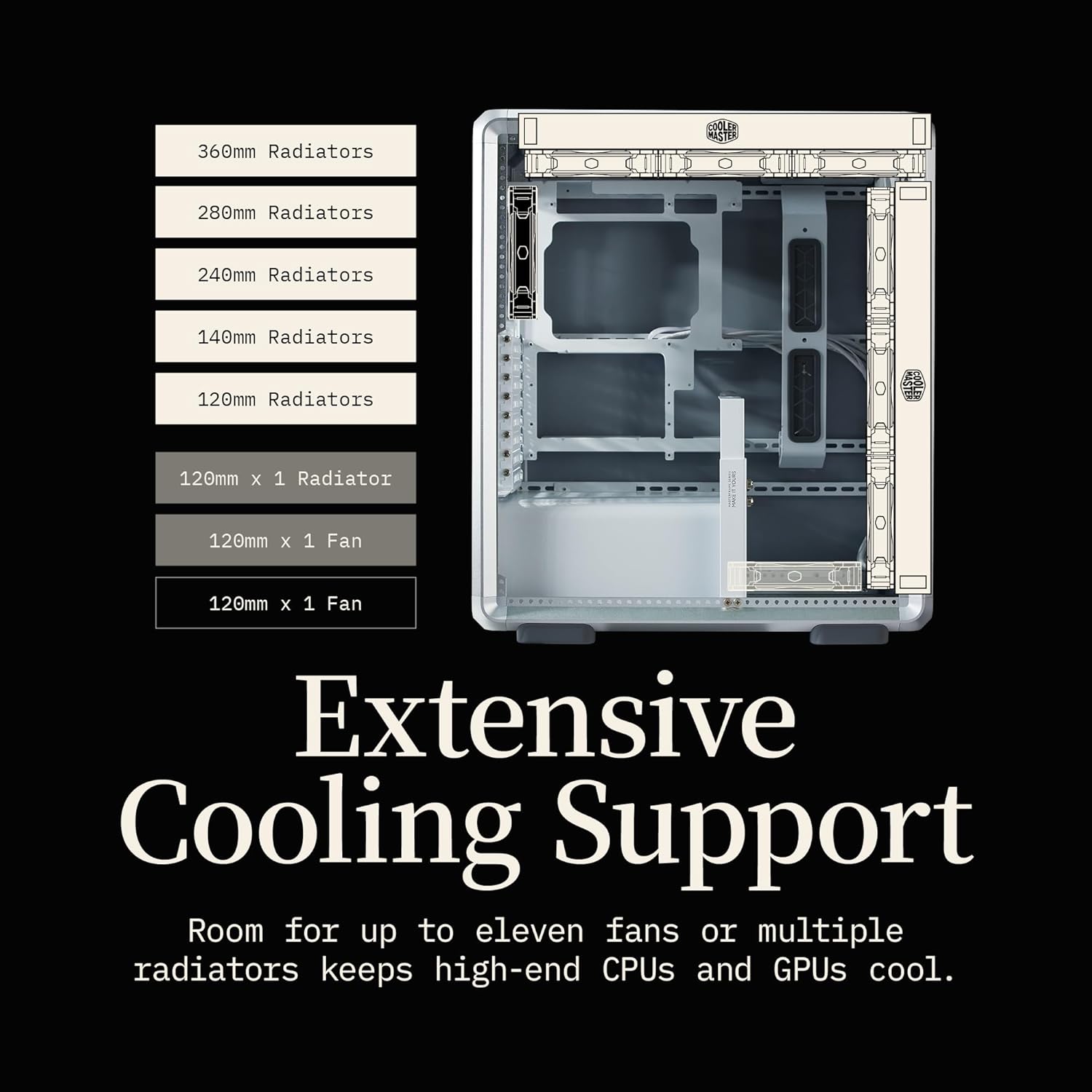

Extensive Cooling Support
Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.

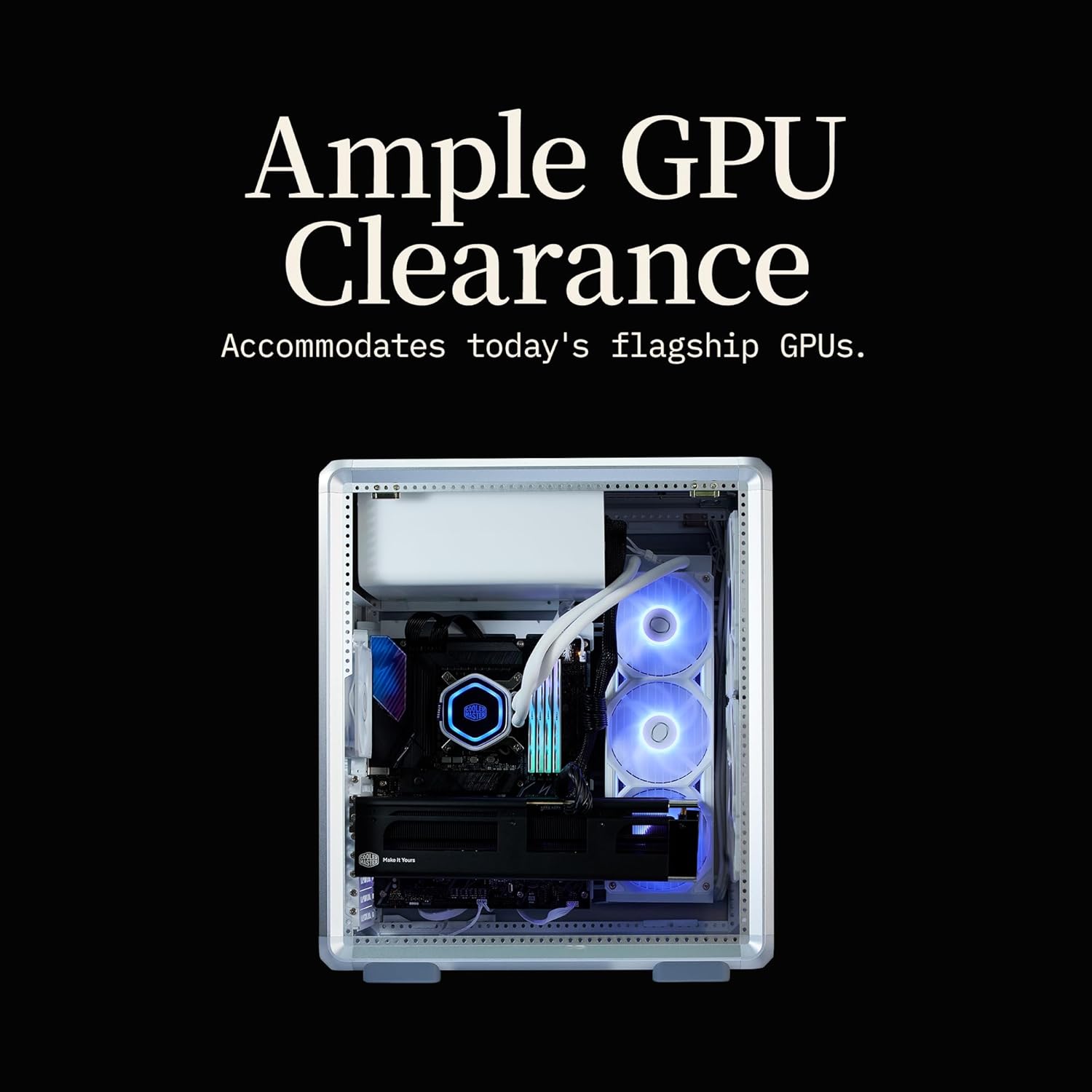

Ample GPU Clearance
Accommodates graphics cards up to 390mm, offering plenty of space for high-end GPUs.

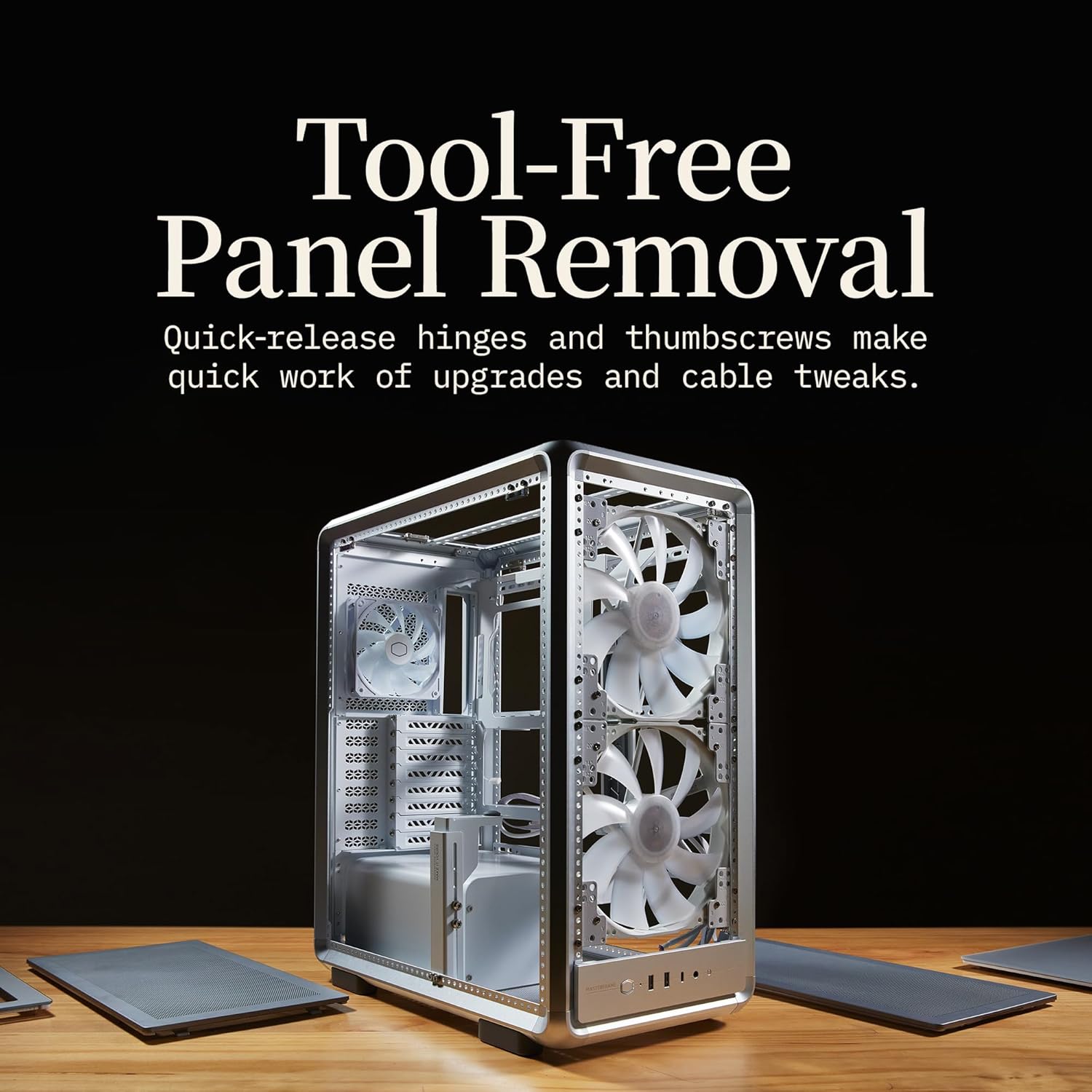

Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
MasterFrame Series
Specifications
- Model Number Black: MF500M-KHNN-S01 (ARGB), MF500M-KHNN-S00 (Non-ARGB), Silver: MF500M-SHNN-S01 (ARGB), MF500M-SHNN-S00 (Non-ARGB)
- Color(s) Black / Silver
- Materials – Exterior SGCC Steel, Aluminum
- Materials – Side panel (Right / Left) Tempered Glass
- Dimensions (L x W x H) 471 x 261 x 544 mm (Incl. Protrusions), 471 x 261 x 531 mm (Excl. Protrusions)
- Volume 60.9 L (Excl. Protrusions)
- Motherboard Support Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)
- Power Supply Support ATX
- PCI Expansion Slots 8
- 3.5″ Drive Bays 0
- 2.5″ / 3.5″ Drive Bays (or SSD) 1 (Bottom)
- Preinstalled Drive Bays – 3.5″ / 2.5″ Drive Bay (or SSD) 1x 2.5 or 1x 3.5
- I/O Panel – USB Ports 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2×2 Type C
- I/O Panel – Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
- Pre-installed Fans – Front ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm
- Pre-installed Fans – Rear ARGB: 1x 120mm ARGB, Non-ARGB: 1x 120mm
- Fan Support – Front 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
- Fan Support – Top 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
- Fan Support – Rear 1x 120mm
- Fan Support – Bottom 1x 120mm
- Radiator Support – Front 120 / 140 / 240 / 280 / 360mm
- Radiator Support – Top 120 / 140 / 240 / 280 / 360mm
- Radiator Support – Rear 120 mm
- Dust Filters Mesh Only (Removable Filters)
- Clearance – CPU Cooler 190 mm
- Clearance – PSU 235 mm
- Clearance – Graphics Card 390 mm
- Included Accessories GPU Support Bracket
- Cable Routing – Behind Motherboard Tray 43 mm
- Warranty 2 years
- Size Mid Tower
- Series MasterFrame Series
