UNDENIABLY ROG STRIX

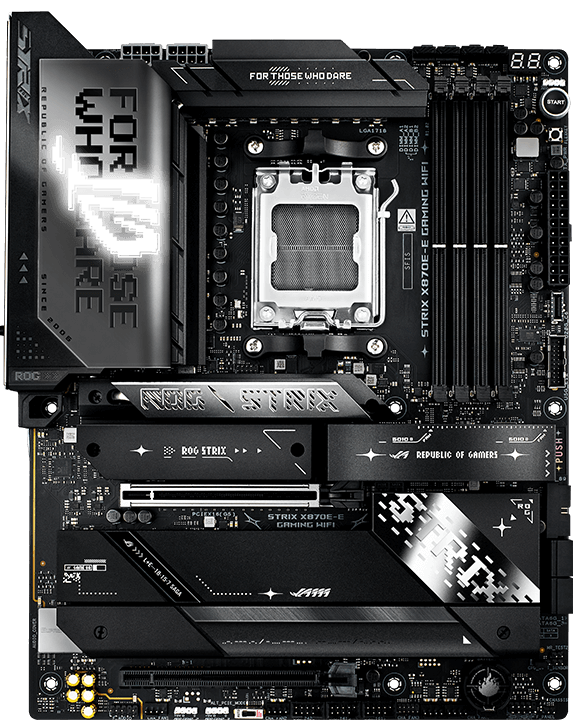

Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix X870E-E bears all of them with pride. But for this generation, translucent diffusers line the I/O shroud and the Q-Release array, softly contrasting the metallic heatsinks nearby.

OUTSHINE THE COMPETITION

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Specification

CPU

• AMD Socket AM5
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Chipset

• AMD X870E

Memory

• 4 x DIMM slots (DDR5)
• Max Capacity: 256GB
• Speed Support:
  • Ryzen 9000: up to 8000+ MT/s (OC)
  • Ryzen 8000: up to 8400+ MT/s (OC)
  • Ryzen 7000: up to 8000+ MT/s (OC)
• ECC & Non-ECC Unbuffered DIMM
• Dual Channel Architecture
• Supports EXPO™
• ASUS AEMP
• NitroPath DRAM Technology

Graphics

• 1 x HDMI 2.1 (up to 4K@60Hz)
• 2 x USB4 Type-C (Display output up to 4K@60Hz)

Expansion Slots

• Ryzen 9000 / 7000:
  • 1 x PCIe 5.0 x16 (x16 mode)
• Ryzen 8000:
  • 1 x PCIe 4.0 x16 (x8/x4 mode)
• Chipset:
  • 1 x PCIe 4.0 x16 (x4 mode)

Storage

• Total: 5 x M.2 + 4 x SATA

M.2 Slots:

• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 5.0 x4
• M.2_3: PCIe 5.0 x4 (supports 22110)
• M.2_4: PCIe 4.0 x4
• M.2_5: PCIe 4.0 x4

SATA:

• 4 x SATA 6Gb/s

Notes:

• M.2_2 / M.2_3 reduce GPU to x8
• M.2_2 / M.2_3 disabled on Ryzen 8000

RAID:

• RAID 0 / 1 / 5 / 10

Networking

• 1 x Realtek 5Gb Ethernet
• Wi-Fi 7 (2×2, up to 6.5Gbps, 320MHz)
• Bluetooth 5.4

USB Ports

Rear I/O (13 ports):

• 2 x USB4 (40Gbps, Type-C)
• 1 x USB 20Gbps (Type-C, 30W PD)
• 10 x USB 10Gbps (9A + 1C)

Front I/O (11 ports):

• 1 x USB 20Gbps (Type-C)
• 2 x USB 5Gbps headers (4 ports)
• 3 x USB 2.0 headers (6 ports)

Audio

• ROG SupremeFX ALC4080
• 7.1 Surround Sound
• 120 dB SNR playback / 110 dB recording
• Supports 32-bit / 384 kHz
• Features:
  • Savitech AMP
  • Optical S/PDIF
  • Gold-plated jacks

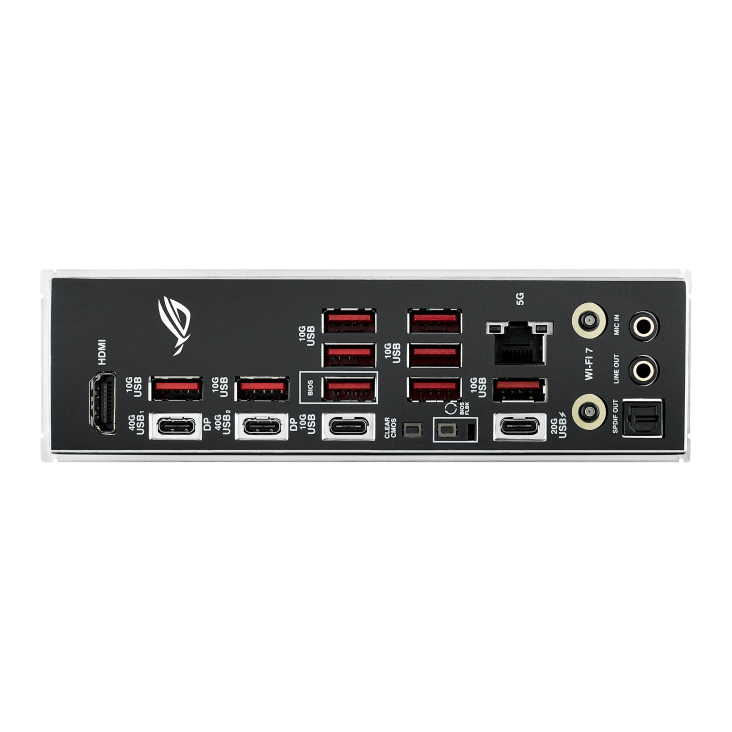

Back Panel I/O

• 2 x USB4 Type-C
• 1 x USB 20Gbps Type-C (30W PD)
• 10 x USB 10Gbps
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x 5G LAN
• 2 x Audio jacks
• 1 x Optical S/PDIF
• BIOS FlashBack + Clear CMOS

Internal Connectors

Cooling:

• 1 x CPU Fan
• 1 x CPU OPT
• 1 x AIO Pump
• 5 x Chassis Fans

Power:

• 1 x 24-pin ATX
• 2 x 8-pin CPU

Storage:

• 5 x M.2
• 4 x SATA

USB:

• 1 x USB 20Gbps (Type-C)
• 2 x USB 5Gbps headers
• 3 x USB 2.0 headers

Extras:

• FlexKey button
• Start button
• Thermal sensor
• RGB Gen 2 headers

Special Features

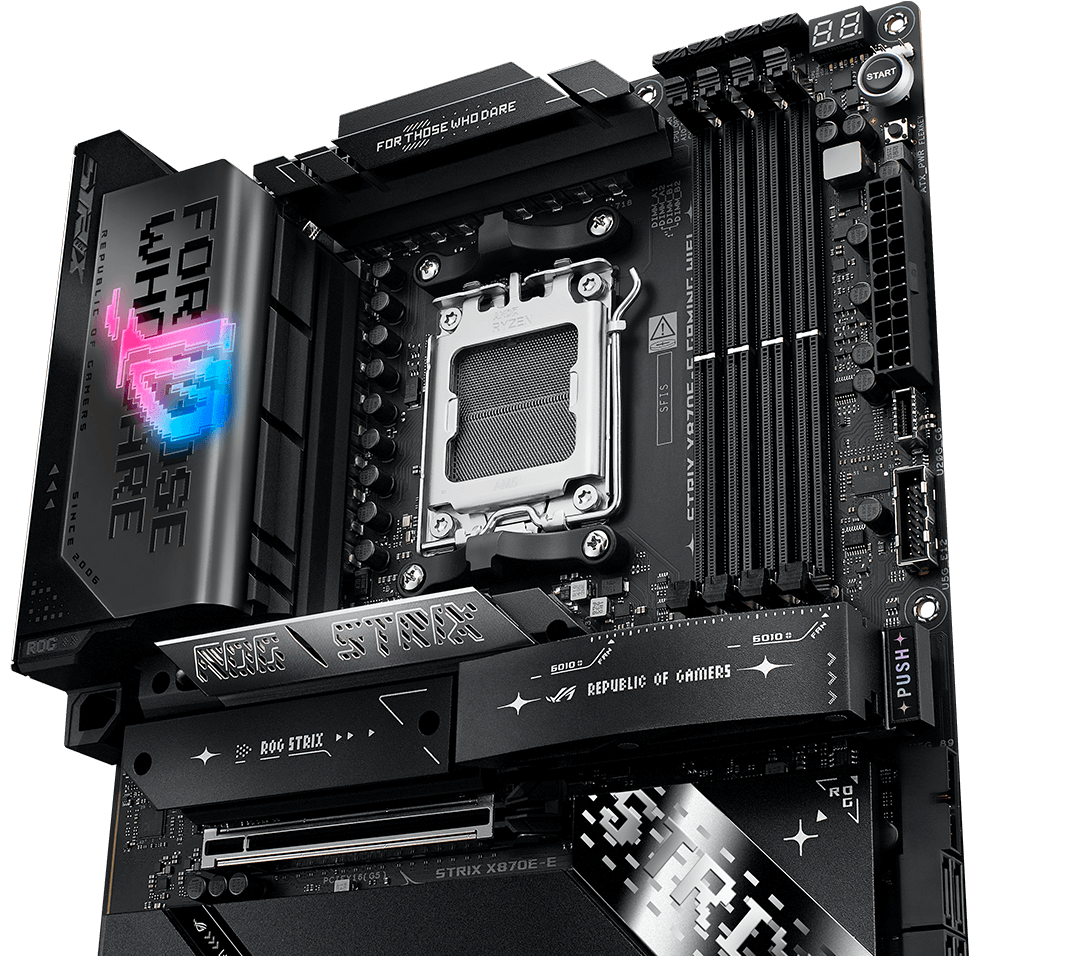

• Extreme Engine Digi+ VRM
• PCIe Q-Release Slim
• M.2 Q-Latch / Q-Release / Q-Slide
• Q-Code + Q-LED diagnostics
• BIOS FlashBack & Clear CMOS
• Dynamic OC Switcher
• AI Overclocking

Software

• Armoury Crate
• Aura Sync / Creator
• Fan Xpert 4 (AI Cooling II)
• GameFirst
• HWiNFO
• Dolby Atmos

BIOS

• 256Mb UEFI AMI BIOS
• EZ Flash 3 / CrashFree BIOS

Form Factor

• ATX
• 12” x 9.6” (30.5 x 24.4 cm)
