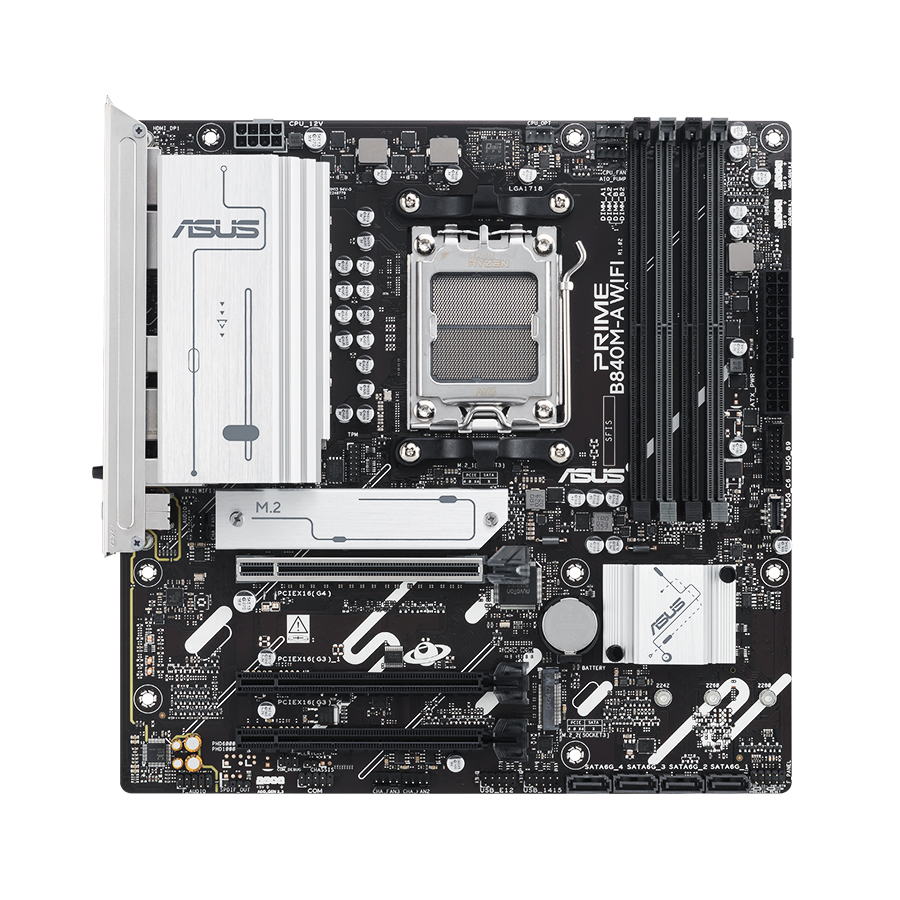

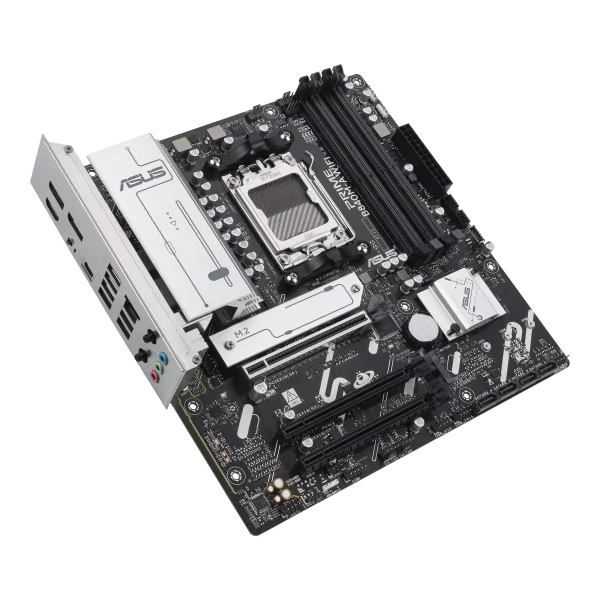

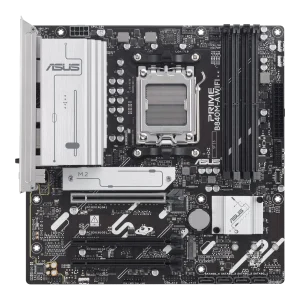

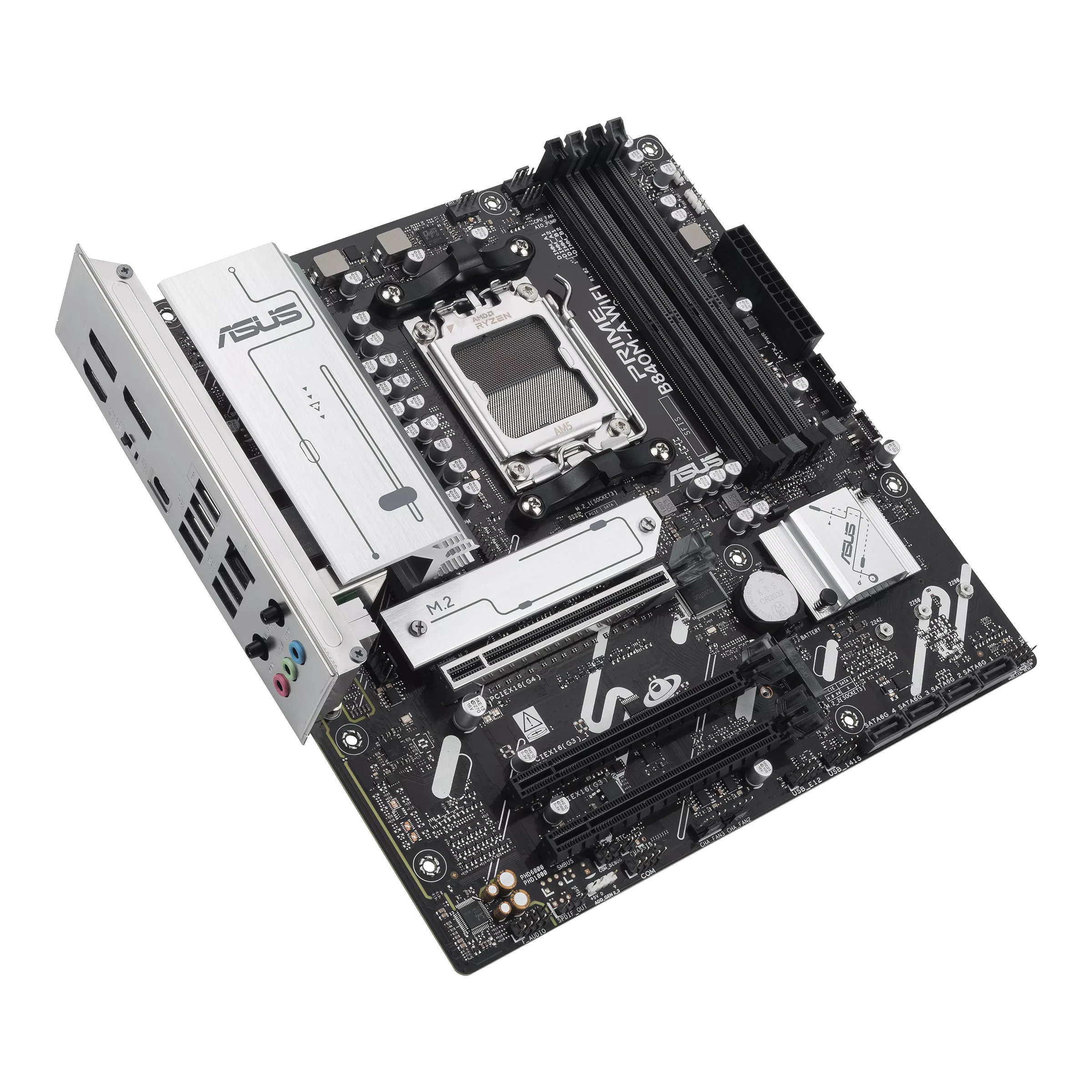

ASUS M/B PRIME B840M-A WIFI Motherboard, AM5 Socket, WiFi 6E, USB 5Gbps Type-C, Aura Sync
Original price was: AED 999.00.AED 725.00Current price is: AED 725.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
5
Items sold in last 24 hours
20
People watching this product now!

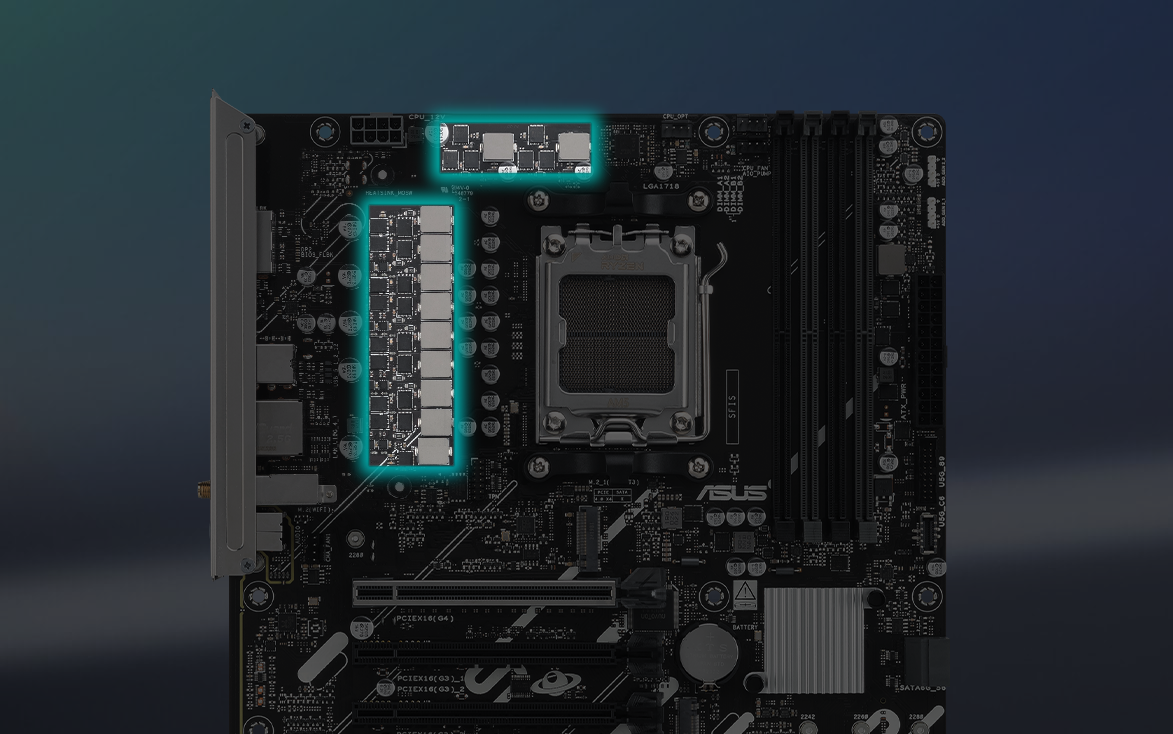

Digital Power Design
PRIME B840M-A WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
Enhanced Memory & Storage Performance

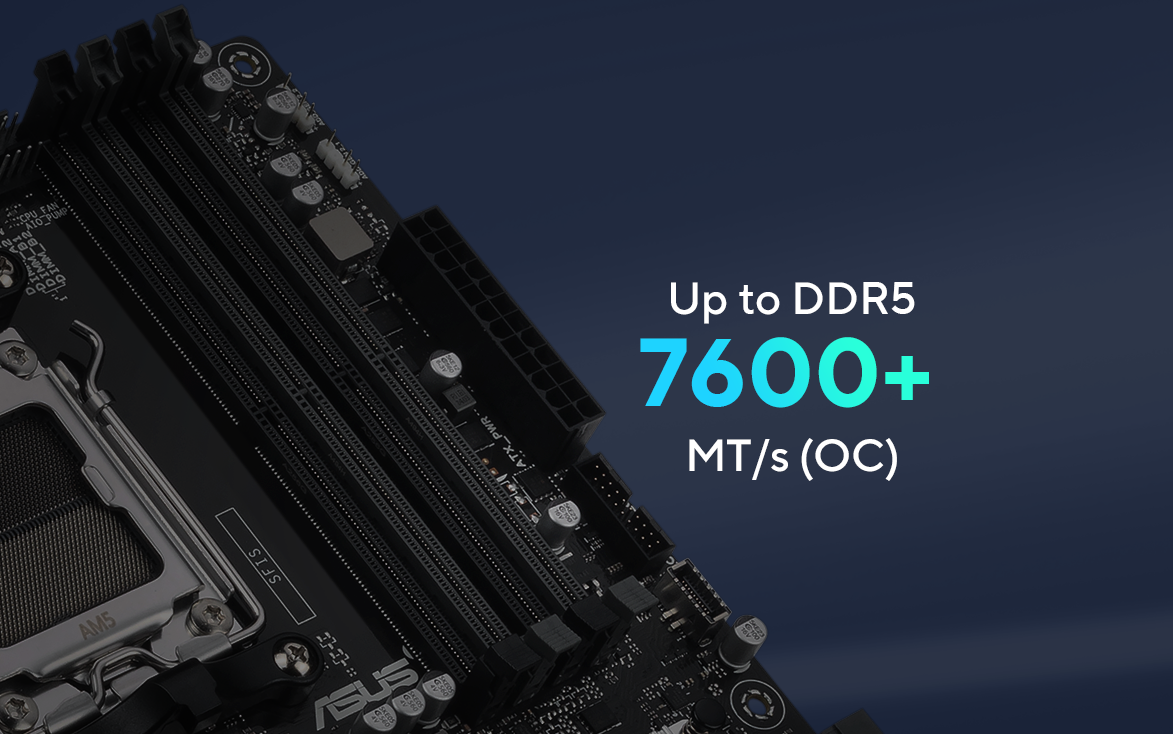

Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840M-A WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.

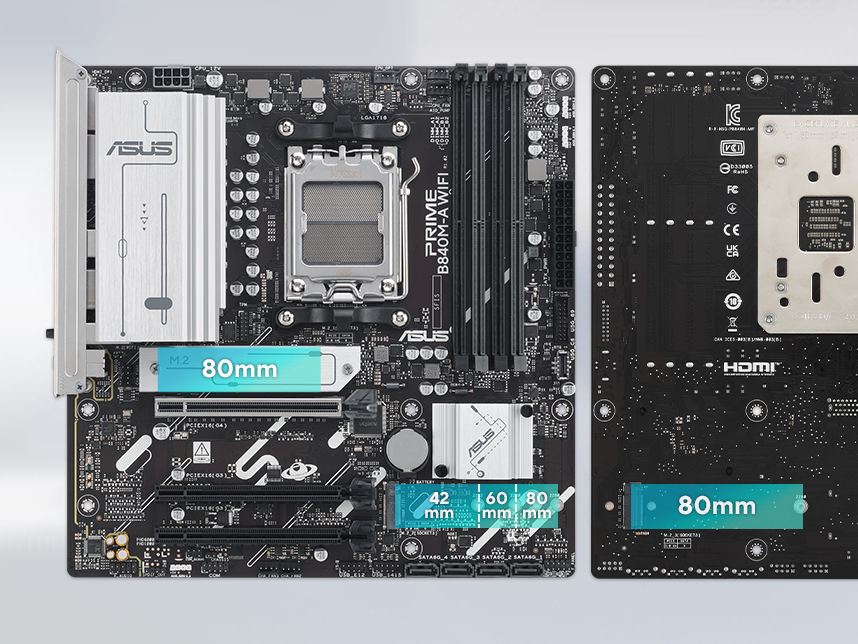

Three M.2 slots (up to 64 Gbps)
PRIME B840M-A WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.
Cooling
Cooler by design
The PRIME B840M-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
Smart Cooling precision

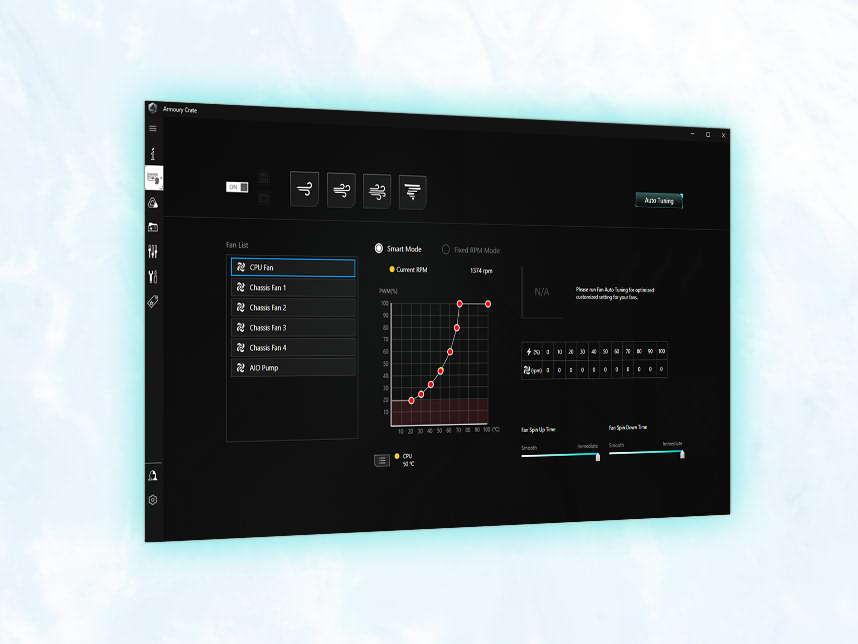

ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

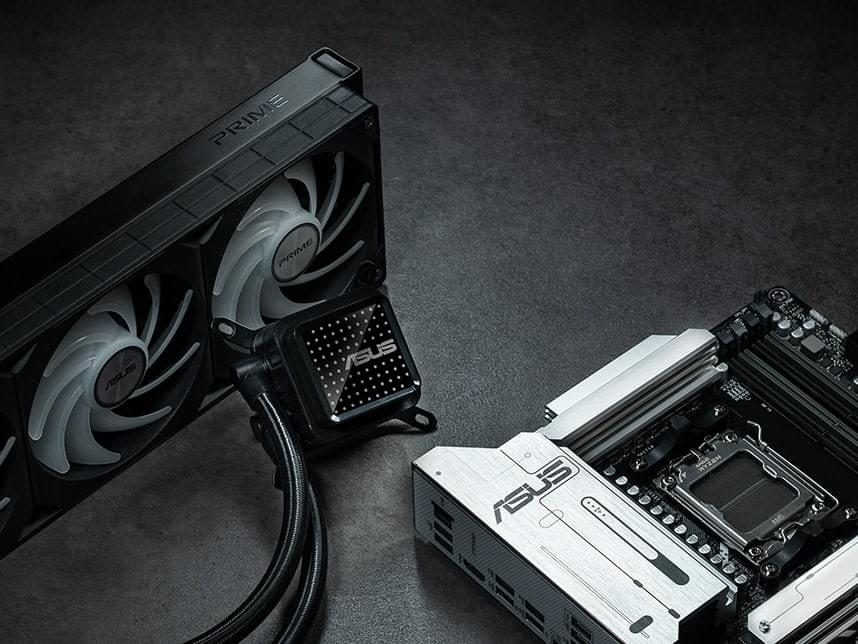

Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.
WiFi 6E
Built-in WiFi 6E5 technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.

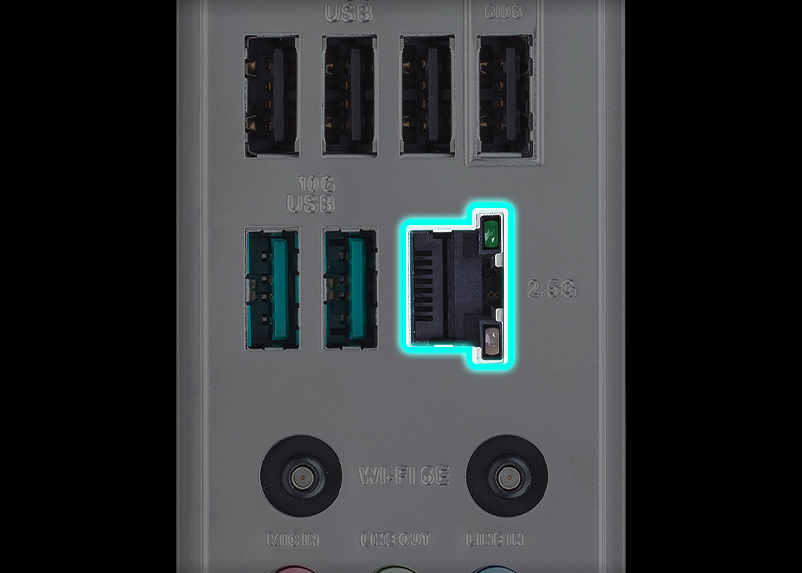

Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

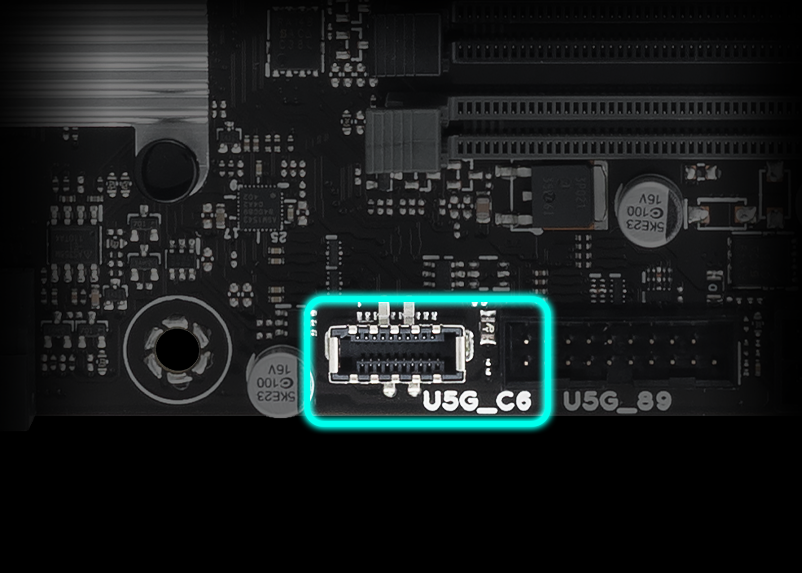

Front USB 5Gbps Type-C®
This motherboard features a USB 5Gbps Type-C® front panel connector for speedy data transfers of up to 5Gbps.
Customization
Personalization
The PRIME B840M-A WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

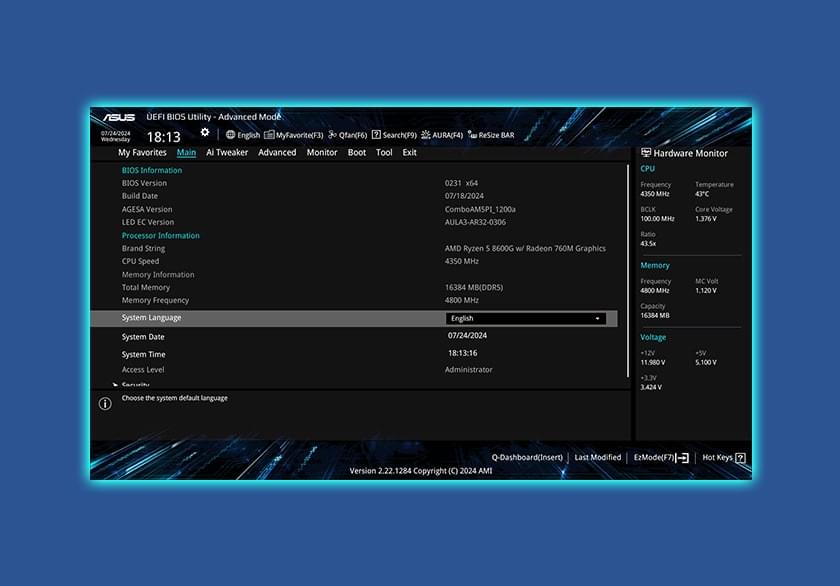

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

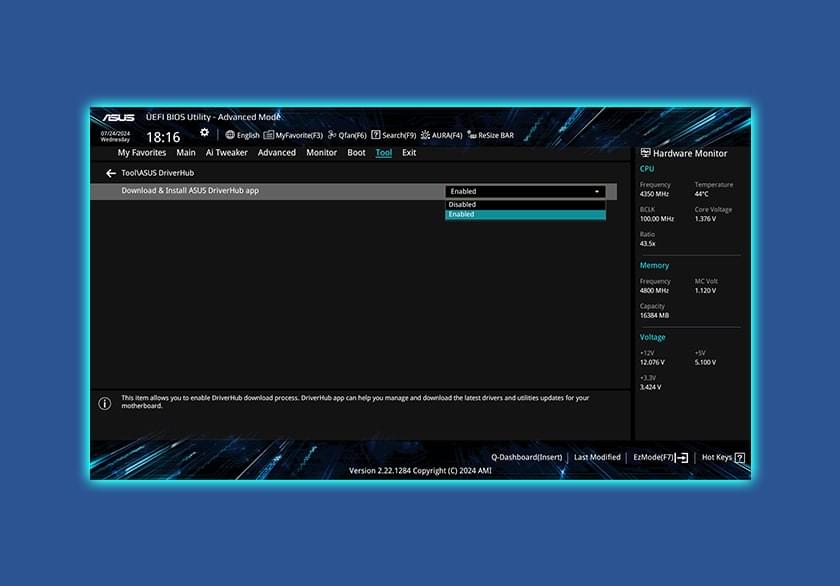

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

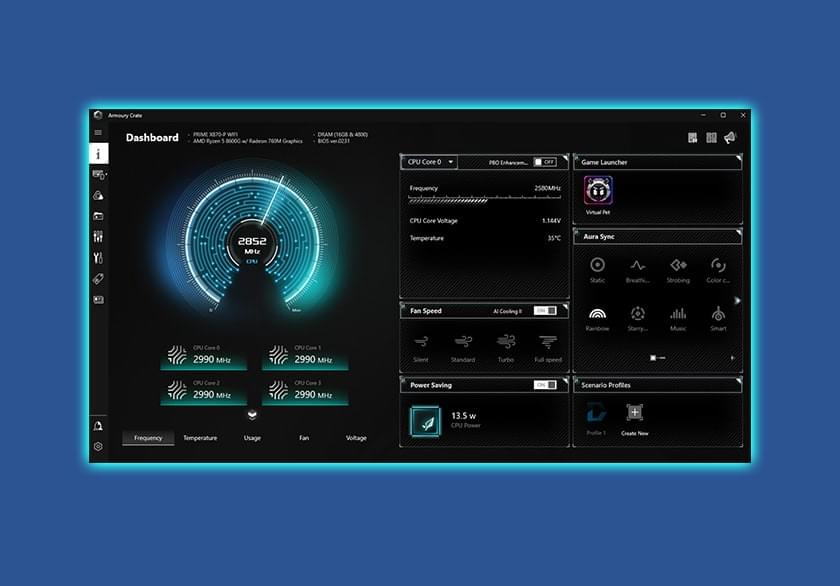

Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

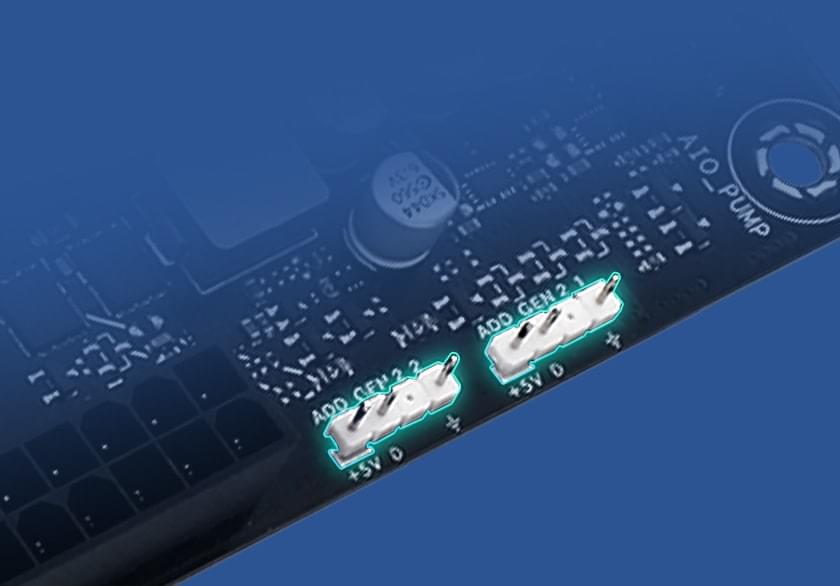

Addressable Gen 2 RGB headers
Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
Customization
DIY friendly
The PRIME B840M-A WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

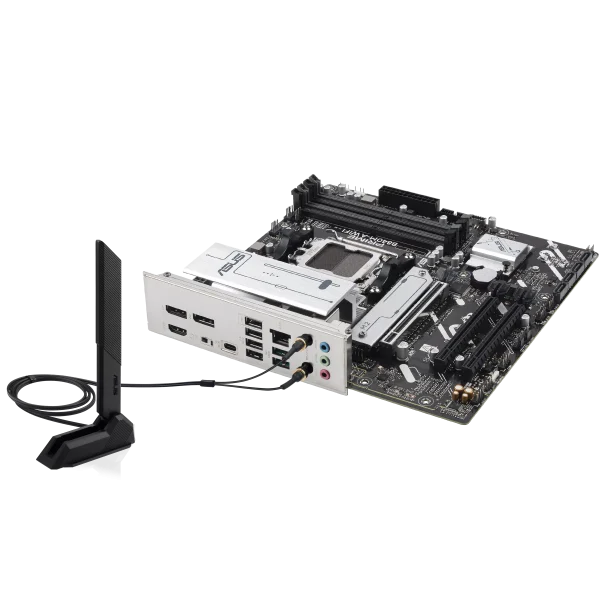

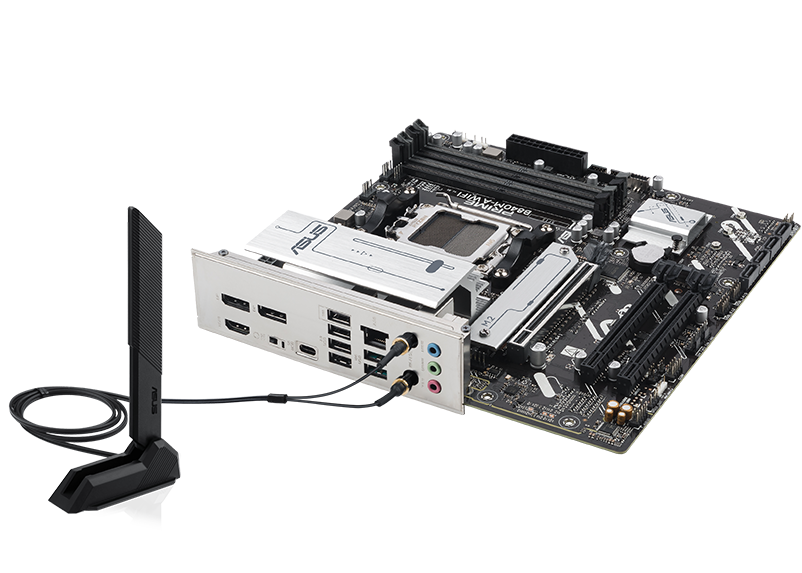

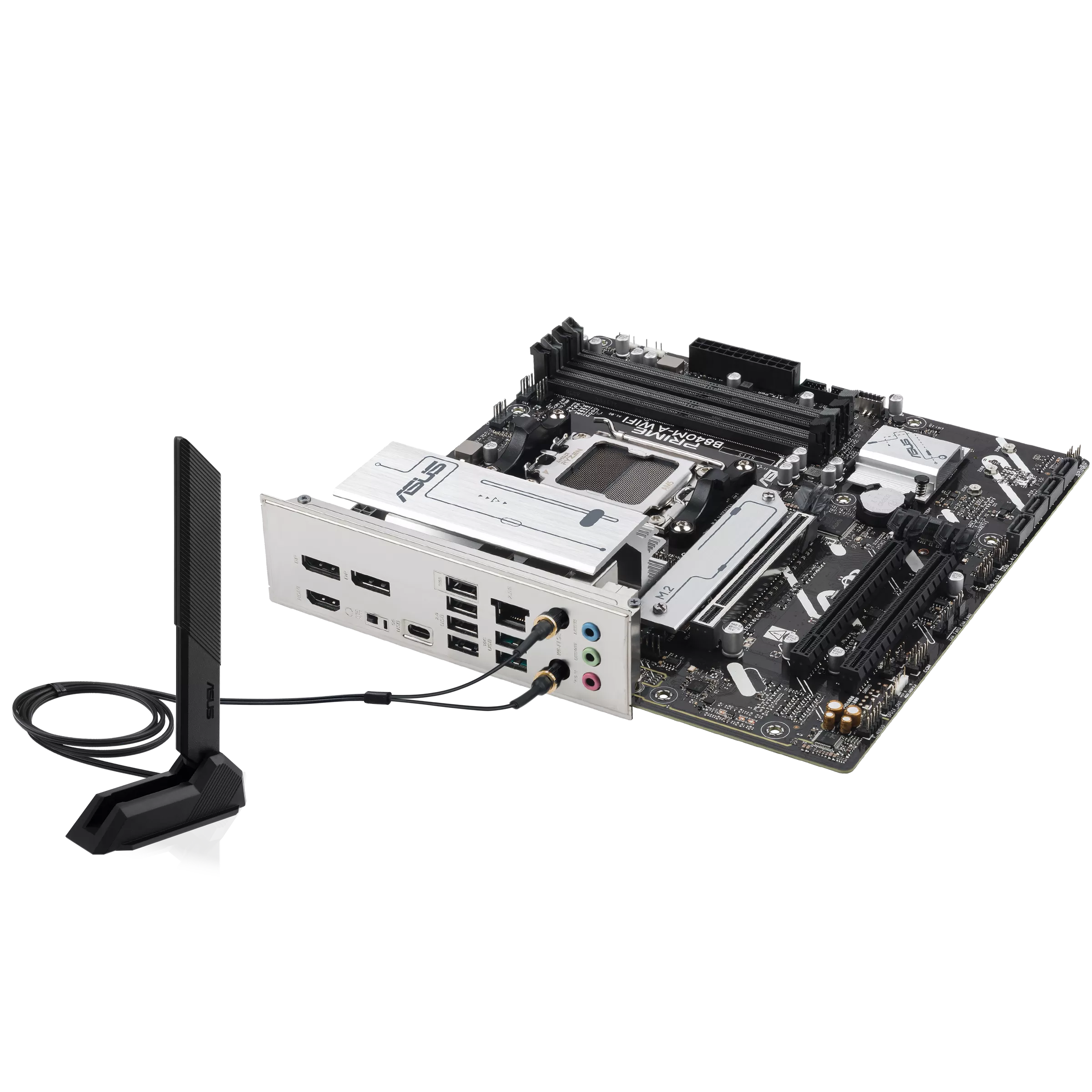

Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

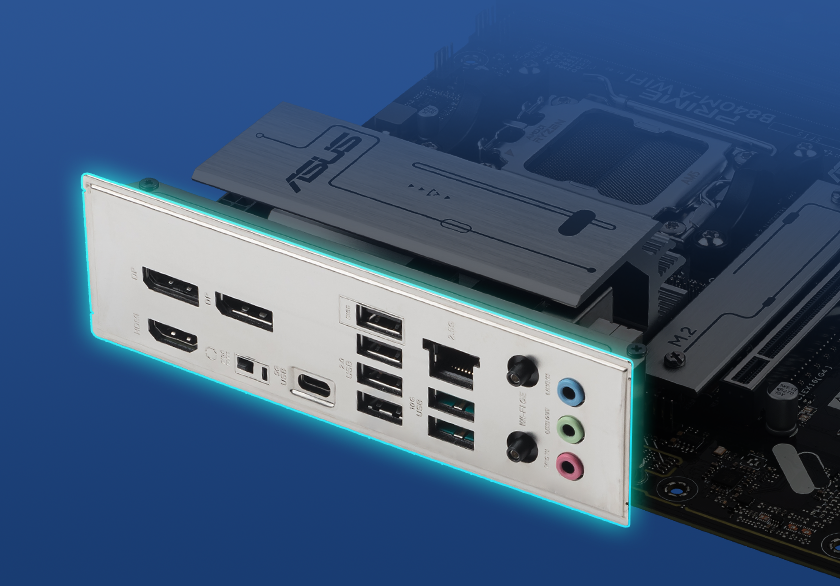

Pre-Mounted I/O Shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

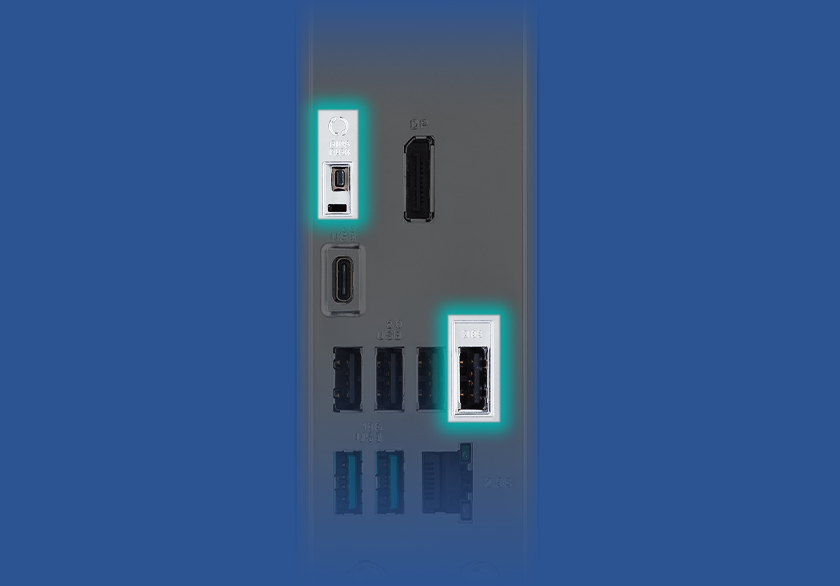

BIOS FlashBack™
BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.
SafeSlot Core+
SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The
Build for the most advanced pc for gaming and creating

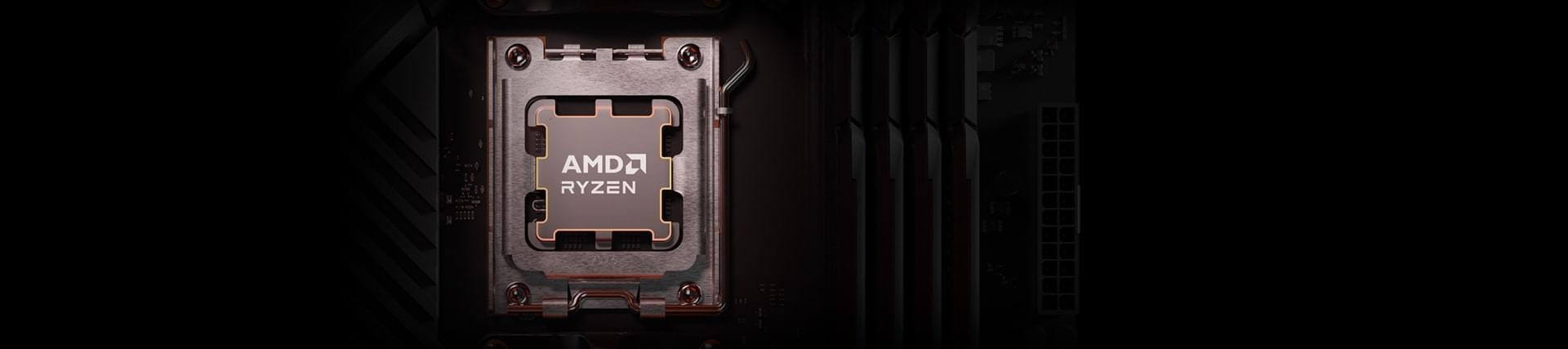

When only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 4.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
Specification
CPU
- AMD Socket AM5
- Supports AMD Ryzen™ 9000, 8000 & 7000 Series Processors
- Max CPU TDP: 170W
Chipset
- AMD B840 Chipset
Memory
- 4 × DIMM slots (Max 256GB DDR5)
- Supports up to 7600+ MT/s (OC)
- Dual-channel architecture
- Supports ECC & Non-ECC (Un-buffered)
- AMD EXPO™ & ASUS AEMP support
Graphics
- 2 × DisplayPort (Up to 8K @ 30Hz)
- 1 × HDMI (Up to 4K @ 60Hz)
- Graphics depends on CPU
Expansion Slots
- 1 × PCIe 4.0 x16 slot
- 2 × PCIe 3.0 x16 slots (x1 mode)
- Configuration varies by CPU
Storage
- 3 × M.2 slots
- PCIe 4.0 & PCIe 3.0 support
- 4 × SATA 6Gb/s ports
- RAID Support:
- Ryzen 9000: RAID 0/1/5/10
- Ryzen 8000: RAID 0/1
- Ryzen 7000: RAID 0/1/10
Networking
- 1 × Realtek 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
- Wi-Fi 6E (2×2, 2.4/5/6 GHz)
- Bluetooth 5.3
USB Connectivity
Rear I/O (7 Ports)
- 2 × USB 10Gbps (Type-A)
- 1 × USB 5Gbps (Type-C)
- 4 × USB 2.0
Front I/O (7 Ports)
- 1 × USB-C (5Gbps)
- 2 × USB 5Gbps
- 4 × USB 2.0
Audio
- Realtek 7.1 HD Audio Codec
- Supports 24-bit / 192kHz playback
- Features:
- Audio shielding
- Premium capacitors

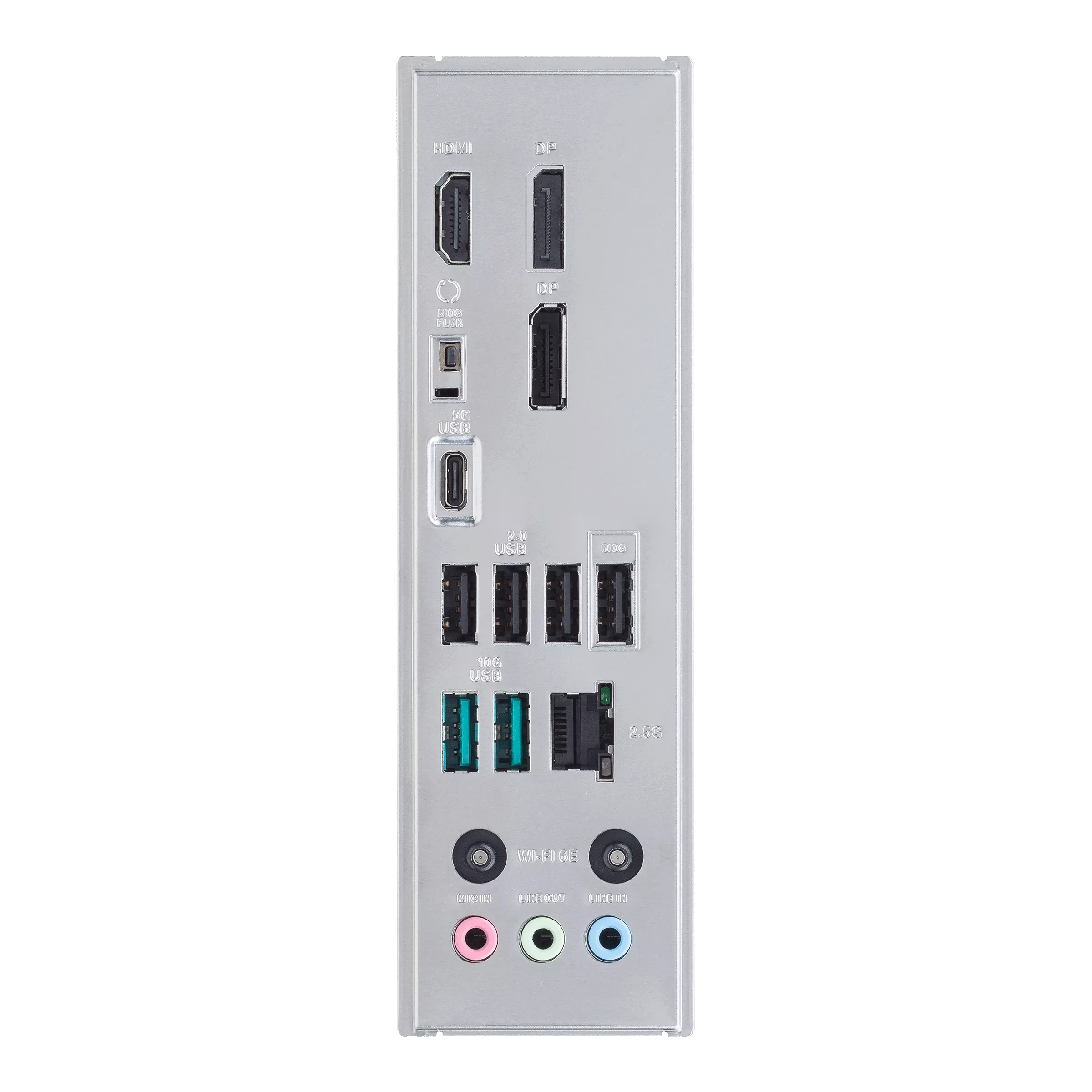

Back Panel I/O
- USB ports (as above)
- 2 × DisplayPort
- 1 × HDMI
- 1 × 2.5Gb Ethernet
- Wi-Fi module
- 3 × Audio jacks
- BIOS FlashBack™ button
Internal Connectors
Cooling
- CPU Fan, CPU OPT Fan
- AIO Pump header
- 3 × Chassis Fan headers
Power
- 24-pin ATX
- 8-pin CPU
Storage
- 3 × M.2
- 4 × SATA
RGB & Misc
- Addressable Gen 2 headers
- TPM header
- Front panel audio
- Clear CMOS
Special Features
- ASUS 5X Protection III
- BIOS FlashBack™
- Pre-mounted I/O shield
- Aura Sync RGB
- VRM & M.2 heatsinks
Software
- Armoury Crate
- Aura Sync / Fan Xpert
- ASUS DriverHub
- Adobe Creative Cloud (Trial)
- Norton 360 (60 Days)
BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Accessories
- 2 × SATA cables
- Wi-Fi antenna
- M.2 screws & rubber kit
- Quick start guide
Operating System
- Windows 11
- Windows 10 (64-bit)
Form Factor
- micro-ATX
- 9.6″ × 9.6″ (24.4 × 24.4 cm)
