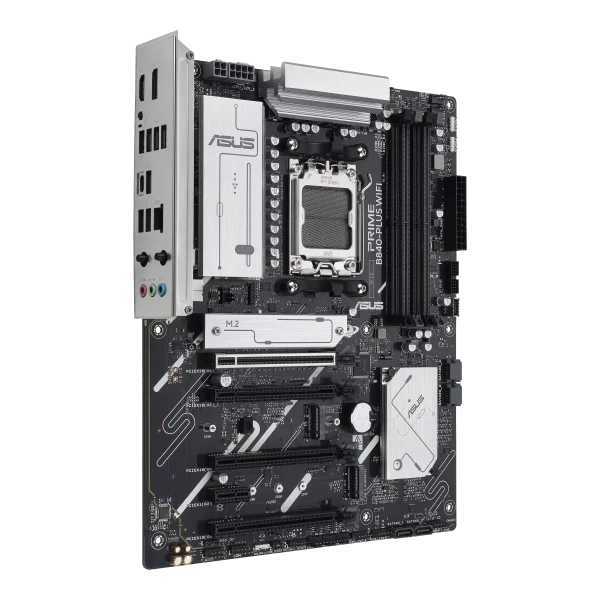

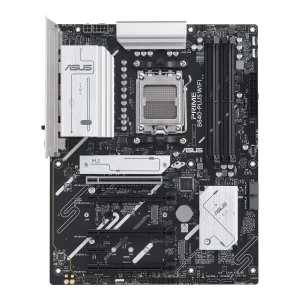

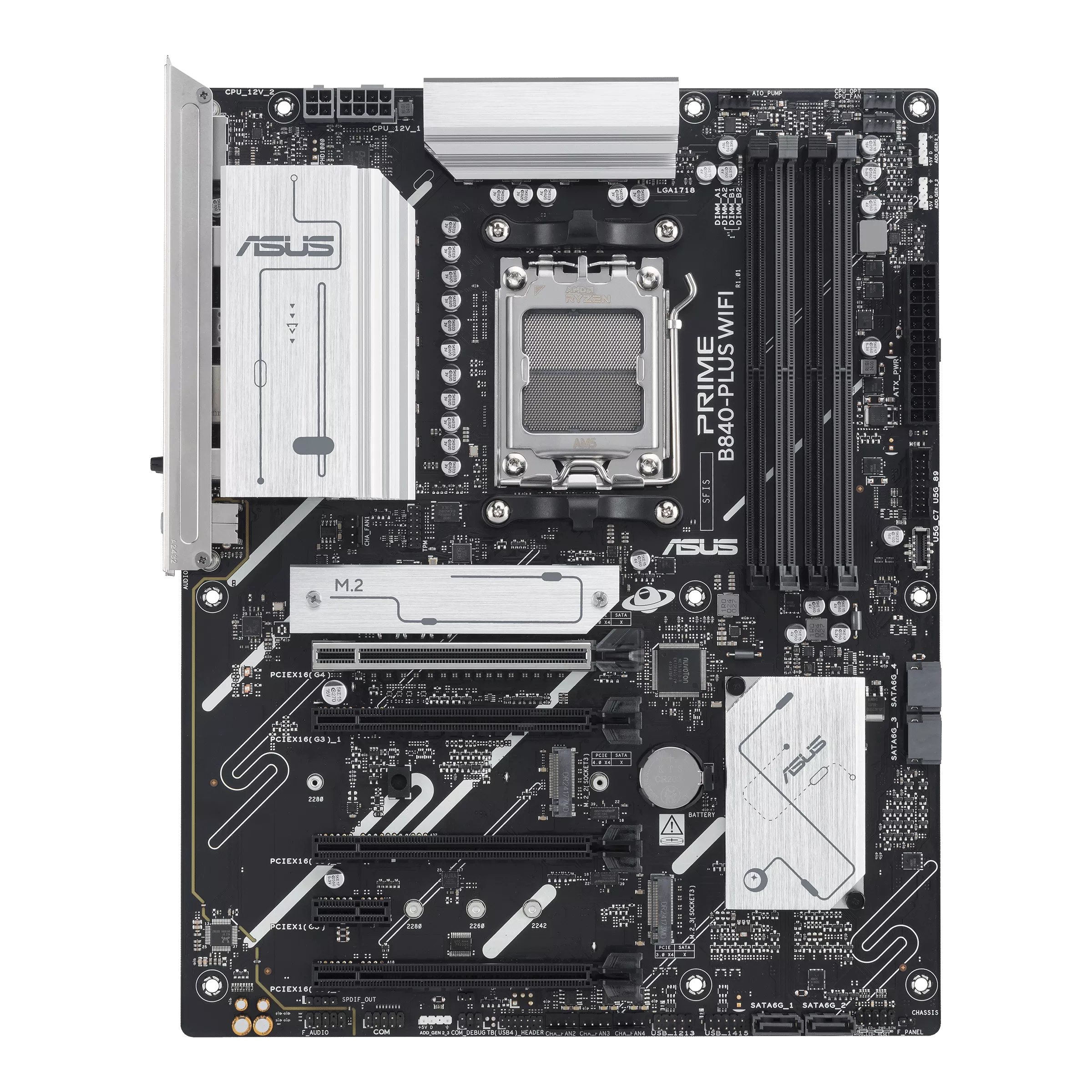

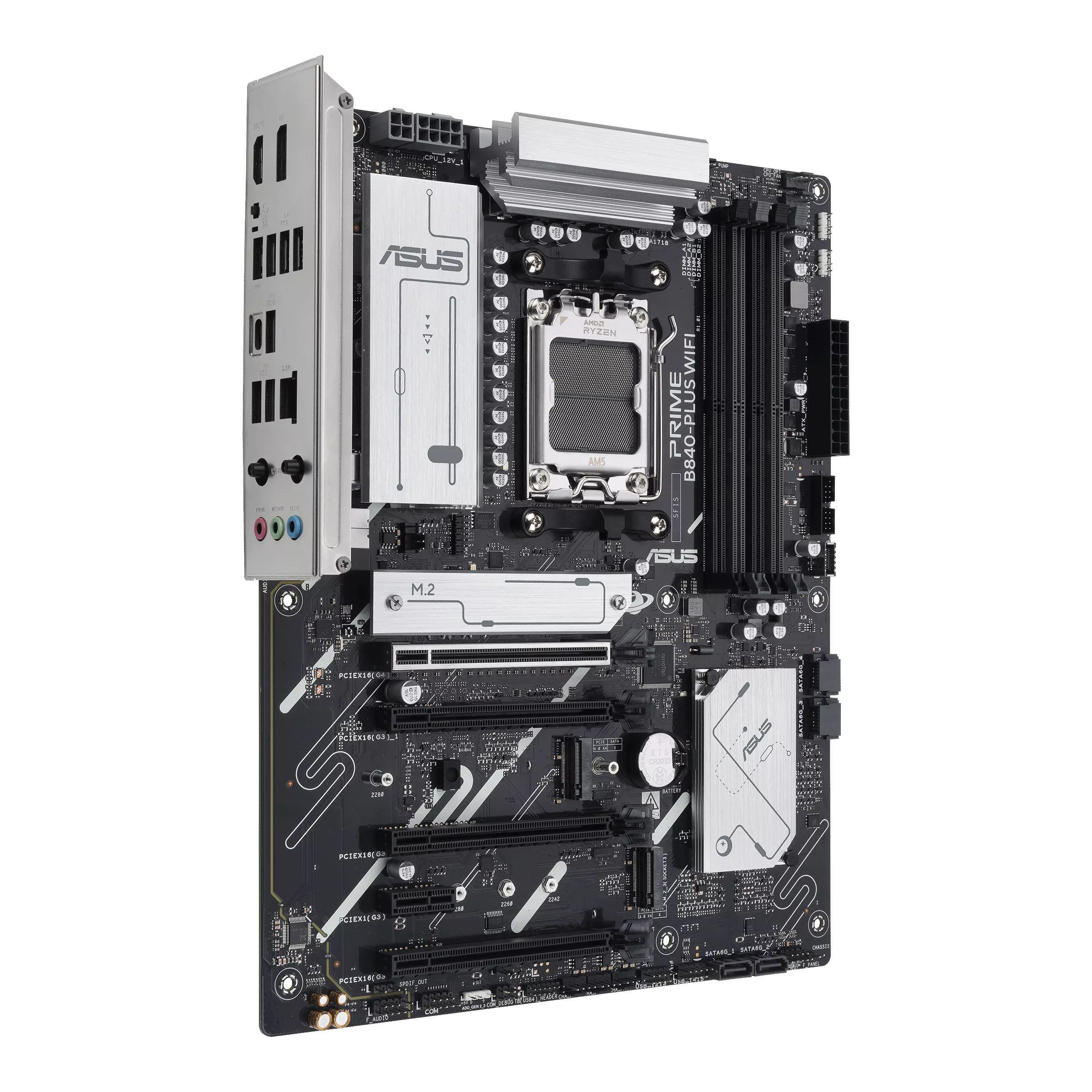

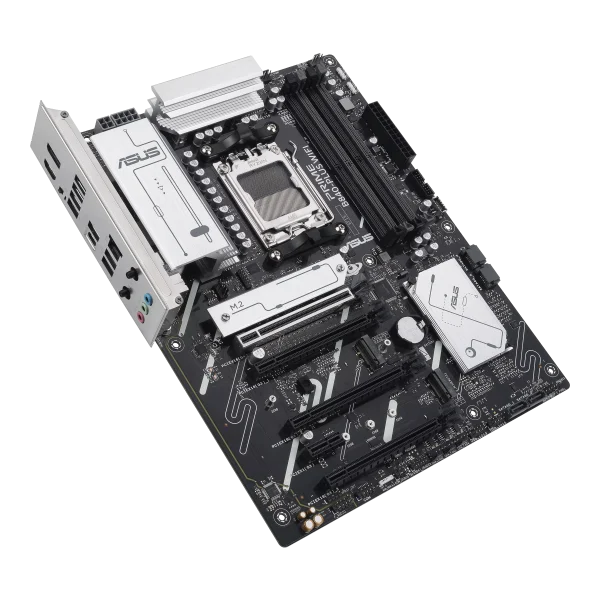

ASUS PRIME B840-PLUS WIFI Motherboard, AM5 Socket, 2.5Gb Ethernet, WiFi 6E, USB 10Gbps Type-C, Aura Sync
Original price was: AED 999.00.AED 799.00Current price is: AED 799.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
4
Items sold in last 24 hours
20
People watching this product now!
Performance
AI Solutions
ASUS AI Solutions include AI Cache Boost to supercharge large language model (LLM) workflows, ASUS AI Advisor as your technical expert with expertise in PC performance.
Performance

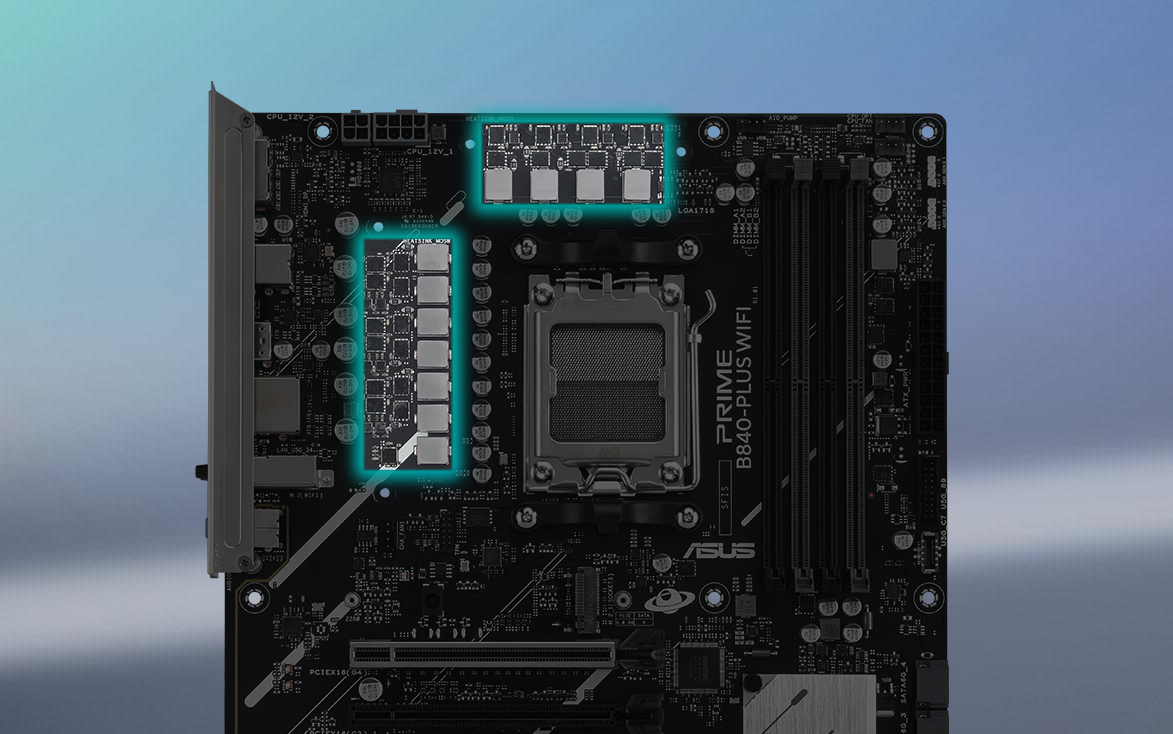

Digital Power Design
PRIME B840-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
Enhanced Memory & Storage Performance

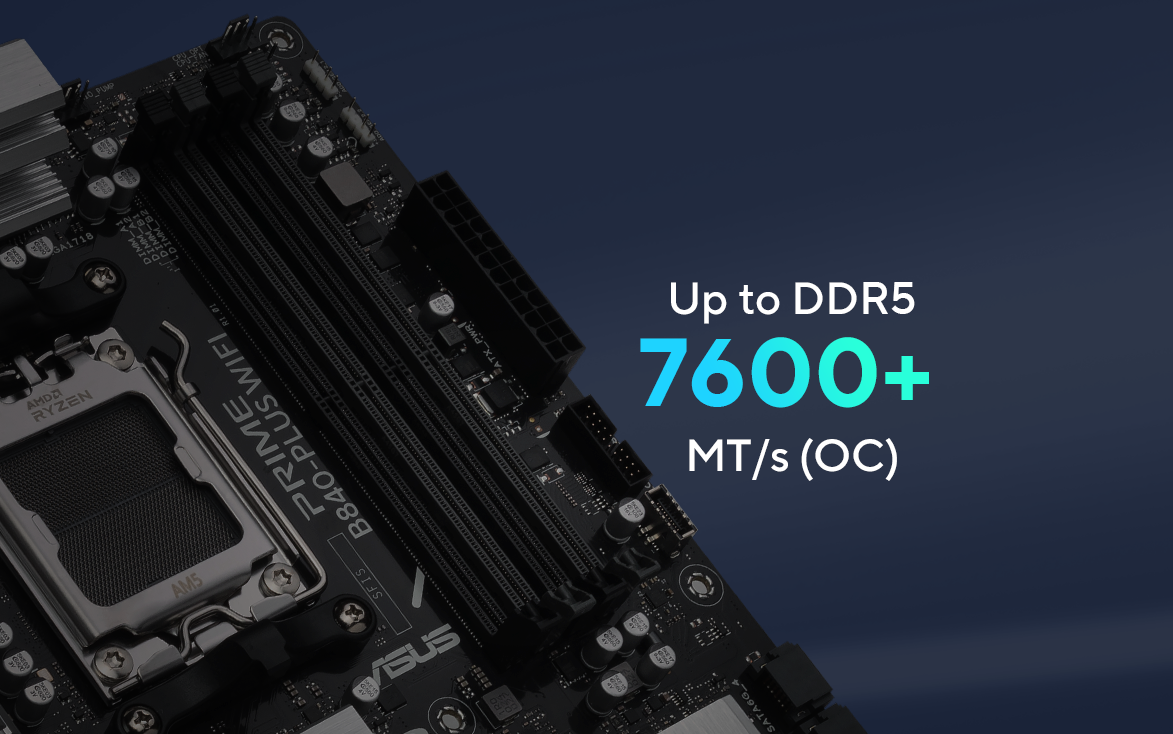

Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.1
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME B840-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.2

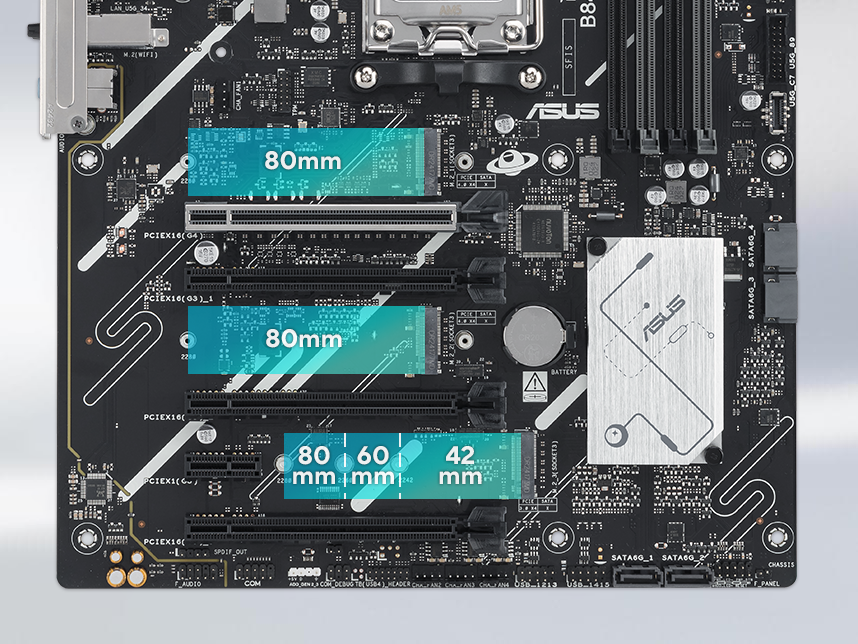

Three M.2 slots (up to 64 Gbps)
PRIME B840-PLUS WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.3
ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

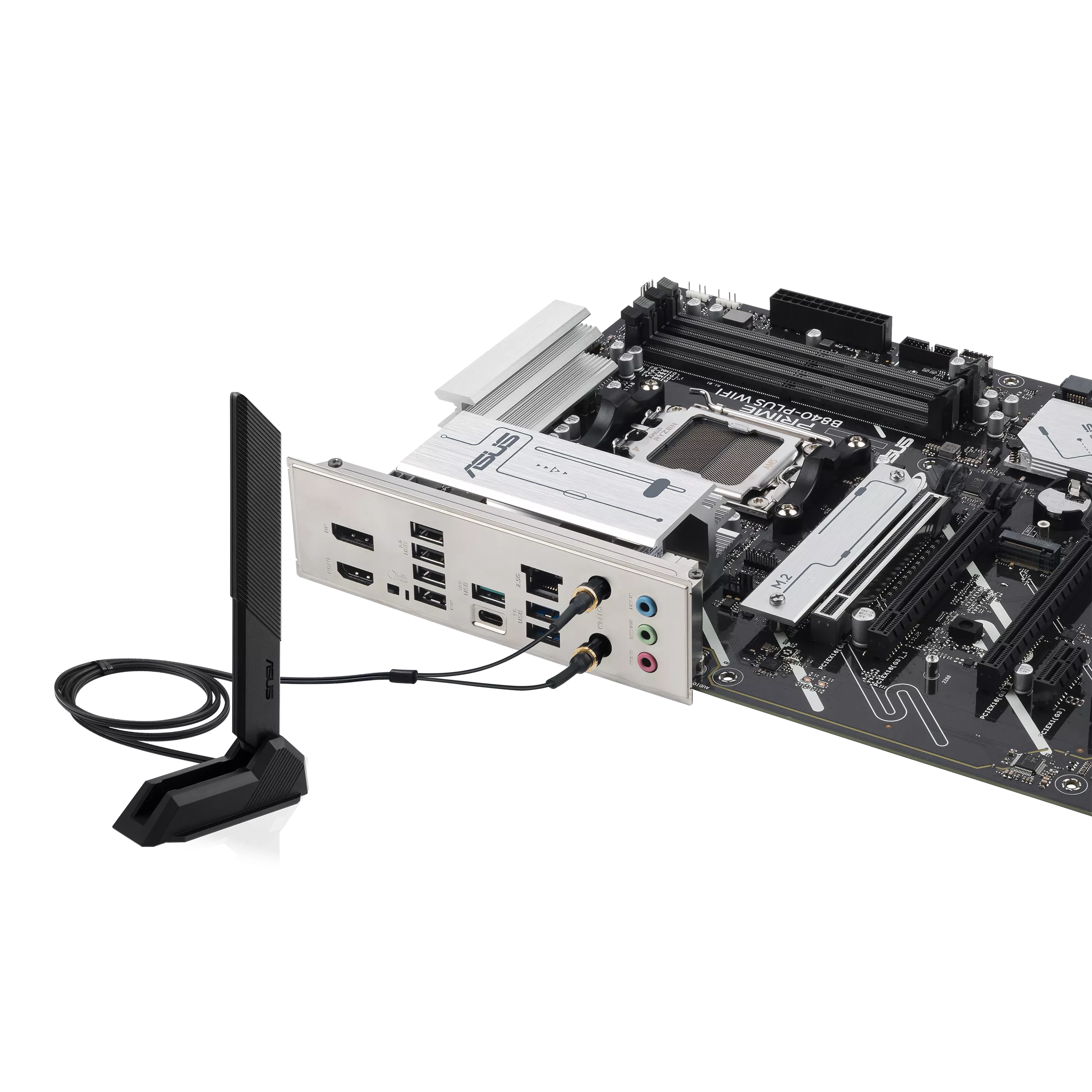

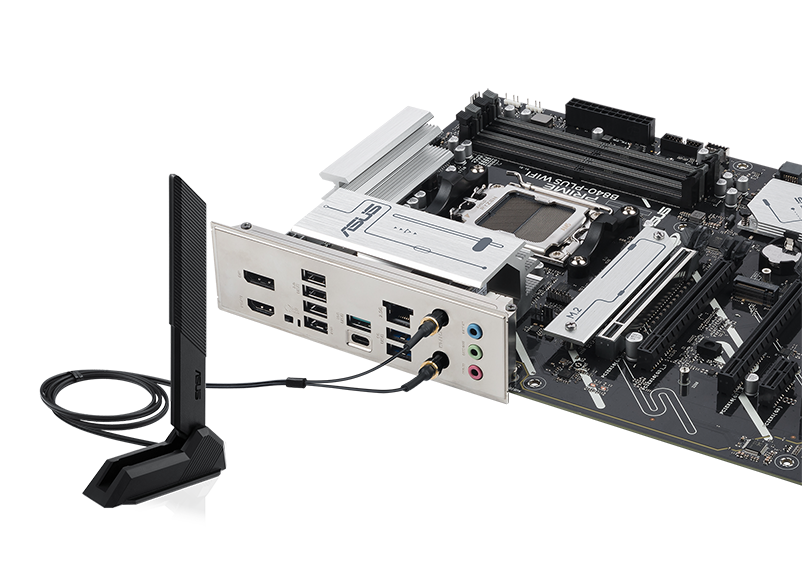

WiFi 6E
Built-in WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.
Specification
Chipset
- AMD B840 Chipset
Memory
- 4 × DIMM slots (Max 256GB DDR5)
- Supports up to 7600+ MT/s (OC)
- Supports ECC & Non-ECC (Un-buffered)
- Dual-channel architecture
- AMD EXPO™ & ASUS AEMP support
- On-die ECC supported (Non-ECC DDR5)
Graphics
- 1 × DisplayPort (Up to 8K @ 30Hz)
- 1 × HDMI (Up to 4K @ 60Hz)
- Graphics output depends on CPU
Expansion Slots
- 1 × PCIe 4.0 x16 slot
- 1 × PCIe 3.0 x16 slot (x4 mode)
- 2 × PCIe 3.0 x16 slots (x1 mode)
- 1 × PCIe 3.0 x1 slot
- Bandwidth sharing applies between some slots
Storage
- 3 × M.2 slots
- PCIe 4.0 & PCIe 3.0 support
- 4 × SATA 6Gb/s ports
RAID Support
- Ryzen 9000: RAID 0 / 1 / 5 / 10
- Ryzen 8000: RAID 0 / 1
- Ryzen 7000: RAID 0 / 1 / 10
Networking
- 1 × Realtek 2.5Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
- Wi-Fi 6E (2×2, 2.4 / 5 / 6 GHz)
- Bluetooth 5.3
USB Connectivity
Rear I/O (8 Ports)
- 1 × USB Type-C (10Gbps)
- 1 × USB Type-A (10Gbps)
- 2 × USB 5Gbps (Type-A)
- 4 × USB 2.0
Front I/O (7 Ports)
- 1 × USB-C (5Gbps)
- 2 × USB 5Gbps
- 4 × USB 2.0
Audio
- Realtek 7.1 HD Audio Codec
- Supports 24-bit / 192kHz playback
- Audio shielding & premium capacitors

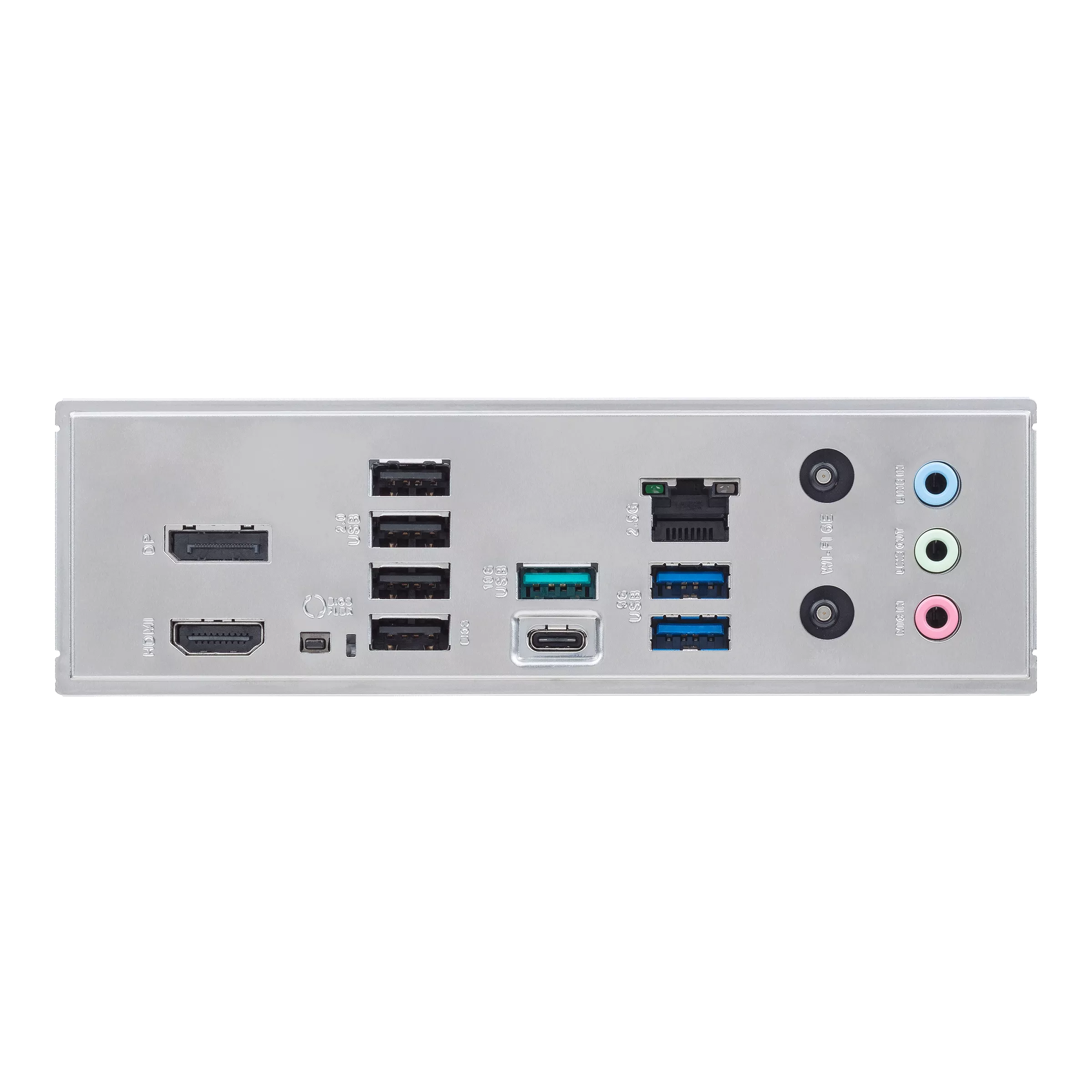

Back Panel I/O
- USB ports (as above)
- 1 × DisplayPort
- 1 × HDMI
- 1 × 2.5Gb Ethernet
- Wi-Fi module
- 3 × Audio jacks
- BIOS FlashBack™ button
Internal Connectors
Cooling
- CPU Fan & CPU OPT
- AIO Pump header
- 4 × Chassis Fan headers
Power
- 24-pin ATX
- 8-pin + 4-pin CPU power
Storage
- 3 × M.2
- 4 × SATA
USB & Expansion
- USB-C front header
- USB 5Gbps & USB 2.0 headers
- Thunderbolt™ (USB4®) header
RGB & Misc
- 3 × Addressable Gen 2 headers
- TPM header
- Clear CMOS
- Chassis intrusion
Special Features
- ASUS 5X Protection III
- BIOS FlashBack™
- Pre-mounted I/O shield
- SafeSlot Core+
- VRM & M.2 heatsinks
- Aura Sync RGB
Software
- Armoury Crate (Aura Sync, Fan Xpert)
- ASUS DriverHub
- ASUS GlideX
- Adobe Creative Cloud (Trial)
- Norton 360 (60 Days)
BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Accessories
- 2 × SATA cables
- Wi-Fi antenna
- M.2 screw kits
- Quick start guide
Operating System
- Windows 11
- Windows 10 (64-bit)
Form Factor
- ATX
- 12″ × 9.6″ (30.5 × 24.4 cm)
| Included Warranty | 1 Year Free Warranty |
|---|---|
| Standard Delivery | One Day Delivery |
Product Reviews
You must be logged in to post a review.
Product Additional information
| Included Warranty | 1 Year Free Warranty |
|---|---|
| Standard Delivery | One Day Delivery |
Related products

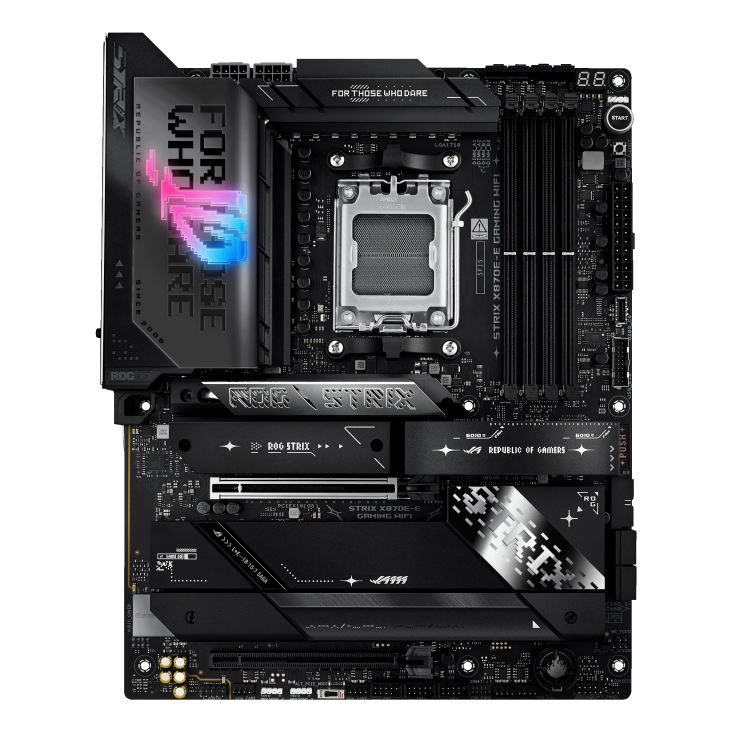

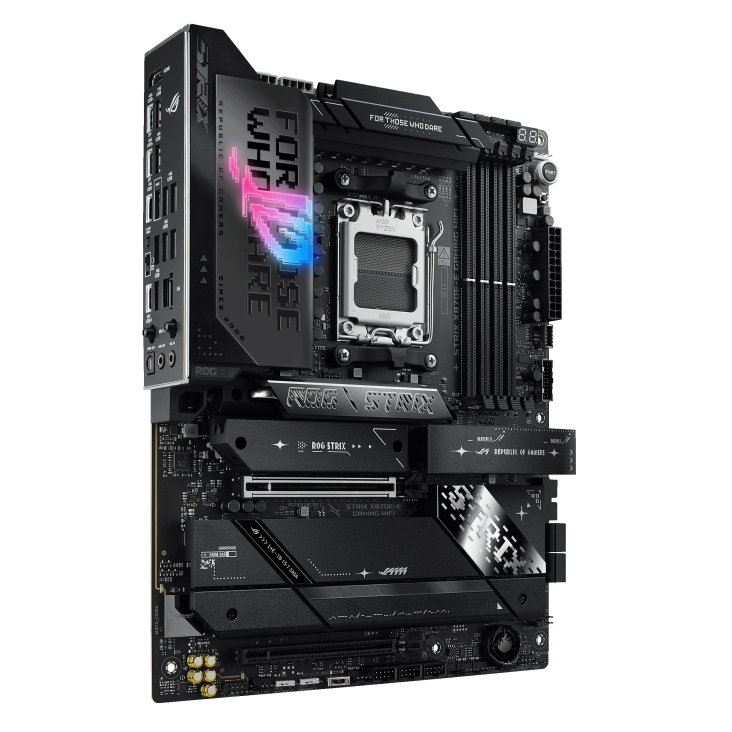

ASUS ROG STRIX X870E-E GAMING WIFI Motherboard, WIFI 7, PCIe Gen 5, Aura Sync, Max. 256GB DDR5
In stock
Original price was: AED 2,499.00.AED 2,235.00Current price is: AED 2,235.00.

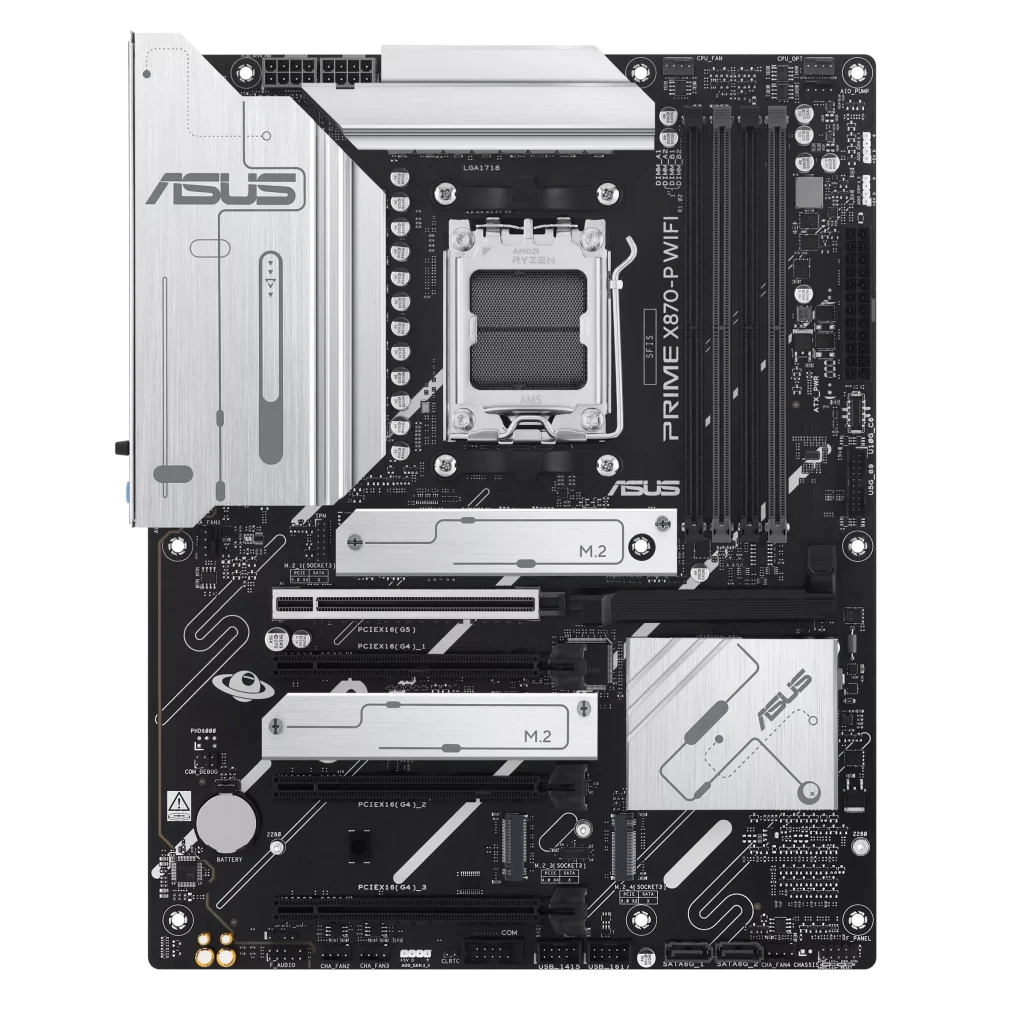

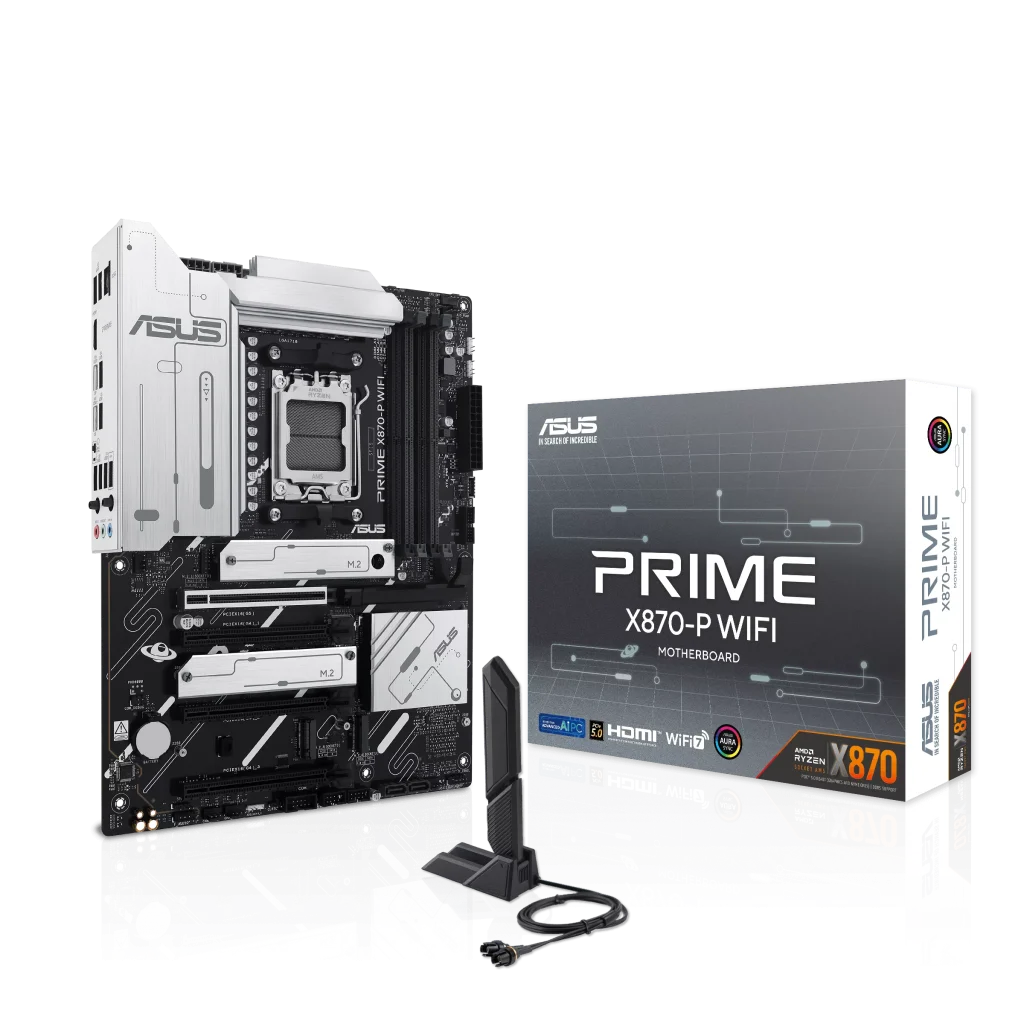

ASUS PRIME X870-P WIFI Motherboard, AM5 Socket, WiFi 7, USB 40Gbps Type-C, PCIe 5.0 slots, USB 10Gbps Type-C, Aura Sync
In stock
Original price was: AED 1,999.00.AED 1,199.00Current price is: AED 1,199.00.

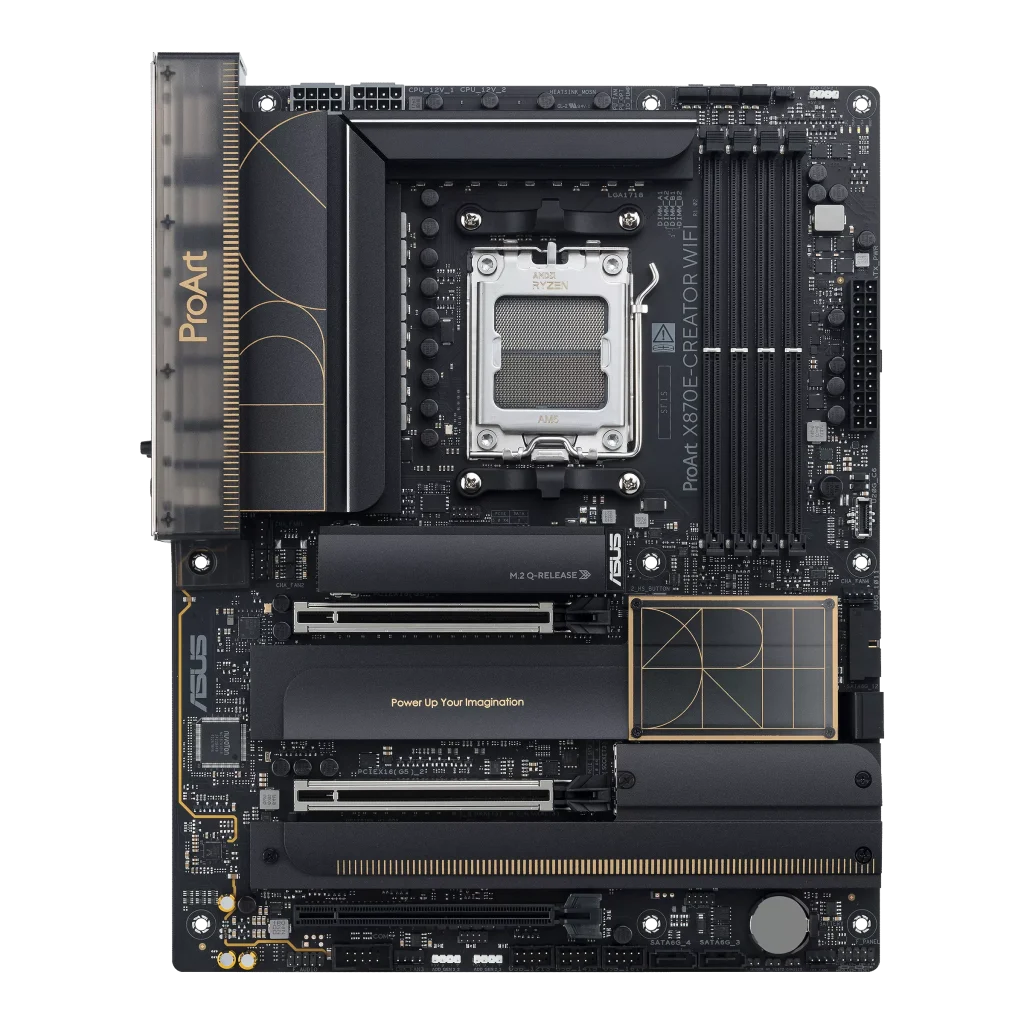

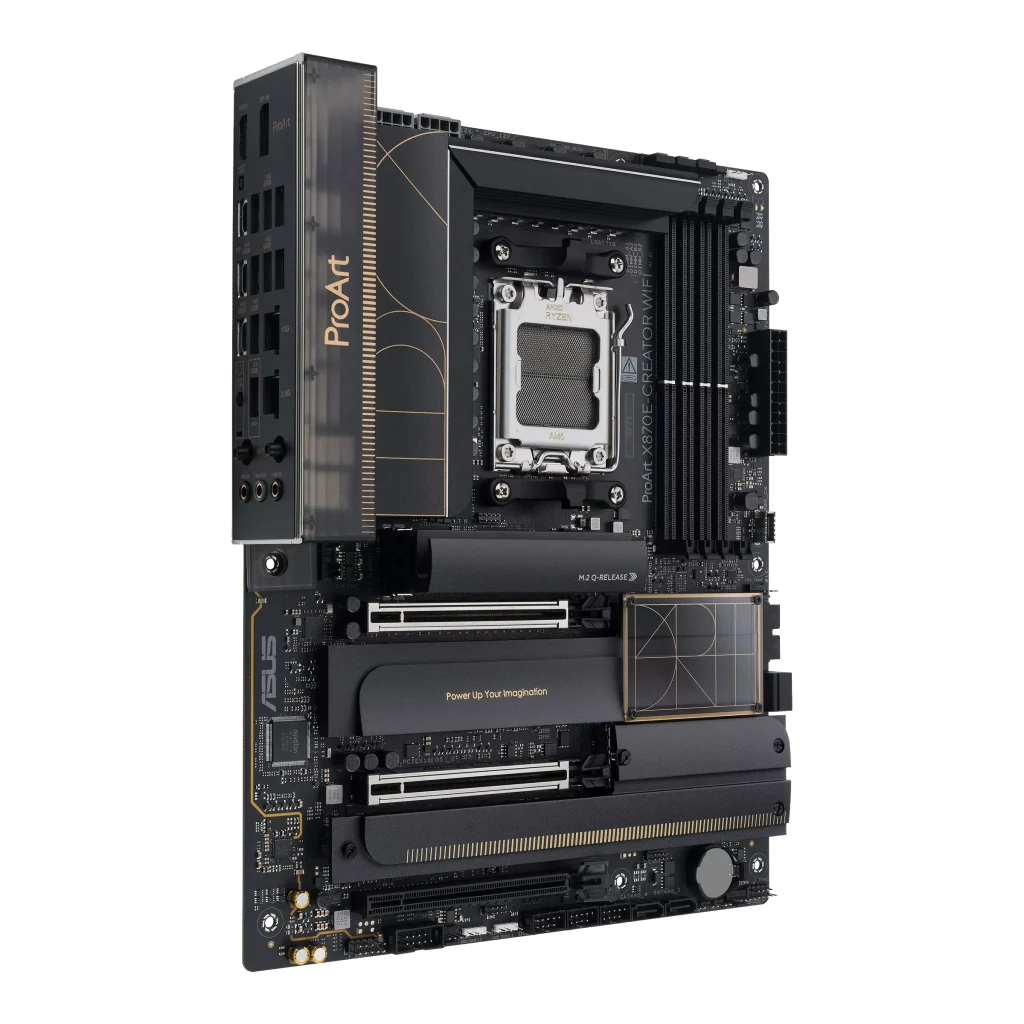

ASUS ProArt X870E-Creator WiFi Motherboard, AM5 Socket, Dual Ethernet & WiFi 7, PCIe 5.0, 10G and 2.5G Ethernet
