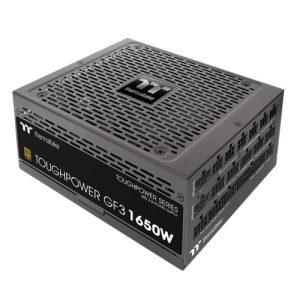

Thermaltake Toughpower GF3 1650W Gold – TT Premium Edition Power Supply, Native PCIe 12+4pin Connector, ATX 3.0 Compatible, PCIe 5.0 Compatible, Black
Quick Overview
- Designed with a native PCIe 12+4 pin connector for modern compatibility
- Fully compliant with Intel ATX 3.0 specification
- Built to support next-generation PCIe 5.0 graphics cards
- Native 16-pin (12VHPWR) connector delivers up to 600W power
- Optimized for high-performance GPU systems
- Recommended wattage based on Intel design guidelines
- Provides stable and efficient power for demanding setups
Note:
- Recommended wattage is an estimate of system power requirements
- Actual power consumption may vary depending on components and usage
Original price was: AED 1,849.00.AED 1,449.00Current price is: AED 1,449.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|

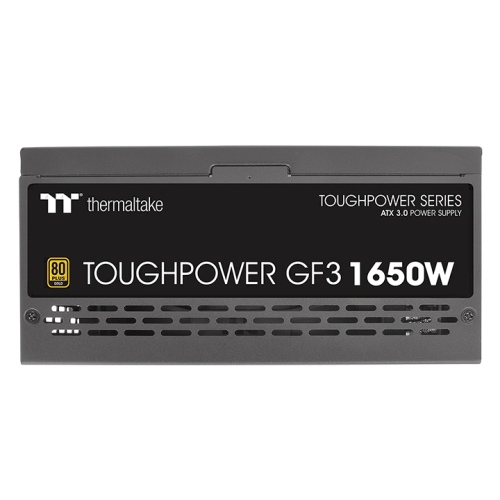

Toughpower GF3 1650W Gold – TT Premium Edition
PCIe Gen 5.0 Ready! Designed with two native PCIe 12+4pin modular connectors, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphic cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1650W comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.
Fully Compatible With Intel PSDG ATX 3.0 Specifications
Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.

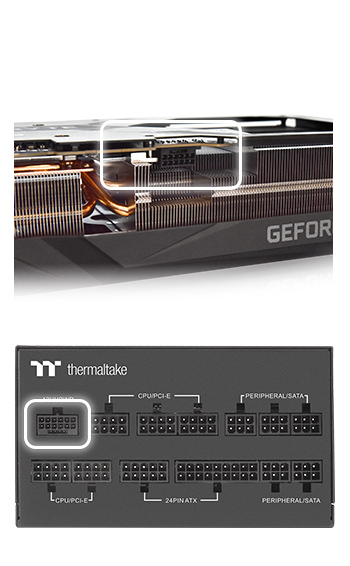

Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.

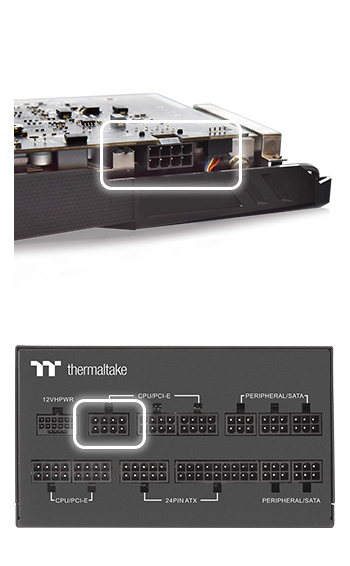

1 VGA Power Connector

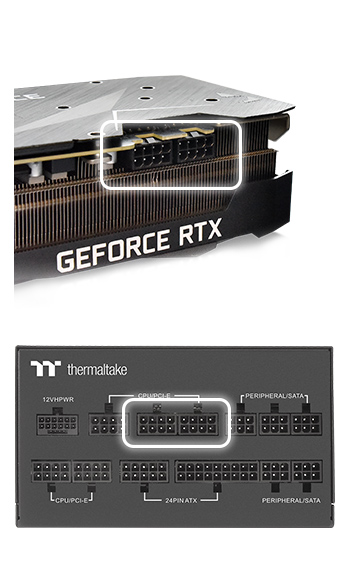

2 VGA Power Connector

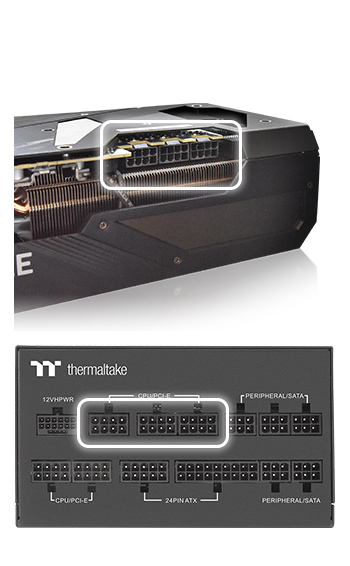

3 VGA Power Connector
16 pin VGA Power Connector

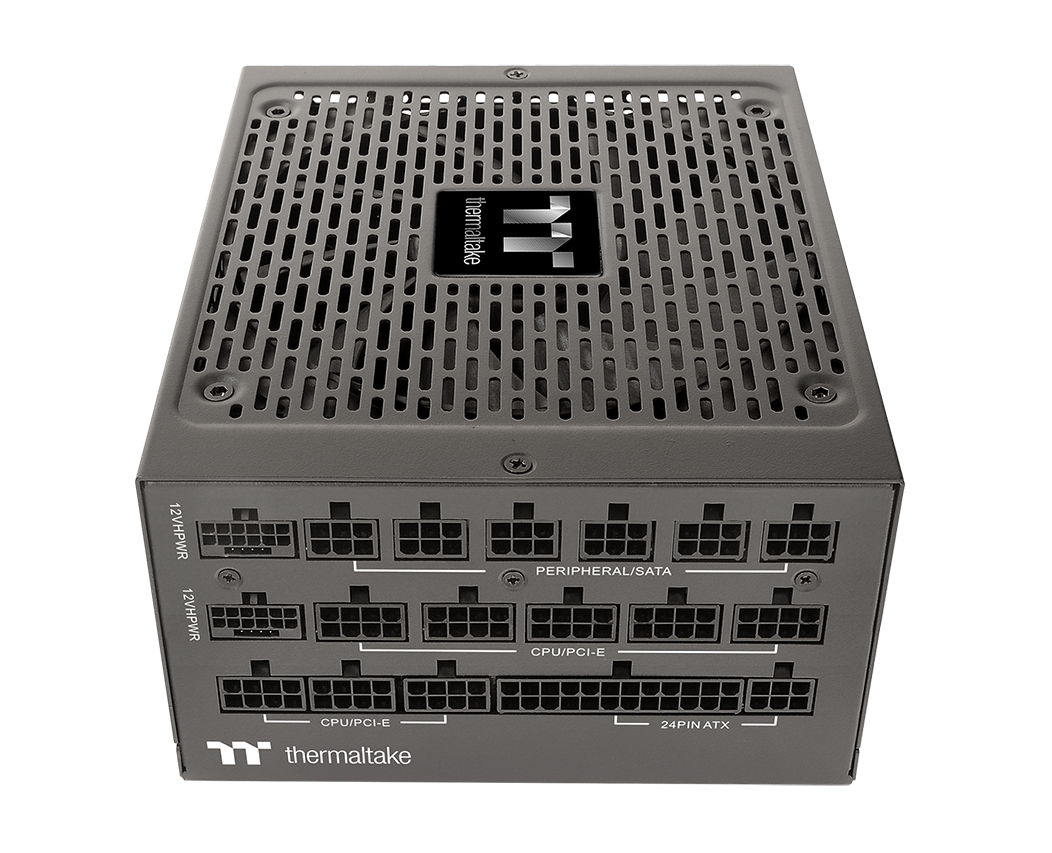

PCIe Gen 5.0 Ready
Toughpower GF3 1650W Gold comes with two 16pin connectors to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.
Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

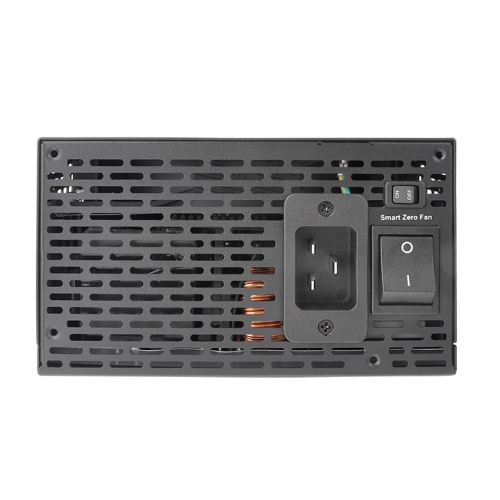

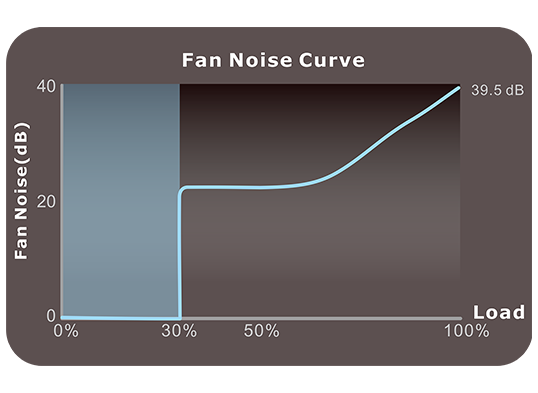

Ultra Quiet Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
Tested in a lab environment
Extremely Strict Voltage Regulation ＜±3%
The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±3% for +12V and +5V, providing steady clean power through exceptional voltage stability.

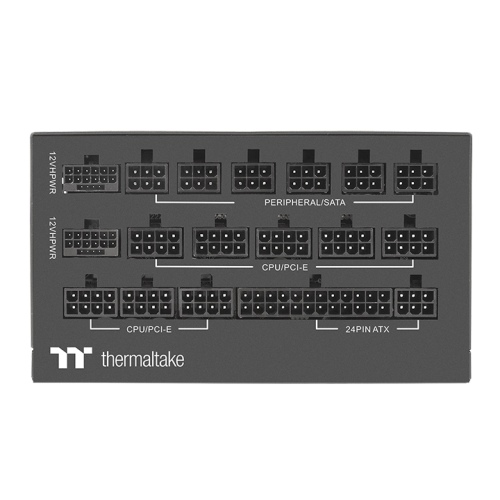

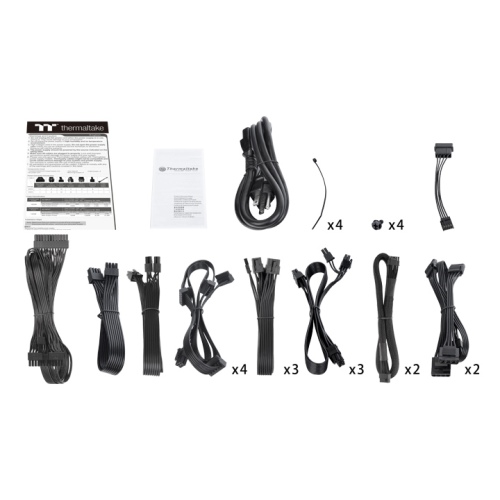

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
| Wattage | Connector Type | Connector Quantity per cable |
Cable Quantity | Cable Length | |
|---|---|---|---|---|---|
| Toughpower GF3 1650W | Main Power (24Pin) |
 |
1 | 1 | 600mm |
| ATX 12V (8Pin) |
 |
1 | 1 | 750mm | |
| ATX 12V (4+4Pin) |
 |
1 | 1 | 750mm | |
| PCIe (6+2Pin) |
 |
2 | 3 | 600mm + 150mm | |
| 1 | 3 | 600mm | |||
| PCIe (12+4Pin) |
 |
1 | 2 | 600mm | |
| SATA |  |
4 | 4 | 600mm + 150mm + 150mm + 150mm | |
| Peripheral |  |
4 | 2 | 600mm + 150mm + 150mm + 150mm | |
| Floppy Adapter |
 |
1 | 1 | 150mm | |
Specification
General Information
- Part Number (P/N): PS-TPD-1650FNFAGx-4
- Model: TPD-1650AH3FSG
- Max Output Capacity: 1650W
- Color: Black
Dimensions & Weight
- Dimensions: 15 cm (W) x 8.6 cm (H) x 18 cm (D)
- Weight: 2.14 KG
Power Details
- PFC: Active PFC
- Power Good Signal: 100–250 msec
- Input Current: 20 – 16A
- Input Voltage: 100 – 240V~
- Input Frequency: 50–60Hz
Environmental Conditions
- Operating Temperature: 0°C to +50°C
- Operating Humidity: 20% to 90% (non-condensing)
- Storage Temperature: -40°C to +70°C
- Storage Humidity: 20% to 95% (non-condensing)
Cooling & Performance
- Cooling System: 14 cm hydraulic bearing fan
- Efficiency: 80 PLUS® Gold certified (at 115V input)
- MTBF: 100,000 hours minimum
Connectivity
- PCI-E 6+2 Pin Connectors: 9
- PCIe 12+4 Pin Connectors: 2
Safety & Certifications
- Certifications: CE, UKCA, cTUVus, TÜV, FCC, IC, BSMI, EAC, CB, BIS, KCC
| Weight | 2.14 kg |
|---|---|
| Dimensions | 18 × 15 × 8.6 cm |
| Color | Black |
| Standard Delivery | One Day Delivery |
| Included Warranty | 1 Year Free Warranty |
