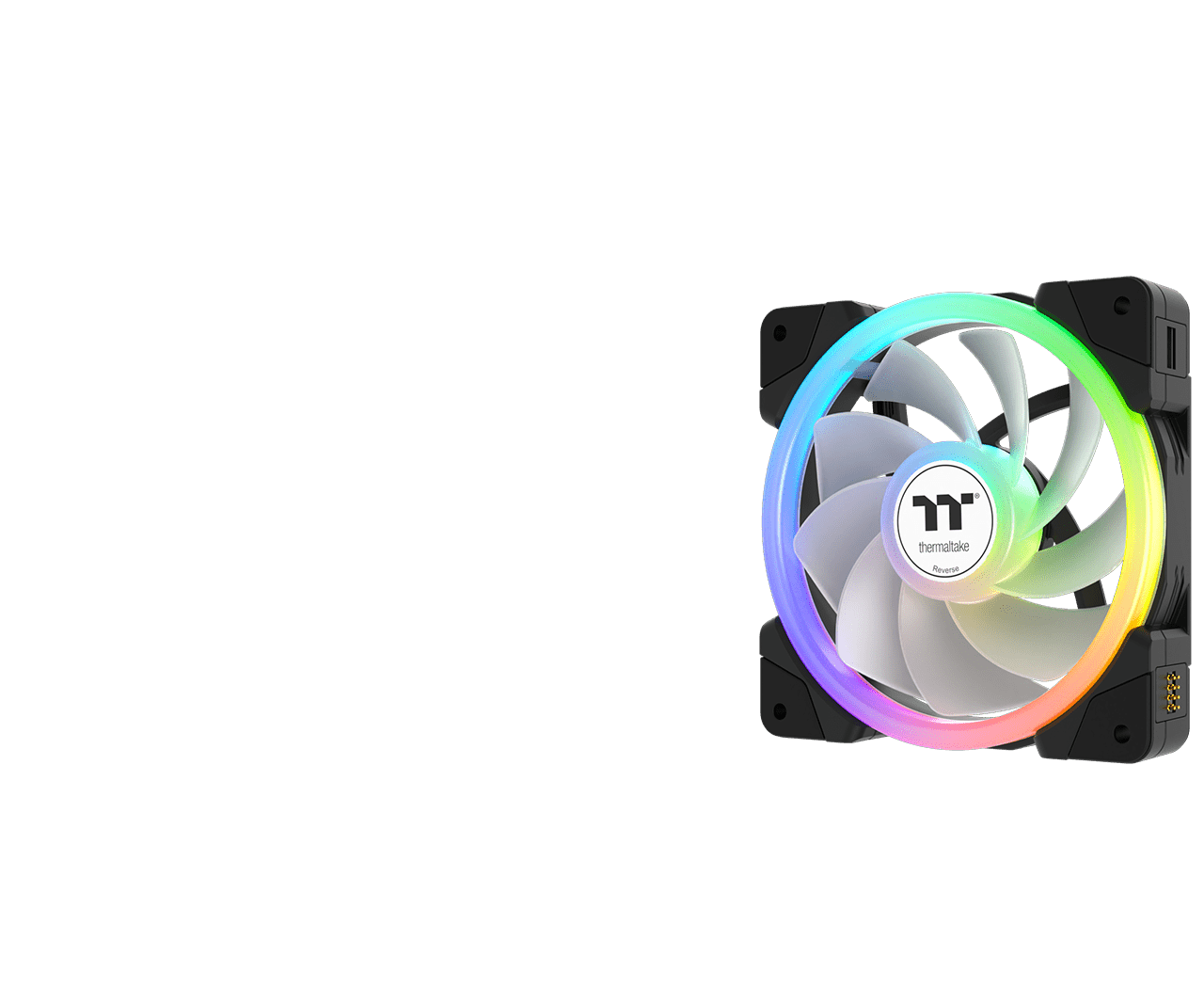

Thermaltake SWAFAN EX14 ARGB Sync PC Cooling Fan TT Premium Edition Case Fans (3-Fan Pack), Magnetic Force Design, ARGB Lighting Sync, Swappable Fan Blade Design, Black

Quick Overview

Magnetic force design ARGB fan for quick and secure fan connections
Maintains swappable fan blade design for flexible airflow customization
Supports daisy-chaining up to 3 fans per cable
Improves installation efficiency and user convenience
Enhances cable management for clean PC builds
Designed for modern RGB gaming systems
Combines performance, flexibility, and aesthetics

SKU: CL-F168-PL14SW-A Categories: Case Fans, Computer Components Tag: ARGB Case Fan

Original price was: AED 649.00.Current price is: AED 325.00.

Warranty

Included Warranty	1 Year Free Warranty

Delivery

Standard Delivery	One Day Delivery

3 Items sold in last 24 hours

13 People watching this product now!

Description
Additional information

Quick Connect with Magnetic Force Design

Our magnetic force design ARGB version enables the connection of both the 12V PWM cable and the 5V ARGB lighting cable to a single magnetic connector; simply placing the fans side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.

Caution: Due to safety and motherboard software signal limitations, SWAFAN EX ARGB is only recommended to daisy-chain maximum 5 fans per cable.

Say Goodbye to Excessive Cables

Connect your fans with SWAFAN EX’s Magnetic Force Quick Connect Design and be free from messy cables!

Swap the Fan Blades as You Like

Simply pop out the fan blades, switch up the blades and press them back in!

The Ultimate Cooling Performance of an RGB Fan

The design guarantees optimal cooling performance under different conditions, like installing fans on thick radiators or air coolers or even a chassis with multiple filters that are difficult to have air naturally pass through.

Standard Fan Blades has an air pressure of 3.17 mmH2O (Max) and airflow of 81.6 CFM (Max), and can bring air from front to the back.

Cleaning Fans are now Easy and Fun!

Pop and insert, it is that easy.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant that is included in the package if needed.

Don’t Turn Your Back on Lighting Ever Again!

No more sacrificing aesthetics for your airflow direction; SWAFAN EX can now do both!

Great Lighting Effects with 16.8M Colors

Two independent LED rings with 20 LEDs (Inner ring: 6, Outer ring: 14) allows you to explore different build themes with 5V motherboard sync lighting software.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Specification

General Information

Part Number (P/N): CL-F168-PL14SW-A

Dimensions

Fan Dimensions: 14 cm (L) x 14 cm (W) x 2.5 cm (H)

Fan Details

Fan Speed: PWM 500 ~ 2000 R.P.M
Fan Started Voltage: 9.0V
Fan Rated Voltage: 12V & 5V
Rated Current: 12V – 0.32A, 5V – 0.72A (one fan)
Power Input: 12V – 3.84W, 5V – 3.6W (one fan)

Performance

Max Air Flow (Standard Fan Blade): 81.6 CFM (one fan)
Max Air Flow (Reverse Fan Blade): 79.3 CFM (one fan)
Max Air Pressure (Standard Fan Blade): 3.17 mm-H2O (one fan)
Max Air Pressure (Reverse Fan Blade): 2.73 mm-H2O (one fan)
Noise Level (Standard Fan Blade): 34.5 dB-A (one fan)
Noise Level (Reverse Fan Blade): 38.8 dB-A (one fan)

Build & Durability

Bearing Type: Hydraulic Bearing
Life Expectation: 40,000 hrs (25℃)

Connectivity

Interface: 2510-4 PIN PWM, 5V ARGB header – 3PIN

Included Accessories

Fan Frames x 3
Standard Fan Blade x 3 (Pre-installed)
Reverse Fan Blade x 3
Cable x 3

Dimensions	14 × 14 × 2.5 cm
Color	Black
Standard Delivery	One Day Delivery
Included Warranty	1 Year Free Warranty
