High-Quality Components

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

High amperage Single +12V Rail

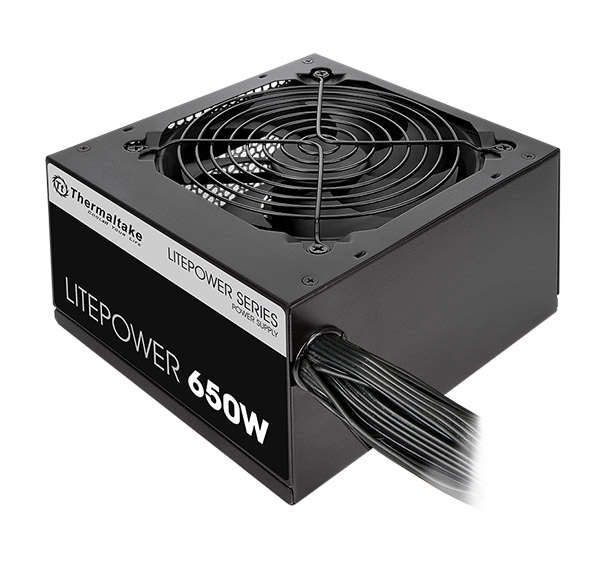

The Litepower 650W is equipped with powerful +12V rails, superior performance under all types of system loading.

Built-in Industrial Grade Protection

To protect the hardware, the Litepower 650W is built with industry grade protections: OVP (Over Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection).

Specification

General

• Product Name / Model: LTP-650AL2NK
• Part Number (P/N): PS-LTP-0650NPCNxx-2
• Power Output: 650W
• Efficiency Rating: 80 PLUS® Gold (at 115V AC input)
• PFC Type: Active PFC
• MTBF: 100,000 hours minimum

Input Specifications

• Input Voltage: 230V
• Input Current: 9A
• Input Frequency Range: 50 ~ 60Hz
• Power Good Signal: 100 – 500 ms
• Hold-Up Time: >16 ms

Environmental Conditions

• Operating Temperature: +5°C to +35°C
• Operating Humidity: 20% to 85% (non-condensing)
• Storage Temperature: -40°C to +55°C
• Storage Humidity: 10% to 95% (non-condensing)

Cooling

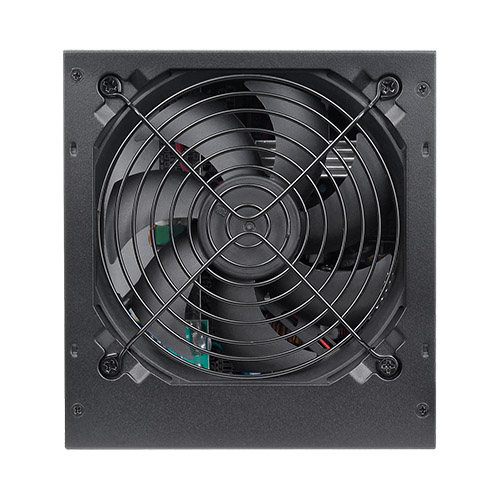

• Cooling System: 120 mm Fan
• Fan Speed: 2000 ±10% RPM

Connectors

• PCIe (6+2 pin): 2

Protection Features

• OVP: Over Voltage Protection
• OPP: Over Power Protection
• SCP: Short Circuit Protection

Dimensions

• Size (W x H x D):
  150 x 86 x 140 mm
