Thermaltake AX100, Case Accessories, Exclusive AX700 Series Chassis Compatibility, Modular Complete Assembly Concept, Enhanced Vertical Expansion Base, Black
Quick Overview
- Pedestal expansion designed for AX700 Series chassis
- Features a complete assembly concept for seamless integration
- Enhances overall system capacity and flexibility
- Ideal for advanced cooling and storage configurations
Original price was: AED 749.00.AED 538.13Current price is: AED 538.13.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
AX100

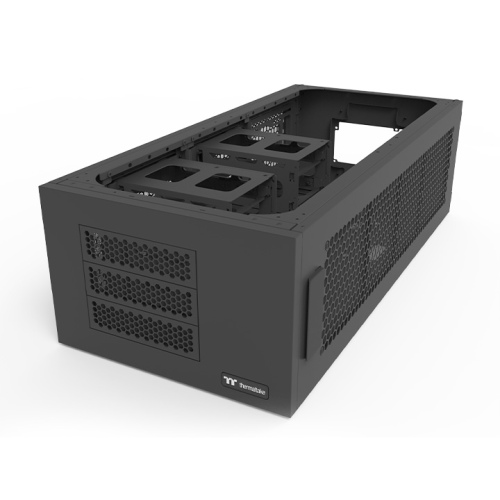

The AX100 is an add-on chamber that enhances the AX700 chassis by adding extra power, storage, and cooling options. It supports a standard PS2 PSU for additional power management and offers space for up to eight HDDs or SSDs. Additionally, the AX100 accommodates up to eight 120mm or 140mm fans and dual 560mm radiators on both sides for optimal thermal performance.
Versatile Expandability
The AX700 or AX700 TG Super Tower Chassis, when combined with the AX100 pedestal, offers multiple stacking options, either on top or bottom, or both top and bottom, creating an expandable system for enthusiasts. This setup allows for enhanced liquid cooling, storage, or dual system configurations, taking the expandability to the next level.
Storage Support
For storage compatibility, The AX100 supports up to eight 2.5‘’ SSDs or 3.5‘’ HDDs in total.
Perfect Dust Protection

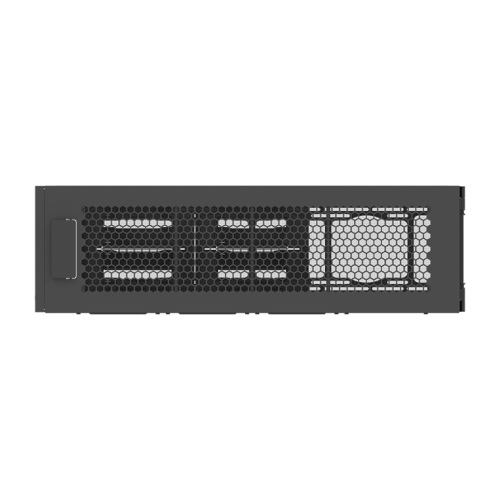

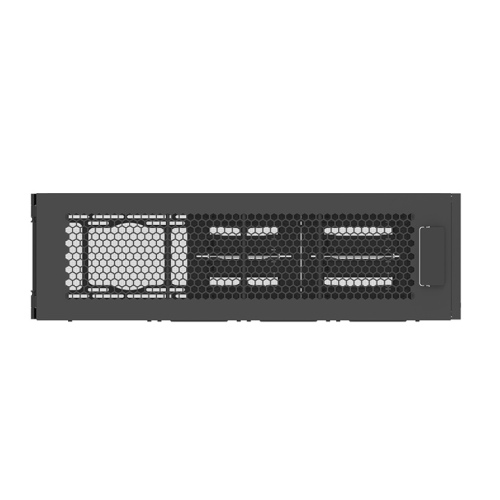

The AX100 features dust filters on the front, left and right sides to protect the system.
DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Specification
General Information
- Part Number (P/N): CA-11C-00D1NN-00
- Series: AX Series
- Model: AX100
- Case Type: Pedestal
- Color: Black
Dimensions
- Case Dimensions: 67.83 cm (L) x 32.0 cm (W) x 20.1 cm (H)
Build & Materials
- Material: SPCC
- Panels: Steel
Cooling System
- No pre-installed fans
Drive Bays
- 8 x 3.5” or 2.5” (HDD Cage)
PSU Support
- Standard PS2 PSU (optional)
Fan Support
- Left Side: Up to 4 x 120mm / 4 x 140mm
- Right Side: Up to 4 x 120mm / 4 x 140mm
Radiator Support
- Left Side: Up to 560mm / 480mm
- Right Side: Up to 560mm / 480mm
Clearance
- PSU Max Length: 22 cm (with two bottom fans installed)
| Dimensions | 67.83 × 32.0 × 20.1 cm |
|---|---|
| Color | Black |
| Standard Delivery | One Day Delivery |
| Included Warranty | 1 Year Free Warranty |
Product Reviews
You must be logged in to post a review.
Product Additional information
| Dimensions | 67.83 × 32.0 × 20.1 cm |
|---|---|
| Color | Black |
| Standard Delivery | One Day Delivery |
| Included Warranty | 1 Year Free Warranty |
