MSI PRO H610M-E Micro-ATX Motherboard, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Quick Overview
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 5600(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Original price was: AED 599.00.AED 389.00Current price is: AED 389.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|

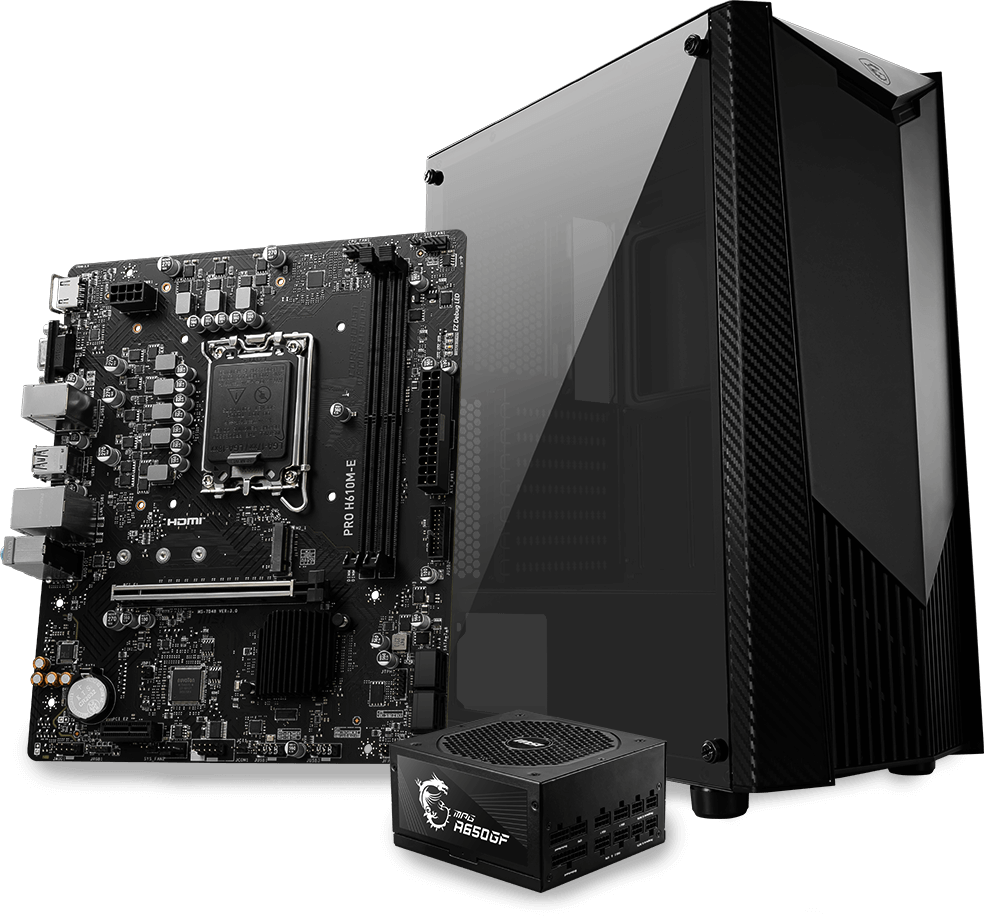

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

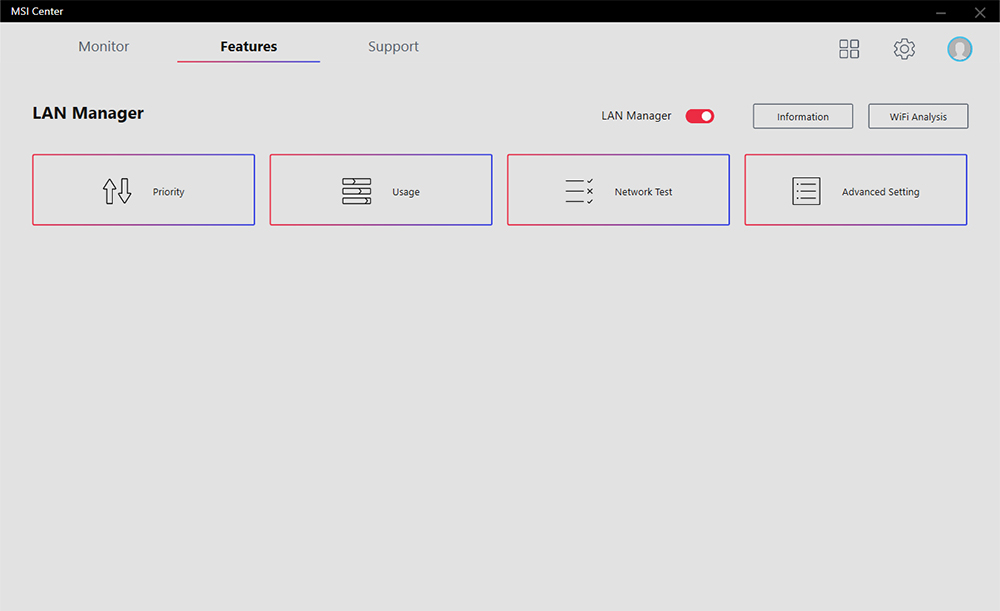

OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
MSI LAN MANAGER
– Allows you to change applications’ traffic priority –
– Allows you to customize bandwidth for each application –

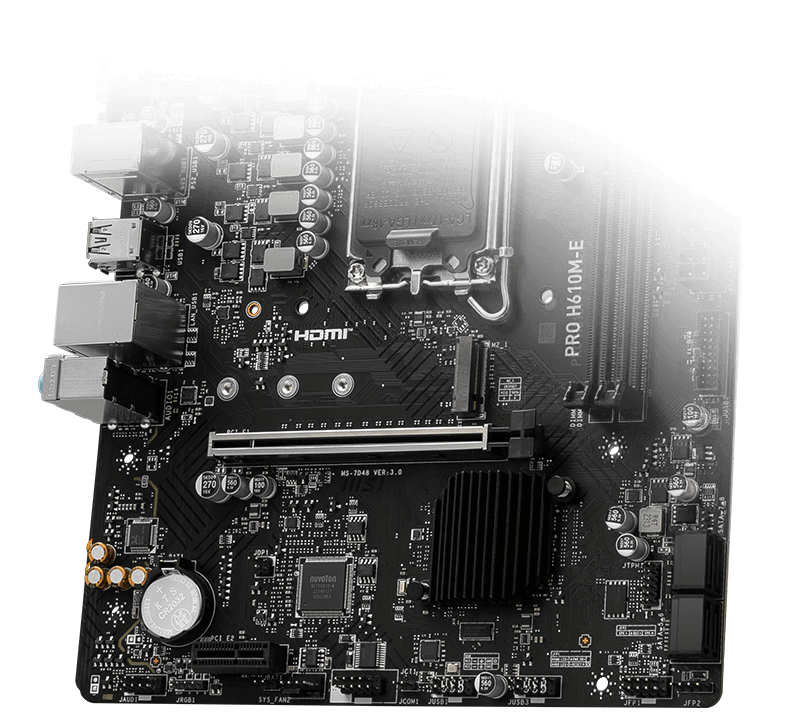

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
Specification
Chipset
- Intel® H610 Chipset
CPU Support
- Supports Intel® Core™ 14th / 13th / 12th Gen Processors
- Supports Intel® Pentium® Gold & Celeron® Processors
- Socket: LGA 1700
Memory
- 2× DDR5 DIMM Slots
- Maximum Capacity: 96GB
- Memory Speed: DDR5 5600 MHz (JEDEC & POR)
- Supports Intel® XMP 3.0 (Overclocking)
- Dual-Channel Mode Supported
- Supports non-ECC, un-buffered memory
Graphics Output
- 1× HDMI™ (Supports 4K @ 30Hz, HDMI 1.4 with HDR)
- 1× VGA (Up to 2048×1536 @ 50Hz / 1920×1200 @ 60Hz)
- Graphics output depends on CPU with integrated GPU
Expansion Slots
- 1× PCIe x16 (Gen 4.0, from CPU)
- 1× PCIe x1 (Gen 3.0, from Chipset)
Audio
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Storage
- 1× M.2 Slot
- Supports PCIe 3.0 x4 / SATA mode
- Supports 2242 / 2260 / 2280 devices
- 4× SATA 6Gb/s Ports
- SATA5 unavailable when M.2 SATA SSD is installed
Connectivity
- Realtek® RTL8111H Gigabit LAN
USB Ports
Rear Panel:
- 2× USB 3.2 Gen 1 (5Gbps, Type-A)
- 4× USB 2.0
Front Panel:
- 2× USB 3.2 Gen 1 (5Gbps, Type-A)
- 4× USB 2.0
Internal I/O Connectors
- 1× ATX Power Connector
- 1× CPU Power Connector
- 1× CPU Fan Header
- 2× System Fan Headers
- 2× Front Panel Headers
- 1× Chassis Intrusion Connector
- 1× Front Audio Header
- 1× COM Port Header
- 1× RGB LED Connector
- 1× TPM Header (TPM 2.0 Support)
- USB Headers (USB 2.0 & USB 5Gbps)
LED Features
- 4× EZ Debug LEDs
Back Panel Ports
- HDMI™
- VGA
- PS/2 Keyboard/Mouse Combo
- USB 3.2 Gen 1 Type-A
- USB 2.0 Ports
- LAN (RJ-45)
- Audio Jacks
Operating System Support
- Windows® 11 (64-bit)
- Windows® 10 (64-bit)
Form Factor & Dimensions
- Form Factor: mATX
- Dimensions: 200mm × 236.16mm
Box Contents
- Motherboard
- User Manual
- I/O Shield
- SATA Cables
