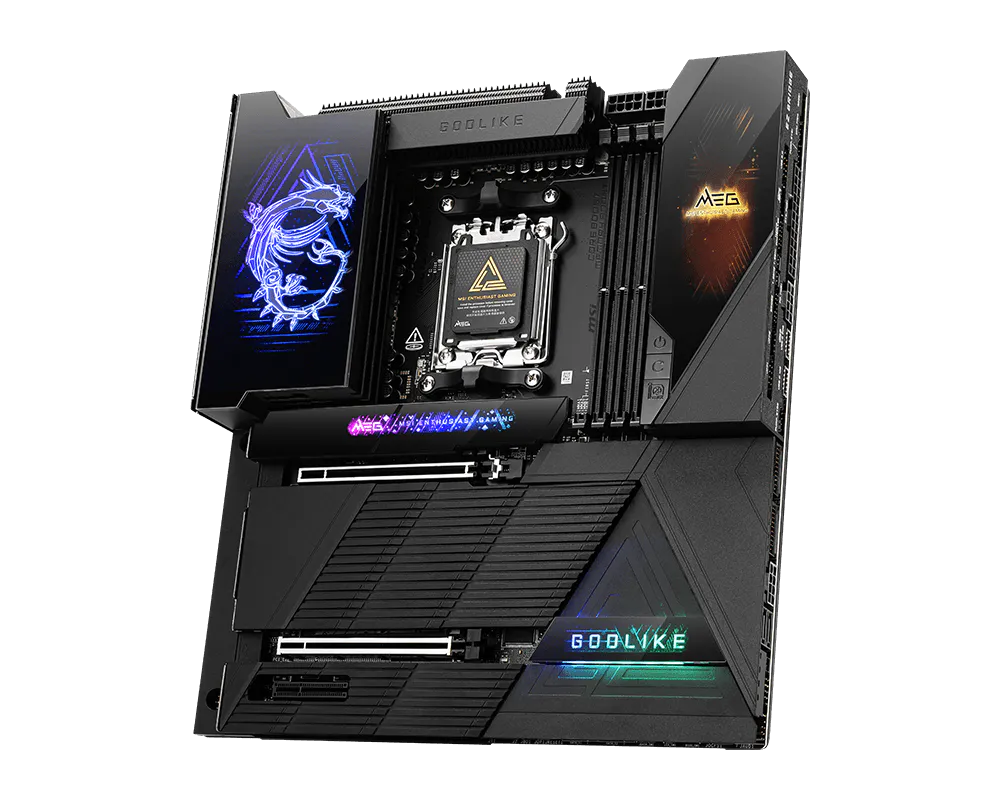

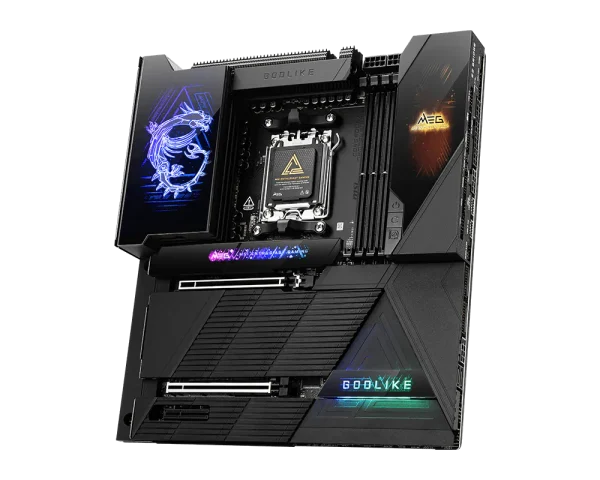

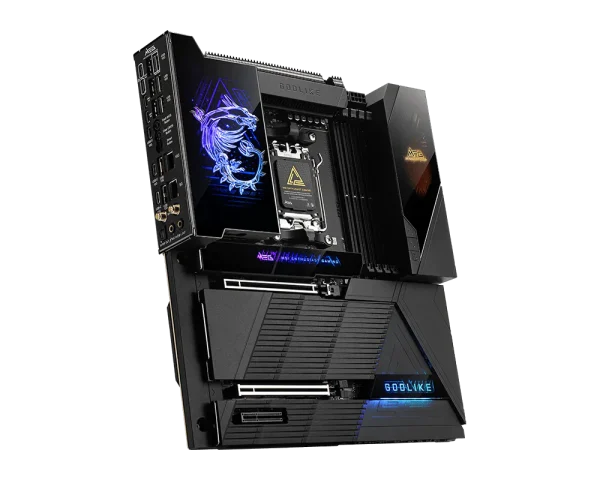

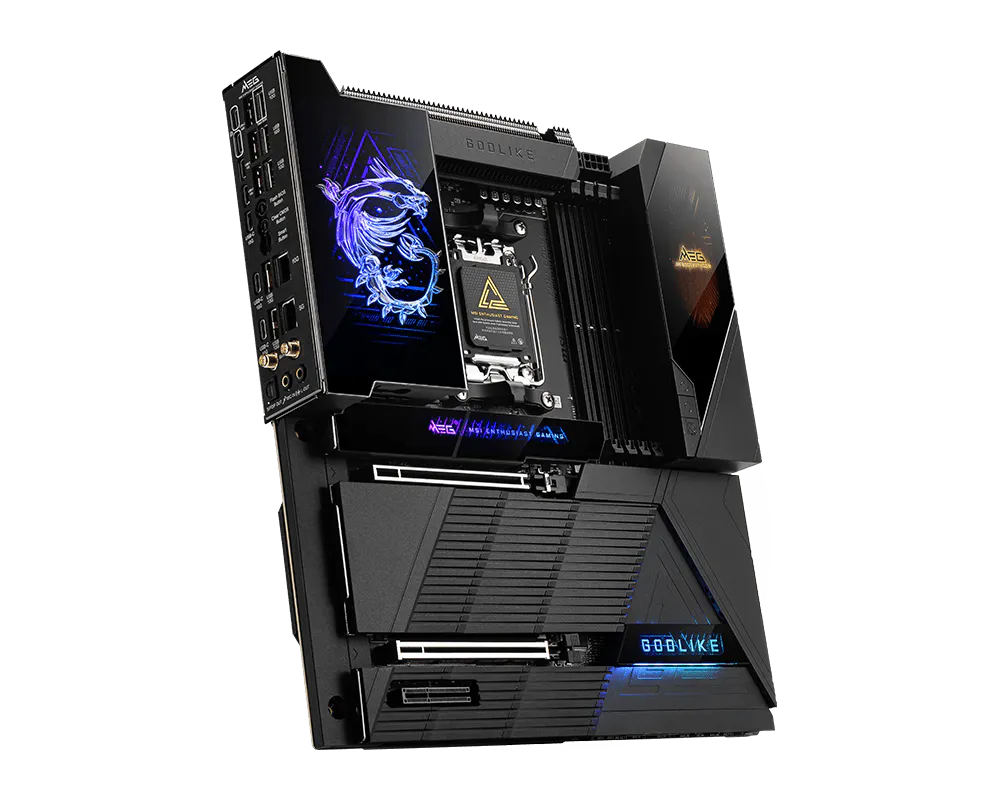

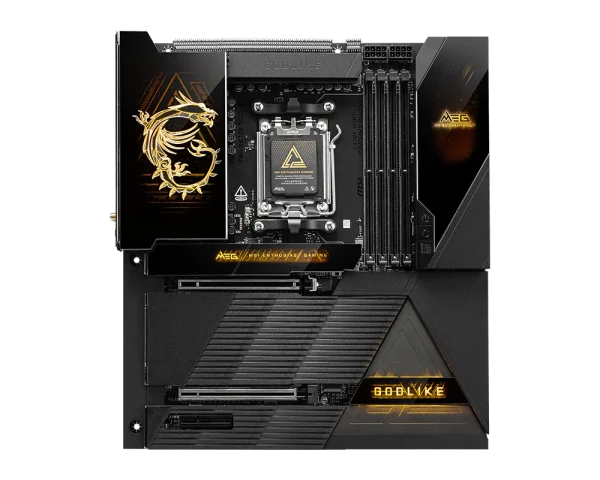

Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.

Dynamic Dashboard III

A 3.99-inch full-color LCD offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalization options, significantly enhancing the overall user experience.

EZ LINK

The GODLIKE-exclusive EZ Link design consolidates most of the case front panel headers, fan headers, and RGB headers into the EZ Bridge and EZ Control Hub, simplifying installation and creating a cleaner aesthetic.

Simplify Cable Management

Magnetic Design

INTRO SHOWCASE

LIGHTNING GEN 5 SOLUTION

Dual SMT PCIe 5.0 Slots
with Steel Armor II

Onboard 5x M.2 Slots with Lightning Gen 5 Solution

Optimal Efficiency

Specification

Chipset

• AMD X870E Chipset

Processor (CPU)

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Socket: AM5

Memory

• 4 x DDR5 UDIMM slots
• Maximum capacity: 256GB

Memory Speeds

• 9200 – 5600 MT/s (OC)
• 5600 – 4800 MT/s (JEDEC)

Overclocking (Ryzen™ 9000 Series)

• 1DPC 1R: up to 8400+ MT/s
• 1DPC 2R: up to 6400+ MT/s
• 2DPC 1R: up to 6400+ MT/s
• 2DPC 2R: up to 6400+ MT/s

Features

• AMD EXPO™ memory overclocking
• Dual-channel architecture
• Non-ECC, unbuffered memory
• CUDIMM support (platform dependent)

Graphics (Onboard)

• 2 x USB4® Type-C (DisplayPort 1.4)
  • Up to 4K @ 60Hz
• Requires CPU with integrated graphics

Expansion Slots

• 2 x PCIe 5.0 x16 slots (CPU, x16 / x8+x8 mode)
• 1 x PCIe 4.0 x4 slot (Chipset)

Storage

• Up to 7 x M.2 slots (Ultra-High Expansion):
  • 2 x PCIe 5.0 x4 (CPU)
  • Multiple PCIe 4.0 x4 / x2 slots (Chipset)
  • Additional 2 x PCIe 5.0 M.2 via expansion card
• 4 x SATA 6Gb/s ports

RAID Support

• SATA: RAID 0 / 1 / 10
• M.2 NVMe: RAID 0 / 1 / 5 / 10
• RAID 5 supported on Ryzen™ 9000 series only

USB Connectivity (Extreme I/O)

Rear Ports

• 8 x USB 10Gbps (Type-A)
• 5 x USB 10Gbps (Type-C)
• 2 x USB 40Gbps (USB4 Type-C)

Front Ports

• 4 x USB 2.0
• 4 x USB 5Gbps (Type-A)
• 1 x USB 10Gbps (Type-C)
• 1 x USB 20Gbps (Type-C)

Networking (Dual LAN)

• Marvell® AQC113CS 10Gbps LAN
• Realtek® 8126 5Gbps LAN

Wireless & Bluetooth

• Wi-Fi 7 (pre-installed)
  • Tri-band: 2.4GHz / 5GHz / 6GHz
  • Up to 5.8Gbps (320MHz bandwidth)
  • MU-MIMO + MLO support
• Bluetooth® 5.4

Audio (High-End Studio Grade)

• Realtek® ALC4082 + ESS9219Q DAC/HPA
• 7.1-Channel High-Performance Audio
• Up to 32-bit / 384kHz playback
• Optical S/PDIF-Out support

Internal I/O Connectors

• Power:
  • 1 x 24-pin ATX
  • 2 x CPU power connectors
  • 1 x PCIe 8-pin power
  • 1 x Front USB-C PD power connector
• Cooling:
  • 1 x CPU fan
  • 2 x Pump/System combo fans
• Advanced Controls:
  • 2 x thermal sensor headers
  • 1 x JDASH tuning controller
  • V-check points for debugging
• RGB & Lighting:
  • 1 x Addressable Gen2 RGB header
• USB headers:
  • 4 x USB 2.0
  • 4 x USB 5Gbps
  • 1 x USB 10Gbps Type-C
  • 1 x USB 20Gbps Type-C

LED & Debug Features

• Dynamic Dashboard III (custom display)
• EZ Digi-Debug LED
• EZ LED Control switch

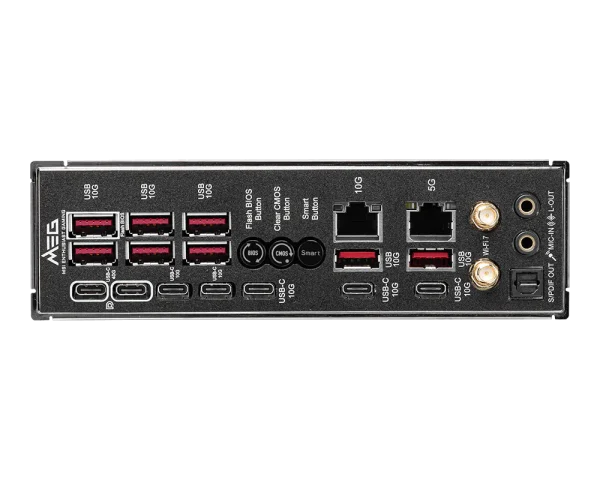

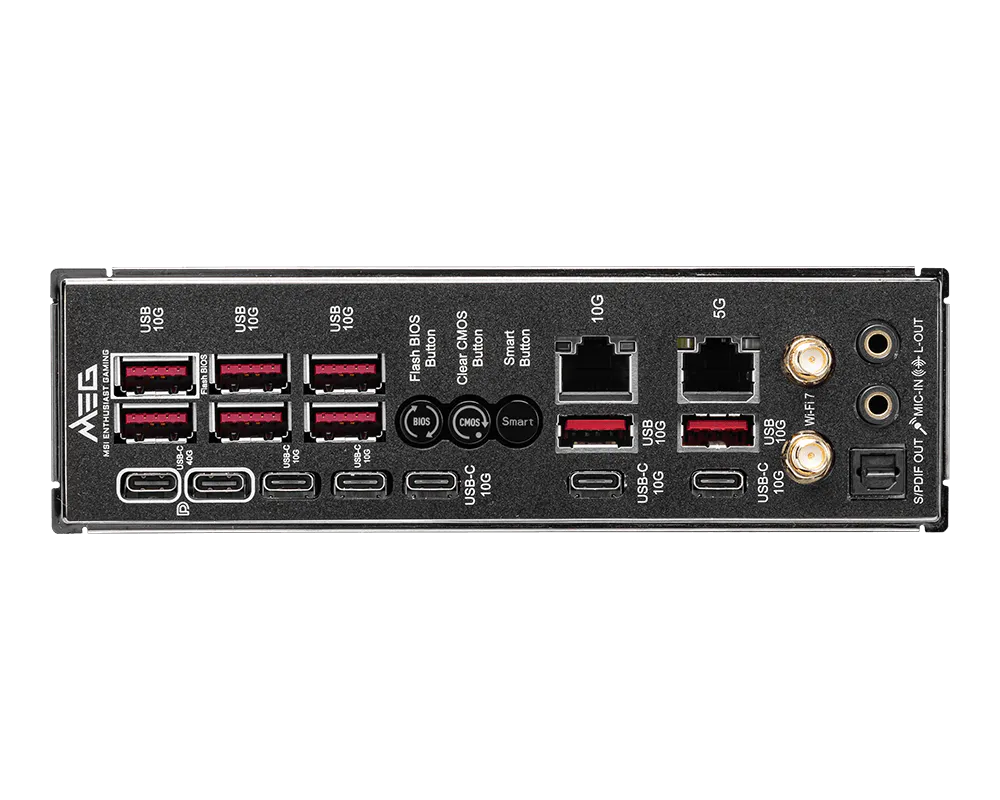

Back Panel I/O

• 10G LAN + 5G LAN ports
• Wi-Fi / Bluetooth antenna connectors
• USB 40Gbps (Type-C)
• USB 10Gbps (Type-A & Type-C)
• Optical S/PDIF-Out
• HD audio jacks
• Flash BIOS Button
• Clear CMOS Button
• Smart Button

Operating System Support

• Windows® 11 (64-bit)

Form Factor

• E-ATX
• Dimensions: 304.8 mm x 277 mm
