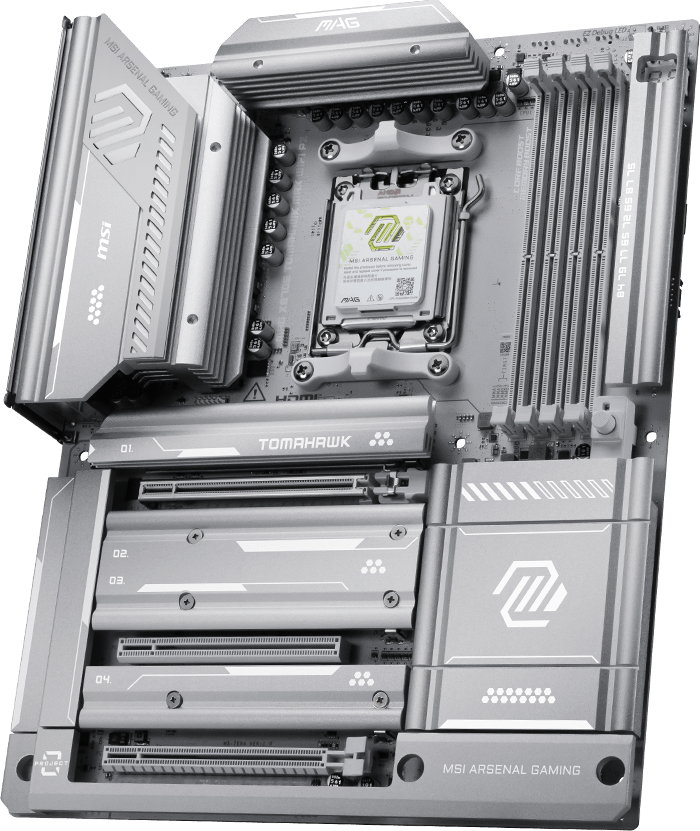

MAG X870E TOMAHAWK MAX WIFI PZ is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it’s ready for the battlefield of AMD Ryzen™ 9000 series processors.

Performance and Thermal

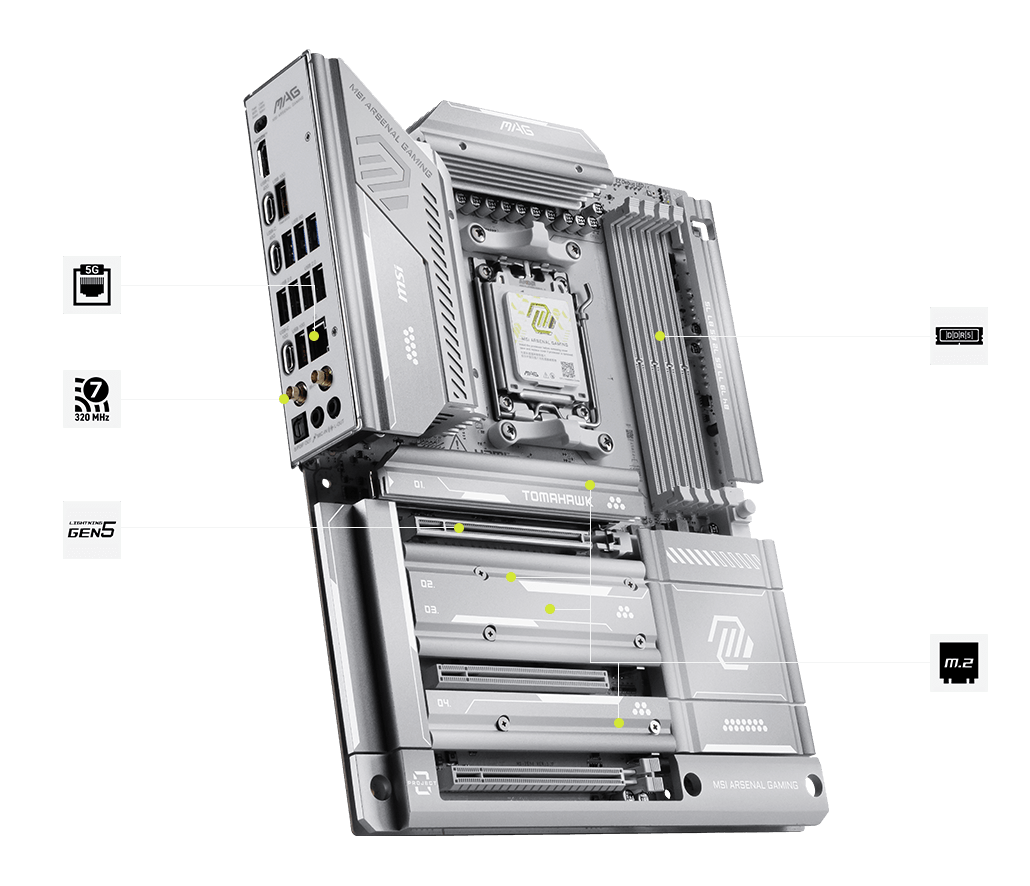

Connectivity

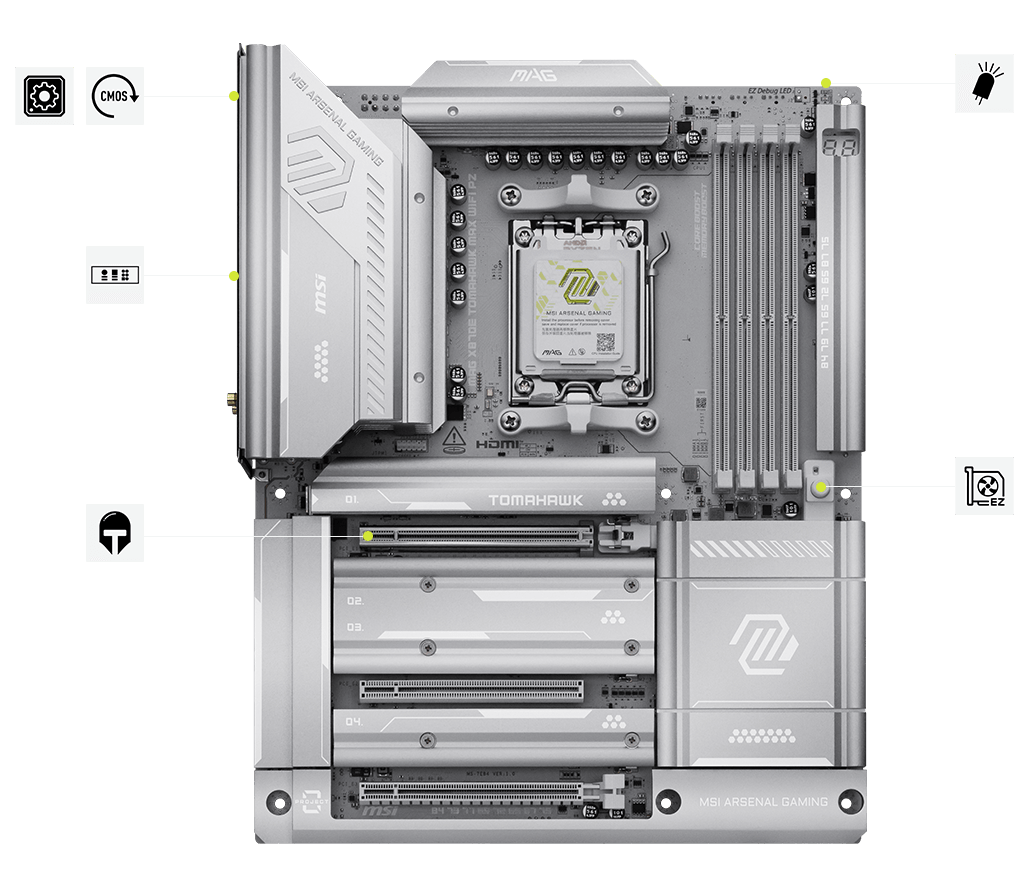

EZ DIY

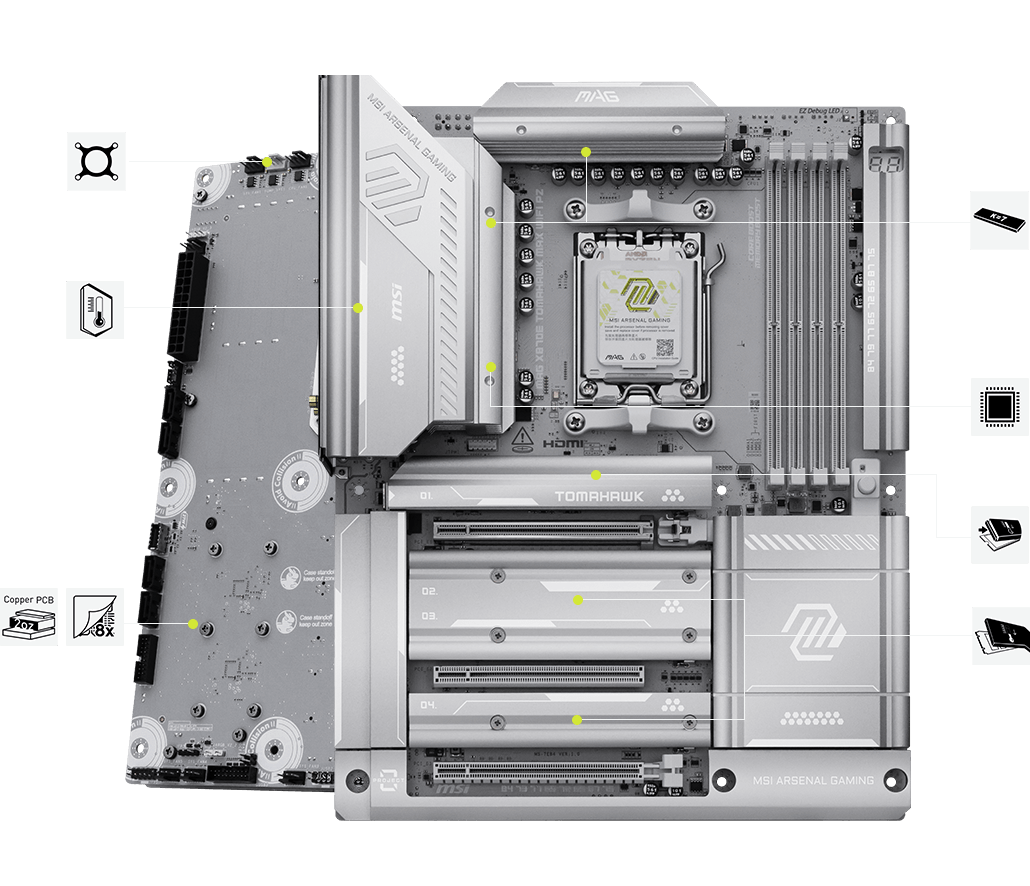

The MAG X870E TOMAHAWK MAX WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.

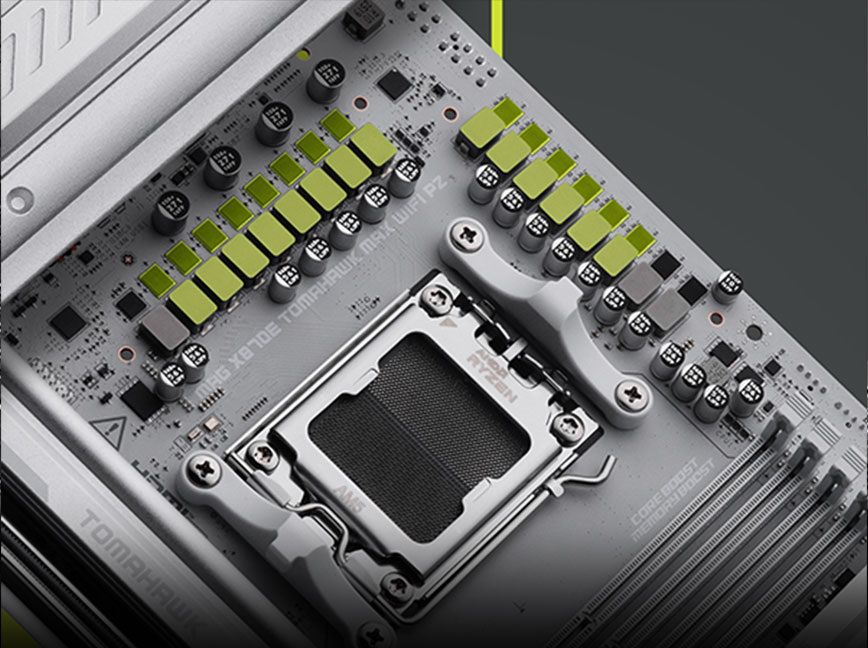

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8 pin power connectors and exclusive Core Boost technology, the MAG X870E TOMAHAWK MAX WIFI PZ is ready to sustain heavy gaming loadings.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

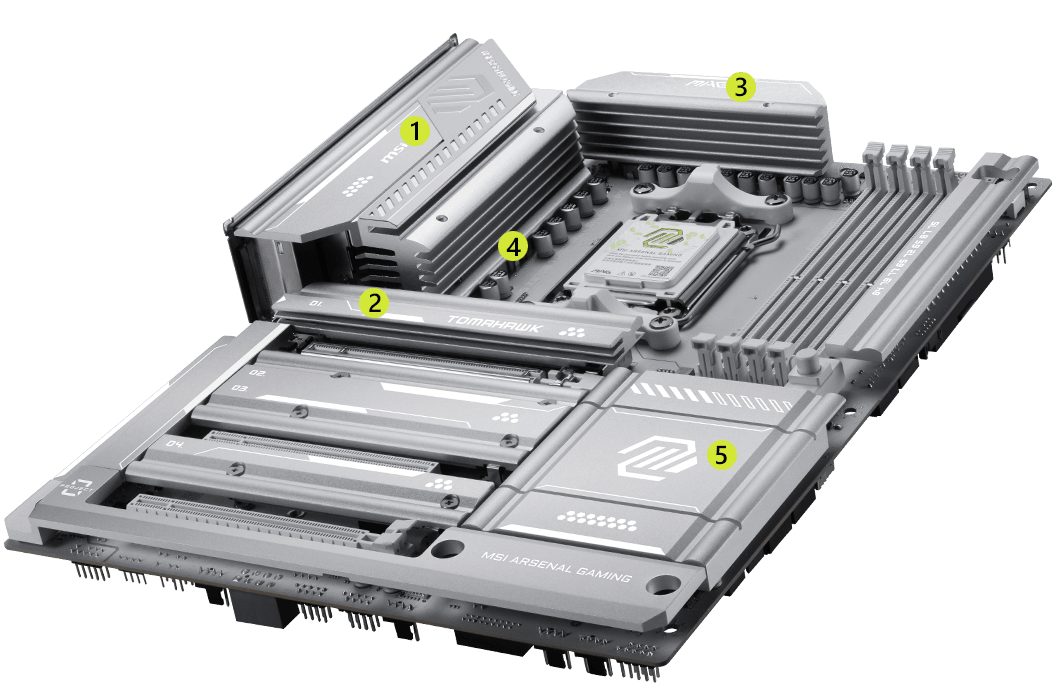

Double-sided M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

Specification

Chipset

• AMD X870E Chipset

Processor (CPU)

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Socket: AM5

Memory

• 4 x DDR5 UDIMM slots
• Maximum capacity: 256GB

Memory Speeds

• 8400 – 5600 MT/s (OC)
• 5600 – 4800 MT/s (JEDEC)

Overclocking (Ryzen™ 9000 Series)

• 1DPC 1R: up to 8400+ MT/s
• 1DPC 2R: up to 6400+ MT/s
• 2DPC 1R: up to 6400+ MT/s
• 2DPC 2R: up to 6400+ MT/s

Features

• AMD EXPO™ support
• Dual-channel architecture
• Non-ECC, unbuffered memory
• CUDIMM support (platform dependent)

Graphics (Onboard)

• 1 x HDMI™ (HDMI 2.1 FRL, up to 8K @ 60Hz)
• 2 x USB4® Type-C (DisplayPort 1.4)
  • Up to 4K @ 120Hz
• Requires CPU with integrated graphics

Expansion Slots

• 1 x PCIe 5.0 x16 slot (CPU)
• 1 x PCIe 4.0 x4 slot (Chipset)
• 1 x PCIe 3.0 x1 slot (Chipset)

Storage

• 4 x M.2 slots:
  • 2 x PCIe 5.0 x4 (CPU)
  • 2 x PCIe 4.0 x4 (Chipset)
• 4 x SATA 6Gb/s ports

RAID Support

• SATA: RAID 0 / 1 / 10
• M.2 NVMe: RAID 0 / 1 / 5 / 10
• RAID 5 supported on Ryzen™ 9000 series only

USB Connectivity

Rear Ports

• 4 x USB 2.0
• 3 x USB 5Gbps (Type-A)
• 2 x USB 10Gbps (Type-A)
• 1 x USB 10Gbps (Type-C)
• 2 x USB 40Gbps (USB4 Type-C)

Front Ports

• 4 x USB 2.0
• 4 x USB 5Gbps (Type-A)
• 1 x USB 20Gbps (Type-C)

Networking

• Realtek® 8126 5G LAN

Wireless & Bluetooth

• Wi-Fi 7 (pre-installed)
  • Tri-band: 2.4GHz / 5GHz / 6GHz
  • Up to 5.8Gbps (320MHz bandwidth)
  • MU-MIMO + MLO support
• Bluetooth® 5.4

Audio

• Realtek® ALC4080 Codec
• 7.1-Channel High Performance Audio
• Up to 32-bit / 384kHz playback
• Optical S/PDIF-Out support

Internal I/O Connectors

• Power:
  • 1 x 24-pin ATX
  • 2 x CPU power connectors
  • 1 x PCIe 8-pin power
• Cooling:
  • 1 x CPU fan header
  • 1 x Pump/System combo fan
  • 6 x system fan headers
• RGB & Lighting:
  • 3 x Addressable Gen2 RGB headers
  • 1 x RGB LED header
• Advanced:
  • 2 x Direct OC jumpers (JBCLK)
• Front Panel & Misc:
  • 2 x front panel headers
  • 1 x chassis intrusion
  • 1 x front audio
  • 1 x TPM header (TPM 2.0)
• USB headers:
  • 4 x USB 2.0
  • 4 x USB 5Gbps
  • 1 x USB 20Gbps Type-C

LED & Debug Features

• 4 x EZ Debug LEDs
• EZ Digit Debug LED
• EZ Memory Detection LED

Back Panel I/O

• HDMI™
• USB 40Gbps (Type-C)
• USB 10Gbps (Type-A & Type-C)
• USB 5Gbps (Type-A)
• USB 2.0 ports
• 5G LAN (RJ-45)
• Wi-Fi / Bluetooth antenna connectors
• Audio jacks + Optical S/PDIF-Out
• Flash BIOS Button
• Clear CMOS Button

Operating System Support

• Windows® 11 (64-bit)

Form Factor

• Back-Connect ATX (clean cable management design)
• Dimensions: 243.84 mm x 304.8 mm
