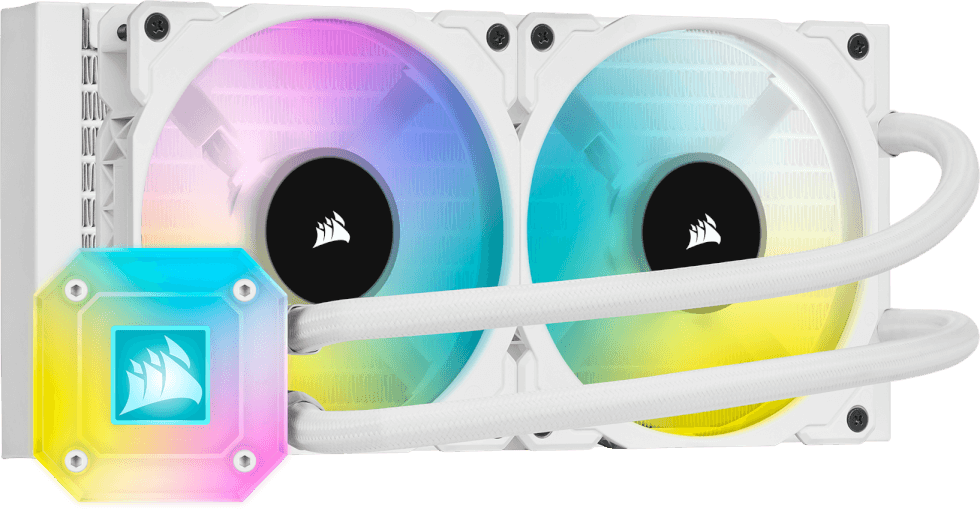

SPLIT-FLOW COPPER COLD PLATE

An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.

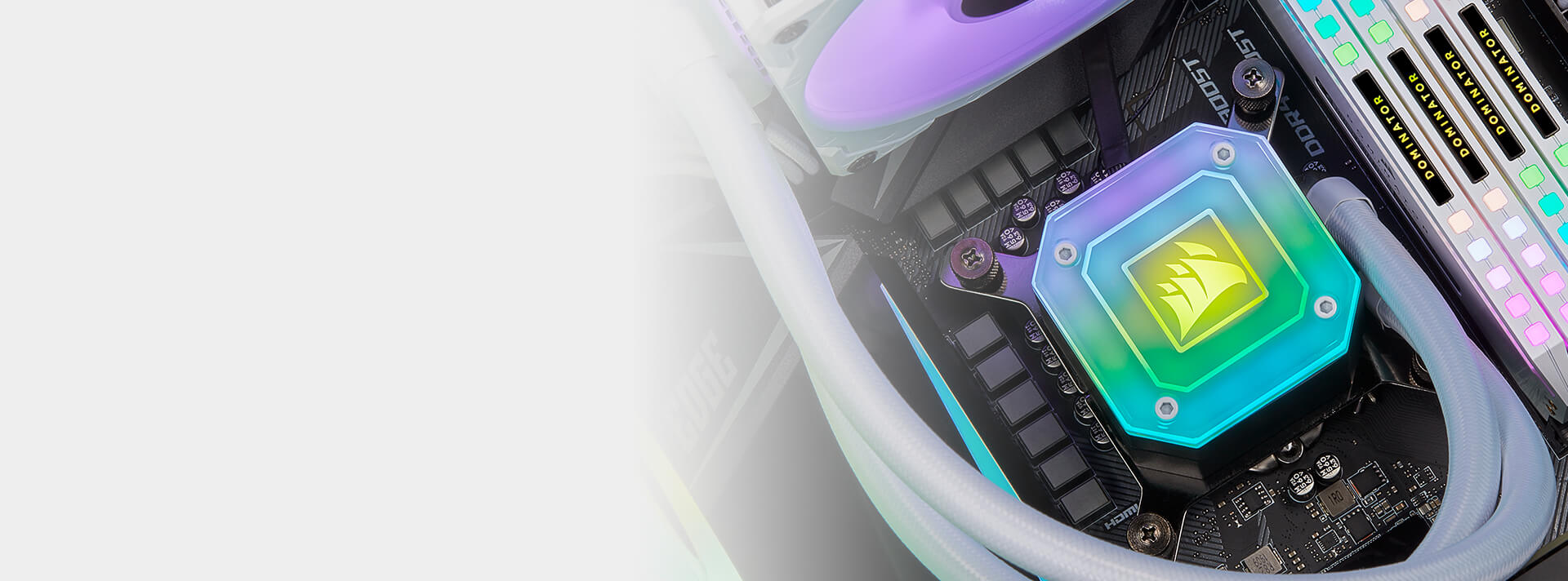

LOW-NOISE CENTRIFUGAL PUMP

Delivers a flow rate of up to 0.82L/min while generating less than 20 dBA, for extreme cooling with low noise.

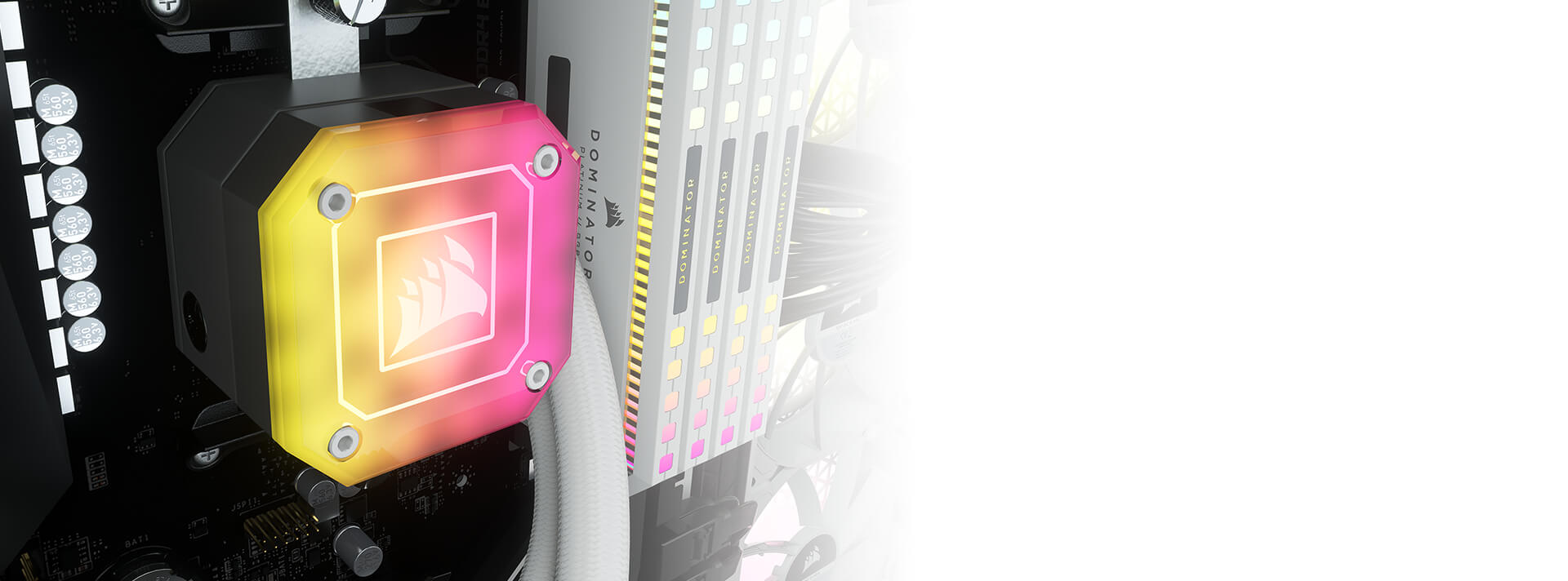

CHANGE UP YOUR LOOK

Each ELITE CAPELLIX CPU cooler includes two separate pump caps. The pre-installed pump cap is a stylish, glossy white, while the alternate pump cap is more transparent to let your CAPELLIX LEDs shine through.

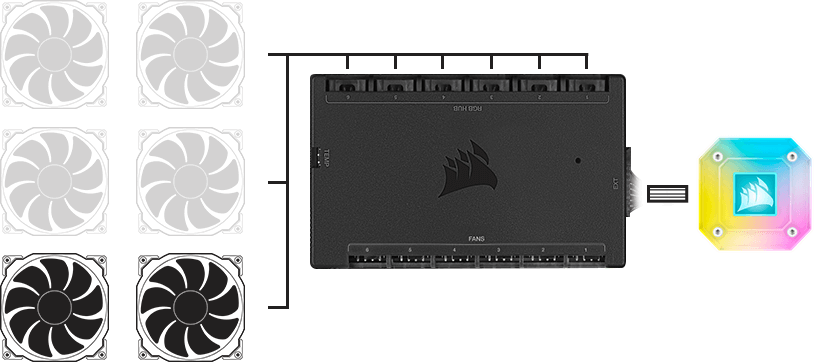

TURN ANY CASE INTO A SMART CASE

Harness the power of iCUE with the included iCUE Commander CORE to control the fan speed and RGB lighting for the included ML RGB fans, with the potential to control additional CORSAIR RGB fans, up to a total of six.

POWERFUL CORSAIR iCUE SOFTWARE

Adjust fan and pump speeds, control and synchronize your cooler’s RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.

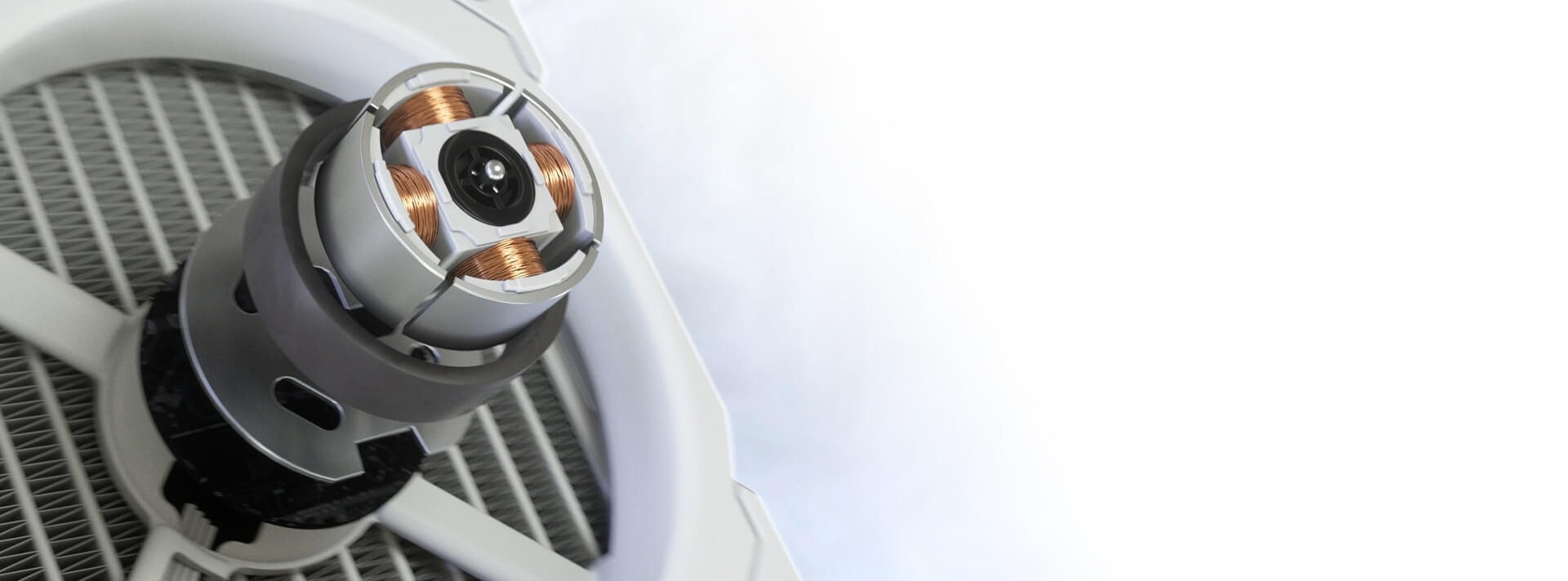

MAGNETIC LEVITATION RGB FANS

CORSAIR ML RGB Series PWM fans deliver powerful airflow for extreme CPU cooling performance, with eight RGB LEDs per fan. These premium magnetic levitation bearing fans are available for the first time with a beautiful white finish in iCUE ELITE CAPELLIX coolers.

Specification

General

• Lighting: RGB
• Lighting Effects: RGB
• Warranty: 5 Years

Compatibility

• Intel Processors: Core i9 / i7 / i5 / i3 / Pentium / Celeron
• AMD Processors: Ryzen Threadripper, Ryzen, Phenom II, Athlon II, FX, A-Series, Opteron, Sempron, Athlon 64
• Socket Support:
  • Intel: LGA 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2066
  • AMD: AM5, AM4, sTRX4, sTR4
  • Note: LGA1700 may require optional mounting kit (CW-8960091)

Cooling System

• Radiator Size: 240 mm
• Radiator Material: Aluminum
• Radiator Dimensions: 277 x 120 x 27 mm
• Cold Plate Material: Copper
• Cold Plate Dimensions: 56 x 56 mm
• Tubing Material: White Sleeved Low-Permeation Rubber
• Tubing Length: 380 mm

Fan Specifications

• Number of Fans: 2
• Fan Model: ML RGB Series
• Fan Dimensions: 120 x 25 mm
• Fan Speed: Up to 2400 RPM
• Fan Airflow: 75 CFM
• Fan Static Pressure: 4.2 mm-H₂O
• Noise Level: 10 – 37 dBA
• Fan Control Method: PWM
• PWM Support: Yes

Dimensions & Weight

• Product Dimensions (L x W x H): 277 x 125 x 119.6 mm
• Weight: 2.097 kg
