AMD Ryzen Threadripper Pro 7975WX Processor

Increase Productivity

Empower employees to stay in the creative flow with both multi-threaded and lightly threaded workflows with AMD Ryzen™ Threadripper™ processors for artists, architects, and engineers.  Experience efficiency at your fingertips with technology built on the leading Zen 4 architecture with amazing power, performance, and platform expandability.

Create Without Restraints

Accelerate workflows and experience superb performance, value, and reliability with next-gen professional GPUs and high-speed storage devices. AMD Ryzen™ Threadripper™ processors enable a variety of advanced workstation configurations to meet the demand for cutting edge visuals.

Save Time Deploying Windows Enterprise Autopilot⁶

AMD PRO technologies deliver a complete set of security features, robust manageability tools, and enterprise-grade stability and reliability for AMD Ryzen Threadripper PRO processors.

Specification

Core Performance

• Cores / Threads: 32 Cores / 64 Threads

• Base Clock: 4.0 GHz

• Max Boost Clock: Up to 5.3 GHz

• L1 Cache: 2 MB

• L2 Cache: 32 MB

• L3 Cache: 128 MB

• Default TDP: 350W

• Process Technology: TSMC 5nm (CPU) + 6nm (I/O Die)

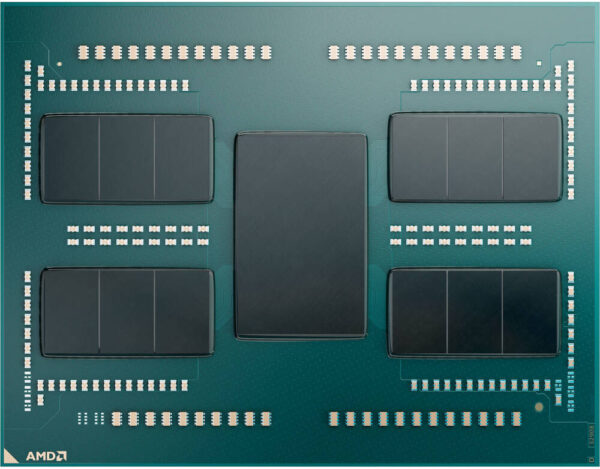

• Package Die Count: 5

Strong balance of high-frequency performance and multi-core scalability for:

• CAD / CAM workflows

• 3D rendering

• Software compilation

• Engineering simulations

• Professional content creation

Platform & Expansion

• Socket: sTR5

• Supported Chipsets: WRX90, TRX50, Pro 695

• PCIe Version: PCIe® 5.0

PCIe Lane Configuration

• Total Lanes: 148

• Usable Lanes: 144

• PCIe 5.0 Lanes: 128

Supports multiple GPUs, high-speed networking cards, and large Gen5 NVMe arrays simultaneously.

Memory Subsystem

• Memory Type: DDR5 RDIMM

• Memory Channels: 8-channel

• Max Speed: Up to 5200 MT/s

• ECC Support: Enabled by default

Designed for high bandwidth and enterprise reliability.

Overclocking & Boost

• Precision Boost 2

• Precision Boost Overdrive (PBO)

• Curve Optimizer

• AMD EXPO™ Memory Profiles

• Unlocked for Overclocking

Storage & Connectivity

• USB 3.2 Gen 2: 4 ports

• Native SATA: 4 ports

• NVMe Support: Boot + RAID 0 / 1 / 5 / 10

Enterprise Security & Manageability

• AMD PRO Technologies

• Secure Processor

• Secure Boot

• Memory Guard

• Firmware TPM

• AES-NI

• VBS & Device Guard

• DASH Support

Built for secure commercial workstation environments.

Graphics

• Integrated Graphics: No

• Discrete GPU Required

Operating System Support

• Windows 11 (64-bit)

• RHEL x86 64-bit

• Ubuntu x86 64-bit
