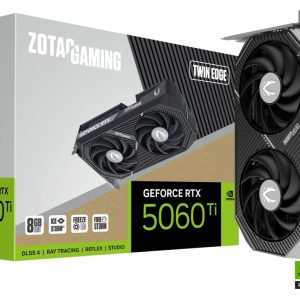

The ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.

NVIDIA DLSS 4

Supreme Speed.
Superior Visuals.
Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.

Full Ray Tracing with Neural Rendering

Game-Changing Realism

The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

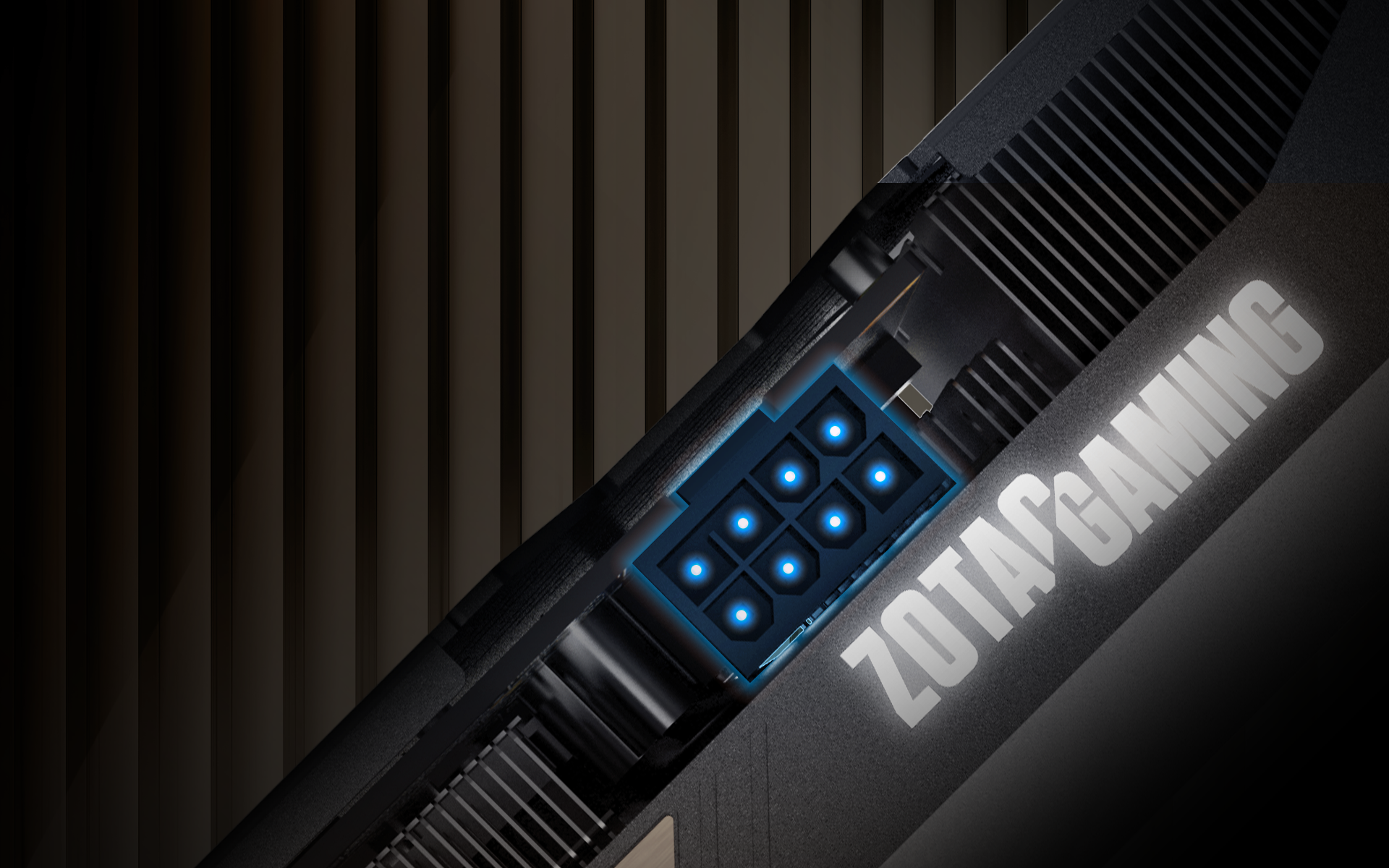

STANDARD 8-PIN POWER

A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 550W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5060 Series a more appealing upgrade choice.

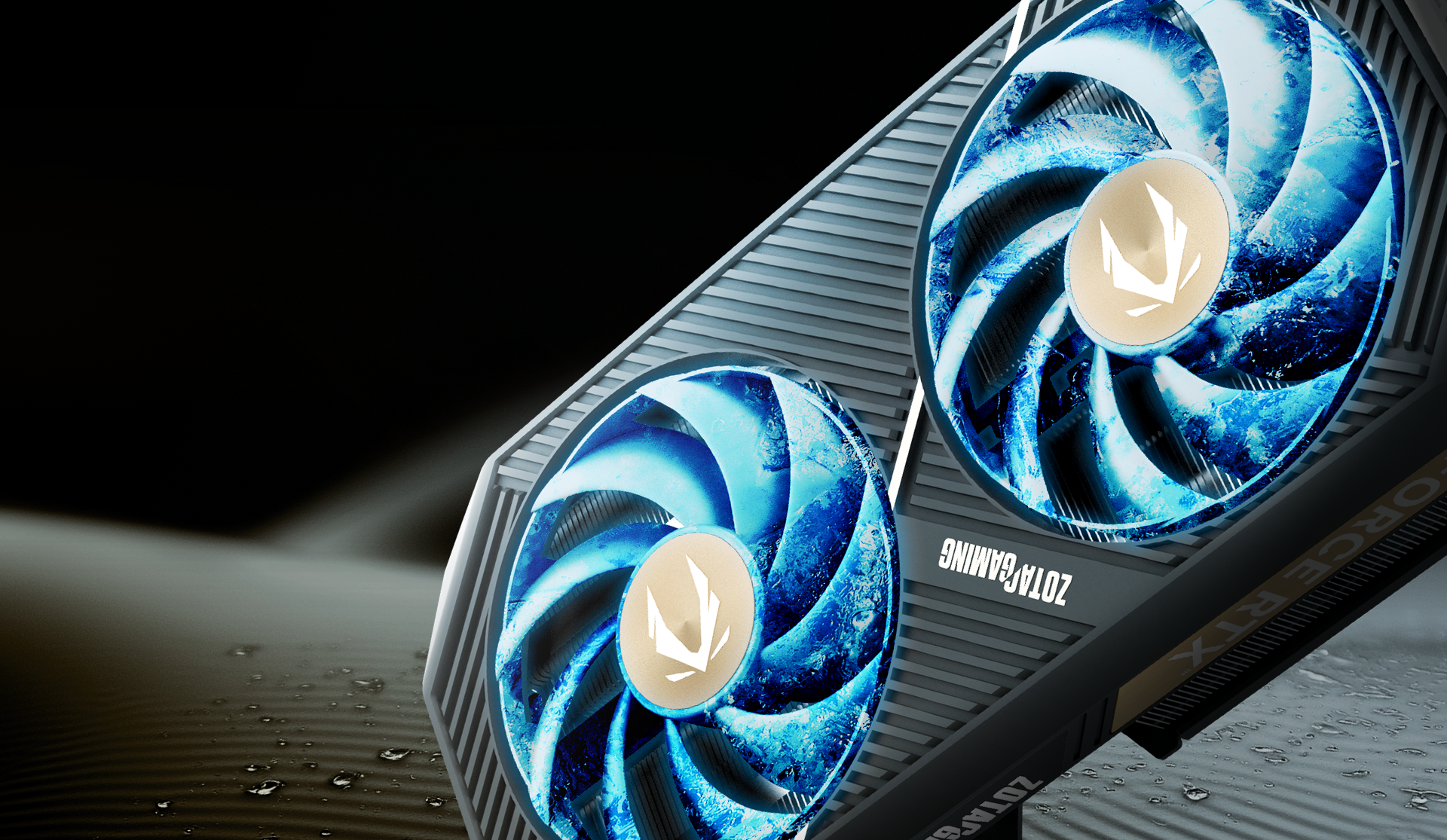

FREEZE FAN STOP

Fans remain frozen when idle

NVIDIA Reflex 2

Compete at Warp Speed

Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.

Specification

GPU
NVIDIA GeForce RTX 5060 Ti

CUDA Cores
4608

Video Memory
8GB GDDR7

Memory Bus
128-bit

Engine Clock
Up to 2572 MHz

Memory Clock
28 Gbps

AI Performance
759 AI TOPS

Interface
PCI Express 5.0 x8

Display & Connectivity

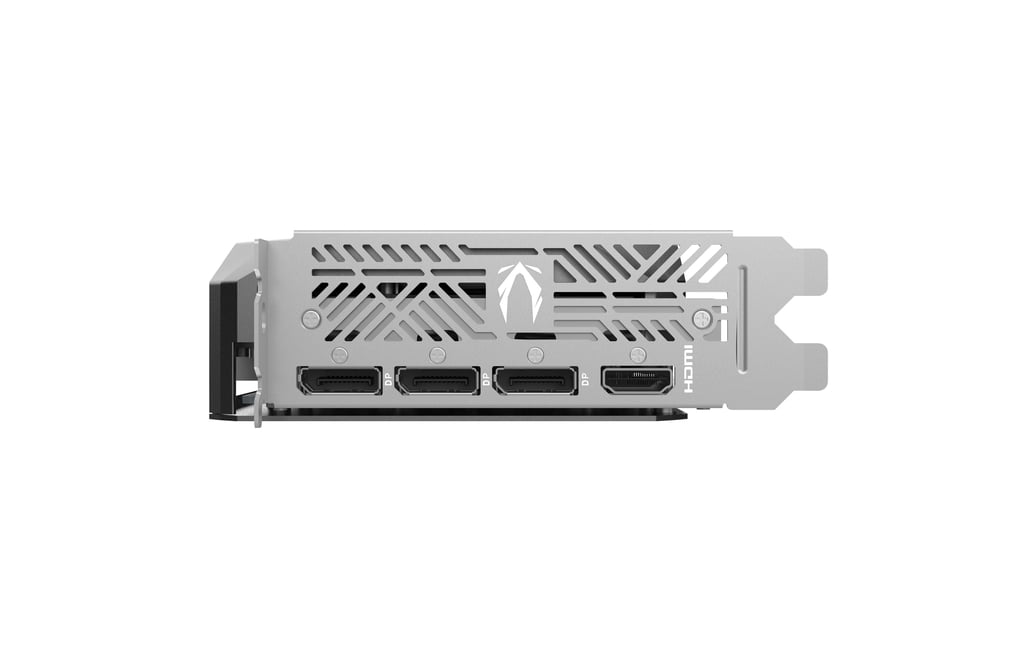

Display Outputs

• 3 × DisplayPort 2.1b (UHBR20)
• 1 × HDMI

Maximum Resolution Support

• Up to 4K @ 480Hz
• Up to 8K @ 165Hz (DisplayPort, with DSC)
• Up to 8K @ 120Hz HDR (HDMI, with DSC)

HDCP Support
2.3

Multi-Display Support
Quad Display

Power

Recommended PSU
600W

Power Consumption
180W

Power Input
1 × 8-pin connector

Software & API

DirectX
DirectX 12 Ultimate

OpenGL
4.6

Supported OS
Windows 10 / Windows 11 (64-bit)

Design & Cooling

Cooling System
IceStorm 2.0

Slot Size
Dual-slot

SLI Support
Not supported

Physical Dimensions

Card Size
220.5 × 120.25 × 41.6 mm
(8.7 × 4.7 × 1.6 inches)

In the Box

• Graphics Card
• User Manual
