Thermaltake View 270 Plus TG ARGB Mid Tower Chassis, Dual Tempered Glass Panels (Front & Left), Three Pre-installed 120mm ARGB Lite Fans, ATX Mid Tower Panoramic Chassis, Pink

Specification

General Information

• Part Number (P/N): CA-1Y7-00MAWN-00
• Series: View
• Case Type: Mid Tower
• Color: Bubble Pink

Dimensions

• Case Dimensions: 45.4 cm (L) x 23 cm (W) x 45.6 cm (H)
• Net Weight: 6.35 kg

Build & Materials

• Material: SPCC
• Panels: Tempered Glass x2

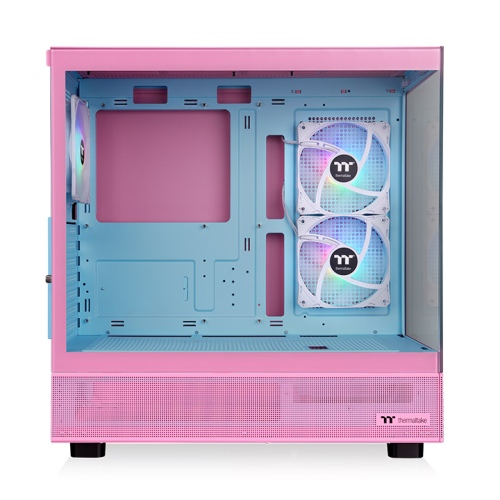

Cooling System (Pre-installed)

• Right (Intake): 2 x 120mm ARGB Lite Fans (1000 RPM, 22.3 dB-A)
• Rear (Exhaust): 1 x 120mm ARGB Lite Fan (1000 RPM, 22.3 dB-A)

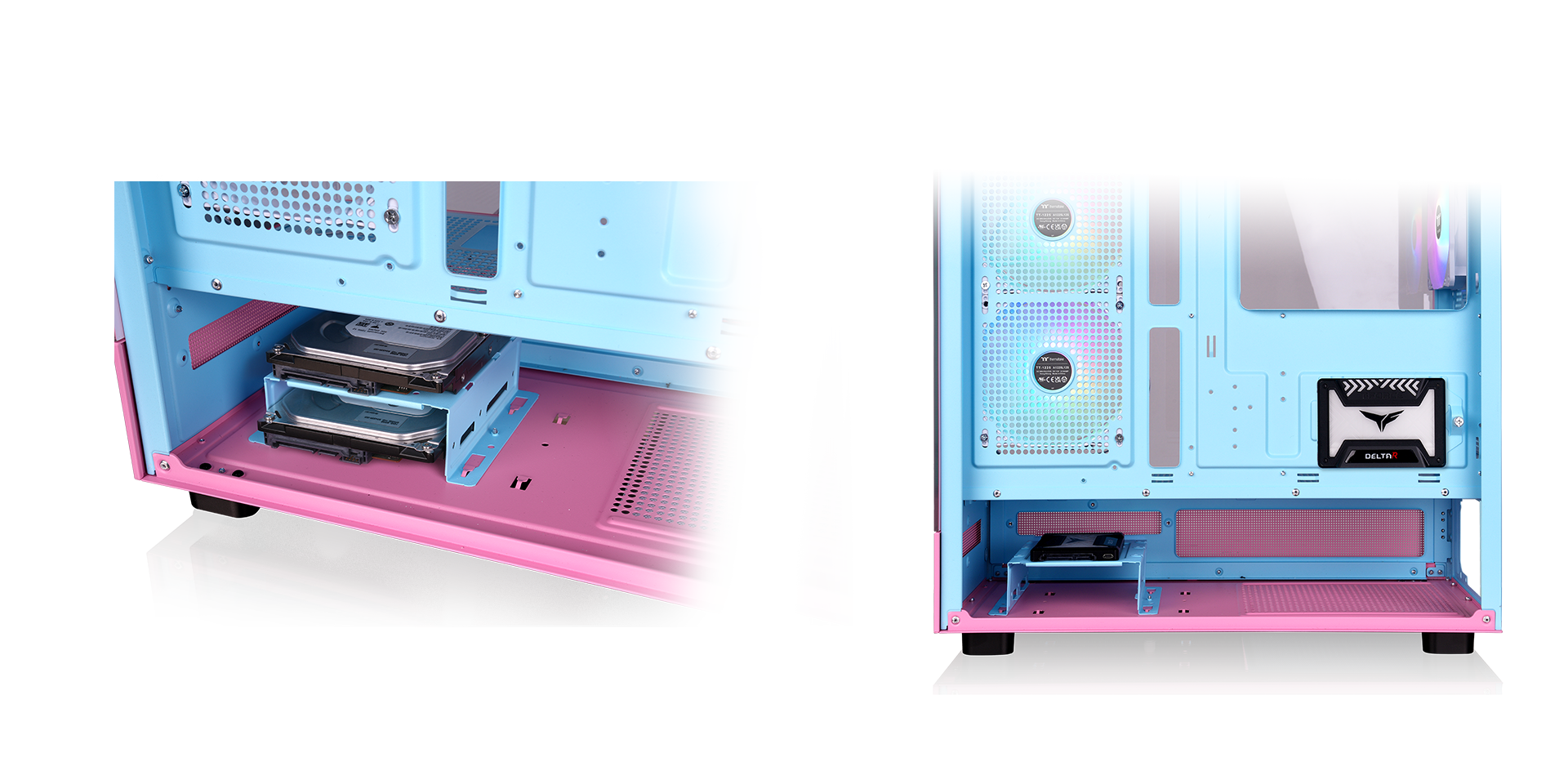

Drive Bays

• 2 x 3.5” + 1 x 2.5”
• Or 2 x 2.5”

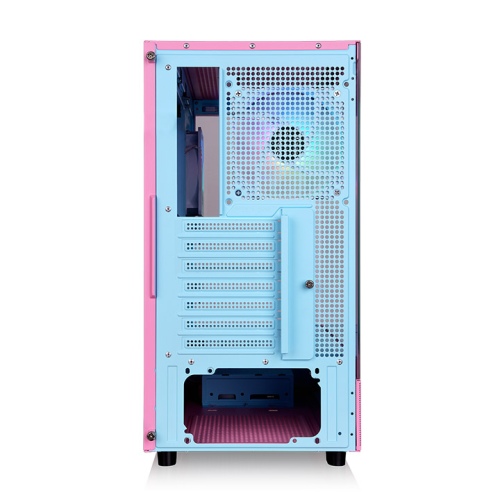

Expansion Slots

• 7 Slots

Motherboard Support

• Mini ITX (6.7” x 6.7”)
• Micro ATX (9.6” x 9.6”)
• ATX (12” x 9.6”)
• E-ATX (12” x 13”)

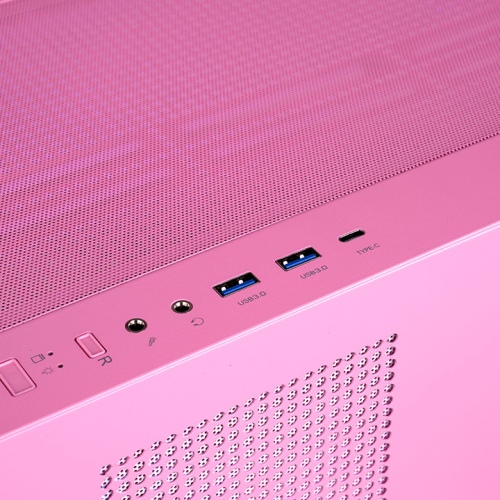

I/O Ports

• USB 3.2 (Gen 2) Type-C x1
• USB 3.0 x2
• HD Audio x1

PSU Support

• Standard PS2 PSU (optional)

Fan Support

• Top: 3 x 120mm / 2 x 140mm
• Right (M/B Side): 2 x 120mm
• Rear: 1 x 120mm / 1 x 140mm
• Power Cover: 3 x 120mm

Radiator Support

• Top: Up to 360mm / 240mm
• Rear: 120mm

Clearance

• CPU Cooler Max Height: 18 cm
• GPU Max Length: 42 cm
• PSU Max Length: 22 cm
