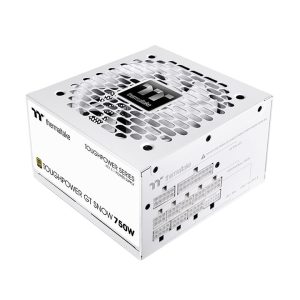

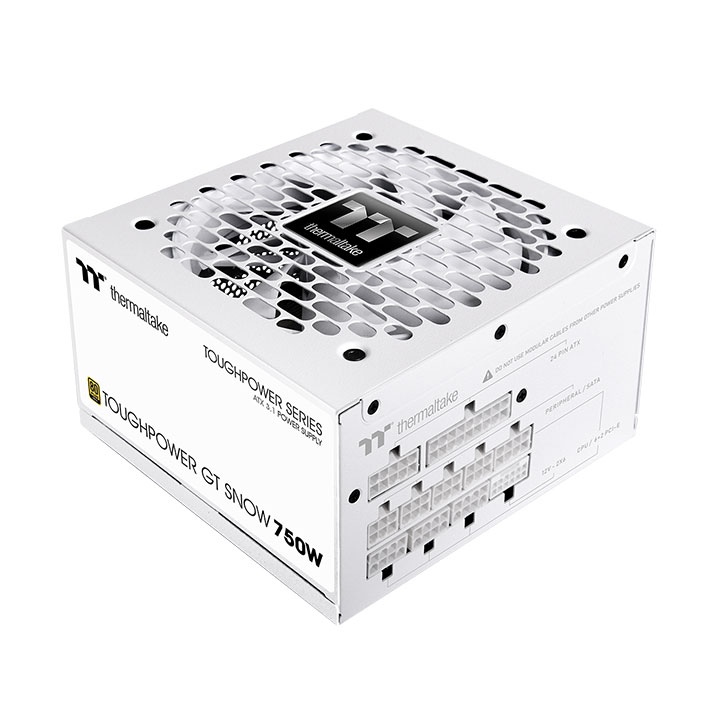

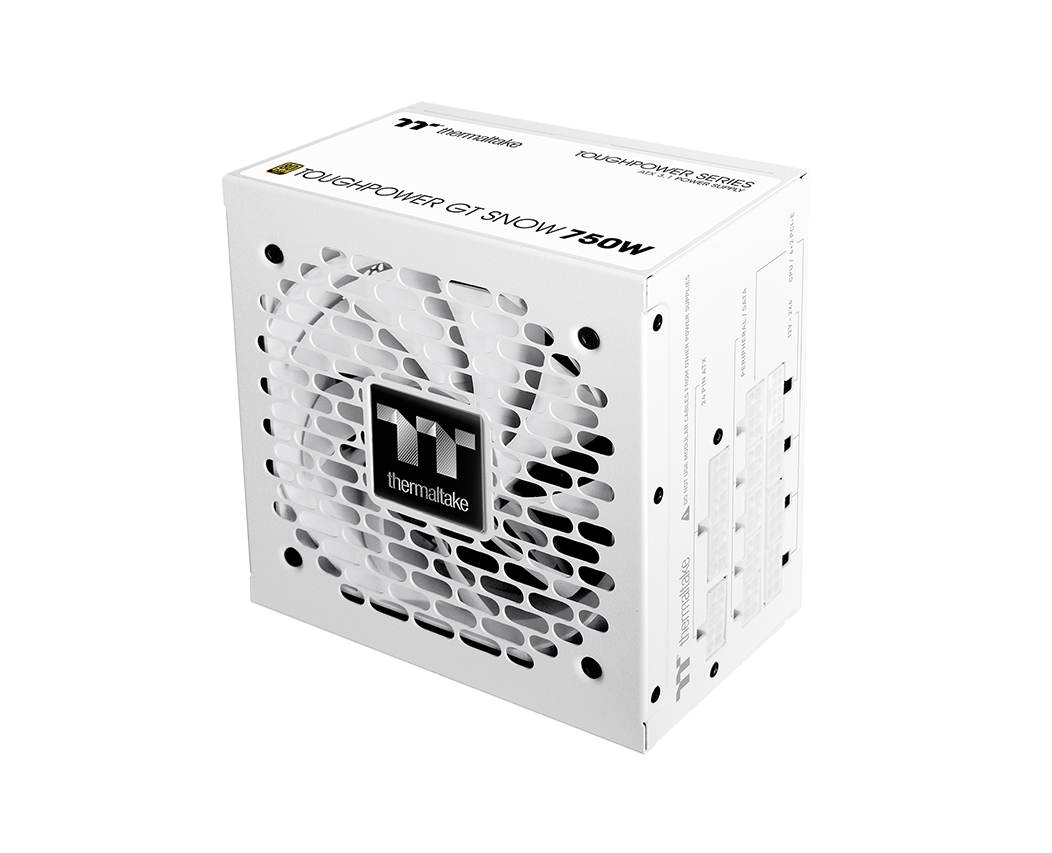

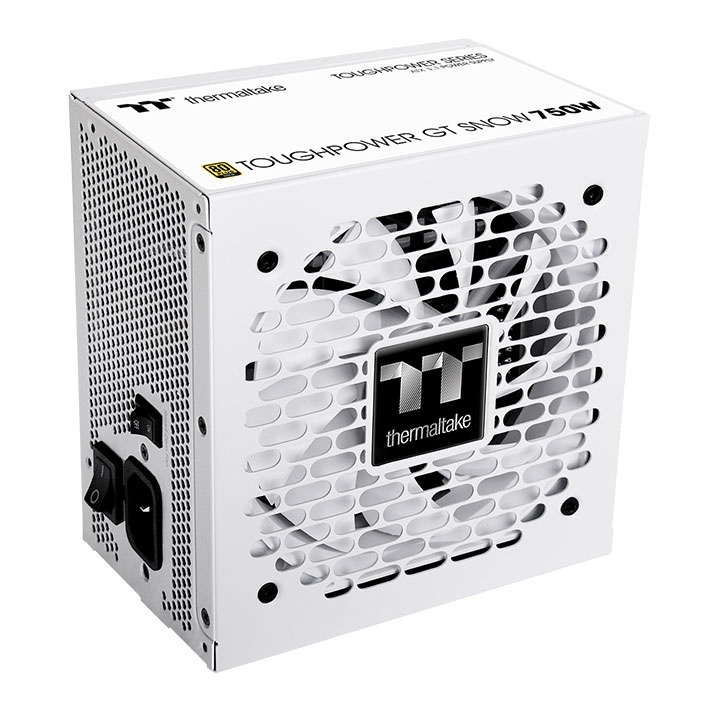

Toughpower GT Snow Series

The fully modular Toughpower GT Snow series designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2×6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT Snow series meets the needs of value-oriented users seeking a new power supply with reliable performance.

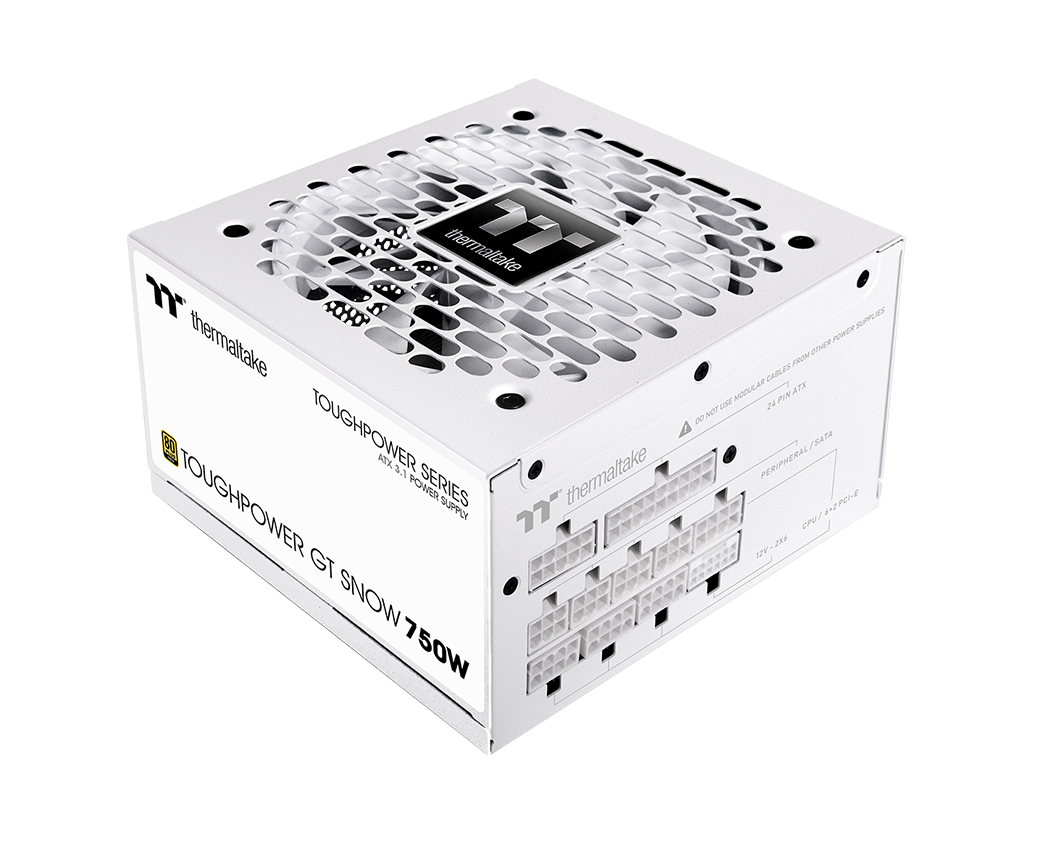

ATX 3.1 Ready

Toughpower GT Snow series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.

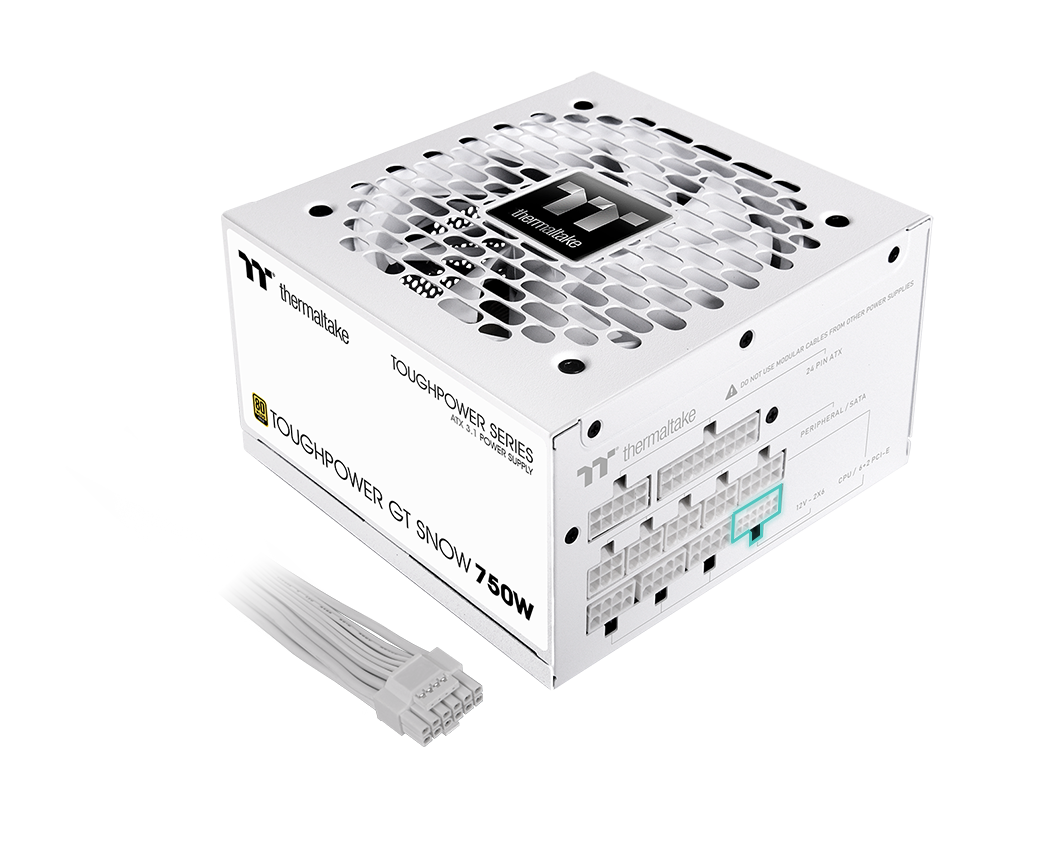

PCIe Gen 5.1 Ready

Toughpower GT Snow series comes with a PCIe 12V-2×6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT Snow 750W can deliver up to 600W for PCIe 12+4pin graphics cards.

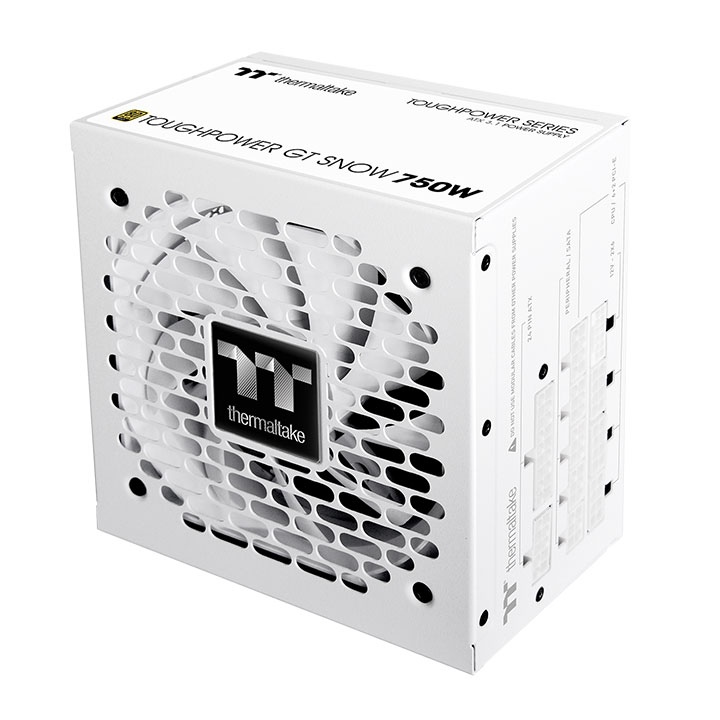

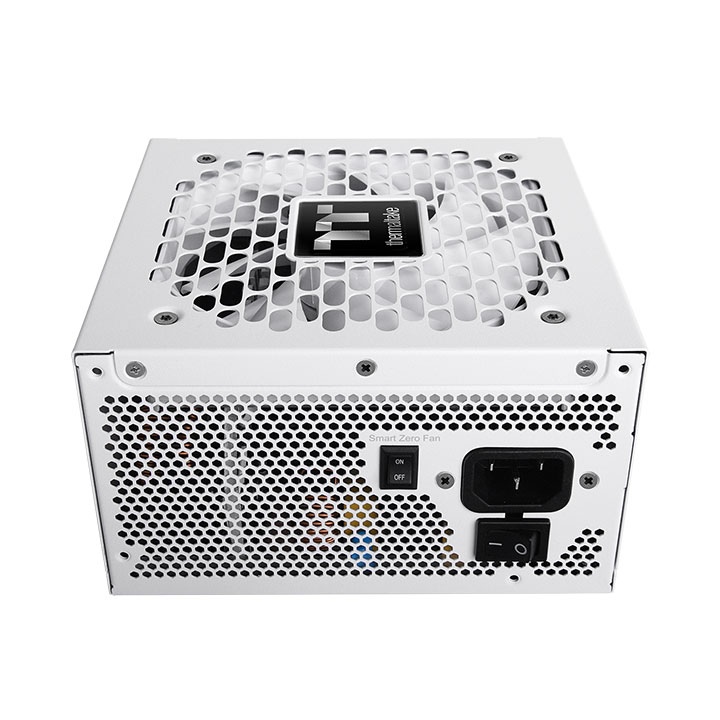

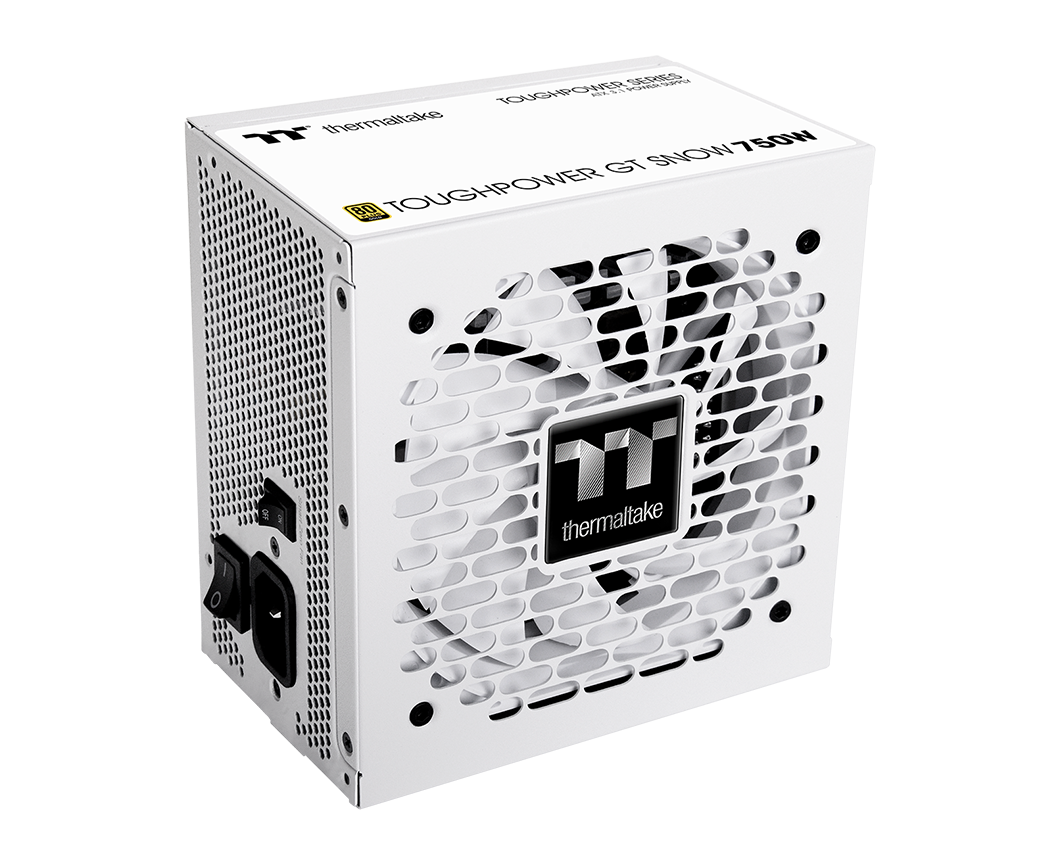

Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan

Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.

Specification

General

• Product Name / Model: TPD-750AH2FXG-3
• Part Number (P/N): PS-TPT-0750FNFAG*-W
• Power Output: 750W
• Max Output Capacity: 750W
• Efficiency Rating: 80 PLUS® Gold (at 115V AC input)
• PFC Type: Active PFC
• MTBF: 100,000 hours minimum
• Color: Snow (White Edition)

Input Specifications

• Input Voltage: 100 ~ 240V
• Input Current: 10A (Max)
• Input Frequency Range: 50 ~ 60Hz
• Power Good Signal: 100 – 250 ms
• Hold-Up Time: >17 ms (at 80% load)

Environmental Conditions

• Operating Temperature: 0°C to +40°C
• Operating Humidity: 5% to 85% (non-condensing)
• Storage Temperature: -40°C to +70°C
• Storage Humidity: 5% to 95% (non-condensing)

Cooling

• Cooling System: 120 mm Fan
• Fan Bearing: Hydraulic Bearing

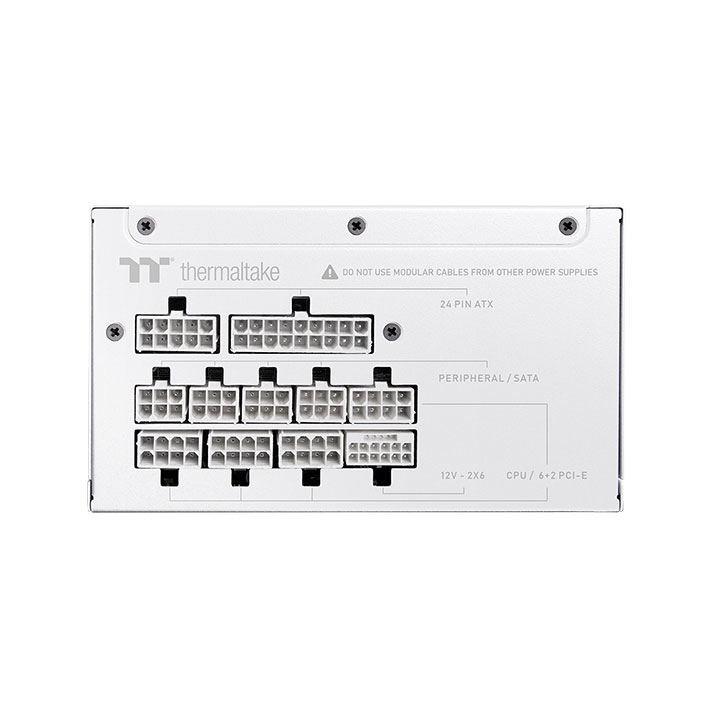

Connectors

• PCIe (6+2 pin): 4
• PCIe 12+4 pin (12VHPWR): 1 (600W)

Protection Features

• OCP: Over Current Protection
• OVP: Over Voltage Protection
• UVP: Under Voltage Protection
• OPP: Over Power Protection
• OTP: Over Temperature Protection
• SCP: Short Circuit Protection

Dimensions

• Size (W x H x D):
  150 x 86 x 140 mm
