Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

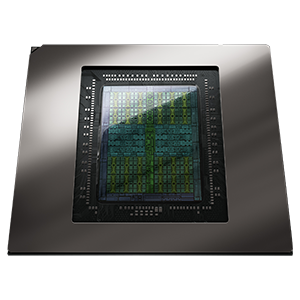

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

RTX. It’s On.

The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Supreme Speed. Superior Visuals. Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. ‌The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX™ is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.

NVIDIA Reflex 2

Compete at Warp Speed

Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.

RTX AI PCs

NVIDIA Powers the World’s AI. And Yours.

Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.

Specification

Core Specifications

• Architecture: NVIDIA Blackwell
• CUDA Cores: 4608
• Graphics Clock: 2407 MHz
• Boost Clock: 2572 MHz

Memory

• Memory Size: 16 GB
• Memory Type: GDDR7
• Memory Interface: 128-bit
• Memory Speed: 28 Gbps
• Memory Bandwidth: 448 GB/s

Power & Build

• TDP (Graphics Power): 180W
• Recommended PSU: 600W
• Power Connector: 1 × 8-pin
• Card Size: 291.9 × 116.6 × 41.3 mm
• Form Factor: 2-slot

Display & Connectivity

• Ports:
  • 3 × DisplayPort 2.1b
  • 1 × HDMI 2.1b
• Max Resolution:
  • 4K @ 480Hz
  • 8K @ 120Hz (with DSC)
• Max Displays: 4

Features & Technologies

• Ray Tracing: 4th Gen RT Cores
• AI / Tensor: 5th Gen Tensor Cores
• DLSS 4 Support
• NVIDIA Reflex 2
• AV1 Encode & Decode
• PCIe 5.0 Support
• Resizable BAR

Cooling & Design Features

• Composite heat pipes
• Copper base
• DrMOS power design
• 0-dB silent mode (fans stop at low load)

API & Software Support

• DirectX 12 Ultimate
• OpenGL 4.6
• Vulkan 1.4
• NVIDIA Studio & Game Ready Drivers
• NVIDIA Broadcast, ShadowPlay, Omniverse
