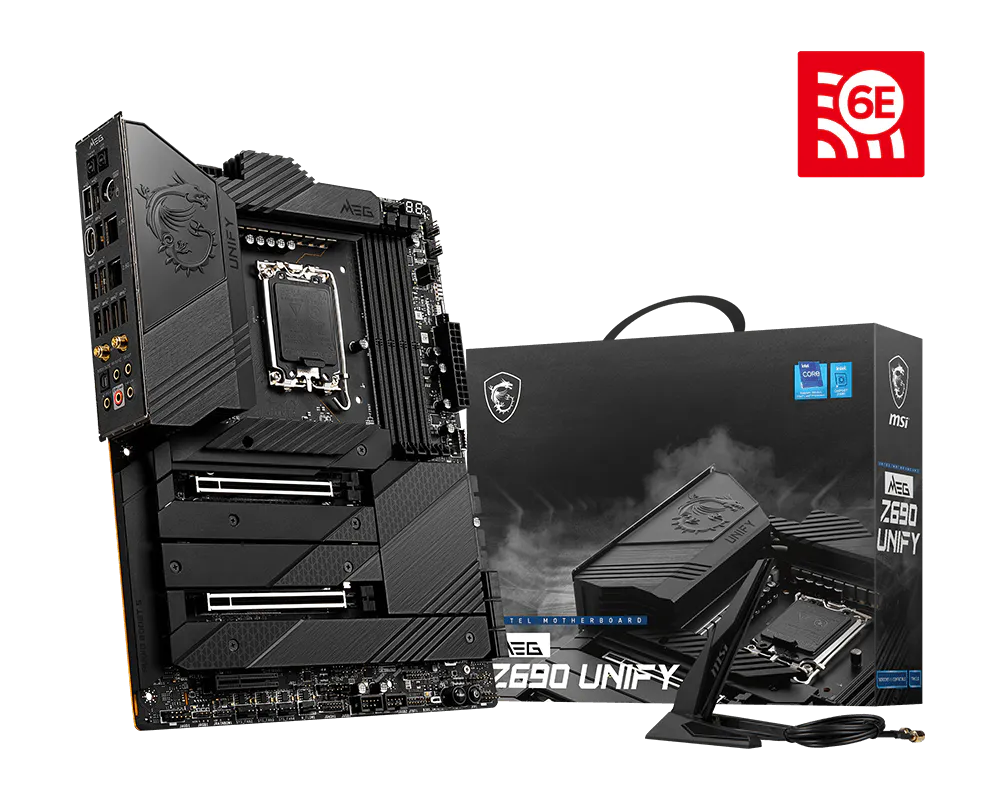

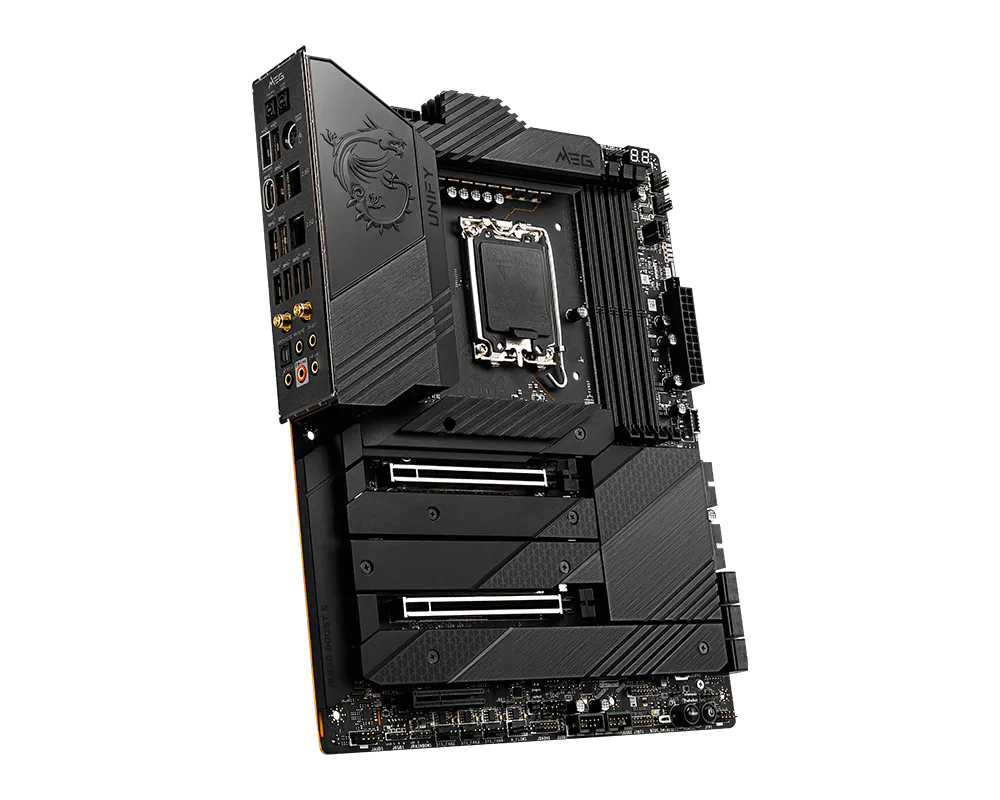

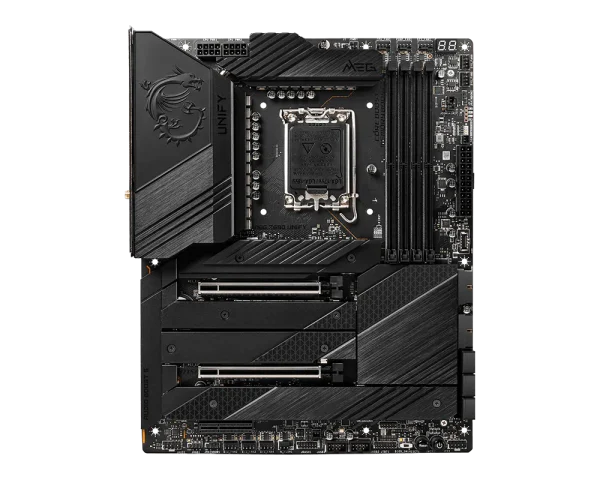

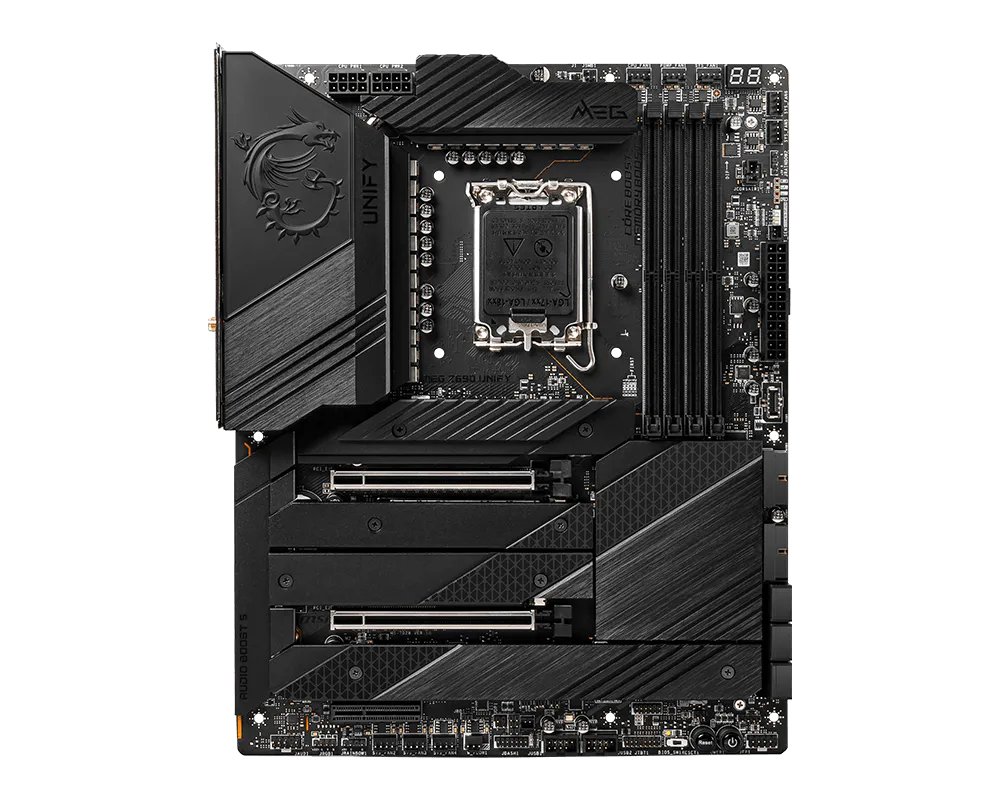

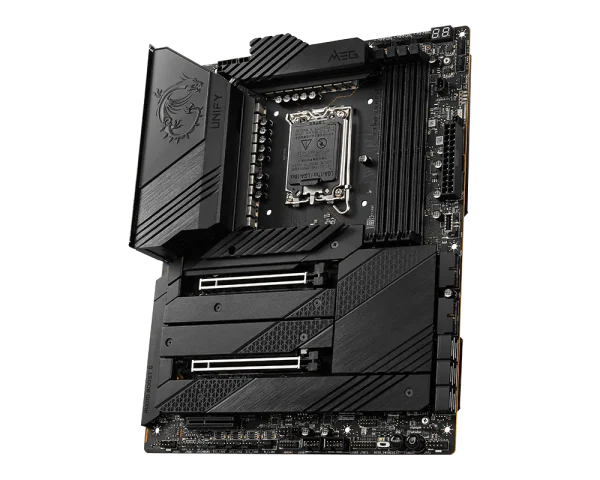

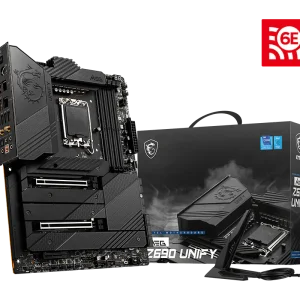

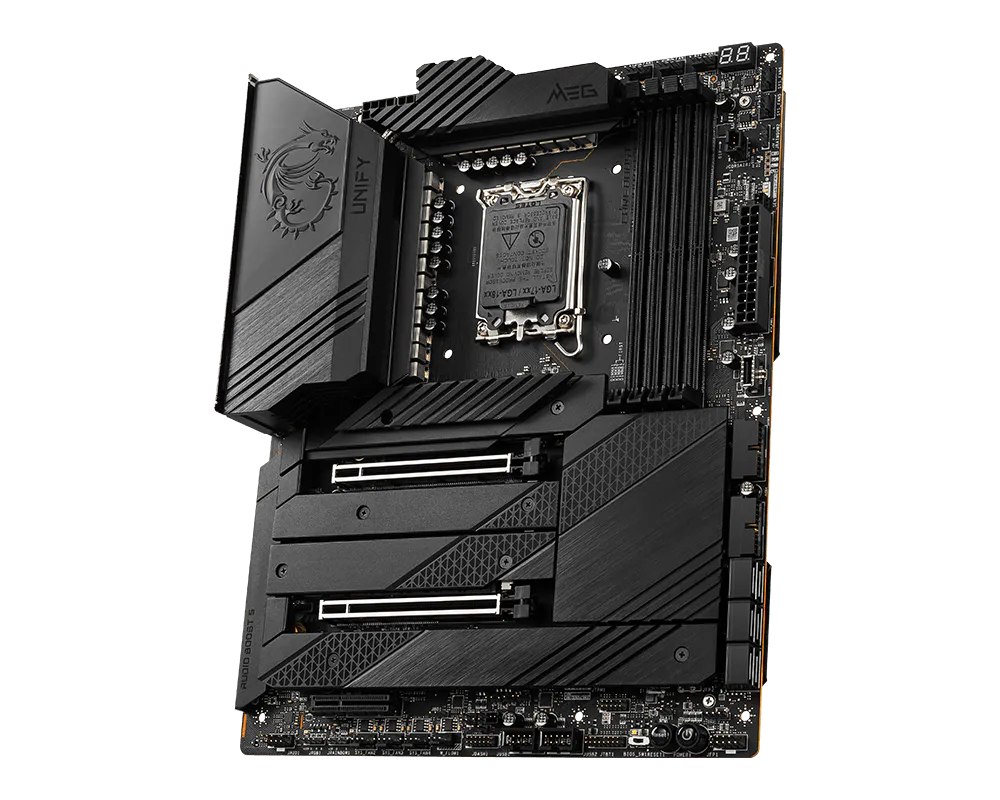

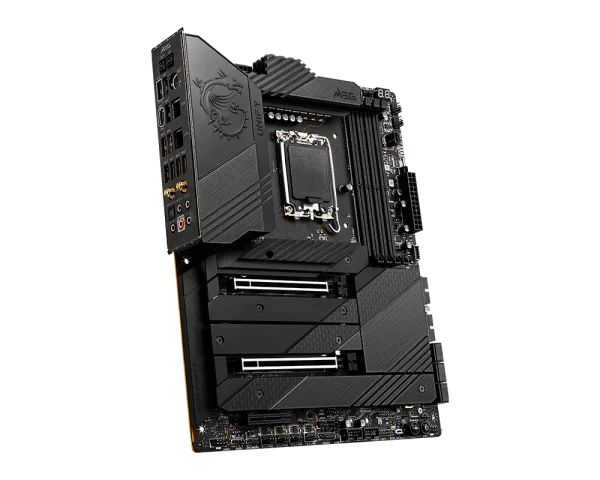

MSI MEG Z690 UNIFY ATX Motherboard, LGA 1700 Socket, Intel® Wi-Fi 6E module, Support for Windows® 11 64-bit, Windows® 10 64-bit, Black

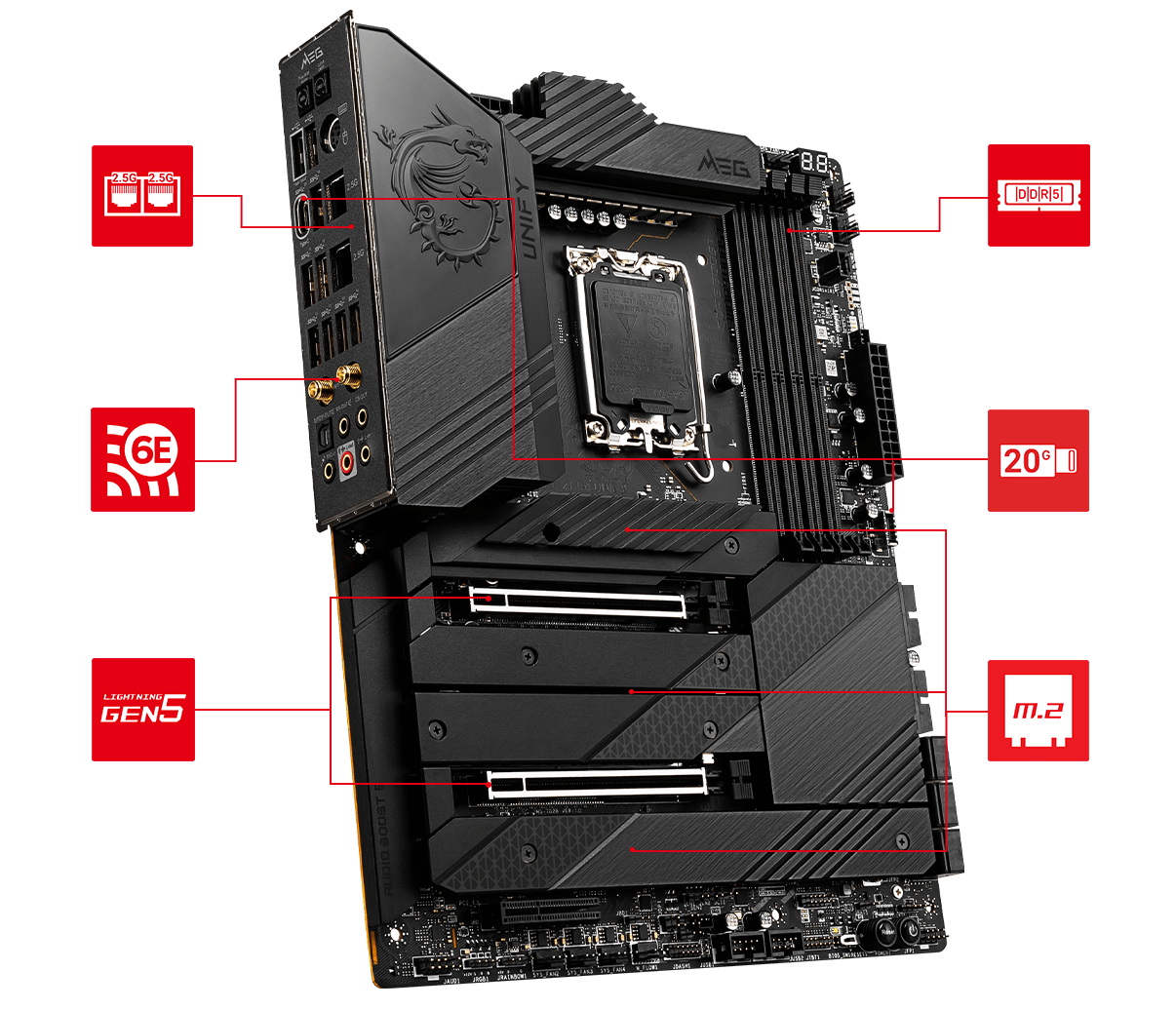

Quick Overview
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, it is ready to deliver the world class memory performance.
- Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.

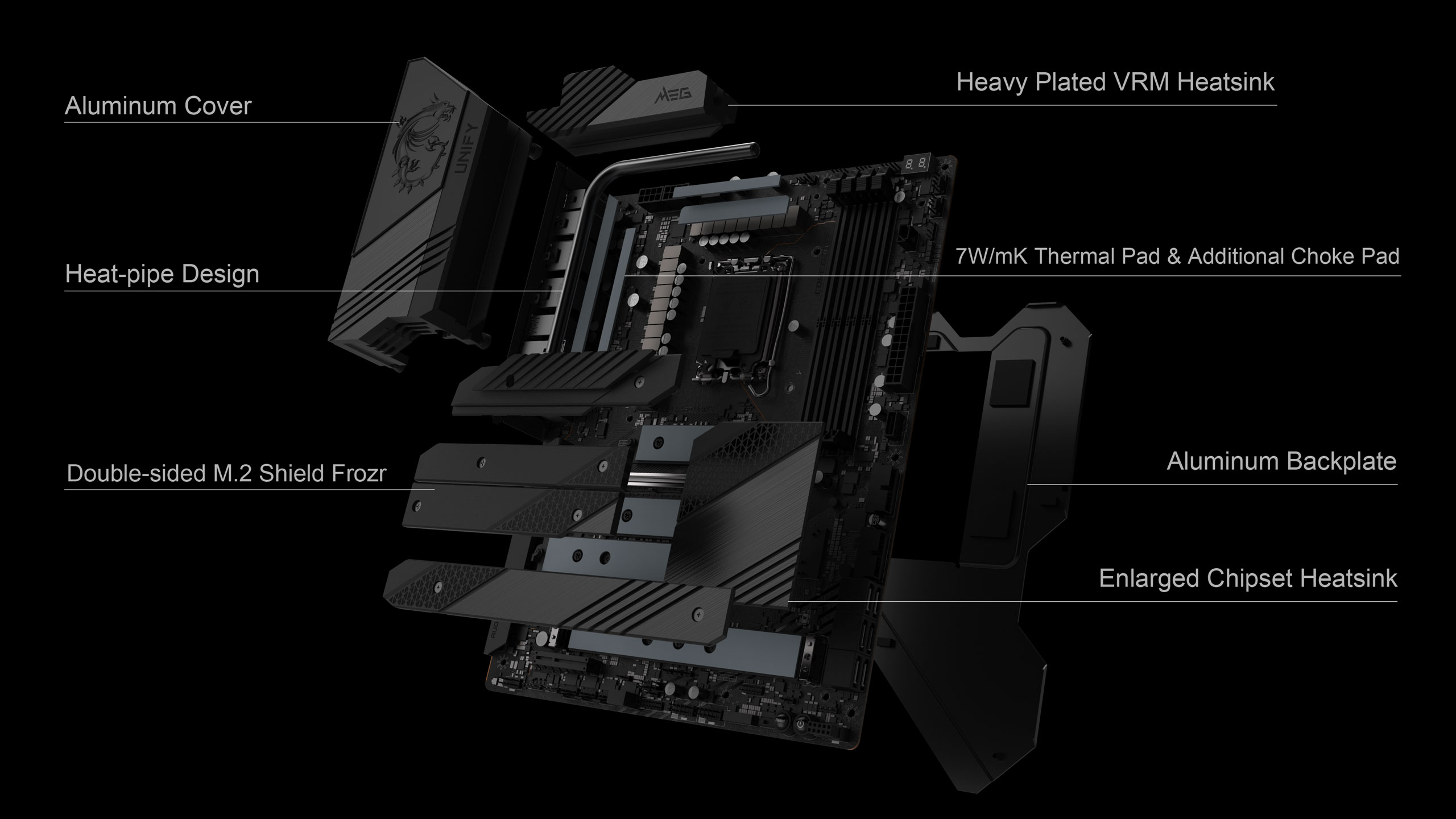

- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2×2 20G.
- 8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
Original price was: AED 2,999.00.AED 2,699.00Current price is: AED 2,699.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
4
Items sold in last 24 hours
4
People watching this product now!
PREMIUM
HARDWARE DESIGN

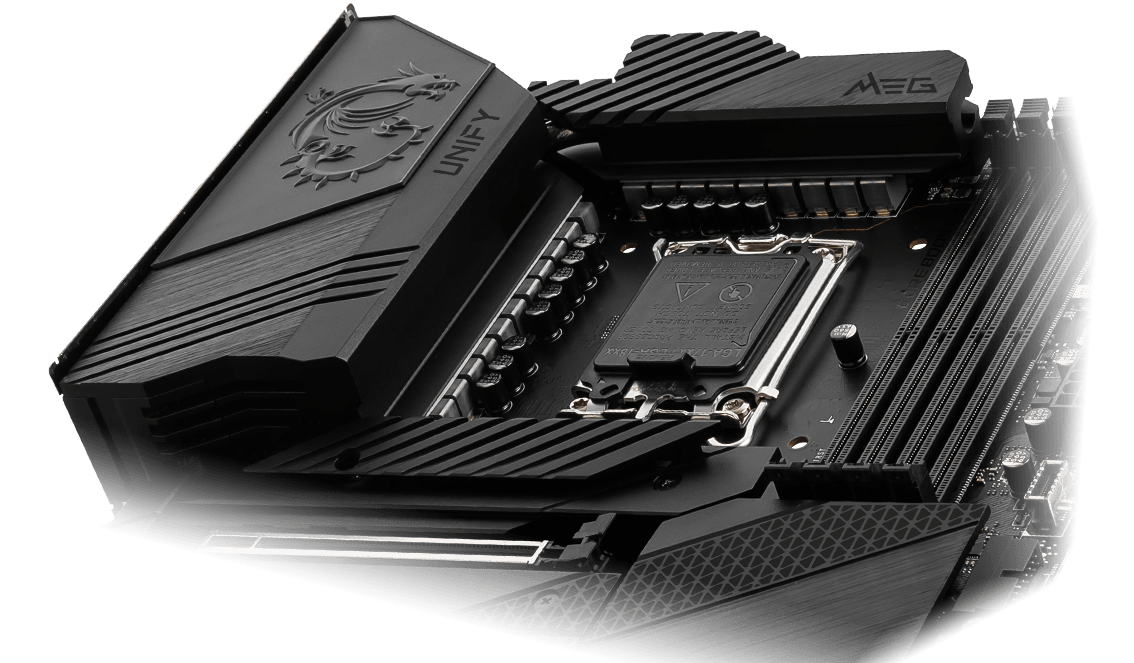

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

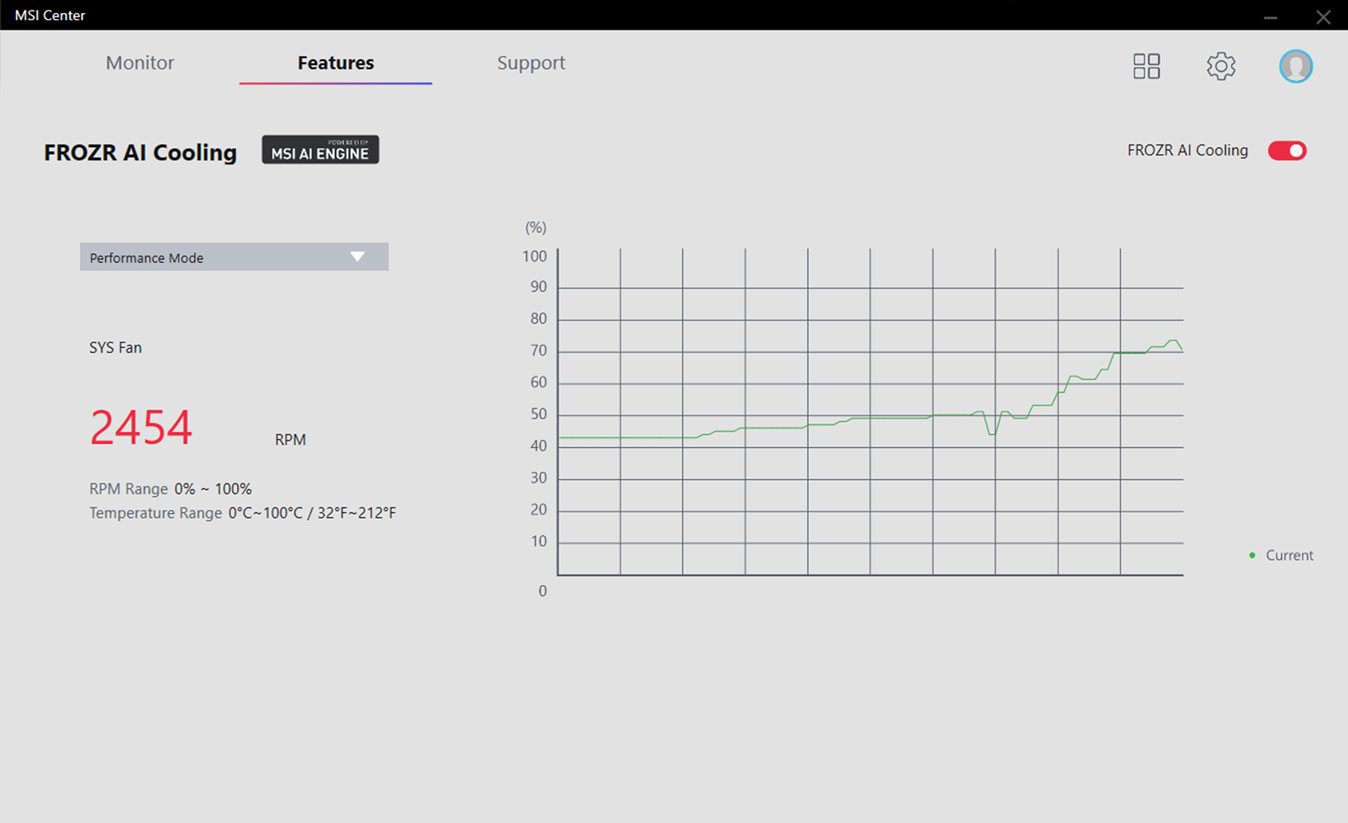

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

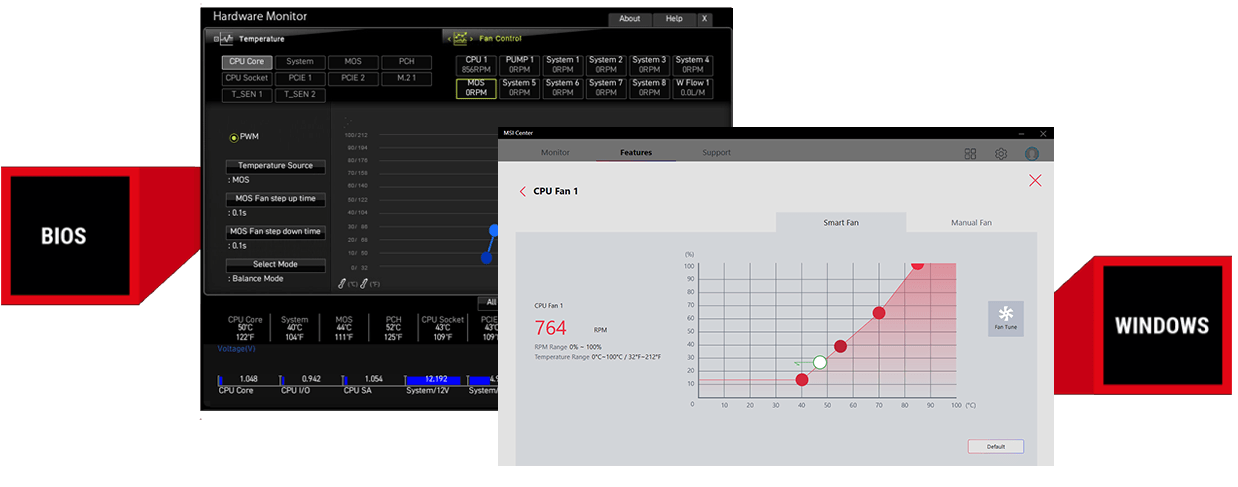

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
ENHANCED PERFORMANCE

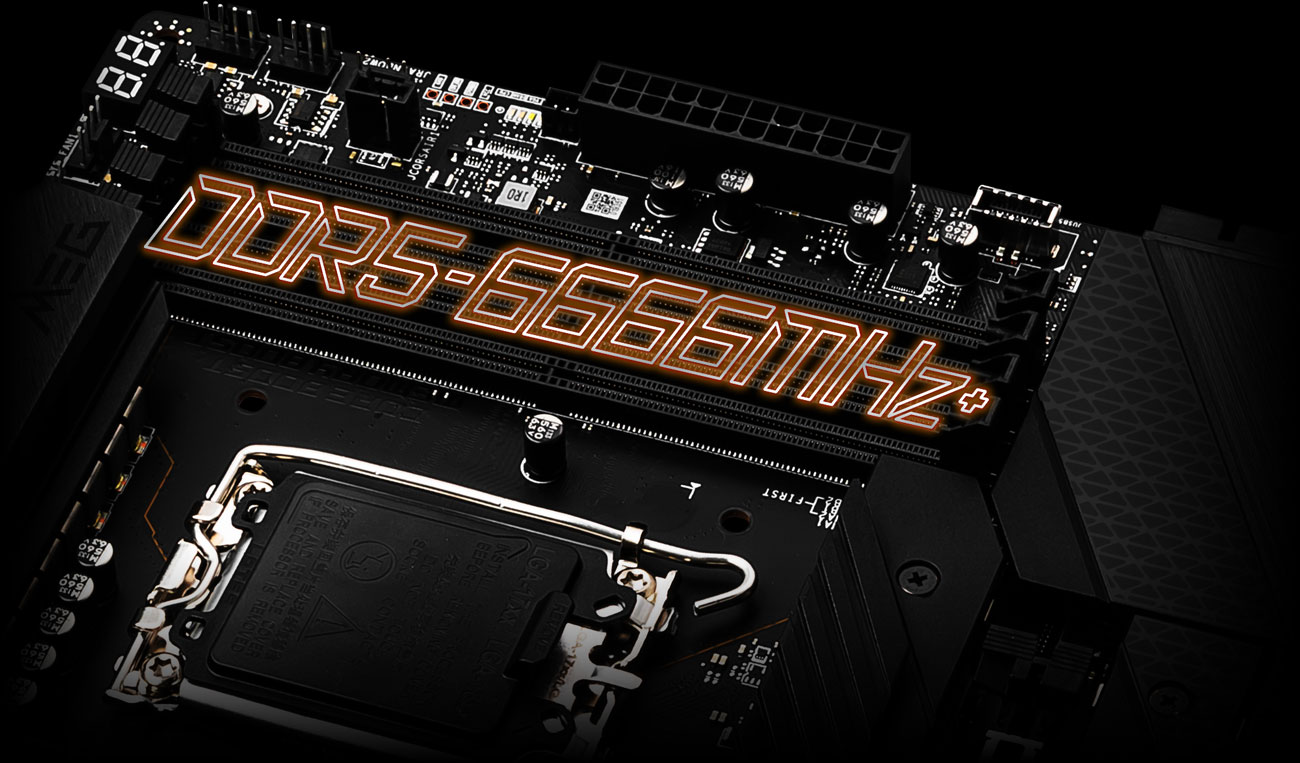

LATEST DDR5 MEMORY
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 UNIFY is ready to deliver the world class memory performance.
Specification
Socket
- LGA 1700
Chipset
- Intel® Z690 Chipset
CPU Support
- Supports Intel® Core™ 12th / 13th / 14th Gen Processors
- Compatible with Windows® 11 & Windows® 10 (64-bit)
Memory
- DDR5 Memory Support
- Speeds:
- 6666+(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC)
- 5600 / 5400 / 5200 / 5000 / 4800 MHz (JEDEC)
Configuration
- Dual Channel architecture
- 4 x DIMM slots
- Max capacity: 192GB
Expansion Slots
- 2 x PCIe x16 slots
- 1 x PCIe x4 slot
Storage
- 6 x SATA III ports
- 5 x M.2 slots
RAID Support
- RAID 0 / 1 / 5 / 10
Wireless & Connectivity
- Intel® Wi-Fi 6E module
- Bluetooth support included
USB Connectivity
Front USB
- 1 x USB 3.2 Gen 2×2 Type-C
- 4 x USB 3.2 Gen 1 Type-A
- 4 x USB 2.0

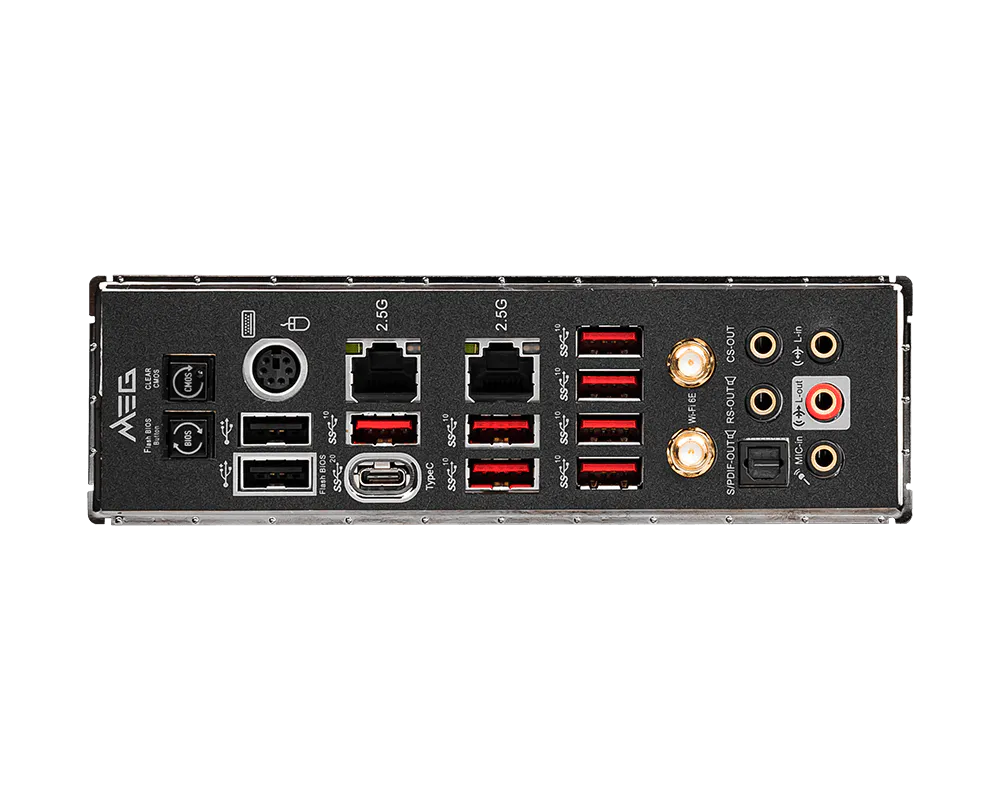

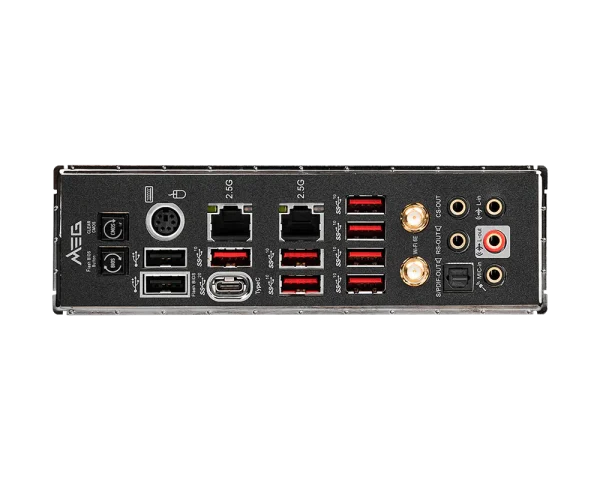

Rear USB
- 1 x USB 3.2 Gen 2×2 Type-C
- 7 x USB 3.2 Gen 2 Type-A
- 2 x USB 2.0
Audio
- Realtek® ALC4080 Codec
- 7.1-Channel High Definition Audio
- Optical S/PDIF Out
Graphics API Support
- DirectX® 12
Multi-GPU Support
- NVIDIA® SLI: Supported
- AMD CrossFire™: Supported
Back Panel Audio Ports
- 7.1 Channel audio jacks
- Optical S/PDIF-Out
Form Factor
- ATX
Dimensions
- 12 in x 9.6 in
- (30.5 cm x 24.4 cm)
