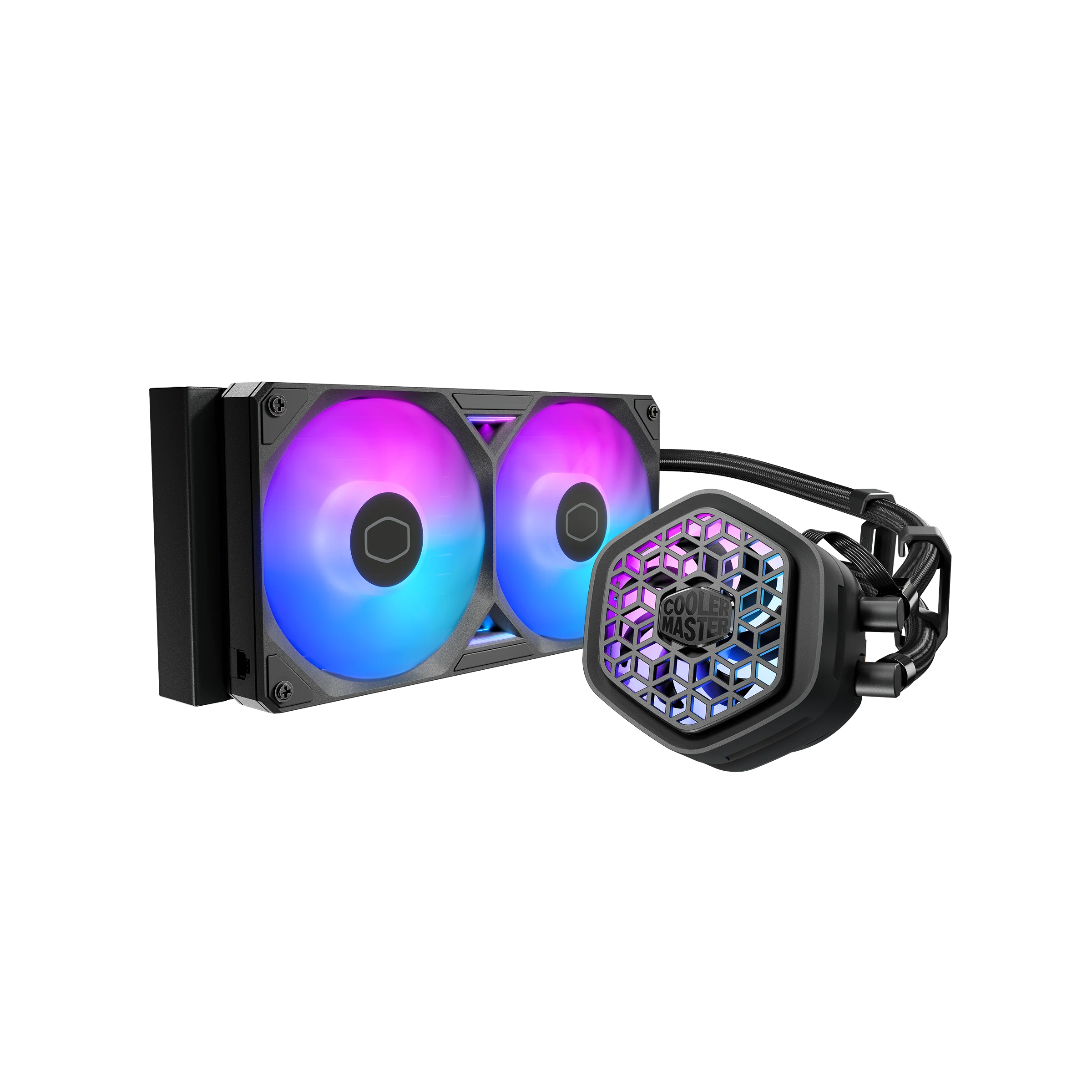

Cooler Master MasterLiquid Atmos II VRM 240mm Liquid Cooler, Dual Chamber Design, Ultra-low profile pump design, Black, MLX-D24M-A25SZ-V1
Original price was: AED 999.00.AED 659.00Current price is: AED 659.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|
360 DEGREES OF COOL
MasterLiquid Atmos II VRM Fan
⬢ VRM Fan for enhanced cooling experience
⬢ SickleFlow Edge ARGB fans
⬢ Ultra-low profile pump design
⬢ Quick and easy installation
MASTERLIQUID ATMOS II VRM FAN
Introducing Cooler Master’s all-new Atmos II VRM Fan CPU cooler, designed to elevate your cooling experience. The MasterLiquid Atmos II VRM Fan enabling users to achieve next-level cooling performance. The low-profile pump design makes it ideal for fitting into compact cases. With exceptional cooling performance, quieter operation, and the Atmos II VRM Fan delivers the perfect blend of performance, customization, and silence. Make it yours with the MasterLiquid Atmos II VRM Fan.
VRM FAN
The VRM fan module cools motherboard hot zones with airflow in six directions. It can reduce temperatures by up to 10.2°C*, to improve both stability and performance.
Precision VRM Cooling
Validated by Cooler Master Lab, the VRM fan delivers targeted cooling, reducing temperatures by up to 10.2°C across critical components for enhanced performance and stability.
DUAL CHAMBER DESIGN
Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.
Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.
Tough. Reliable. Built to Endure.
Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability—designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70°C for 3,000 hours and 120 °C for 12 hours*, ensuring reliable performance under the harshest conditions.
PRE-INSTALLED SICKLEFLOW EDGE ARGB FAN
High RPM fan with low vibration ensure strong cooling with minimal noise, while the dual color options complement different system aesthetics.
ULTRA-LOW PROFILE PUMP DESIGN
The flat design allows installation in cases of different sizes while maintaining strong performance.
QUICK AND EASY INSTALLATION
A quick-mount kit ensures compatibility with mainstream processor sockets and the pre-installed fans simplify setup.
Offset Mounting Brackets for LGA 1851
Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851*, which precisely dissipate 4°C of heat from the center of the CPU.
INCLUDED CRYOFUZE
THERMAL PASTE
TUBE CLIPS INCLUDED
Specifications
- Product Number (240 Black) MLX-D24M-A25SZ-V1, (240 White) MLX-D24M-A25SZ-VW, (360 Black) MLX-D36M-A25SZ-V1, (360 White) MLX-D36M-A25SZ-VW (*SKU may vary by region)
- CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
- CPU Socket AMD® AM5 / AM4
- Radiator Material Aluminum
- Radiator Dimensions (240) – 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
- Radiator Dimensions (360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
- Pump Dimensions 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
- Pump Profiles Addressable Gen2 RGB
- Pump Speed 3400 ± 300 RPM
- Pump MTTF >210,000 Hours
- Pump Noise Level 25 dBA (Max)
- Pump Rated Voltage 12 VDC
- Pump Power Consumption 3.84 W
- Pump Connector 3-Pin ARGB + 4-Pin PWM
- Tube Length (240) 350 mm
- Tube Length (360) 400 mm
- Fan Dimensions (L x W x H) (240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
- Fan Dimensions (L x W x H) (360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
- Profile Addressable Gen 2 RGB
- Fan Quantity 1 PC
- Fan Speed 690 ~ 2500 RPM ± 15%
- Fan Airflow (240) 240.35 m³/h (141.4 CFM)
- Fan Airflow (360) 322.8 m³/h (190 CFM)
- Fan Air Pressure 3.61 mmH2O
- Fan MTTF >160,000 Hours
- Fan Noise Level (240) 36 dB(A)
- Fan Noise Level (360) 38.5 dB(A)
- Fan Bearing Type Loop Dynamic Bearing
- Fan Connector 7-Pin PWM + ARGB
- Fan Rated Voltage 12 VDC
- Fan Rated Current 0.5 A
- Fan Safety Current 0.8 A
- Fan Power Consumption 6 W
- Radiator Size 240
- Radiator Size 360
- Cooler Type Liquid Cooler
- Series MasterLiquid
- VRM Fan Exterior Color Black / White
- VRM Fan Dimensions 85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch)
- VRM Fan Wire Length 1000 mm
- VRM Fan Fan Speed 450~4000 RPM ±10%
- VRM Fan Fan Airflow 15.8 m³/h (9.3 CFM)
- VRM Fan Fan Air Pressure 2.8 mmH₂O
- VRM Fan Fan Noise Level 36 dB (A)
- VRM Fan Fan MTTF >50,000 Hours
- VRM Fan Fan Bearing Type Loop Dynamic Bearing
- VRM Fan Fan Connector 4-Pin PWM
- VRM Fan Fan Rated Voltage 12 VDC
- VRM Fan Fan Rated Current 0.15 A
- VRM Fan Fan Safety Current 0.25 A
- VRM Fan Power Consumption 1.8 W
