AI Advisor

ASUS AI Advisor is an ASUS technical expert that’s always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

Performance

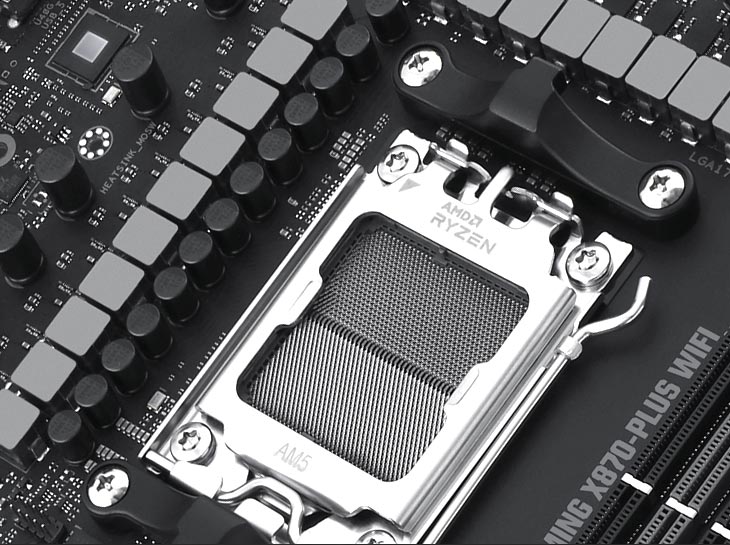

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Performance

Memory & Storage

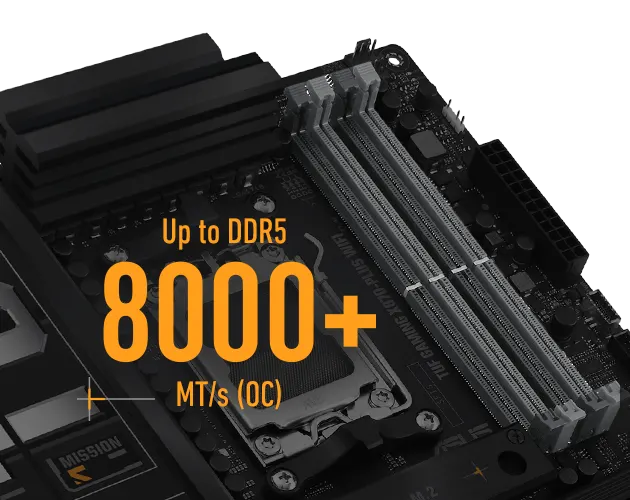

DRAM Overclocking Performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

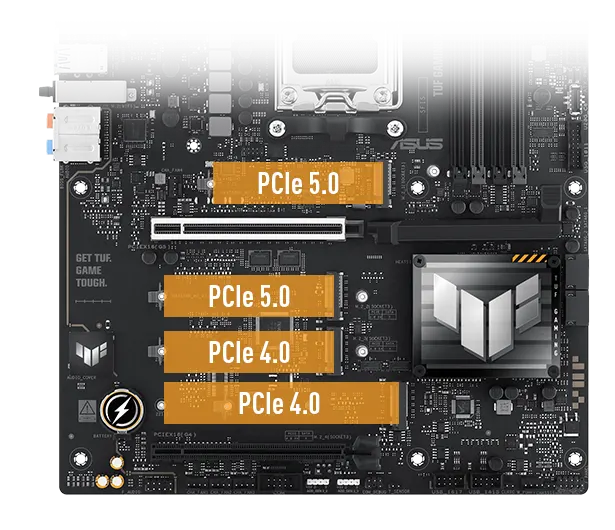

M.2 PCIe 5.0 Support

This motherboard also features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Cooling

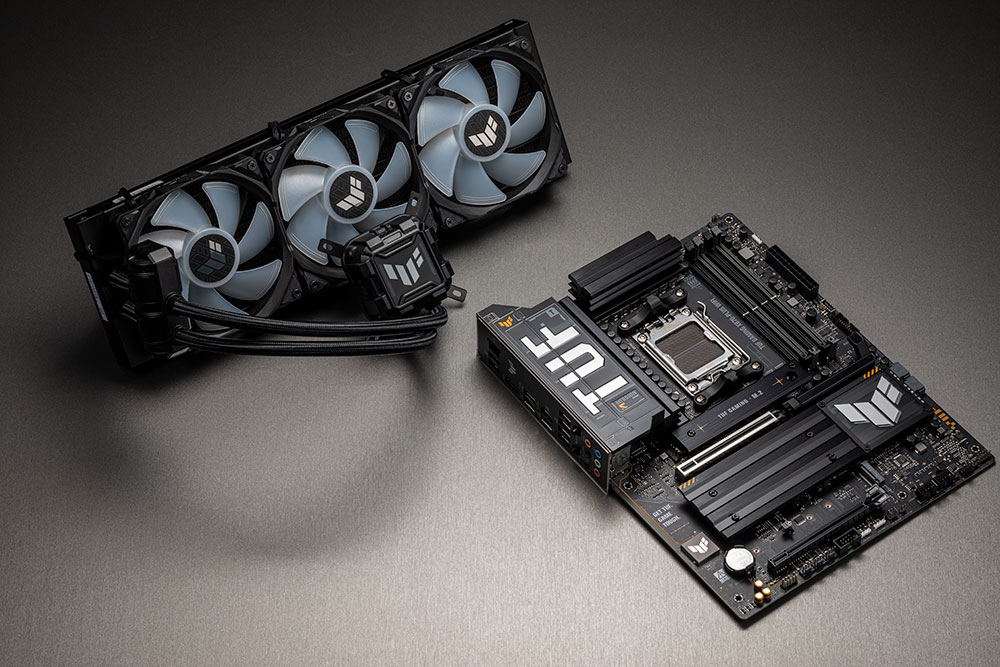

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Specification

Model

TUF GAMING X870-PLUS WIFI

CPU

AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
Refer to ASUS support website for CPU compatibility list.

Chipset

AMD X870 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+ MT/s (OC)
• ECC and Non-ECC Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD EXPO™ and ASUS AEMP

Graphics

• 1 x HDMI™ port (4K@60Hz)
• 2 x USB4® (40Gbps) Type-C ports (Display output up to 4K@60Hz)

Expansion Slots

Ryzen 9000 / 7000 Series:

• 1 x PCIe 5.0 x16 (x16 mode, runs x8 when M.2_2 is used)

Ryzen 8000 Series:

• 1 x PCIe 4.0 x16 (x8/x4 mode)

Chipset:

• 1 x PCIe 4.0 x16 (x4 mode, disabled when M.2_4 is used)

Storage

• 4 x M.2 slots
• 2 x SATA 6Gb/s ports

CPU Support:

• M.2_1: PCIe 5.0 x4
• M.2_2: PCIe 5.0 x4 (disabled on Ryzen 8000)

Chipset Support:

• M.2_3: PCIe 4.0 x4
• M.2_4: PCIe 4.0 x4

Bandwidth sharing applies between PCIe and M.2 slots.

RAID Support

• RAID 0/1/5/10 (Ryzen 9000)
• RAID 0/1 (Ryzen 8000)
• RAID 0/1/10 (Ryzen 7000)

Networking

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 7 (802.11be, 2×2)
• Supports 2.4GHz / 5GHz / 6GHz
• Up to 2.9Gbps
• Bluetooth 5.4

USB Ports

Rear (10 Ports):

• 2 x USB4® (40Gbps) Type-C
• 3 x USB 10Gbps Type-A
• 4 x USB 5Gbps Type-A
• 1 x USB 2.0

Front (7 Ports):

• 1 x USB 20Gbps Type-C (30W PD Fast Charge)
• 2 x USB 5Gbps
• 4 x USB 2.0

Audio

• Realtek ALC1220P 7.1 HD Audio CODEC
• 120 dB SNR playback / 113 dB SNR recording
• Supports up to 32-bit / 192kHz
• Built-in amplifier, shielding & premium capacitors

Back Panel I/O

• 2 x USB4 Type-C
• 3 x USB 10Gbps Type-A
• 4 x USB 5Gbps Type-A
• 1 x USB 2.0
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x BIOS FlashBack button

Internal Connectors

Cooling:

• CPU Fan, CPU OPT, AIO Pump
• 4 x Chassis fan headers
• 1 x W_PUMP+ header

Power:

• 24-pin ATX
• 2 x 8-pin CPU

Storage:

• 4 x M.2
• 2 x SATA

USB:

• 1 x USB-C (20Gbps, 30W PD)
• 2 x USB 5Gbps
• 4 x USB 2.0

Others:

• RGB headers
• Thermal sensor header
• Front panel header
• Audio header

Special Features

• ASUS TUF Protection (DIGI+ VRM, ESD Guards, LANGuard)
• SafeSlot & SafeDIMM
• M.2 Q-Latch & PCIe Q-Release
• BIOS FlashBack
• Pre-mounted I/O shield
• VRM & M.2 heatsinks

Software

• Armoury Crate (Aura Sync, Fan Xpert 4, AI Cooling II)
• ASUS AI Advisor
• TUF Gaming CPU-Z
• DTS Audio Processing
• ASUS DriverHub, GlideX
• Norton 360 (trial)
• WinRAR (trial)

BIOS

• 256 Mb UEFI AMI BIOS
• EZ Flash 3, CrashFree BIOS

Accessories

• 2 x SATA cables
• WiFi antenna
• M.2 rubber & screws
• TUF Gaming sticker
• Quick start guide

Operating System

Windows 11

Form Factor

ATX
30.5 cm x 24.4 cm
