Performance

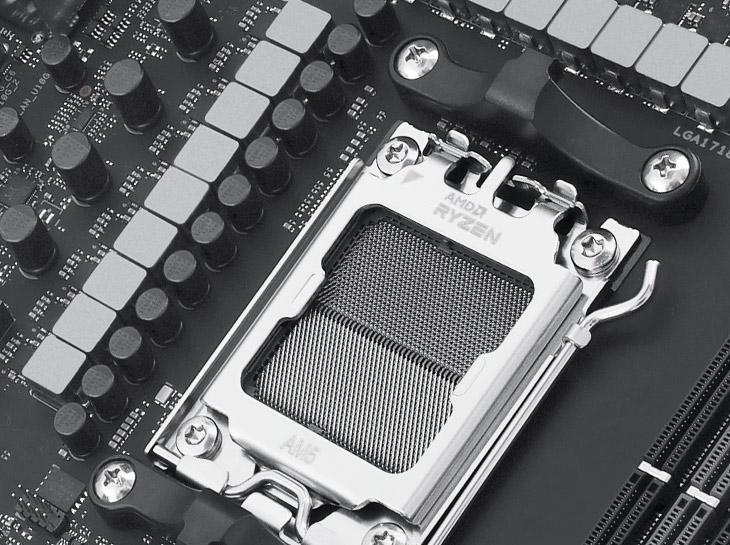

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Performance

Memory & Storage

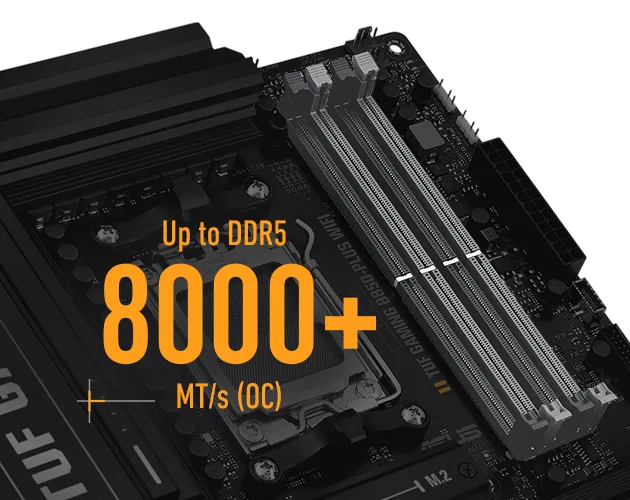

DRAM Overclocking Performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.

DDR5 DOMINANCE

For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

Cooling

Cooler by Design

Cooling

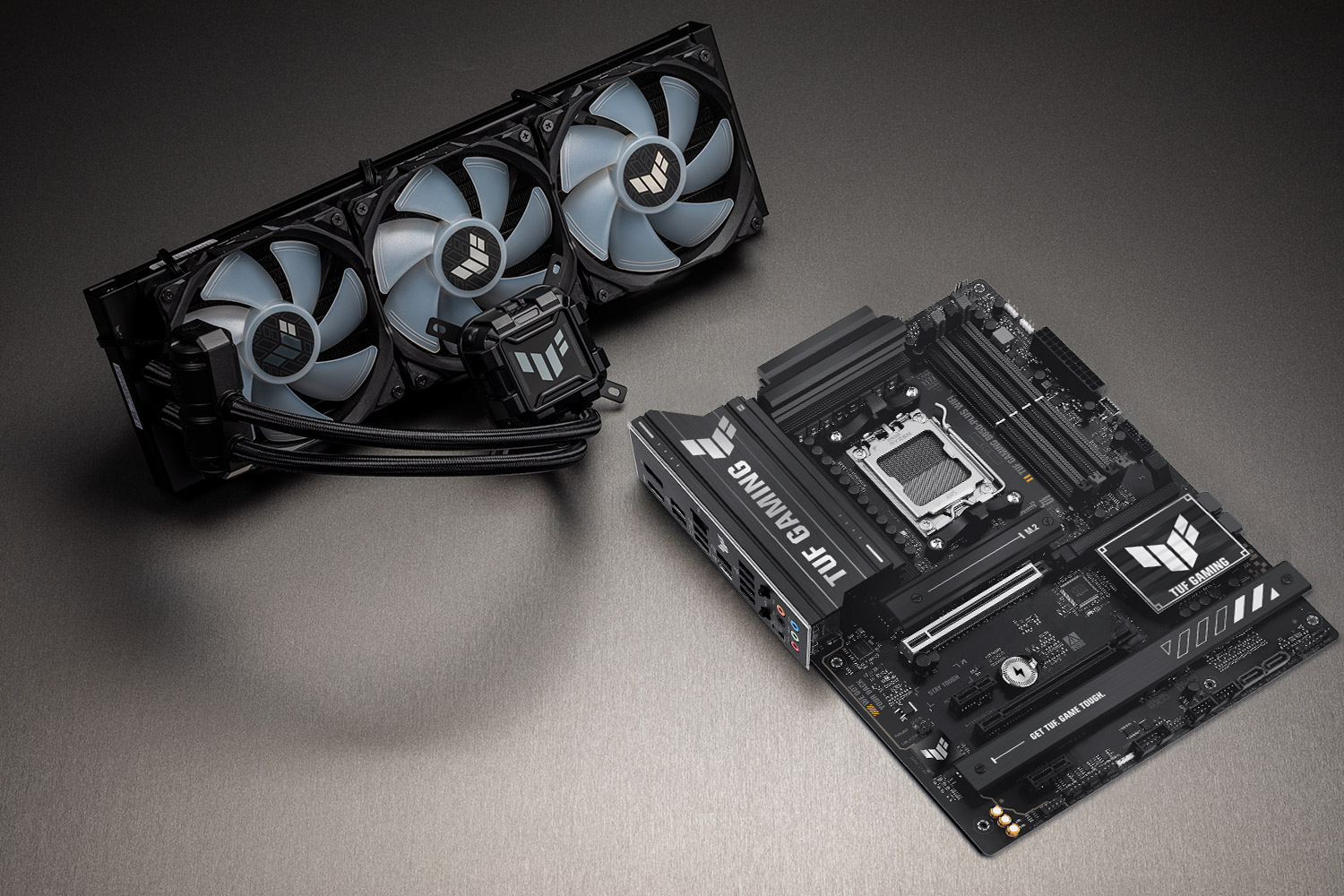

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Specification

CPU

• AMD Socket AM5
• Supports AMD Ryzen 9000, 8000 & 7000 Series Processors

Chipset

• AMD B850 Chipset

Memory

• 4 x DIMM slots, max 256GB DDR5
• Supports up to 8000+ MT/s (OC)
• Supports ECC & Non-ECC Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD EXPO and ASUS AEMP
• Non-ECC DDR5 supports On-Die ECC

Graphics

• 1 x DisplayPort (up to 8K @ 30Hz)
• 1 x HDMI (up to 4K @ 60Hz)
• Graphics support depends on CPU

Expansion Slots

• 1 x PCIe 5.0 x16 slot (Ryzen 9000 & 7000)
• 1 x PCIe 4.0 x16 slot (Ryzen 8000, x8/x4 mode)
• 1 x PCIe 4.0 x16 slot (x4 mode via chipset)
• 2 x PCIe 4.0 x1 slots
• PCIe x16 (Gen4) shares bandwidth with M.2_3 and may be disabled when M.2_3 is in use

Storage

• 3 x M.2 slots
  • 1 x PCIe 5.0 x4 (Ryzen 9000 & 7000)
  • 1 x PCIe 4.0 x4 (supports 2242/2260/2280/22110)
  • 1 x PCIe 4.0 x4 (chipset)
• 4 x SATA 6Gb/s ports

RAID Support

• Ryzen 9000: RAID 0 / 1 / 5 / 10
• Ryzen 8000: RAID 0 / 1
• Ryzen 7000: RAID 0 / 1 / 10

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 7 (2×2, 2.4 / 5 / 6 GHz, up to 2.9Gbps)
• Bluetooth 5.4

USB Connectivity

Rear USB (10 ports)

• 1 x USB Type-C (20Gbps)
• 3 x USB 10Gbps (Type-A)
• 4 x USB 5Gbps (Type-A)
• 2 x USB 2.0

Front USB (7 ports)

• 1 x USB Type-C (10Gbps)
• 2 x USB 5Gbps
• 4 x USB 2.0

Audio

• Realtek ALC1220P 7.1 HD Audio Codec
• Supports up to 32-bit / 192kHz playback
• 120 dB SNR playback / 113 dB SNR recording
• Built-in amplifier for headphones
• Audio shielding and premium capacitors

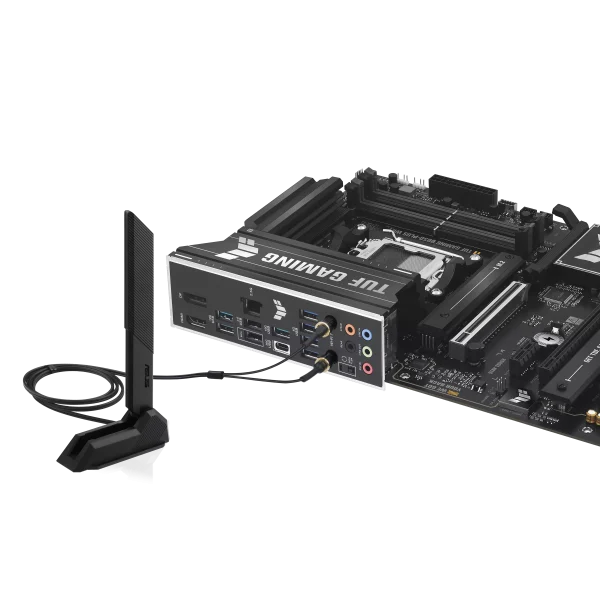

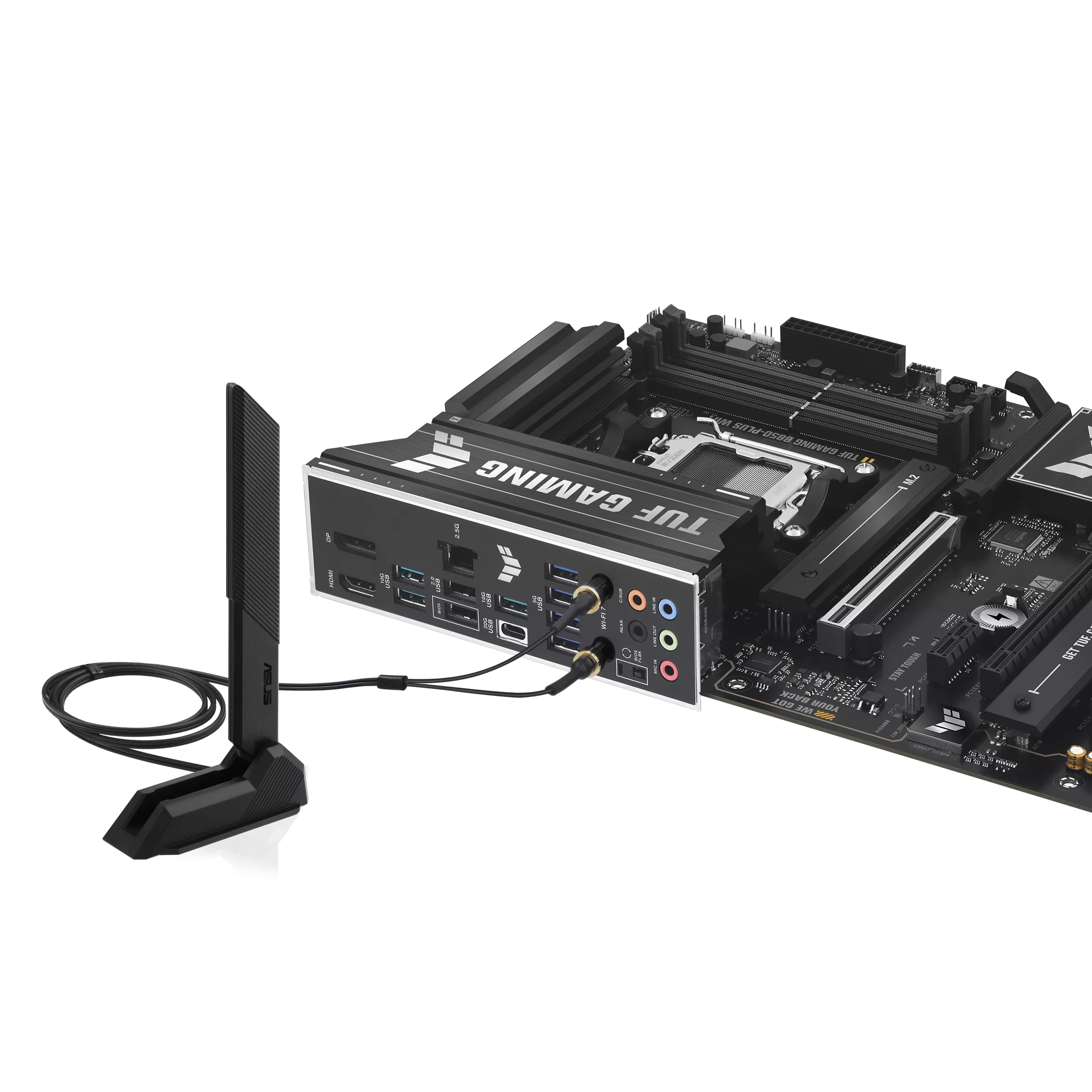

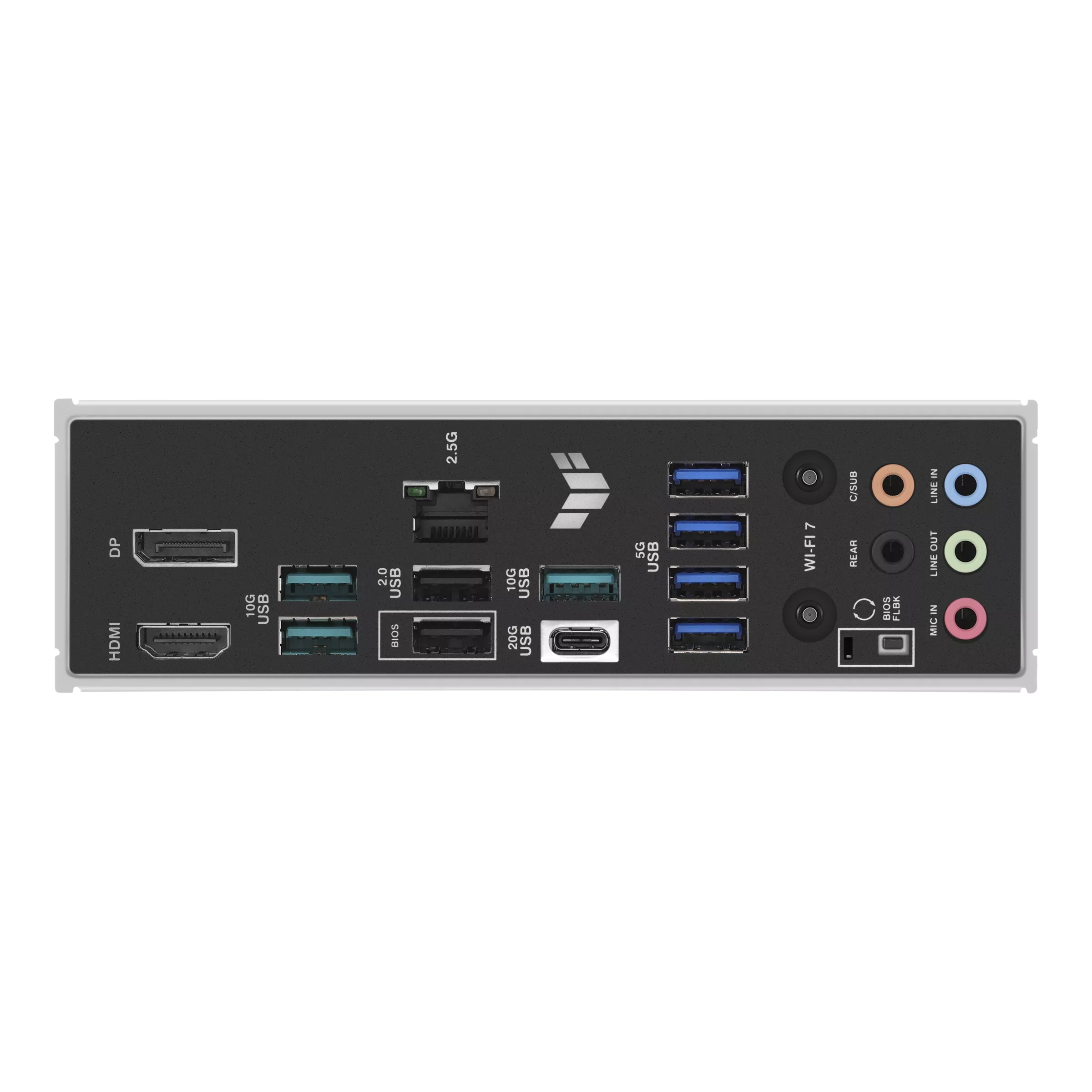

Back Panel I/O

• 1 x USB Type-C (20Gbps)
• 3 x USB 10Gbps
• 4 x USB 5Gbps
• 2 x USB 2.0
• 1 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x BIOS FlashBack button

Internal Connectors

Cooling

• 1 x CPU Fan header
• 1 x CPU OPT Fan header
• 1 x AIO Pump header
• 4 x Chassis Fan headers

Power

• 1 x 24-pin ATX
• 2 x 8-pin CPU power

Storage

• 3 x M.2 slots
• 4 x SATA ports

USB

• 1 x USB-C front connector (10Gbps)
• 1 x USB 5Gbps header
• 2 x USB 2.0 headers

Miscellaneous

• 3 x Addressable Gen 2 RGB headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM header
• 1 x Front Panel Audio header
• 1 x System Panel header
• 1 x Thunderbolt (USB4) header

Special Features

• ASUS TUF Protection (DIGI+ VRM, ESD Guards, LANGuard, Overvoltage protection, SafeSlot)
• Stainless steel back I/O
• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Antenna, Q-DIMM, Q-LED, Q-Slot
• VRM and M.2 heatsinks
• BIOS FlashBack with LED
• Pre-mounted I/O shield
• Aura Sync RGB

Software Features

• Armoury Crate
• Aura Creator / Aura Sync
• Fan Xpert 4
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• TUF Gaming CPU-Z
• DTS Audio Processing
• Norton 360 for Gamers (trial)
• WinRAR (trial)

BIOS

• 256 Mb Flash ROM
• UEFI AMI BIOS

Manageability

• WOL by PME
• PXE

Accessories

• 2 x SATA cables
• Wi-Fi antenna
• TUF Gaming sticker
• M.2 rubber kits
• Quick start guide

Operating System

• Windows 11

Form Factor

• ATX
• 12 x 9.6 inches (30.5 x 24.4 cm)
