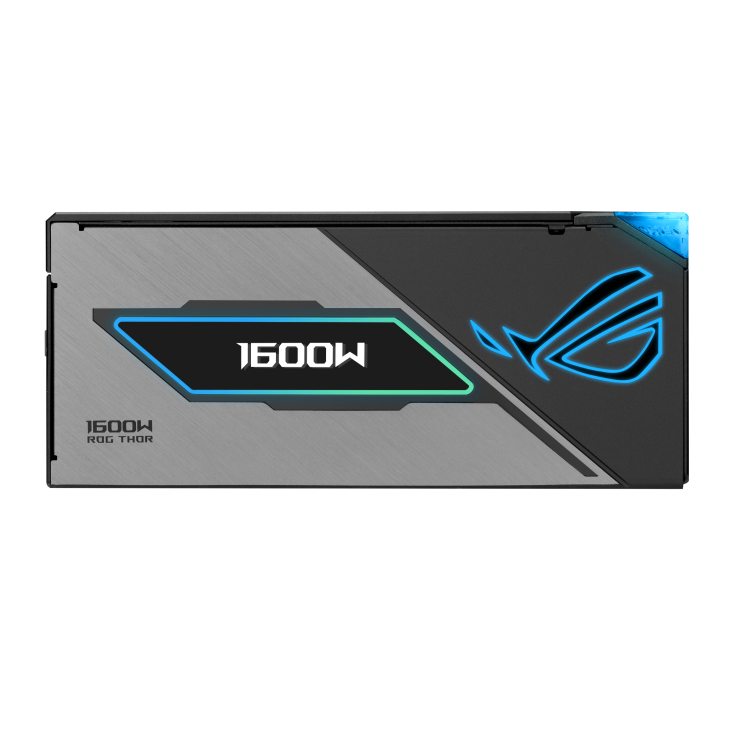

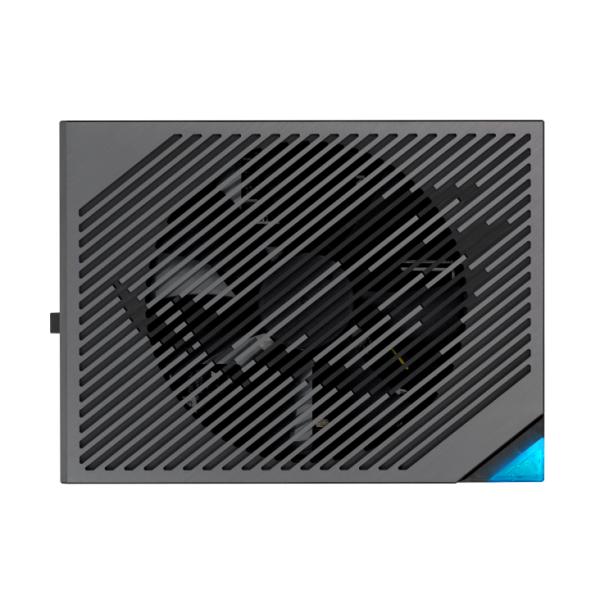

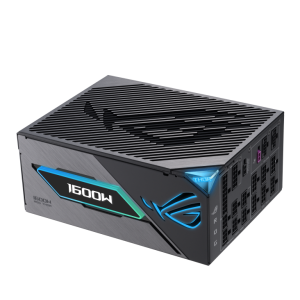

ASUS ROG THOR 1600W Titanium III Fully Modular Power Supply, 80 PLUS & Cybenetics Titanium certified

Quick Overview

GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
“GPU-First” voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
ATX 3.1 compatible: ROG Thor Titanium III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
80 PLUS & Cybenetics Titanium certified: ROG Thor Titanium III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
10-year warranty included.

SKU: 90YE00V1-B0NA00 Categories: Computer Components, Power Supply Tag: 1600W Power Supply

Original price was: AED 3,499.00.Current price is: AED 2,945.00.

Warranty

Included Warranty	1 Year Free Warranty

Delivery

Standard Delivery	One Day Delivery

4 Items sold in last 24 hours

20 People watching this product now!

Description
Additional information

ROG THOR 1600W TITANIUM III ULTIMATE POWER. UNMATCHED STABILITY.

The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and “GPU-First” voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads. The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

ENGINEERING

GaN MOSFET
Intelligent Voltage Stabilizer
High-performance Copper Pins
ATX 3.1Compatible
80 PLUS TitaniumCybenetics Titanium

GaN MOSFET

The ROG Thor 1600W Titanium III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

COOLING

ROGHeatsinks
Dual BallFan Bearings
0dBTechnology

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

EXPERIENCE

Magnetic OLED Display

This detachable magnetic OLED display showcases real-time power draw, providing insights to your system’s performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.

Specification

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

200 x 150 x 86 mm

Efficiency

80Plus Titanium

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

30A 25A 133.3A 0.3A 3A

Combined Load

125W 125W 1600W 3.6W 15W

Total Output

1600W

Cable Connectors

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 4 PCI-E 16-pin x 2 SATA x 10 PERIPHERAL x 9

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 16-pin Cable x 2 (750mm) PCI-E Cable 1-to-1 x 4 (750mm) SATA Cable 1-to-4 x 1 (400+120+120+120mm) SATA Cable 1-to-3 x 2 (400+120+120mm) Peripheral 1-to-3 x 3 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1

Weight

2.80 kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

TBD

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
