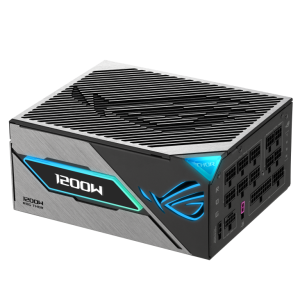

ASUS ROG Thor 1200W Platinum III Fully Modular Power Supply, 80 PLUS Platinum Certification, PCIe Gen 5.1 Ready

Name: ASUS ROG Thor 1200W Platinum III Fully Modular Power Supply, 80 PLUS Platinum Certification, PCIe Gen 5.1 Ready
Brand: Asus
SKU: 90YE00V2-B0NA00
Availability: InStock

SKU: 90YE00V2-B0NA00 Categories: Computer Components, Power Supply Tag: 1200W Power Supply

Original price was: AED 1,999.00.Current price is: AED 1,675.00.

Compare

Add to wishlist

Warranty

Included Warranty	1 Year Free Warranty

Delivery

Standard Delivery	One Day Delivery

4 Items sold in last 24 hours

3 People watching this product now!

Description
Additional information

ENGINEERING

GaN MOSFET

The ROG Thor 1200W Platinum III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

COOLING

ROGHeatsinks
Dual BallFan Bearings
0dBTechnology

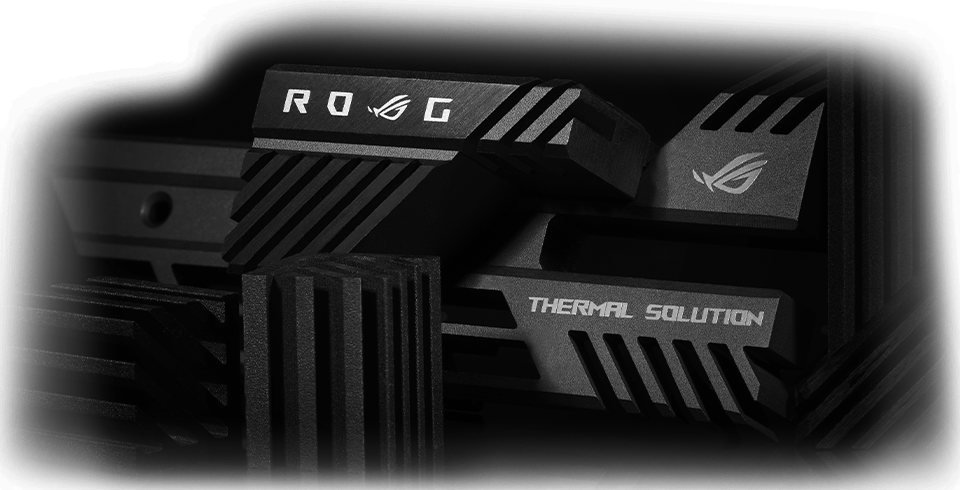

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

EXPERIENCE

Magnetic OLED Display

This detachable magnetic OLED display showcases real-time power draw, providing insights to your system’s performance and efficiency. The magnetic attachment can be swapped to either side of the unit for fan-up or fan-down PSU installation, depending on the design of your case, so you can maintain optimal airflow without compromising monitoring.

Specification

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

30A 25A 100A 0.3A 3A

Combined Load

125W 125W 1200W 3.6W 15W

Total Output

1200W

Cable Connectors

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 4 SATA x 7 PERIPHERAL x 6

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 16-pin Cable x 1 (750mm) PCI-E Cable 1-to-1 x 4 (750mm) SATA Cable 1-to-4 x 1 (400+120+120+120mm) SATA Cable 1-to-3 x 1 (400+120+120mm) Peripheral 1-to-3 x 2 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1

Weight

2.37 KG (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A++

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
